Product Overview
Buy TEC1-12706 Thermoelectric Peltier Cooling Module 12V 6A in Pakistan. Ideal for DIY cooling, mini refrigerators, water chillers and electronics projects.
Description

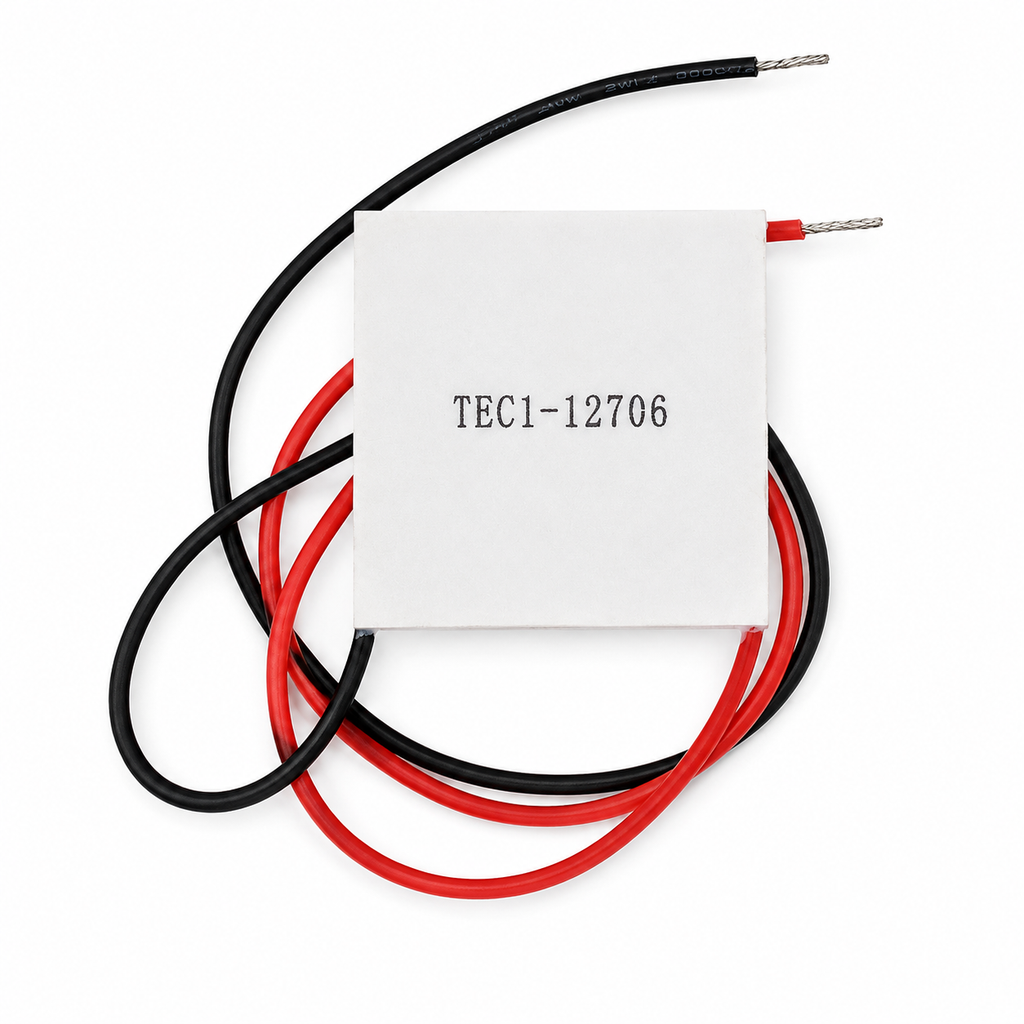

TEC1-12706 Thermoelectric Peltier Cooling Module 12V 6A
The TEC1-12706 Thermoelectric Peltier Cooling Module is a solid-state semiconductor cooling device that operates using the Peltier effect. When powered with DC voltage, one surface absorbs heat and becomes cold while the opposite surface dissipates heat and becomes hot. This compact, vibration-free cooling solution is widely used in DIY electronics, laboratory equipment, portable coolers, laser systems and temperature control applications.
Designed for 12V operation with a maximum current of 6A, the TEC1-12706 provides a cooling capacity of approximately 50W and can achieve a temperature difference of up to 65–66°C under ideal conditions when paired with an efficient heatsink and fan. It measures 40 × 40 mm, making it suitable for compact cooling systems.
Key Features
- Thermoelectric cooling technology
- 12V DC operation
- Maximum current 6A
- Approximately 50W cooling capacity
- Up to 65°C temperature difference
- Compact 40×40mm module
- Solid-state operation
- No refrigerant required
- Silent operation
- Lightweight design
- Suitable for heating and cooling
- Long service life
Technical Specifications
| Specification | Details |
|---|---|
| Model | TEC1-12706 |
| Technology | Thermoelectric (Peltier) |
| Operating Voltage | 12V DC (Typical) |
| Maximum Voltage | 15.4V |
| Maximum Current | 6A |
| Cooling Capacity (Qmax) | Approx. 50W |
| Maximum Temperature Difference (ΔTmax) | Approx. 65–66°C |
| Internal Resistance | 1.9–2.2Ω |
| Dimensions | 40 × 40 × 3.7 mm |
| Wire Length | Approx. 300 mm |
| Operating Temperature | -50°C to +138°C (module rating) |
Applications
Perfect for:
- Mini Refrigerators
- Water Chillers
- CPU Cooling Projects
- Electronics Cooling
- Portable Coolers
- Beverage Coolers
- Laser Cooling
- Medical Equipment
- Laboratory Instruments
- DIY Cooling Systems
- Temperature Control
- Science Projects
Package Includes
- 1 × TEC1-12706 Thermoelectric Peltier Cooling Module
Why Buy from Chip.pk?
- Premium quality thermoelectric modules
- Fast delivery across Pakistan
- Retail & wholesale pricing
- Secure packaging
- Technical support before purchase
- Trusted supplier for electronics and DIY projects
- Reliable cooling solutions
Frequently Asked Questions (FAQs)
Does this module require a heatsink?
Yes. A heatsink and cooling fan are essential on the hot side to prevent overheating and achieve proper cooling performance.
Can it be used for heating?
Yes. Reversing the polarity swaps the hot and cold sides, allowing it to be used for heating applications as well.
What power supply should I use?
A regulated 12V DC power supply capable of at least 6A is recommended for maximum performance.
Can it reach below 0°C?
Yes. Under ideal conditions with excellent heat dissipation and light thermal load, the cold side can drop below 0°C. Actual performance depends on ambient temperature and heatsink efficiency.
Is this suitable for DIY mini refrigerators?
Yes. It is one of the most commonly used thermoelectric modules for mini refrigerators, portable coolers and beverage chillers.
