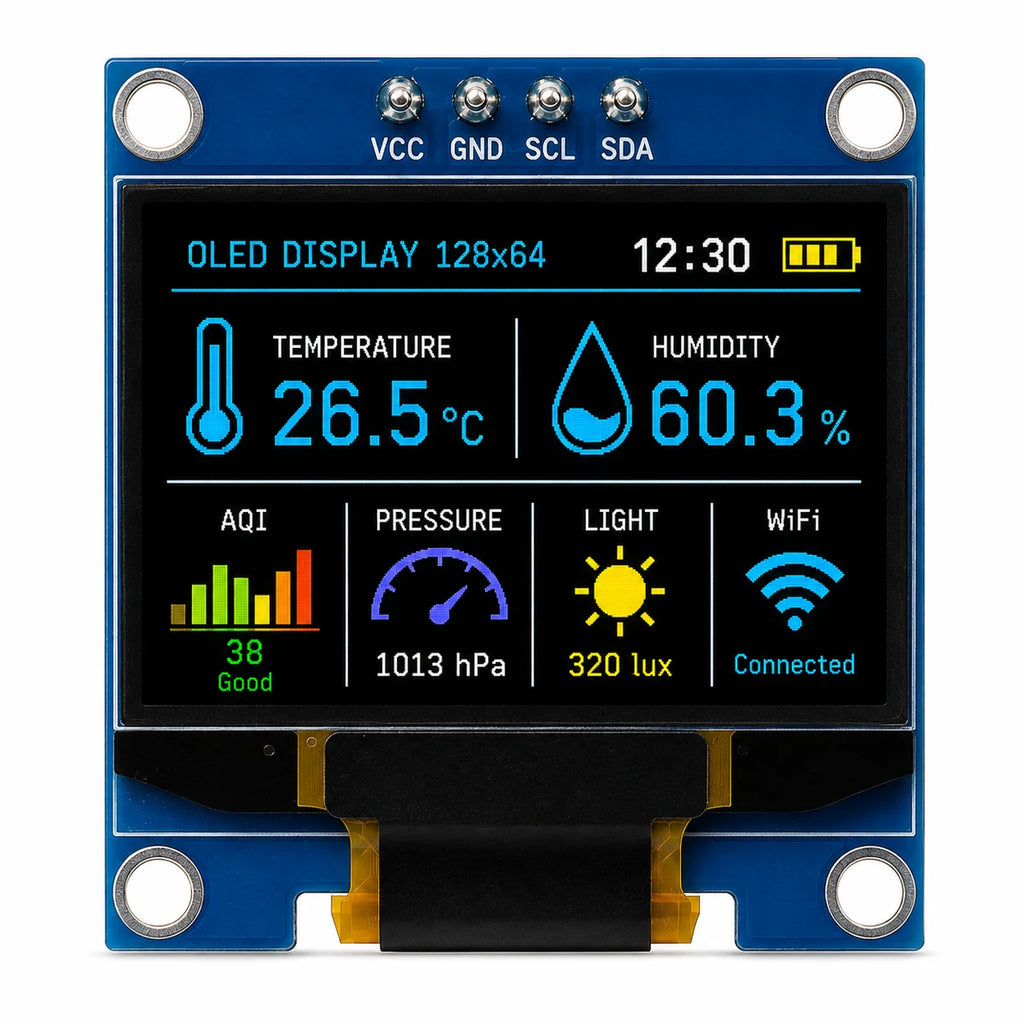

0.96 Inch OLED Display 128x64 I2C SSD1306 Module

The 0.96 Inch OLED Display Module features a 128×64 pixel resolution, SSD1306 controller and I2C interface. It operates from 3.3V to 5V DC and uses a compact 4-pin connection for easy integration with Arduino, ESP32, ESP8266, STM32, Raspberry Pi and other compatible development platforms.

Description

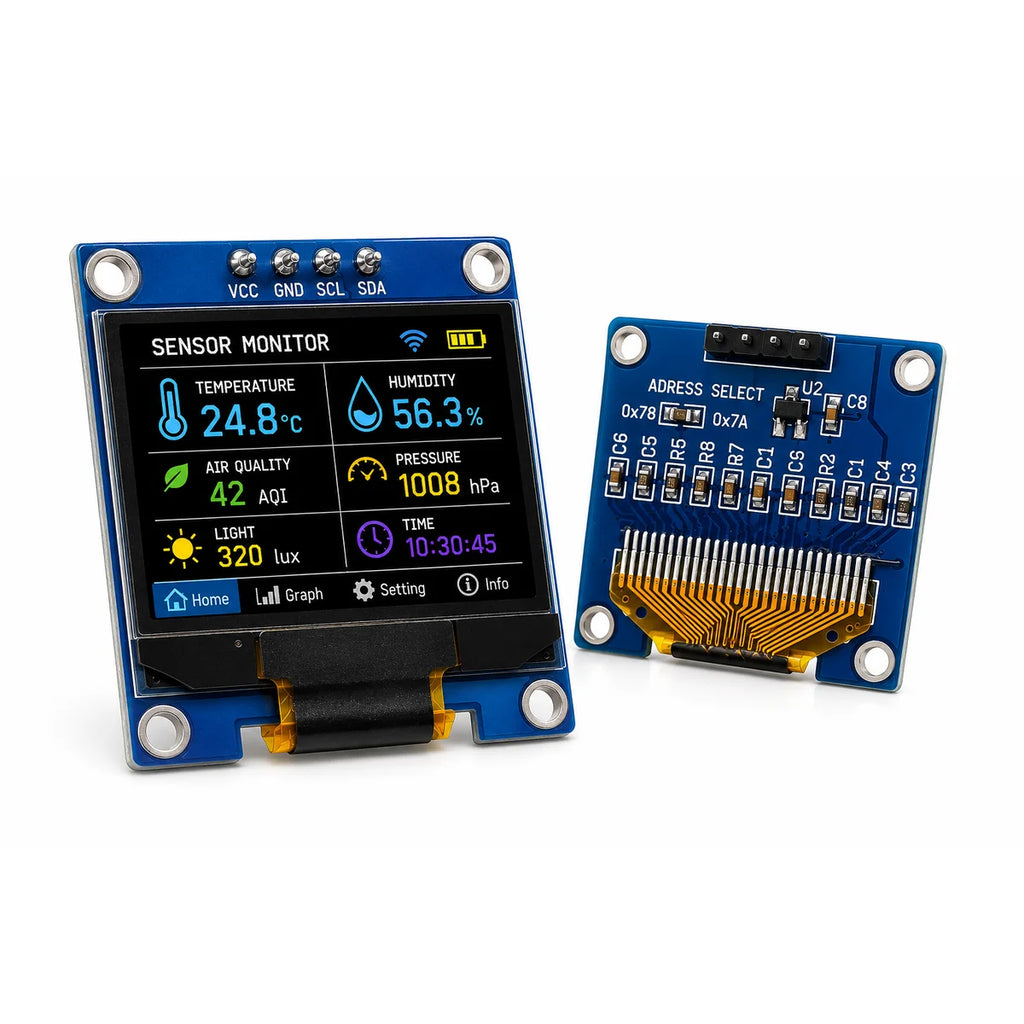

The 0.96 Inch OLED Display 128x64 I2C SSD1306 Module is a compact graphical display designed for microcontroller and embedded electronics projects.

Its 128×64 pixel resolution provides enough space for displaying text, numbers, sensor readings, icons, menus and simple graphics. Communication is handled through the I2C interface, using SCL and SDA lines along with power and ground.

The module uses the SSD1306 controller and operates from 3.3V to 5V DC. OLED technology is self-emissive, so a conventional LCD backlight is not required.

Its compact design and simple I2C connection make it suitable for Arduino, ESP32, ESP8266, STM32, Raspberry Pi and other compatible platforms used in IoT, robotics, instrumentation and embedded display projects.

Power consumption varies depending on the number of illuminated pixels, display content and operating conditions.

Key Features

• 0.96-inch OLED display
• 128 × 64 pixel resolution
• SSD1306 controller
• I2C / IIC communication
• 3.3V to 5V DC operating voltage
• Compact 4-pin interface
• Uses SCL and SDA communication lines
• Low power consumption
• Self-emissive OLED technology
• Suitable for text, numbers, icons and simple graphics
• Compatible with popular development platforms

Technical Specifications

Note: Current consumption can vary with display content, contrast/brightness settings, supply conditions and module revision.

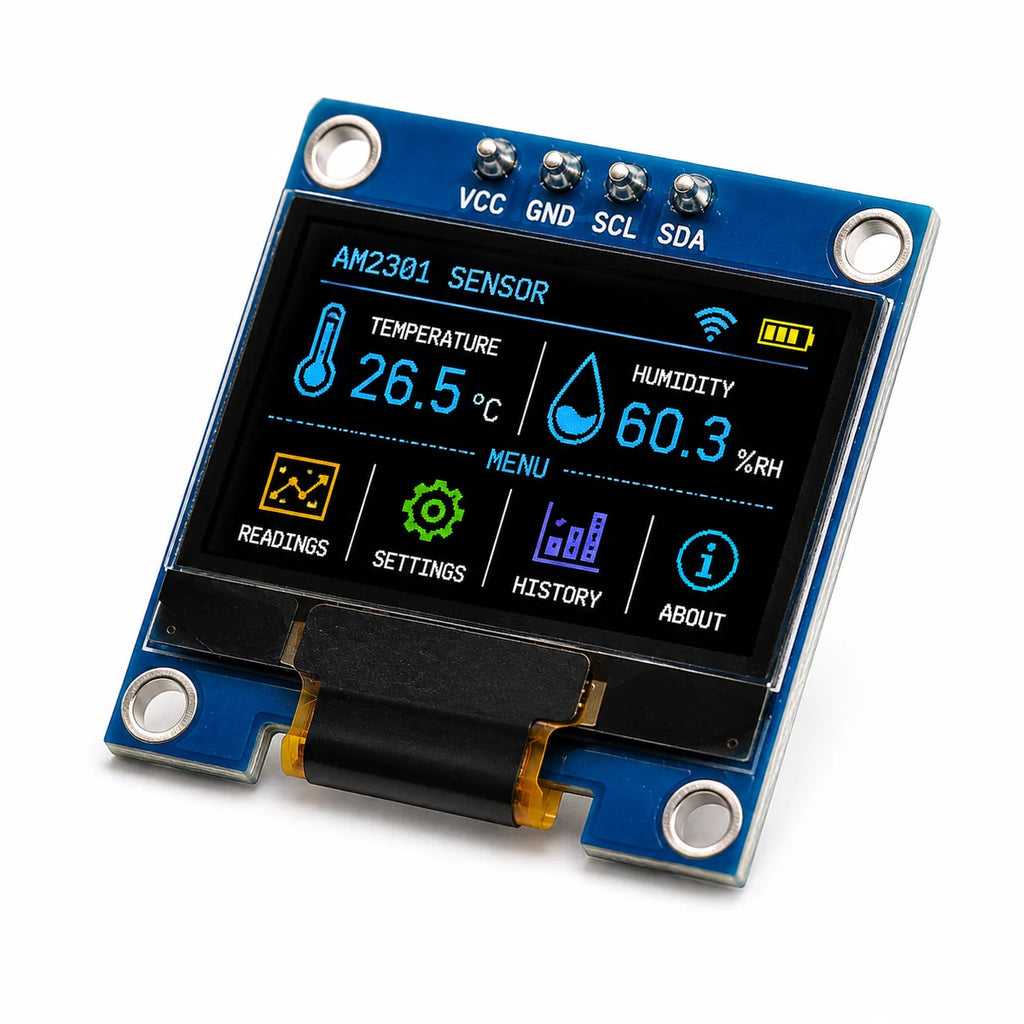

Pin Details

The actual Chip.pk stock uses this pin order:

Connection Order:
VCC → GND → SCL → SDA

Connection Note: Always follow the labels printed on the actual module when wiring. Similar-looking OLED modules may have a different VCC/GND pin arrangement.

Compatibility

The display can be integrated with development platforms that support suitable I2C communication and software libraries, including:

• Arduino UNO / Nano / Mega
• ESP32
• ESP8266 / NodeMCU
• STM32
• Raspberry Pi
• Other compatible I2C microcontrollers and development boards

Arduino is intentionally treated as a compatibility term rather than making the product appear Arduino-specific.

Applications

• Sensor data displays
• Temperature and humidity monitors
• IoT devices
• Robotics projects
• Battery monitoring systems
• Digital meters and instruments
• Portable electronics
• Menu and status displays
• Embedded control systems
• DIY and educational electronics

Package Includes

1 × 0.96 Inch OLED Display 128x64 I2C SSD1306 Module

Buy in Pakistan

Buy the 0.96 Inch OLED Display 128x64 I2C SSD1306 Module from Chip.pk for microcontroller, IoT, robotics and embedded electronics projects.

Check Chip.pk for the latest price in Pakistan and current stock availability.

Why Choose Chip.pk

Chip.pk supplies electronics components and development hardware for students, engineers, universities and makers in Pakistan.

FAQs

1.What is a 0.96 Inch OLED Display Module?

It is a compact 128×64 pixel graphical OLED display using the SSD1306 controller and I2C communication. It can display text, numbers, icons, sensor readings and simple graphics in embedded projects.

2.What is the operating voltage of this OLED display?

This Chip.pk module operates from 3.3V to 5V DC, making it suitable for many common development platforms.

3.What are the pin connections?

The actual Chip.pk stock uses this 4-pin arrangement:

VCC → Power
GND → Ground
SCL → I2C Clock
SDA → I2C Data

Always check the labels printed on the module before connecting power.

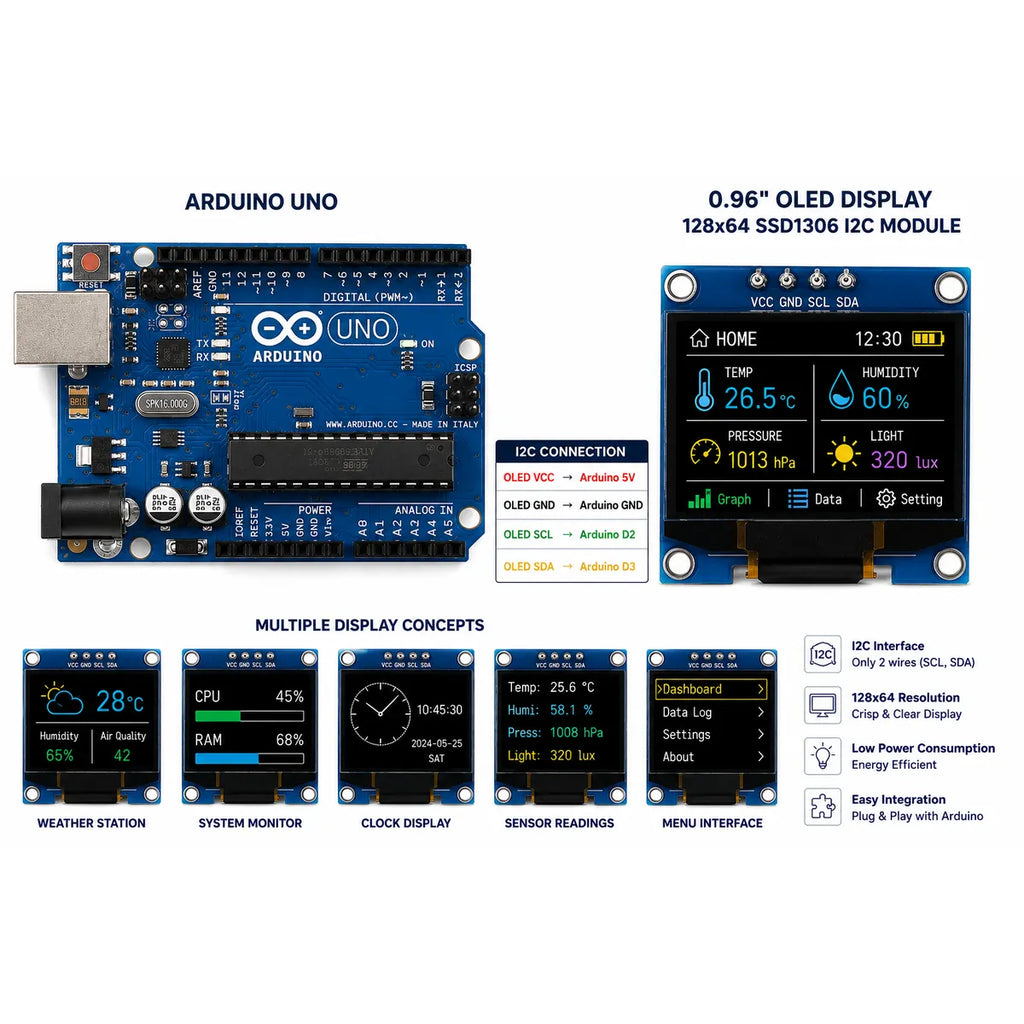

4.Can I use this OLED display with Arduino?

Yes. The module can be used with Arduino UNO, Nano, Mega and other compatible Arduino boards using I2C communication and a suitable SSD1306 library.

5.Is this OLED display compatible with ESP32 and ESP8266?

Yes. It can be used with ESP32 and ESP8266/NodeMCU boards through their appropriate I2C pins and compatible software libraries.

6.Can I use this display with STM32?

Yes. The display can be interfaced with compatible STM32 microcontrollers and development boards using I2C communication and suitable software support.

7.Can it be connected to Raspberry Pi?

Yes. A Raspberry Pi can communicate with an SSD1306 I2C OLED using its compatible I2C interface and appropriate software library.

8.What can be displayed on the 128x64 OLED screen?

It can display text, numbers, sensor readings, menus, status information, icons and simple graphics, depending on the software used.

9.Does this OLED display require a backlight?

No. OLED pixels are self-emissive, so the module does not require a conventional LCD backlight.

10.How much current does the OLED display consume?

Typical usage is approximately 10–20mA. Current may increase to approximately 25–30mA when all pixels are illuminated. Actual consumption varies with displayed content, contrast settings and module conditions.
