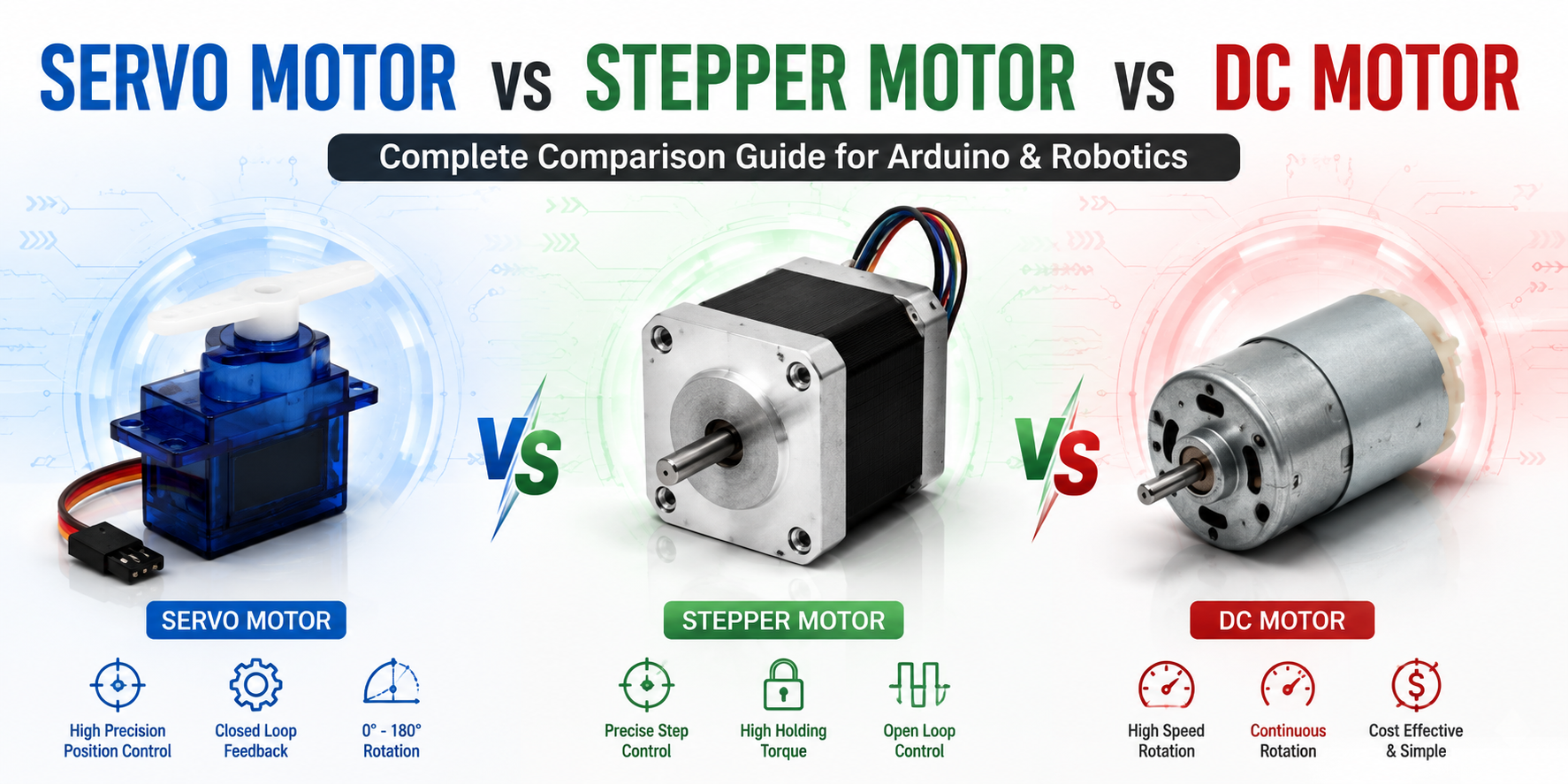

Servo Motor vs Stepper Motor vs DC Motor: Complete Comparison Guide

Electric motors are one of the most important components in modern electronics, robotics, industrial automation, CNC machines, 3D printers, drones, home automation systems, and countless DIY Arduino projects. Whether you're building a robotic arm, designing a smart conveyor system, or creating your first line-following robot, selecting the right motor directly affects the performance, accuracy, efficiency, and reliability of your project.

Three of the most widely used motor types are DC Motors, Stepper Motors, and Servo Motors. While all three convert electrical energy into mechanical motion, they are designed for very different purposes. A DC motor is ideal for continuous high-speed rotation, a stepper motor excels at precise incremental movement without requiring position feedback, and a servo motor provides highly accurate closed-loop position control.

Choosing the wrong motor can result in reduced performance, poor accuracy, overheating, increased power consumption, or complete project failure. Understanding how each motor works helps engineers, students, hobbyists, and makers design more efficient and reliable systems.

In this comprehensive guide, we'll explore the construction, working principles, advantages, disadvantages, applications, control methods, and Arduino interfacing of each motor type. By the end, you'll know exactly which motor is best suited for your next electronics or robotics project.

What Is an Electric Motor?

An electric motor is an electromechanical device that converts electrical energy into mechanical motion. It operates using the interaction between magnetic fields and electric current, producing rotational force known as torque.

Almost every automated machine today relies on electric motors, from household appliances and industrial equipment to electric vehicles and precision robotic systems.

Common Applications of Electric Motors

• Robotics and robotic arms
• CNC machines
• 3D printers
• Conveyor systems
• Automatic doors
• Drones and RC vehicles
• Smart home devices
• Medical equipment
• Industrial automation
• Electric vehicles (EVs)

Basic Components of an Electric Motor

Although different motor types vary internally, most electric motors include these fundamental components:

Rotor

The rotor is the rotating part of the motor. It converts electromagnetic force into rotational motion.

Stator

The stator is the stationary part that generates the magnetic field required to rotate the rotor.

Shaft

The shaft transfers rotational motion from the motor to the connected load, such as gears, wheels, or pulleys.

Bearings

Bearings reduce friction, support the shaft, and ensure smooth, stable rotation.

Windings

Copper windings carry electrical current to generate magnetic fields inside the motor.

Magnets

Permanent magnets or electromagnets create the magnetic field necessary for motor operation.

Understanding Important Motor Terminology

Before comparing different motors, it's essential to understand a few key technical terms.

Torque (Nm or kg·cm)

Torque is the rotational force produced by a motor. Higher torque allows a motor to move heavier loads.

Examples:

• Robotic arms require high torque.
• Conveyor systems require continuous torque.
• Camera gimbals need smooth, controlled torque.

RPM (Revolutions Per Minute)

RPM indicates how fast a motor rotates.

Examples:

• Small DC motors: 5,000–20,000 RPM
• Geared DC motors: 50–500 RPM
• Stepper motors: Controlled RPM
• Servo motors: Limited angular movement rather than continuous RPM

Voltage

Voltage determines the operating range of the motor.

Common values include:

• 3V
• 5V
• 6V
• 12V
• 24V
• 48V

Always match the motor's rated voltage with a suitable power supply to avoid damage.

Current

Current consumption depends on the motor's load. Motors typically draw much higher current when starting or when stalled.

Stall Torque

Stall torque is the maximum torque a motor can produce before it stops rotating. Exceeding this limit may overheat or damage the motor.

Holding Torque

Holding torque applies specifically to stepper motors. It refers to the motor's ability to hold its position without movement while powered.

Types of Electric Motors

Although there are many motor types, three dominate the electronics and maker community.

1. DC Motor

A DC motor is the simplest and most commonly used motor. It rotates continuously when DC voltage is applied. Speed depends mainly on the applied voltage or PWM signal.

Ideal for:

• Robot cars
• Fans
• Pumps
• Conveyor belts
• DIY electronics

2. Stepper Motor

A stepper motor rotates in small, fixed increments called steps. Each electrical pulse moves the shaft by a precise angle, making it ideal for positioning systems.

Ideal for:

• CNC machines
• 3D printers
• Plotters
• Camera sliders

3. Servo Motor

A servo motor is a closed-loop motor capable of moving to an exact angle and maintaining that position using internal feedback.

Ideal for:

• Robotic arms
• RC aircraft
• Camera gimbals
• Automation systems

What Is a DC Motor?

A DC (Direct Current) Motor converts direct electrical energy into continuous rotational motion. It is one of the oldest, simplest, and most widely used motor types in electronics.

Unlike stepper or servo motors, a DC motor has no built-in position control. It continues rotating as long as power is supplied.

Because of its simplicity, affordability, and high rotational speed, DC motors are widely used in consumer electronics, robotics, toys, and industrial equipment.

How Does a DC Motor Work?

A DC motor operates based on the interaction between magnetic fields and electric current.

1. DC voltage is applied to the motor terminals.
2. Current flows through the armature windings.
3. The windings generate a magnetic field.
4. This magnetic field interacts with the permanent magnets inside the motor.
5. The interaction produces rotational force (torque).
6. The commutator continuously reverses current direction, allowing the rotor to spin continuously.

This process repeats rapidly, enabling smooth and continuous rotation.

Internal Components of a DC Motor

A brushed DC motor typically consists of:

• Rotor (Armature)
• Stator (Permanent Magnets)
• Commutator
• Carbon Brushes
• Shaft
• Bearings
• Housing

Each component plays a critical role in generating motion and maintaining efficient operation.

Types of DC Motors

Brushed DC Motor

The most common and economical type, using carbon brushes and a commutator to transfer current to the rotating armature.

Applications:

• Toys
• Fans
• Pumps
• Robot cars

Geared DC Motor

A standard DC motor combined with a gearbox to reduce speed and increase torque.

Applications:

• Line-following robots
• AGVs
• Smart locks
• Conveyor belts

Brushless DC (BLDC) Motor

A more advanced design without brushes, offering higher efficiency, lower maintenance, and longer lifespan.

Applications:

• Drones
• Electric vehicles
• Industrial automation
• High-performance cooling systems

Advantages of DC Motors

• Simple design
• Low cost
• High rotational speed
• Easy PWM speed control
• Easy direction control with an H-Bridge driver
• Widely available
• Ideal for beginner Arduino projects
• Excellent for continuous rotation

Disadvantages of DC Motors

• No built-in position control
• Brushes wear over time (brushed motors)
• Lower precision compared to stepper and servo motors
• Reduced efficiency under heavy loads
• Requires a motor driver for Arduino control
• Can generate electrical noise due to brush contact

Common Applications of DC Motors

DC motors are used in a wide variety of systems, including:

• Robot cars
• Conveyor belts
• Water pumps
• Cooling fans
• Electric toys
• Smart home devices
• Automatic doors
• Battery-powered tools
• Small automation projects
• DIY Arduino projects

Why You Should Never Connect a DC Motor Directly to an Arduino

One of the most common beginner mistakes is powering a DC motor directly from an Arduino I/O pin.

An Arduino pin can safely supply only a small amount of current, while even a small DC motor may draw several hundred milliamps during startup or under load. Connecting a motor directly can permanently damage the microcontroller.

Instead, always use a suitable motor driver such as:

• L298N
• TB6612FNG
• BTS7960 (for high-current motors)
• MOSFET-based driver circuits

These drivers protect the Arduino and allow safe control of motor speed and direction.

What Is a Stepper Motor?

A Stepper Motor is a brushless synchronous electric motor that rotates in precise, fixed angular increments known as steps. Unlike a conventional DC motor, which spins continuously when power is applied, a stepper motor moves one step at a time based on electrical pulses received from a motor driver.

This ability to make highly accurate movements without requiring built-in position feedback makes stepper motors the preferred choice for precision automation systems such as CNC machines, 3D printers, laser engravers, pick-and-place machines, and industrial positioning equipment.

A stepper motor can move to an exact position, stop, hold its position under load, and continue moving with remarkable repeatability, making it one of the most reliable motors for motion control applications.

How Does a Stepper Motor Work?

A stepper motor consists of multiple electromagnetic coils arranged around a toothed rotor. Instead of applying constant voltage, the motor driver energizes these coils in a specific sequence.

The process works as follows:

1. The motor driver energizes one coil.
2. The rotor aligns with the magnetic field.
3. The driver energizes the next coil.
4. The rotor moves one step.
5. This sequence repeats, creating smooth and controlled rotation.

Each pulse sent by the controller moves the shaft by a fixed angle.

For example, a common NEMA 17 stepper motor has a 1.8° step angle, meaning it requires 200 steps to complete one full revolution (360°).

Internal Components of a Stepper Motor

A typical hybrid stepper motor includes:

• Rotor
• Stator
• Copper Windings
• Bearings
• Shaft
• Housing
• Connector

Unlike brushed DC motors, stepper motors do not use brushes or commutators, resulting in longer service life and reduced maintenance.

Types of Stepper Motors

Permanent Magnet Stepper Motor

Uses permanent magnets in the rotor.

Applications:

• Small robots
• Educational kits
• Consumer electronics

Variable Reluctance Stepper Motor

Uses a soft iron rotor.

Advantages:

• High speed
• Fast response

Applications:

• Industrial positioning

Hybrid Stepper Motor

The most common type.

Combines:

• Permanent magnet rotor
• Toothed rotor
• High precision

Applications:

• CNC Machines
• 3D Printers
• Laser Cutters
• Plotters

Understanding Step Angle

The Step Angle is the amount the motor rotates for every electrical pulse.

Examples:

Smaller step angles provide higher positioning accuracy.

What Is Microstepping?

Microstepping is a control technique where the driver divides one full step into many smaller steps.

Example:

• Full Step = 200 steps/revolution
• Half Step = 400 steps
• Quarter Step = 800 steps
• 1/8 Step = 1600 steps
• 1/16 Step = 3200 steps

Benefits:

• Smoother movement
• Reduced vibration
• Higher positioning accuracy
• Lower noise

Popular drivers such as the A4988 and DRV8825 support configurable microstepping modes.

What Is Holding Torque?

One of the biggest advantages of a stepper motor is its Holding Torque.

When powered but not rotating, the motor can resist external forces and maintain its position without additional braking mechanisms.

This makes stepper motors ideal for:

• CNC Machines
• Camera Sliders
• 3D Printers
• Positioning Systems

Advantages of Stepper Motors

• Extremely accurate positioning
• Excellent repeatability
• High holding torque
• Brushless construction
• Long lifespan
• Reliable open-loop control
• Easy integration with CNC and 3D printer controllers

Disadvantages of Stepper Motors

• Lower maximum speed than DC motors
• Higher power consumption while holding position
• Can lose steps if overloaded
• Generates more heat
• Requires a dedicated motor driver

Common Applications

Stepper motors are widely used in:

• CNC Routers
• CNC Mills
• 3D Printers
• Laser Engravers
• Camera Sliders
• XY Plotters
• Pick-and-Place Machines
• Medical Equipment
• Industrial Automation

What Is a Servo Motor?

A Servo Motor is a compact electromechanical actuator designed for precise angular positioning using a closed-loop feedback system.

Unlike a DC motor, which rotates continuously, or a stepper motor, which moves in discrete steps, a standard servo motor moves directly to a commanded angle and continuously corrects its position using internal feedback.

Most hobby servos rotate between 0° and 180°, although continuous-rotation and multi-turn variants are also available.

Servo motors are widely used in robotics, RC models, camera stabilization systems, industrial automation, and precision control applications.

How Does a Servo Motor Work?

A servo motor contains:

• A small DC motor
• Gear reduction system
• Potentiometer (position sensor)
• Control PCB

When a PWM control signal is received:

1. The control circuit interprets the pulse width.
2. It compares the requested position with the actual shaft position.
3. If there is an error, the internal motor rotates.
4. The gears move the output shaft.
5. The potentiometer continuously provides feedback.
6. The motor stops once the target position is reached.

This constant correction process is known as Closed-Loop Control.

Internal Components of a Servo Motor

A typical hobby servo consists of:

• DC Motor
• Gear Train
• Output Shaft
• Potentiometer
• Control Circuit
• Housing
• Servo Horn

The gear train increases torque while reducing speed, enabling the servo to move heavier loads accurately.

PWM Control Explained

Servo motors are controlled using Pulse Width Modulation (PWM) rather than direct voltage changes.

Typical control pulses:

• 1.0 ms → approximately 0°
• 1.5 ms → approximately 90°
• 2.0 ms → approximately 180°

The pulse repeats approximately every 20 ms (50 Hz).

Analog vs Digital Servo

Analog Servo

Advantages:

• Lower cost
• Lower power consumption

Disadvantages:

• Lower precision
• Slower response

Digital Servo

Advantages:

• Higher accuracy
• Faster response
• Better torque retention
• Improved holding performance

Disadvantages:

• More expensive
• Higher current consumption

Advantages of Servo Motors

• Excellent positioning accuracy
• Closed-loop feedback
• High torque in a compact size
• Easy Arduino programming
• Stable under varying loads
• Ideal for robotics and automation

Disadvantages of Servo Motors

• Limited rotation range (standard models)
• More expensive than DC motors
• Higher current during movement
• Continuous-rotation models sacrifice positional control

Common Applications

Servo motors are commonly found in:

• Robotic Arms
• RC Aircraft
• RC Cars
• Camera Gimbals
• Smart Locks
• Pan-Tilt Systems
• Automated Gates
• Industrial Robotics

Arduino Programming Examples

1. Servo Motor Example

#include <Servo.h>

Servo myServo;

void setup() {
  myServo.attach(9);
}

void loop() {
  myServo.write(0);
  delay(1000);

  myServo.write(90);
  delay(1000);

  myServo.write(180);
  delay(1000);
}

How it works

• The Servo library generates the required PWM signal.
• The servo is connected to digital pin 9.
• The shaft moves smoothly to 0°, 90°, and 180°, pausing for one second at each position.

2. DC Motor Example (L298N Driver)

int ENA = 9;
int IN1 = 8;
int IN2 = 7;

void setup() {
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
}

void loop() {
  digitalWrite(IN1, HIGH);
  digitalWrite(IN2, LOW);
  analogWrite(ENA, 180);
}

How it works

• IN1 and IN2 control the motor direction.
• ENA receives a PWM signal to adjust speed.
• analogWrite() changes the duty cycle, allowing smooth speed control.

3. Stepper Motor Example (Stepper Library)

#include <Stepper.h>

const int stepsPerRevolution = 200;

Stepper myStepper(stepsPerRevolution, 8, 9, 10, 11);

void setup() {
  myStepper.setSpeed(60);
}

void loop() {
  myStepper.step(200);
  delay(1000);

  myStepper.step(-200);
  delay(1000);
}

How it works

• A 200-step motor completes one full revolution.
• Positive values rotate clockwise.
• Negative values rotate counter-clockwise.
• setSpeed(60) sets the motor speed to 60 RPM.

Choosing the Right Motor Driver

Different motors require different control hardware.

Selecting the correct driver ensures reliable operation, protects the microcontroller, and allows features such as speed control, direction control, and microstepping where applicable.

Servo Motor vs Stepper Motor vs DC Motor – Complete Comparison Table

Speed Comparison

DC Motor

• Highest RPM
• Best for continuous rotation
• Ideal where exact position is not required

Examples:

• Cooling Fan
• Robot Car
• Water Pump

Stepper Motor

• Medium Speed
• Very Accurate
• Excellent Repeatability

Examples:

• CNC Machine
• 3D Printer
• Plotter

Servo Motor

• Medium Speed
• Extremely Accurate
• Instant Position Control

Examples

• Robotic Arm
• Camera Gimbal
• Smart Lock

Torque Comparison

Highest Torque

Servo Motor ⭐⭐⭐⭐⭐

Because of its internal gearbox and feedback system.

Best Holding Torque

Stepper Motor ⭐⭐⭐⭐⭐

Can hold its shaft position without movement while powered.

Continuous Rotation Torque

DC Motor ⭐⭐⭐⭐

Excellent for driving wheels and conveyor systems.

Accuracy Comparison

If your project requires exact positioning, avoid using a standard DC motor.

Which Motor Should You Choose?

Choose a DC Motor if you need:

• High speed
• Continuous rotation
• Low cost
• Robot Cars
• Conveyor Systems
• Cooling Fans
• Pumps

Choose a Stepper Motor if you need:

• CNC Machine
• 3D Printer
• Plotter
• Camera Slider
• High Precision
• Repeatable Positioning

Choose a Servo Motor if you need:

• Robotic Arm
• Pan Tilt Camera
• Camera Gimbal
• Automatic Door
• Smart Lock
• Precise Angular Movement

Real Project Recommendations

Common Beginner Mistakes

Connecting Motors Directly to Arduino

Never power motors directly from Arduino I/O pins. Always use a suitable motor driver and an external power source.

Ignoring Power Requirements

Motors can draw significantly more current at startup or under load than during normal operation. Undersized power supplies can cause resets, poor performance, or overheating.

Choosing the Wrong Driver

Examples:

• Small DC Motor → L298N or TB6612FNG
• High Current DC Motor → BTS7960
• NEMA 17 Stepper → A4988, DRV8825, or TMC2209
• Multiple Servo Motors → PCA9685 Servo Driver

Forgetting Heat Management

Stepper drivers and high-current motor drivers can become hot during continuous operation. Heatsinks and airflow help improve reliability.

Frequently Asked Questions (FAQs)

Which motor is best for Arduino beginners?

A servo motor is usually the easiest to start with because it requires only a PWM signal and the Arduino Servo library.

Which motor is best for a robot car?

A DC geared motor provides continuous rotation, good torque, and simple speed control, making it ideal for mobile robots.

Which motor is best for CNC machines?

A stepper motor offers precise incremental movement and excellent repeatability, making it the standard choice for CNC systems.

Can I control a DC motor without a driver?

No. A motor driver is required to safely control speed and direction while protecting the Arduino from excessive current.

Do servo motors need a motor driver?

Small hobby servos can often be connected directly to an Arduino signal pin with an external power supply. Larger servos or multiple servos benefit from dedicated controllers such as the PCA9685.

Which motor provides the highest positioning accuracy?

A servo motor generally provides the highest positioning accuracy because it continuously monitors and corrects its position using feedback.

Can stepper motors lose steps?

Yes. Overloading the motor, using incorrect acceleration settings, or insufficient driver current can cause missed steps.

Why do motors get hot?

Heat can result from high current, excessive load, continuous holding torque, poor ventilation, or incorrect driver settings.

Related Products from Chip.pk

You can naturally link readers to relevant products available on Chip.pk, including:

Development Boards

• Arduino Uno R3
• Arduino Mega 2560 R3
• Arduino Nano
• Raspberry Pi Pico
• Raspberry Pi Pico W
• Raspberry Pi Pico 2
• Raspberry Pi Pico 2 W

Servo Motors

• SG90 Micro Servo Motor
• MG90S Metal Gear Servo
• MG996R High Torque Servo

Stepper Motors

• 28BYJ-48 Stepper Motor
• NEMA 17 Stepper Motor

DC Motors

• DC Geared Motor
• TT DC Motor
• High Torque DC Gear Motor

Motor Drivers

• L298N Motor Driver Module
• TB6612FNG Motor Driver
• BTS7960 High Power Motor Driver
• A4988 Stepper Driver
• DRV8825 Stepper Driver
• ULN2003 Driver Board
• PCA9685 16-Channel Servo Driver

Accessories

• Breadboard
• Jumper Wires
• Power Supply Modules
• Battery Holders
• Li-ion Batteries

Conclusion

Choosing the right motor is one of the most important decisions in any electronics or robotics project. While DC motors are ideal for continuous high-speed rotation, stepper motors excel in precise positioning, and servo motors provide outstanding closed-loop angle control.

Rather than asking which motor is "best," it's more useful to ask which motor best matches your project's requirements for speed, torque, precision, control method, and budget.

Understanding these differences allows you to design more reliable systems, avoid common mistakes, and select compatible drivers and power supplies from the beginning.

🌐 Continue Learning & Explore More Resources

Continue your learning journey with additional technical resources, practical examples, and project documentation related to Servo Motors, Stepper Motors, DC Motors, Arduino, and robotics.

📘 Original Article (Chip.pk Knowledge Hub)

Read the complete beginner-to-professional guide on the official Chip.pk Knowledge Hub, including detailed explanations, comparison tables, Arduino code examples, wiring guidance, applications, FAQs, and recommended products.

🔗 Read the complete article:
💻 GitHub Repository

Access the complete documentation, Arduino source code, project files, and additional technical resources on GitHub.

🔗 GitHub Repository:
🛠️ Hackster.io Project

Follow the practical implementation guide featuring hardware components, Arduino examples, motor drivers, project applications, and engineering insights.

🔗 Hackster.io Project:
✍️ Medium Article

Read a concise, developer-friendly overview covering the key differences between Servo, Stepper, and DC Motors, with links to the complete technical documentation.

🔗 Medium Article:
👨💻 DEV Community (dev.to)

Explore the developer-focused version of this guide with Arduino code snippets, implementation tips, and embedded systems insights.

🔗 DEV Community Article:
