Product Overview

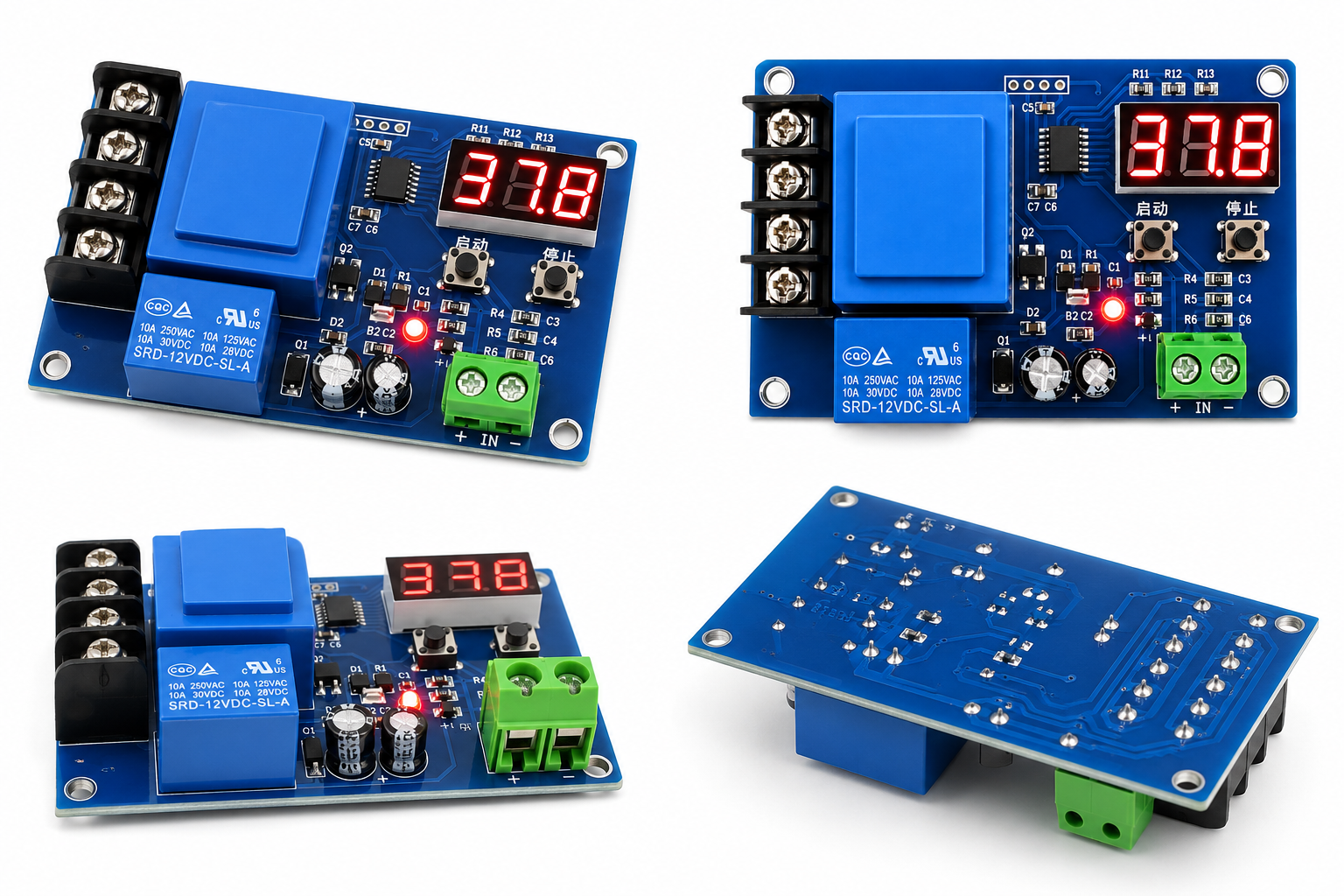

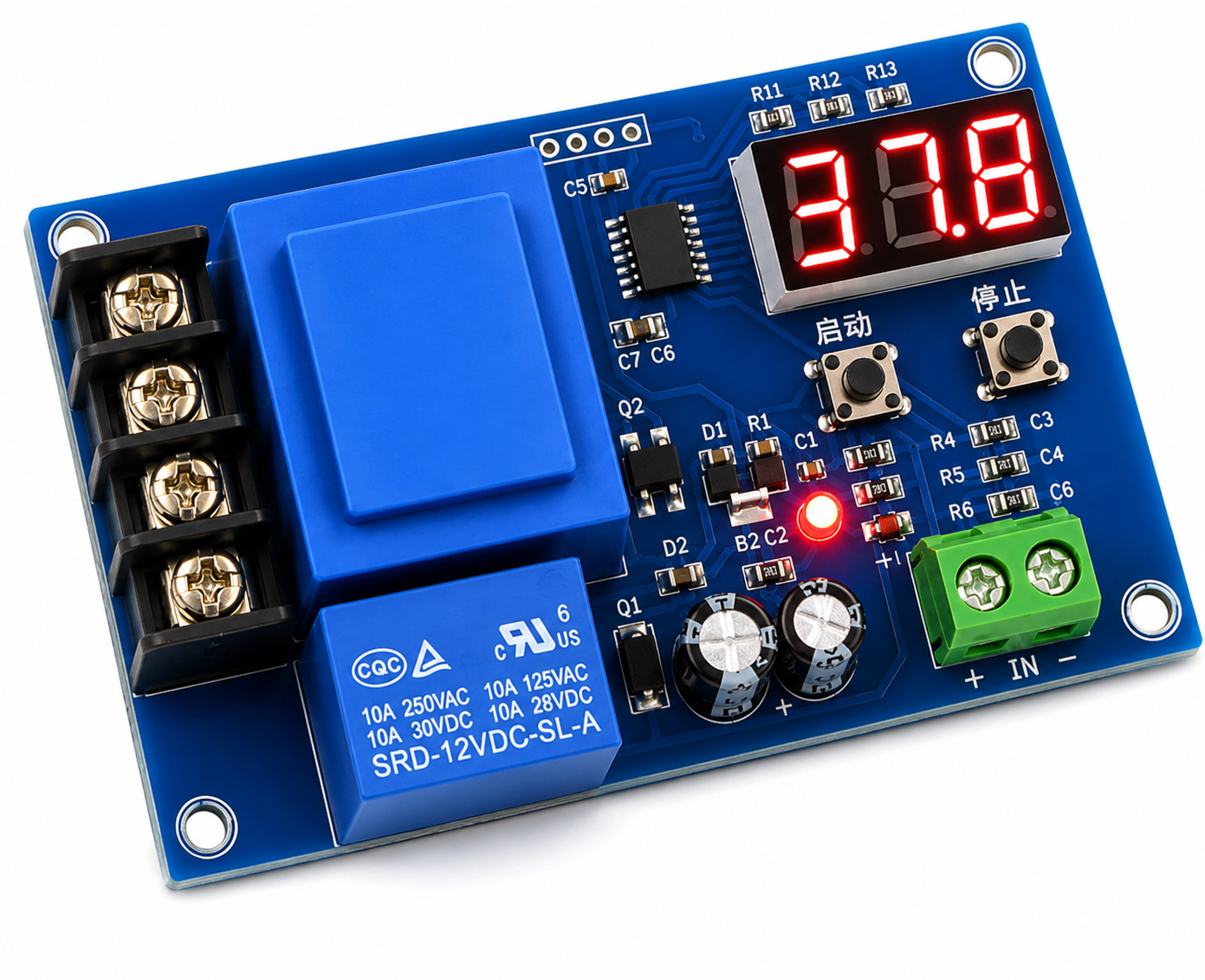

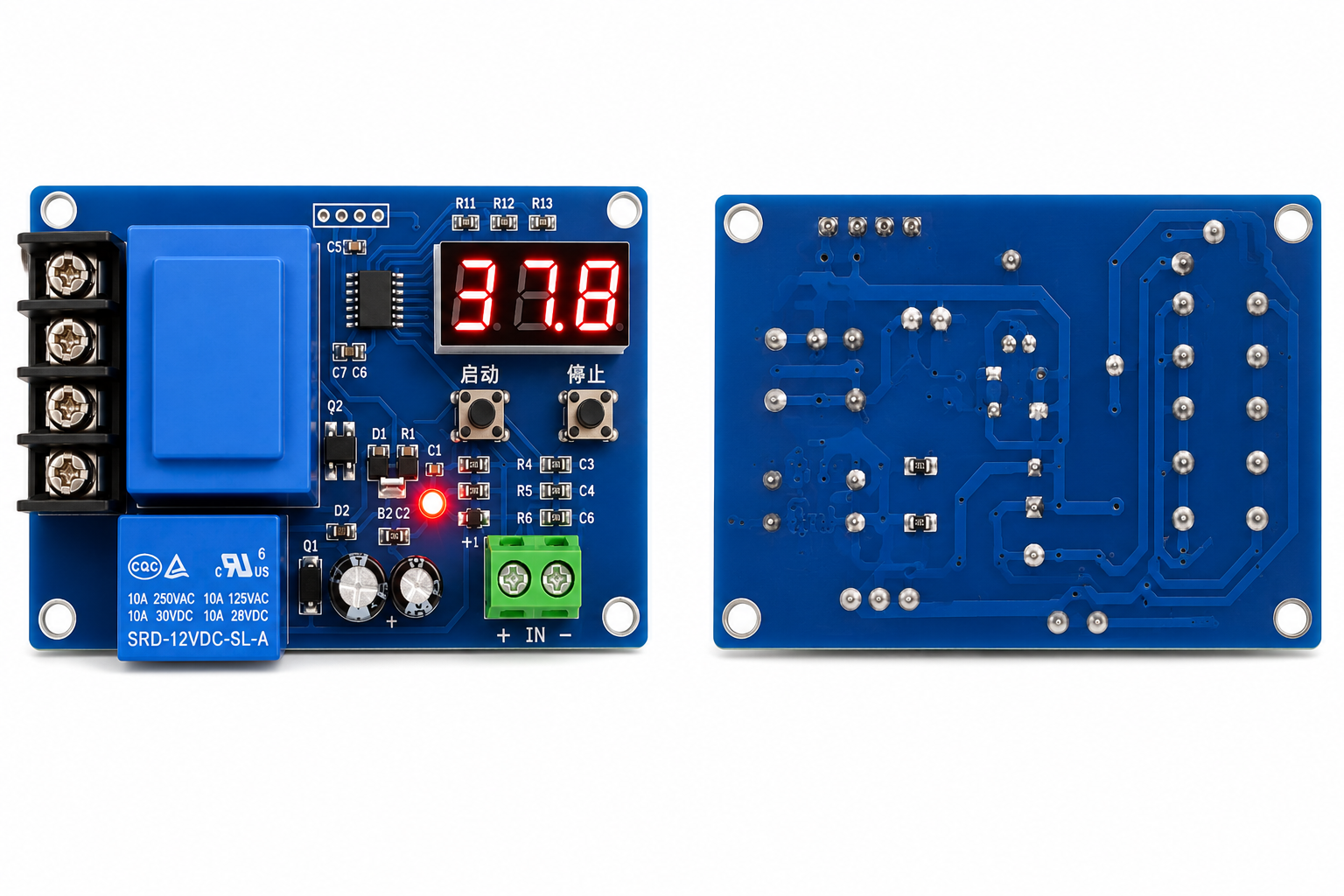

The XH-M602 Digital Battery Protection Controller Module is a programmable voltage protection module designed to monitor battery voltage and automatically disconnect or reconnect the load based on user-defined voltage thresholds. It is suitable for 12V, 24V, and 36V battery systems.
Description
The XH-M602 Digital Battery Protection Controller Module is an intelligent battery management solution designed to protect rechargeable battery systems from excessive discharge. It continuously monitors battery voltage using a bright LED display and automatically controls the onboard relay according to programmable cut-off and recovery voltage settings.
The module allows users to configure low-voltage disconnect and reconnect values through simple push-button programming, helping extend battery life and improve the reliability of battery-powered systems. It is widely used in solar energy systems, battery backup units, automotive electronics, portable power stations, UPS systems, electric vehicles, and other DC applications.
Its compact design, screw terminal connections, and high-current relay make installation simple while providing dependable battery protection for both DIY and professional projects.
Key Features
- Digital battery voltage monitoring
- Adjustable low-voltage disconnect setting
- Adjustable reconnect voltage
- Bright 3-digit LED voltage display
- Automatic battery protection
- High-current relay output
- Push-button programming
- Prevents battery over-discharge
- Easy screw terminal wiring
- Suitable for 12V, 24V, and 36V battery systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Battery Protection Controller |
| Model | XH-M602 |
| Operating Voltage | 12V–36V DC |
| Display | 3-Digit LED Display |
| Protection Function | Low Voltage Protection |
| Control Method | Programmable Controller |
| Relay Output | High-Power Relay |
| Programming | Push Buttons |
| Terminal Type | Screw Terminal |
| Condition | Brand New |
Product Attributes
| Attribute | Value |
| Digital Display | Yes |
| Programmable | Yes |
| Adjustable Cut-Off Voltage | Yes |
| Adjustable Reconnect Voltage | Yes |
| Relay Output | Yes |
| Automatic Protection | Yes |
| Solar Compatible | Yes |
| Battery Backup Compatible | Yes |
Pin Details
| Pin | Description |
| IN+ | Positive Power Input |
| IN− | Negative Power Input |
| Relay COM | Common Output |
| Relay NO | Normally Open Output |
| Relay NC | Normally Closed Output |
Compatibility
Compatible with:
- 12V Lead-Acid Batteries
- 24V Lead-Acid Batteries
- 36V Lead-Acid Batteries
- Lithium-Ion Battery Packs
- LiFePO₄ Battery Systems
- Solar Power Systems
- UPS Systems
- Portable Power Stations
- Automotive Battery Systems
- DC Power Management Systems
Applications
- Battery Over-Discharge Protection
- Solar Energy Systems
- UPS Backup Systems
- Battery Charging Projects
- Portable Power Stations
- Electric Vehicles
- Caravan and RV Power Systems
- Automotive Electronics
- Industrial Battery Protection
- DIY Electronics Projects
- Renewable Energy Systems
- DC Power Management
Package Includes
- 1 × XH-M602 Digital Battery Protection Controller Module
Buy in Pakistan
Looking for a genuine XH-M602 Digital Battery Protection Controller Module? Chip.pk offers quality-tested battery protection modules for solar systems, battery backup units, automotive applications, renewable energy projects, and DC power systems. We provide competitive prices, secure packaging, and fast nationwide delivery across Pakistan.
Why Choose Chip.pk?
- Genuine electronics components
- Quality-tested before dispatch
- Competitive prices
- Fast delivery across Pakistan
- Secure packaging
- Technical support for battery management and power electronics
- Trusted supplier of Arduino, Raspberry Pi, ESP32, batteries, power modules, robotics, IoT, and industrial automation products
FAQs
1. What is the XH-M602 Digital Battery Protection Controller Module?
The XH-M602 Digital Battery Protection Controller Module is a programmable battery protection controller that monitors battery voltage and automatically disconnects or reconnects the load based on user-defined voltage settings.
2. What is the XH-M602 module used for?
The module is commonly used for:
- Solar Power Systems
- Battery Backup Systems
- UPS Systems
- Portable Power Stations
- Automotive Electronics
- Electric Vehicles
- Battery Charging Systems
- DC Power Management
- DIY Electronics Projects
- Industrial Automation
3. Which battery voltages does this module support?
The XH-M602 supports 12V, 24V, and 36V DC battery systems, making it suitable for a wide range of rechargeable battery applications.
4. Does this module protect against battery over-discharge?
Yes. The module disconnects the load when the battery voltage drops below the preset threshold and reconnects it automatically once the battery voltage recovers.
5. Can I adjust the cut-off and reconnect voltage?
Yes. Both the low-voltage cut-off and reconnect voltage can be programmed using the onboard push buttons.
6. Does the module have a voltage display?
Yes. It features a bright 3-digit LED display that continuously shows the battery voltage for easy monitoring.
7. What type of batteries can be used with this module?
It is compatible with:
- Lead-Acid Batteries
- AGM Batteries
- Gel Batteries
- Lithium-Ion Batteries
- LiFePO₄ Battery Packs
- Other DC battery systems within the supported voltage range
8. Does the XH-M602 include a relay?
Yes. The module includes a built-in high-current relay that automatically switches the connected load according to the programmed voltage settings.
9. Can I use this module with a solar power system?
Yes. It is widely used in solar energy systems to protect batteries from excessive discharge and extend battery life.
10. Is programming required?
No programming or coding is required. All settings are configured using the onboard buttons and LED display.
