Waveshare 8.8 Inch MIPI DSI Display with Capacitive Touch

The Waveshare 8.8-DSI-TOUCH-A is an 8.8-inch IPS MIPI DSI display with 480 × 1920 resolution, capacitive 10-point touch, I²C touch interface, optical bonding, 178° viewing angle, and software-adjustable backlight. It is designed for compatible Raspberry Pi, ESP32-P4, and other supported DSI platforms.

Description

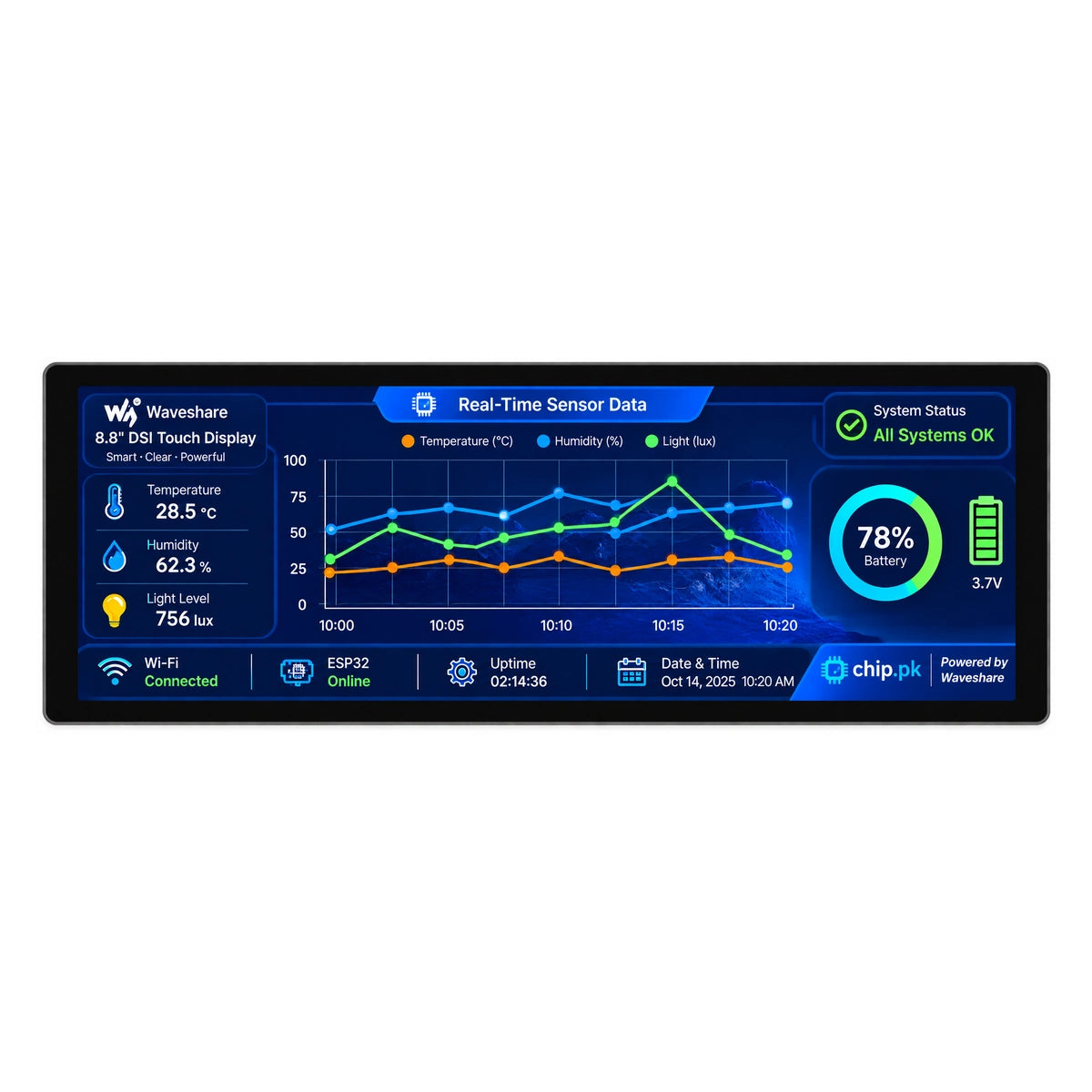

The Waveshare 8.8 Inch MIPI DSI Display with Capacitive Touch is a wide-format IPS touchscreen designed for embedded displays, graphical user interfaces, HMI panels, dashboards, multimedia systems, and development projects requiring a compact ultra-wide screen.

The display uses a MIPI DSI interface and offers a native 480 × 1920 pixel resolution on an 8.8-inch IPS panel. Its wide 178° viewing angle helps maintain image visibility from different directions, while optical bonding improves the integration between the display and touch layer.

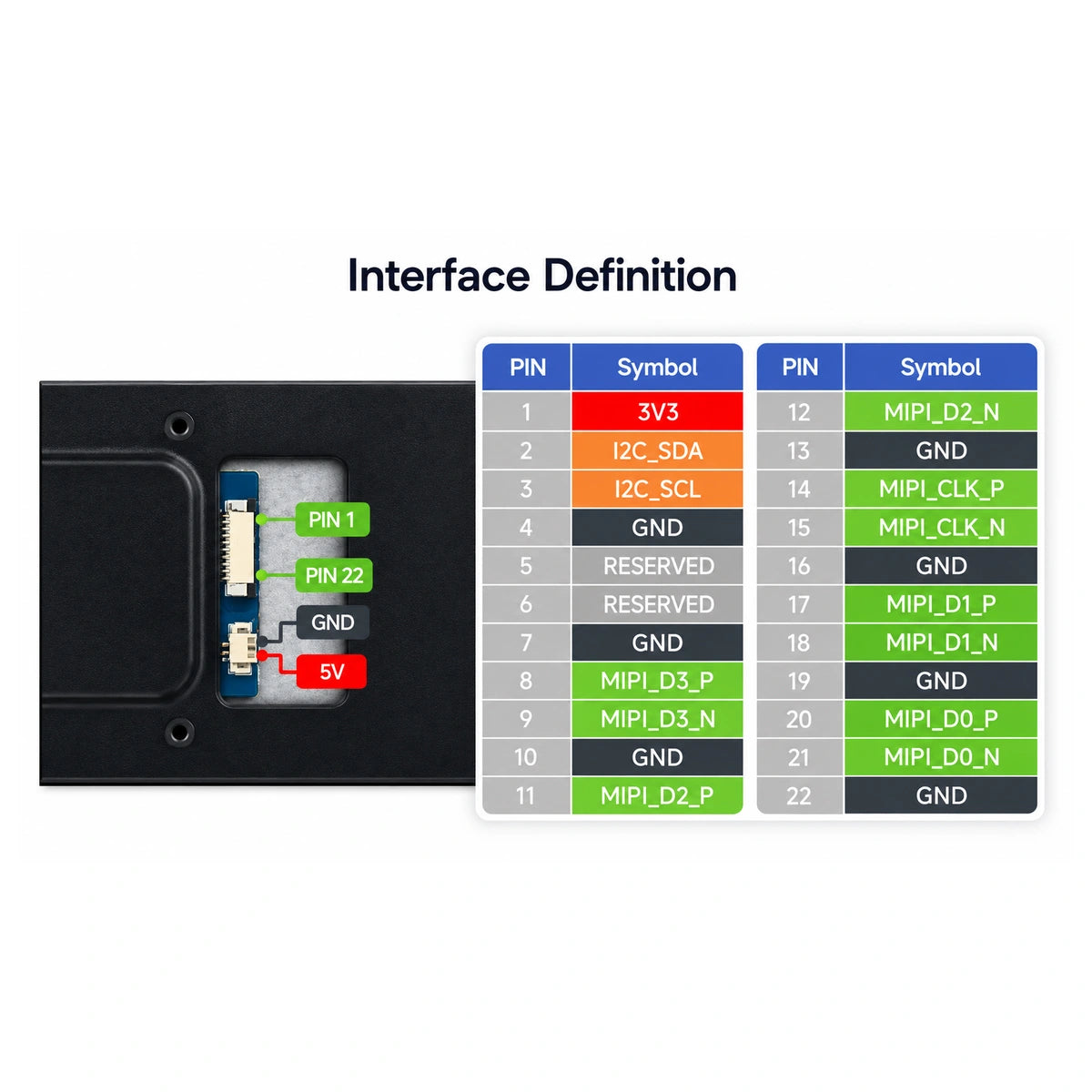

The integrated capacitive touch panel supports up to 10 touch points, depending on the operating system and host platform. Touch communication uses an I²C interface, while the display image data is transferred through MIPI DSI.

The display also supports software backlight adjustment, making it suitable for brightness-controlled embedded interfaces and custom GUI applications.

Waveshare documents support for compatible Raspberry Pi boards, ESP32-P4, and selected Rockchip-based platforms. It can be used for Raspberry Pi OS interfaces, LVGL-based ESP32-P4 projects, industrial-style dashboards, control panels, and other graphical applications where the host provides compatible DSI and touch support.

Key Features

• Waveshare 8.8-DSI-TOUCH-A
• 8.8-inch IPS display
• 480 × 1920 pixel resolution
• MIPI DSI display interface
• Capacitive touch panel
• Up to 10-point multi-touch
• I²C touch interface
• 178° viewing angle
• Optical bonding
• Toughened glass touch panel
• Software-adjustable backlight
• Up to 60Hz display refresh support
• Suitable for Raspberry Pi applications
• Supports ESP32-P4 graphical projects
• Suitable for LVGL GUI development

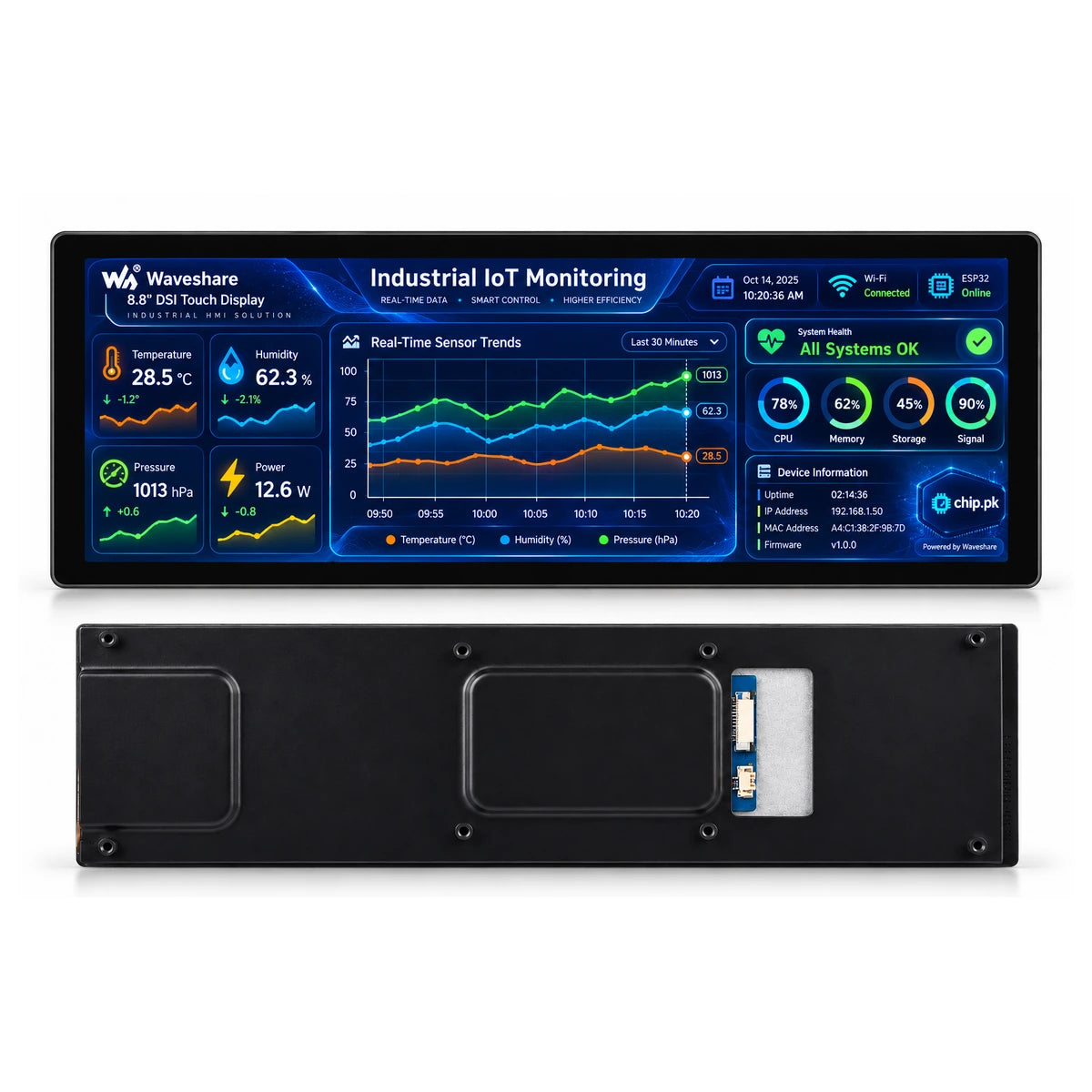

• Aluminum-alloy rear housing
• Passive cooling design

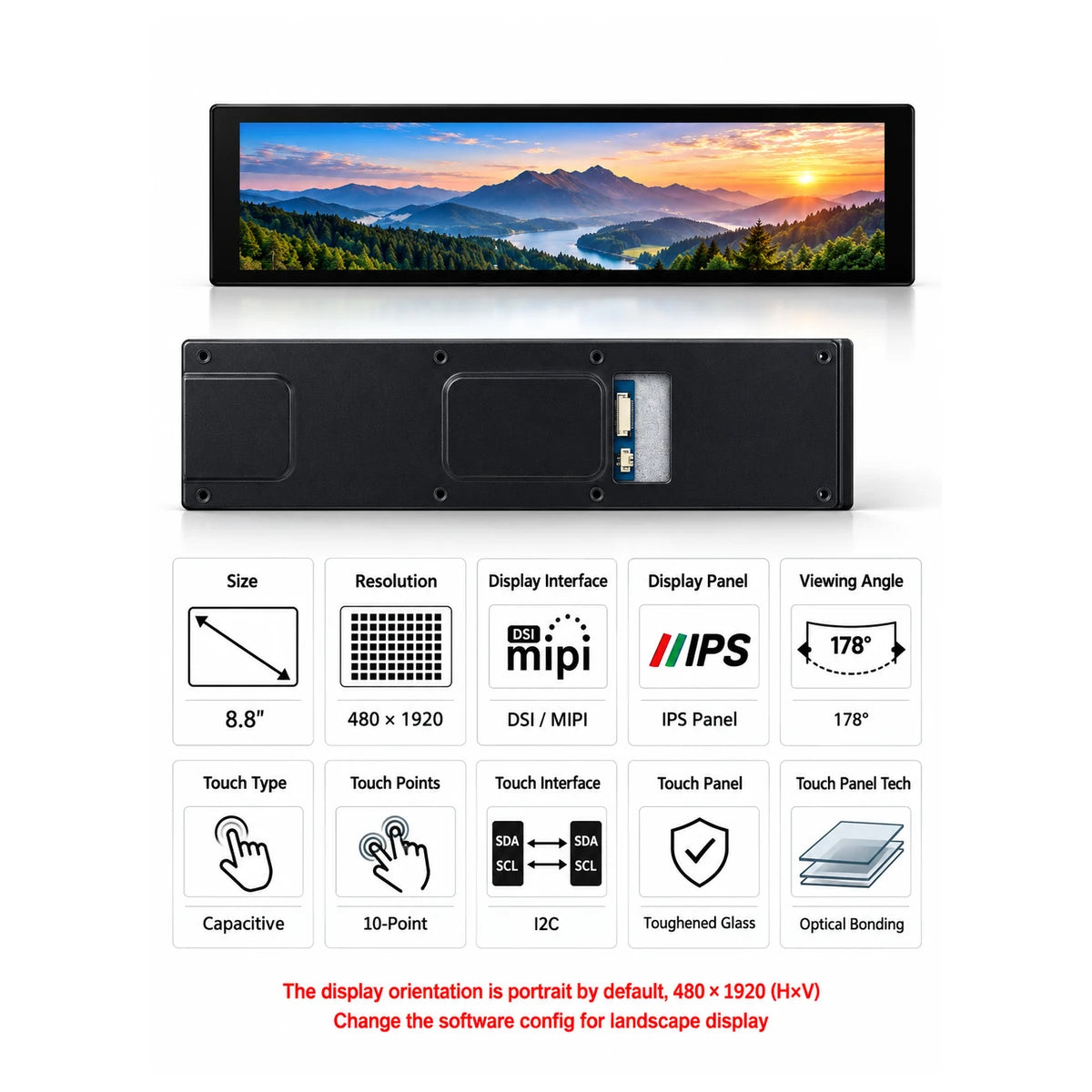

Technical Specifications

Applications / Use Cases

• Raspberry Pi touch display projects
• Embedded graphical interfaces
• LVGL GUI development
• ESP32-P4 display applications
• HMI control panels
• Smart dashboards
• Information displays
• Industrial monitoring interfaces
• Home automation panels
• Multimedia control interfaces
• Sensor dashboards
• Custom embedded terminals
• Ultra-wide display projects
• Touch-enabled control systems

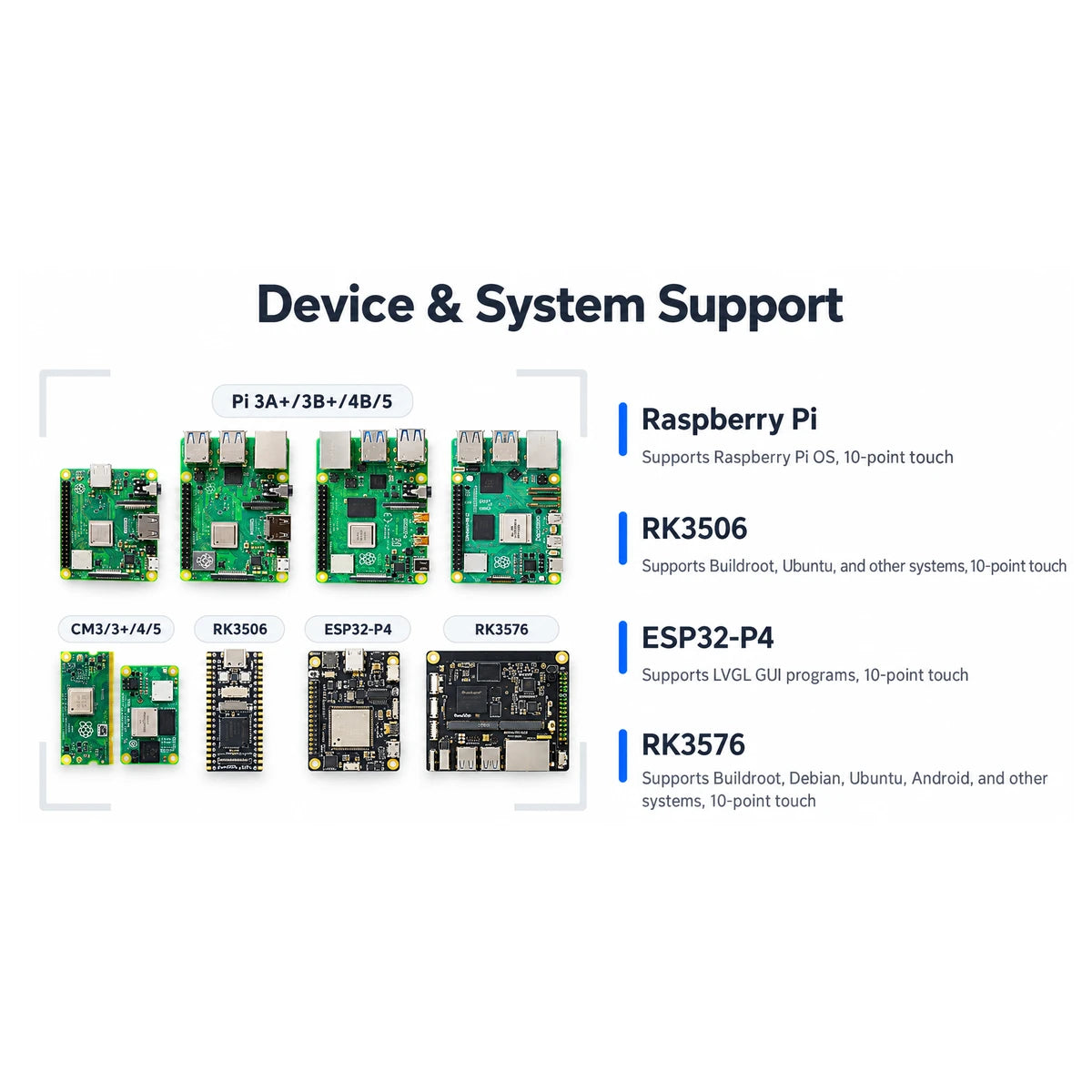

Compatibility

The 8.8-DSI-TOUCH-A is designed for systems that provide compatible MIPI DSI display connectivity and supported touch configuration.

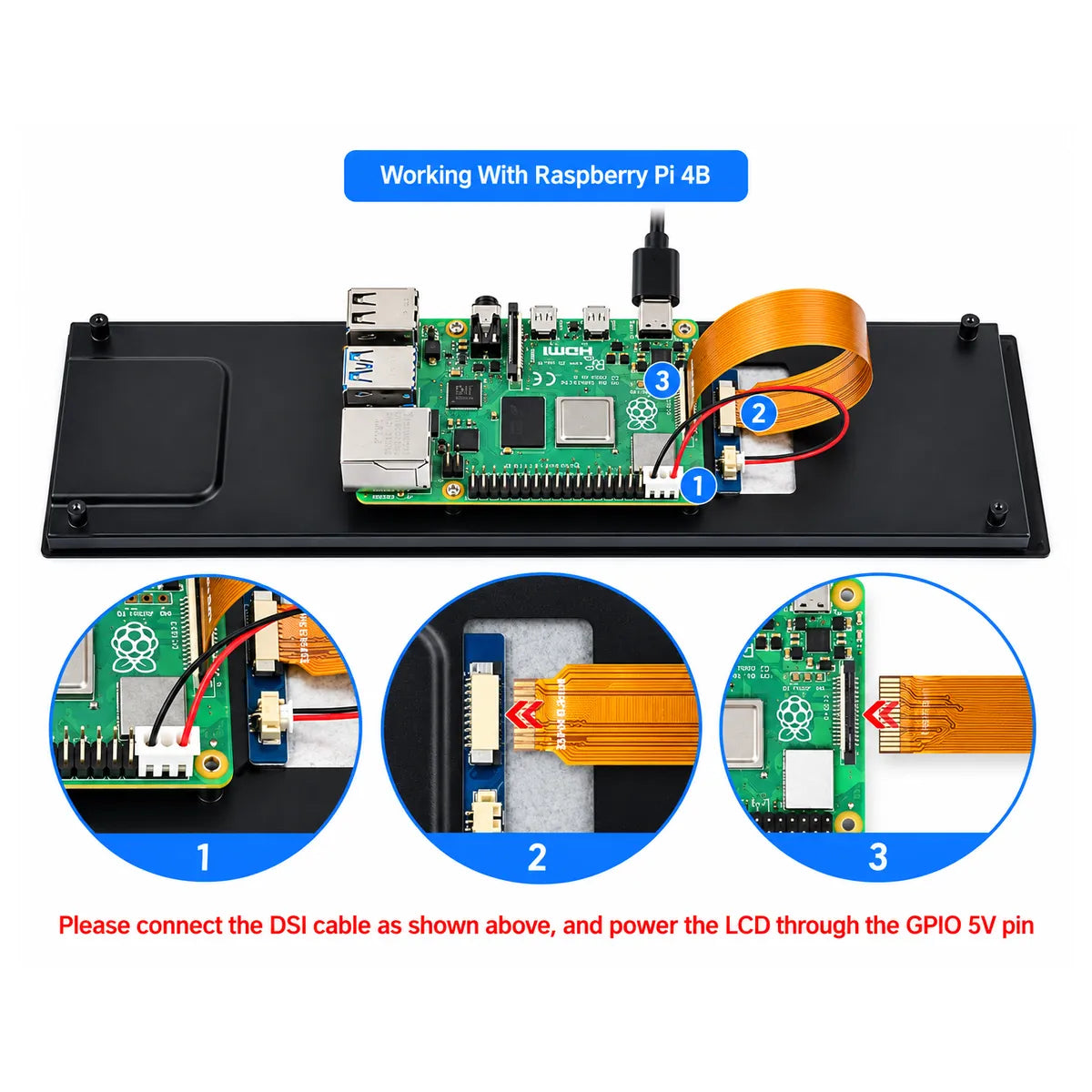

Waveshare documents compatibility with selected Raspberry Pi platforms, including Raspberry Pi boards and Compute Module configurations supported by the manufacturer's connection method and software setup.

For Raspberry Pi applications, the display can operate with Raspberry Pi OS and supports multi-touch functionality where supported by the operating system and hardware configuration.

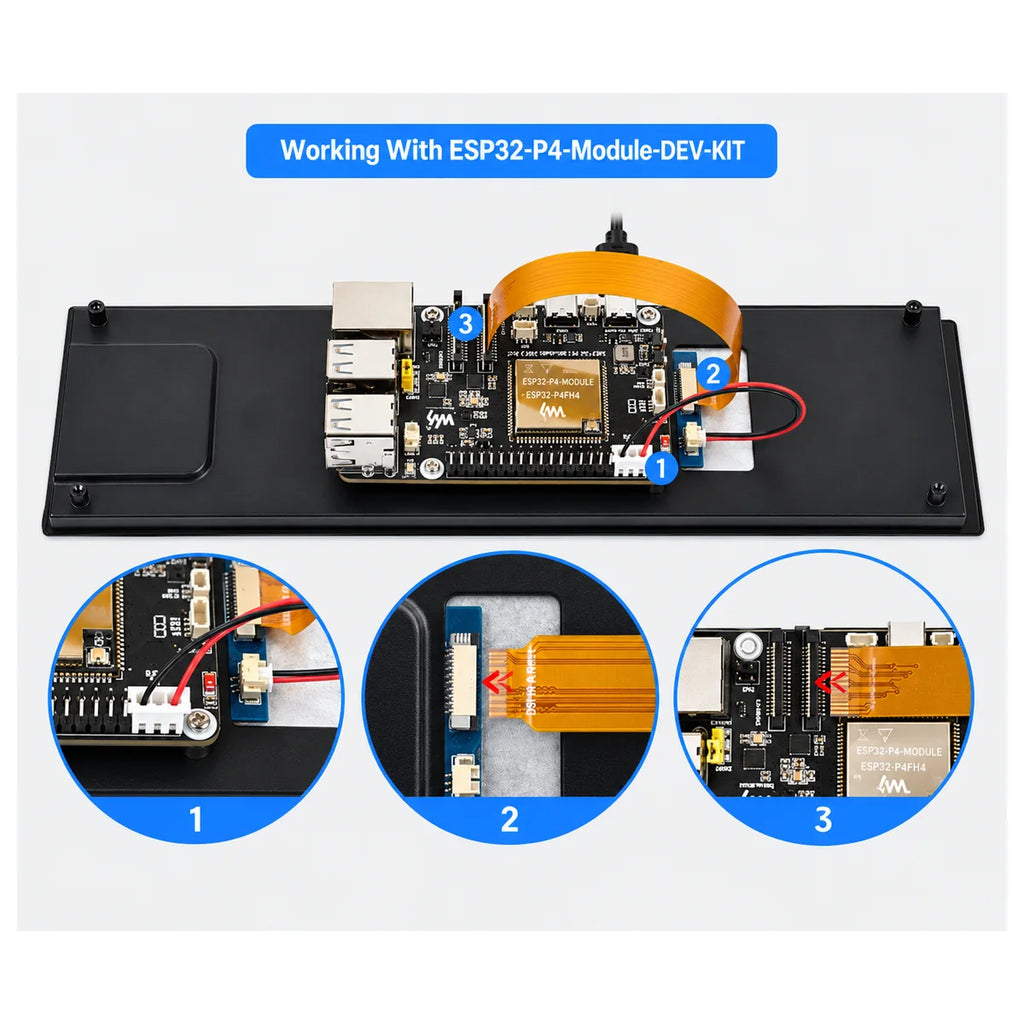

The display can also be used with ESP32-P4 platforms for graphical applications such as LVGL-based interfaces, provided the development board exposes the required DSI and touch connections and the software is configured correctly.

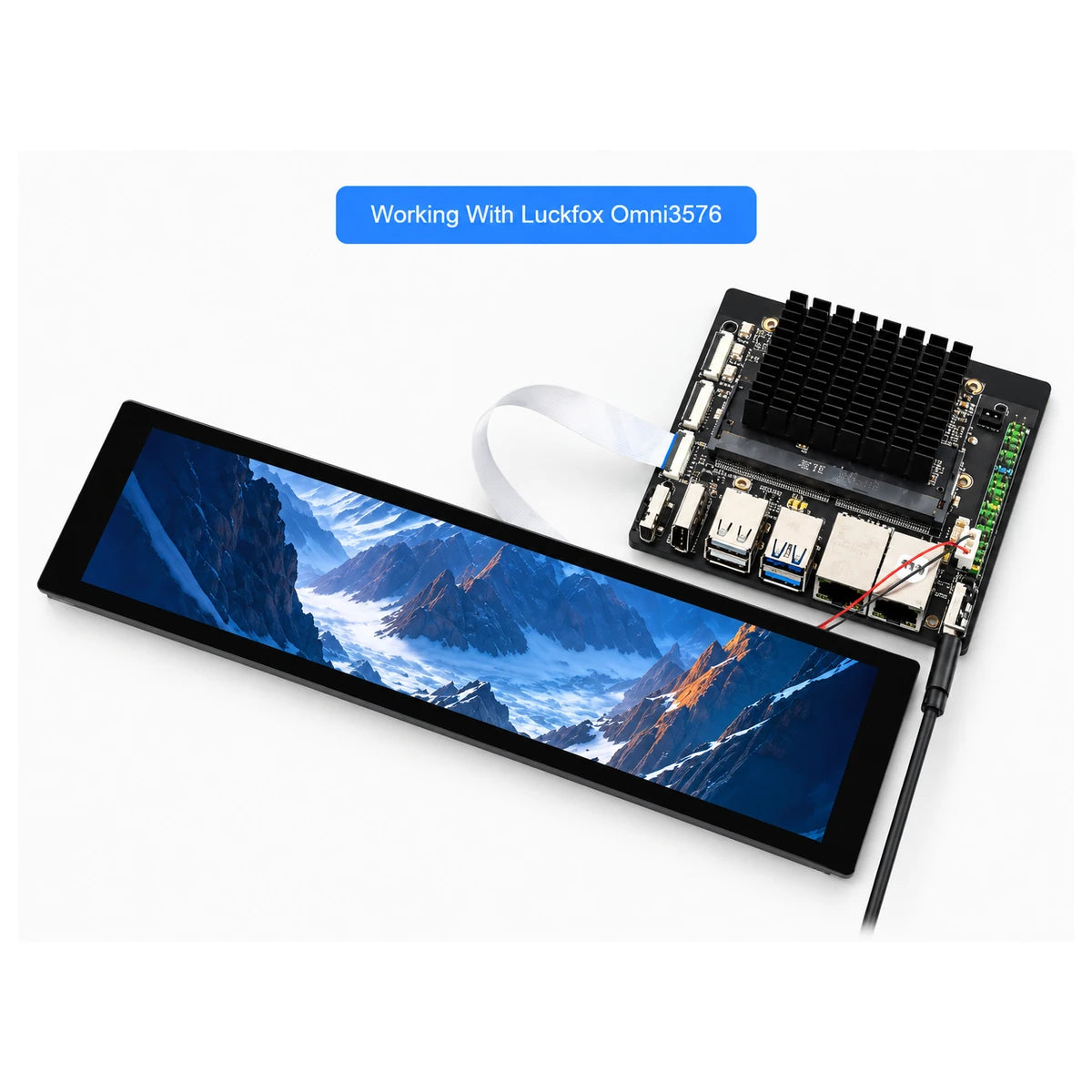

Waveshare also documents compatibility with selected RK3506 and RK3576 based systems.

Host-board compatibility, DSI connector type, cable orientation, software configuration, operating system, and power requirements should always be checked before installation.

Package Contents

• 1 × Waveshare 8.8-DSI-TOUCH-A Capacitive Touch Display
• MIPI-DSI cable, power/adaptor cables, FFC cables ,screw pack.

Buy in Pakistan

Buy the Waveshare 8.8-inch MIPI DSI display in Pakistan from Chip.pk for Raspberry Pi, ESP32-P4, LVGL, embedded HMI, dashboard, and graphical interface projects.

Its 480 × 1920 IPS panel, capacitive 10-point touch, MIPI DSI interface, I²C touch control, optical bonding, and software-adjustable backlight make it suitable for compact ultra-wide touchscreen applications.

FAQs

1. What is the Waveshare 8.8-DSI-TOUCH-A?
The Waveshare 8.8-DSI-TOUCH-A is an 8.8-inch IPS MIPI DSI display with 480 × 1920 resolution, capacitive touch, I²C touch communication, optical bonding, and software-adjustable backlight.

2. What is the resolution of this 8.8-inch display?
The native resolution is 480 × 1920 pixels.

3. Does the display support touch?
Yes. It has a capacitive touch panel supporting up to 10-point multi-touch, depending on the connected platform and operating system.

4. Which interface does the display use?
Display data is transferred through MIPI DSI, while touch communication uses I²C.

5. Is this display compatible with Raspberry Pi?
Yes. Waveshare documents compatibility with supported Raspberry Pi boards and Compute Module configurations. The correct DSI connection, cable, software configuration, and power arrangement must be used for the specific Raspberry Pi model.

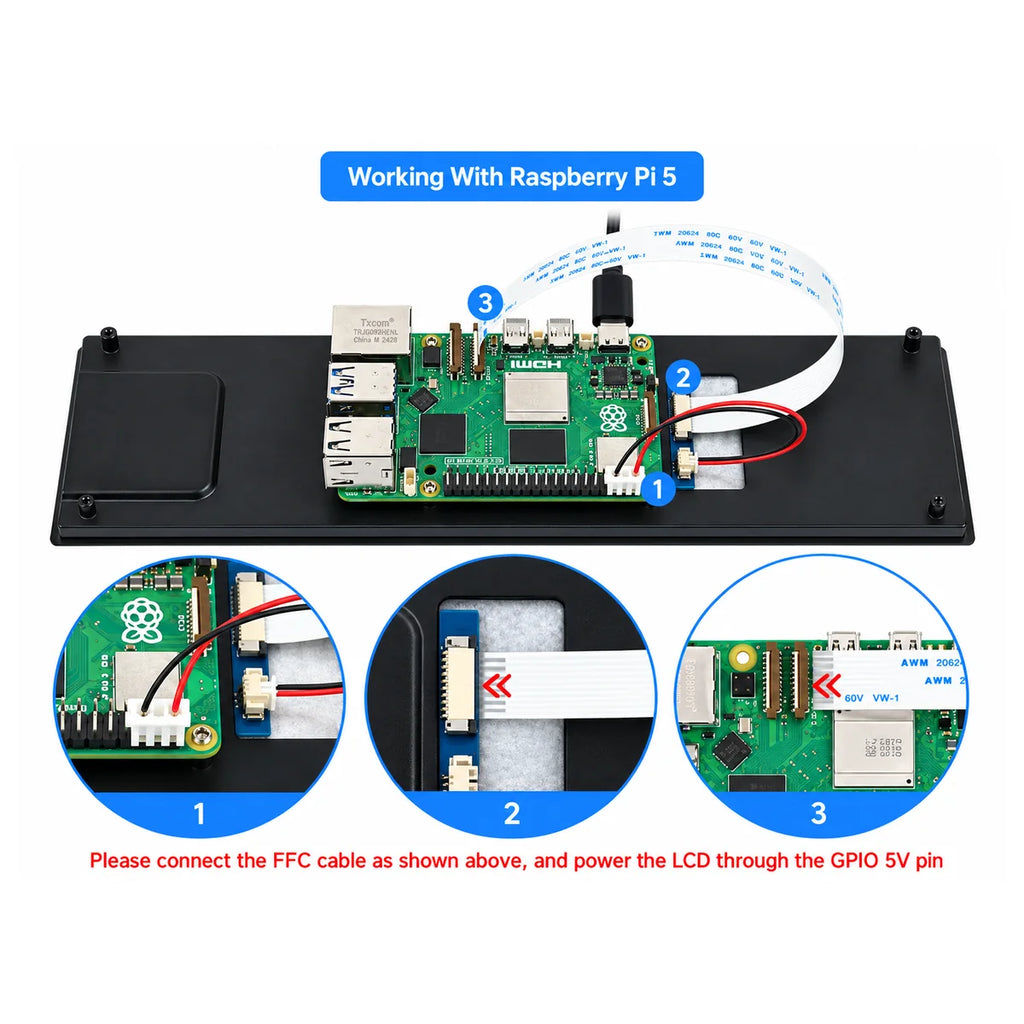

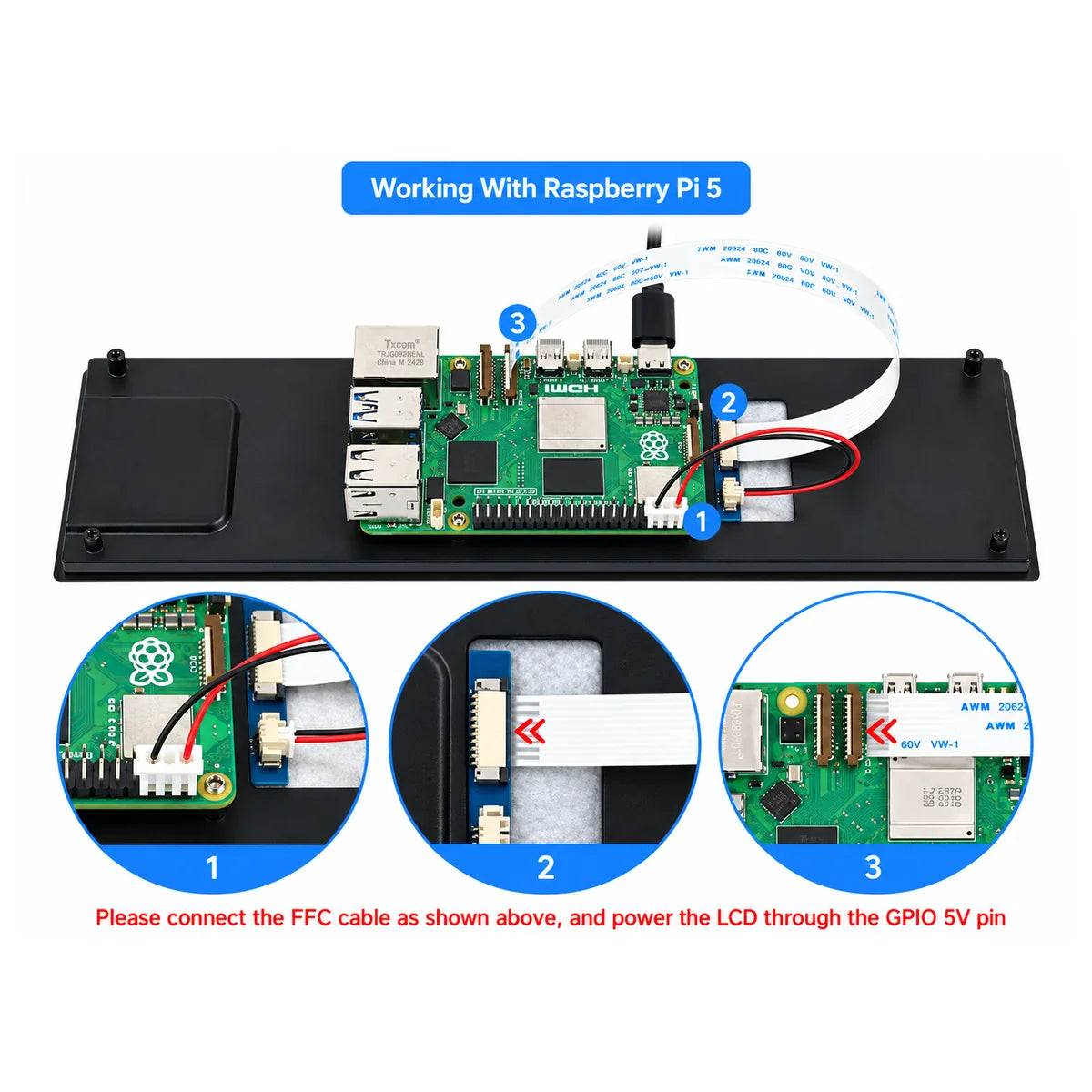

6. Can this display be used with Raspberry Pi 5?
Waveshare documents Raspberry Pi 5 support for this display family. The correct DSI cable/interface configuration should be used according to the Raspberry Pi 5 connection method.

7. Can I use the 8.8-DSI-TOUCH-A with ESP32-P4?
Yes. Waveshare documents ESP32-P4 compatibility, including use in LVGL graphical interface projects, provided the selected ESP32-P4 board supports the required DSI and touch connections.

8. Does the screen support LVGL?
The display can be used in LVGL-based GUI projects when connected to a compatible host such as an appropriately configured ESP32-P4 platform. LVGL support depends on the host hardware, drivers, and software configuration.

9. Can the display brightness be adjusted?
Yes. The display supports software-controlled backlight adjustment on supported systems.

10. Is the panel IPS?
Yes. It uses an IPS panel with a wide viewing angle of approximately 178°.

11. What is optical bonding?
The display uses optical bonding between the display and touch layers, helping reduce the air gap and improving the integrated screen construction.

12. Are Raspberry Pi or ESP32-P4 boards included with the display?
No. Host boards shown in demonstration images are for compatibility and usage reference only unless Chip.pk specifically states otherwise in the package contents.
