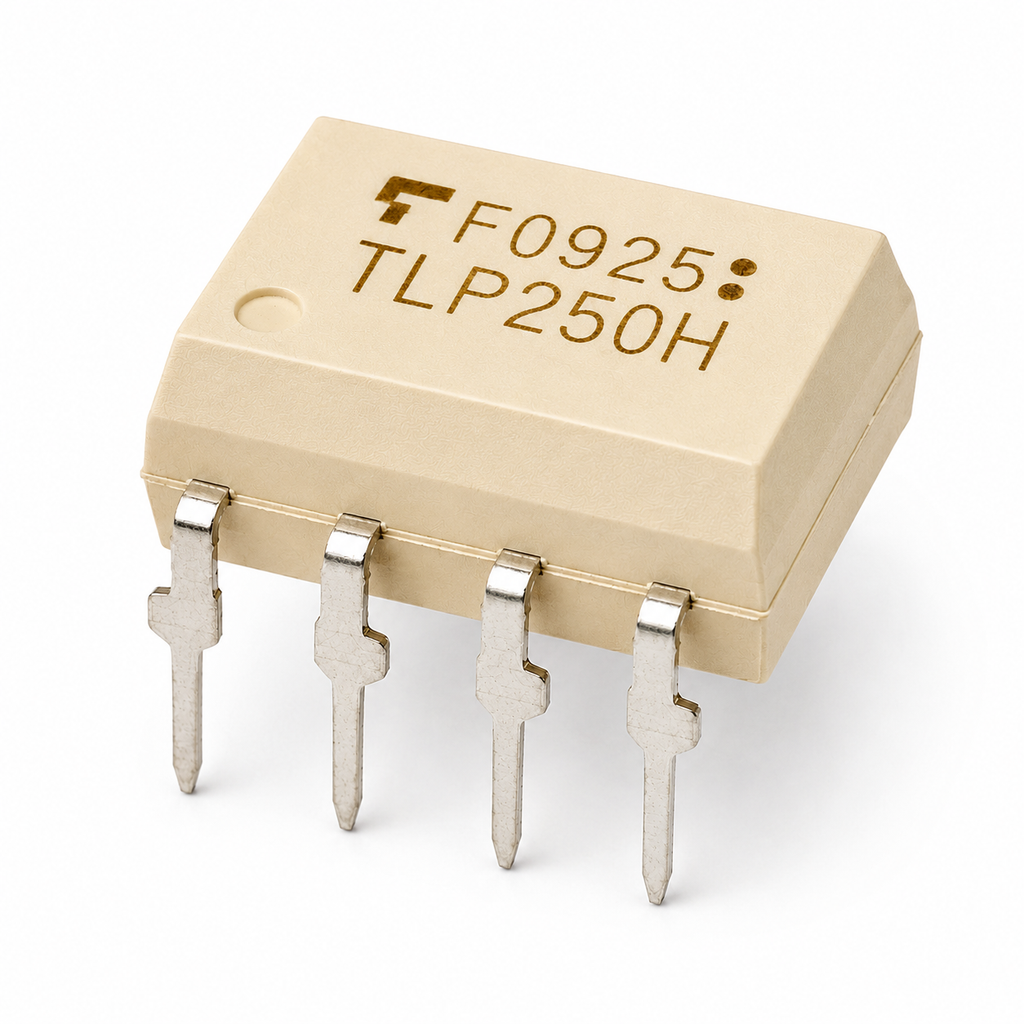

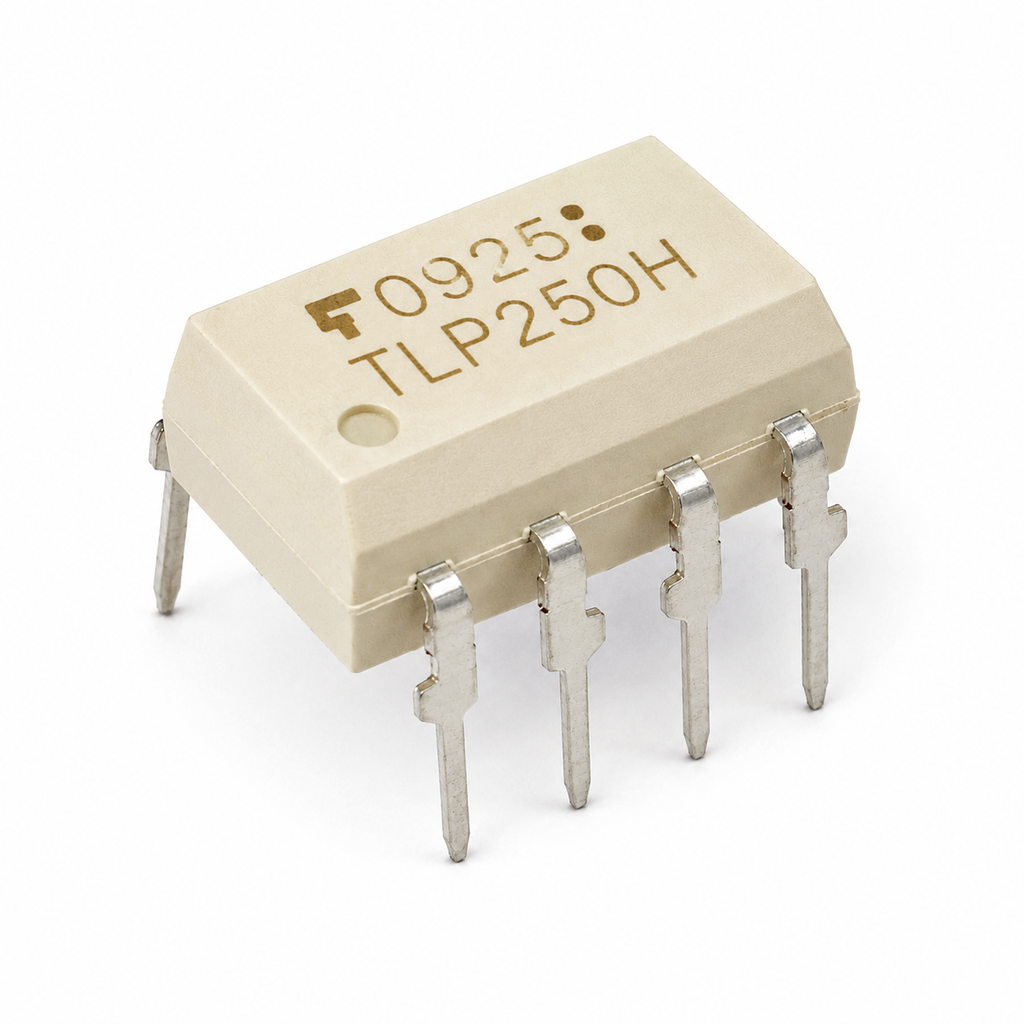

TLP250H High-Speed Gate Driver Optocoupler DIP-8 IC
TLP250H High-Speed Gate Driver Optocoupler DIP-8 IC
Product Overview
The TLP250H is a high-speed gate driver optocoupler designed for driving IGBTs and MOSFETs in inverter, motor control, UPS, and power switching applications. It provides electrical isolation and reliable signal transmission between control and power circuits.
Description
The TLP250H Gate Driver Optocoupler is a high-performance isolation device widely used in power electronics and industrial control systems. It combines an infrared LED and integrated gate driver circuitry to provide safe electrical isolation while driving MOSFET and IGBT power devices.
The TLP250H is commonly found in inverter circuits, motor drives, UPS systems, solar power equipment, induction heating systems, and industrial automation applications. By isolating the control circuitry from high-voltage power stages, it improves system reliability and safety.
Its DIP-8 package allows easy installation in through-hole PCB designs, making it popular among engineers, repair technicians, students, and DIY electronics enthusiasts.
Whether you're repairing an inverter, building a motor controller, or developing a power electronics project, the TLP250H offers dependable gate driving performance and isolation protection.
Applications
- IGBT gate driving
- MOSFET gate driving
- Solar inverters
- UPS systems
- Motor control circuits
- Industrial automation
- Power supplies
- Induction heating systems
- Switching power converters
- Electronics repair
Key Features
- High-speed optically isolated gate driver
- Suitable for MOSFET and IGBT applications
- Provides electrical isolation
- Reliable switching performance
- DIP-8 through-hole package
- Reduces noise interference
- Improves circuit safety
- Widely used in power electronics
Technical Specifications
- Model: TLP250H
- Package Type: DIP-8
- Device Type: Gate Driver Optocoupler
- Mounting Type: Through-Hole
Datasheet Information
- Device Type: Optically Isolated Gate Driver
- Package: DIP-8
- Application: IGBT/MOSFET Driver
- Isolation: Optical Isolation
How It Works
The TLP250H transfers control signals through an internal optical link. When the input LED receives a signal from a microcontroller or PWM controller, the internal photodetector activates the output driver stage.
This output stage can directly drive the gate of an IGBT or MOSFET while maintaining electrical isolation between the low-voltage control circuit and the high-voltage power circuit. This helps protect sensitive electronics and improves overall system safety.
