STM32F103C8T6 Blue Pill ARM Cortex-M3 Development Board

The STM32F103C8T6 Blue Pill ARM Cortex-M3 Development Board is a compact STM32 microcontroller board for embedded systems, electronics learning, automation, robotics and prototyping. It features a 32-bit Arm Cortex-M3 MCU running up to 72 MHz, 64 KB Flash, 20 KB SRAM, Micro-USB connectivity, BOOT selection jumpers and SWD programming/debug support.

Description

The STM32F103C8T6 Blue Pill Development Board is a compact development platform based on the STM32F103C8T6 microcontroller. It is suitable for developers, engineering students and makers who need an affordable 32-bit MCU platform for embedded development and hardware prototyping.

At its core is the STM32F103C8T6, featuring a 32-bit Arm Cortex-M3 CPU operating at up to 72 MHz. The C8 variant provides 64 KB of Flash memory, while the STM32F103 medium-density family provides 20 KB SRAM.

The MCU provides a broad set of embedded peripherals including 12-bit ADCs, timers, PWM capabilities, I2C, SPI, USART, USB and CAN, allowing the Blue Pill to interface with sensors, displays, motor-control hardware and communication modules.

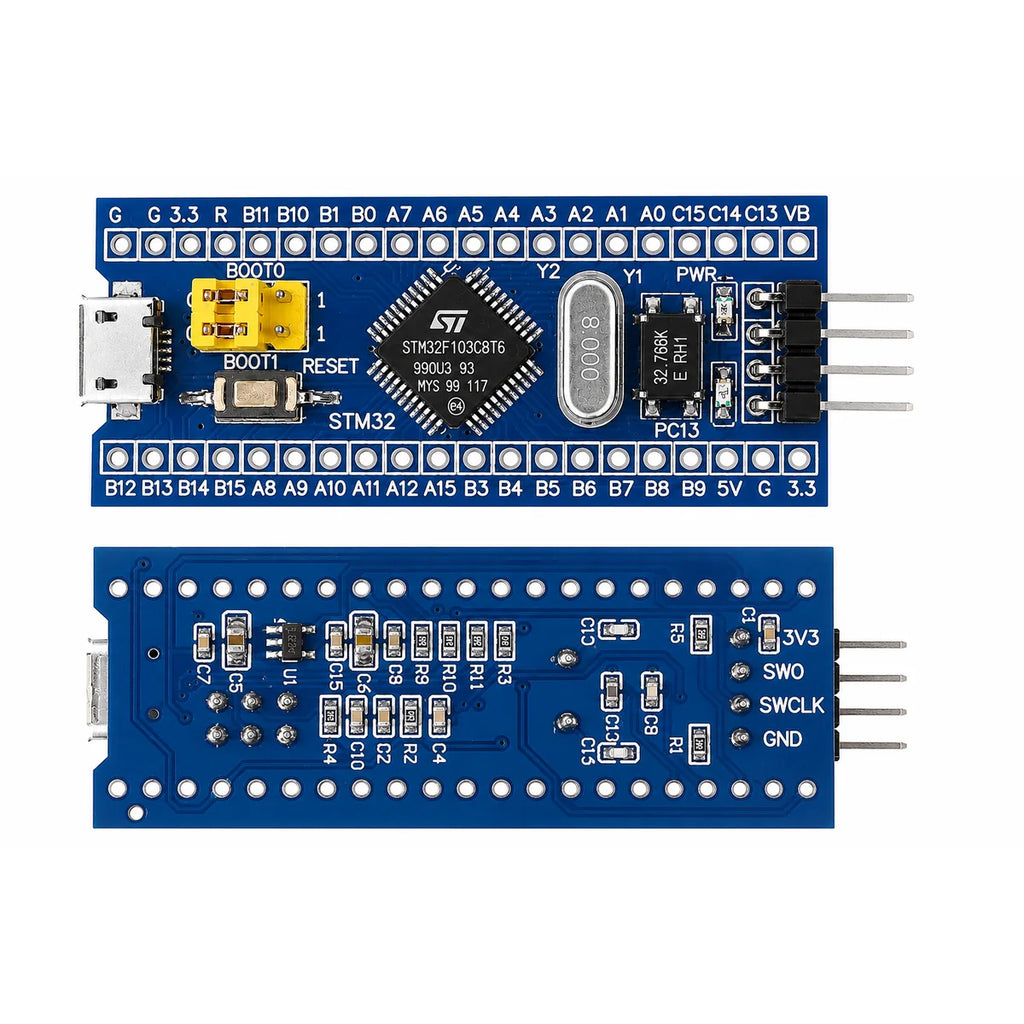

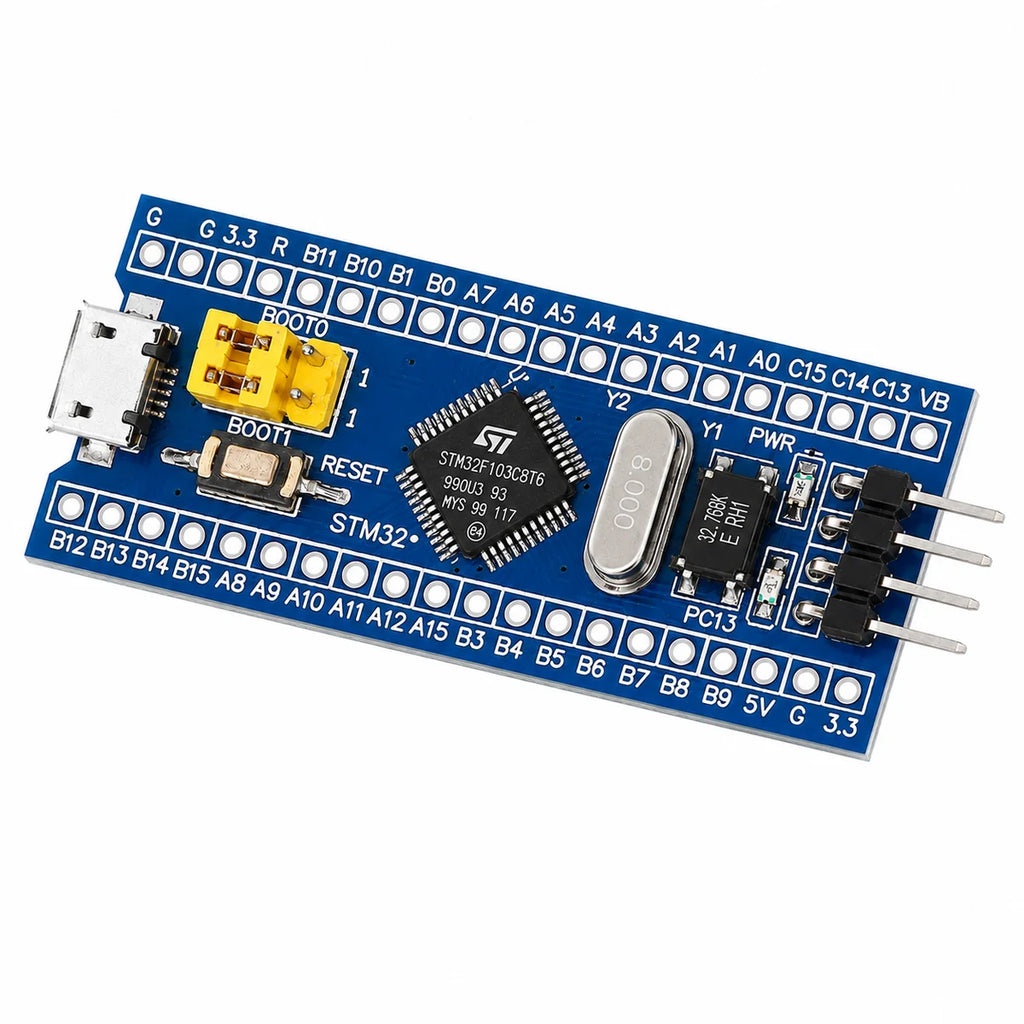

Your actual Chip.pk stock has a Micro-USB connector, 8 MHz crystal, 32.768 kHz crystal, RESET button, BOOT0/BOOT1 jumpers, SWD programming/debug header, indicator LEDs and blue PCB. Two loose header strips are also visible with the supplied board.

Key Features

• STM32F103C8T6 microcontroller
• 32-bit Arm Cortex-M3 architecture
• Up to 72 MHz CPU frequency
• 64 KB Flash memory
• 20 KB SRAM
• Micro-USB connector
• 8 MHz onboard crystal
• 32.768 kHz RTC crystal
• BOOT0 and BOOT1 selection jumpers
• RESET push button
• SWD programming and debugging support
• Multiple GPIO connections
• I2C communication support
• SPI communication support
• USART communication support
• USB full-speed capability
• CAN interface capability
• 12-bit ADC peripherals
• Timer and PWM functionality
• Compact Blue Pill form factor
• Two header strips included

Technical Specifications

ST specifies the STM32F103C8 family with a 2.0–3.6 V MCU supply range, two 12-bit ADCs, seven-channel DMA, up to two I2C and SPI interfaces, up to three USARTs, CAN and USB full-speed.

Pin Connections & Pinout

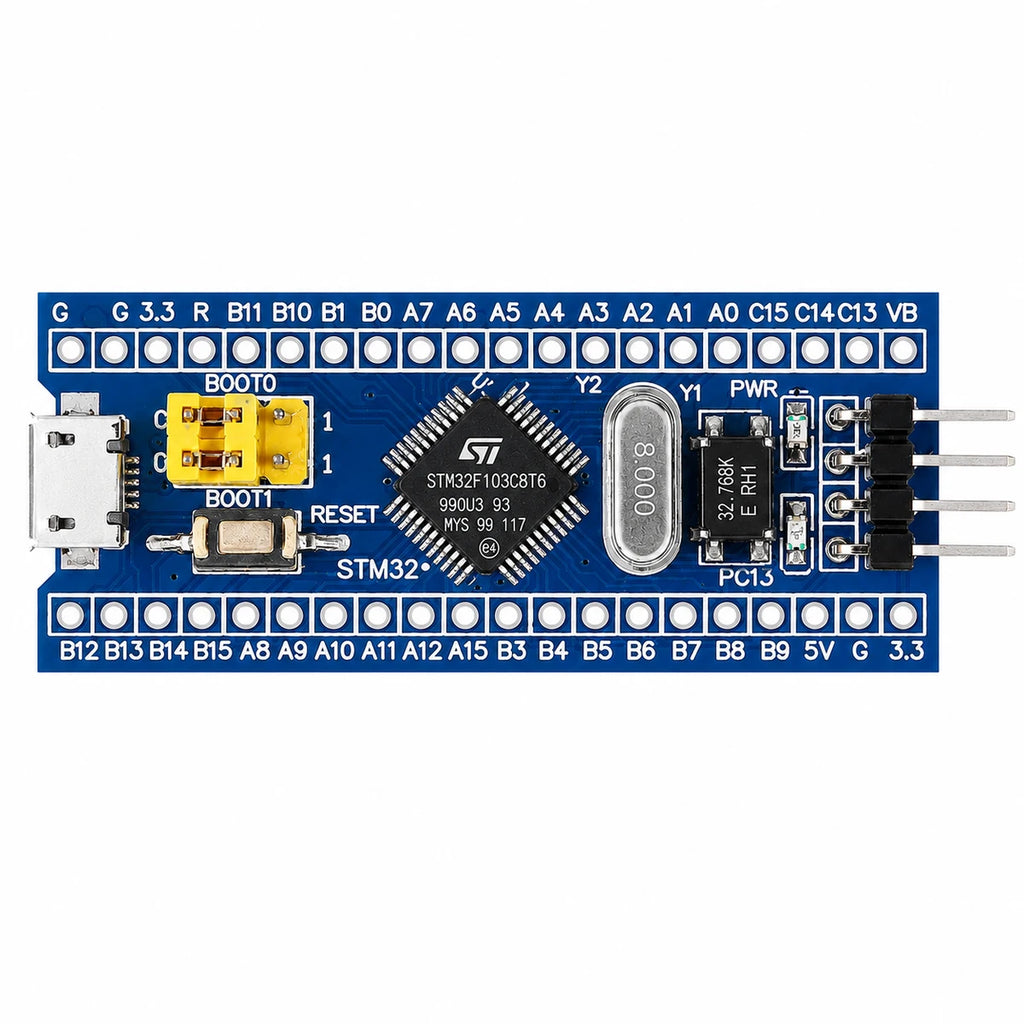

The Blue Pill exposes the STM32F103C8T6's GPIO, power and communication connections along both sides of the PCB. Pin labels are printed directly on the board.

The exposed connections can be configured for functions including:

• Digital GPIO
• Analog inputs
• PWM
• I2C
• SPI
• USART
• Timer functions
• Power and ground

A dedicated SWD header is provided for programming and debugging, while BOOT0 and BOOT1 jumpers allow the boot configuration to be selected.

Individual GPIO numbers and alternate-function mappings are intentionally not repeated here because STM32 pins can support multiple alternate functions depending on firmware configuration.

Programming & Development

The board can be used with common STM32 development environments and programming workflows, including:

• STM32CubeIDE
• STM32CubeMX
• Keil MDK
• PlatformIO
• Arduino IDE with compatible STM32 core
• ST-LINK programming/debugging

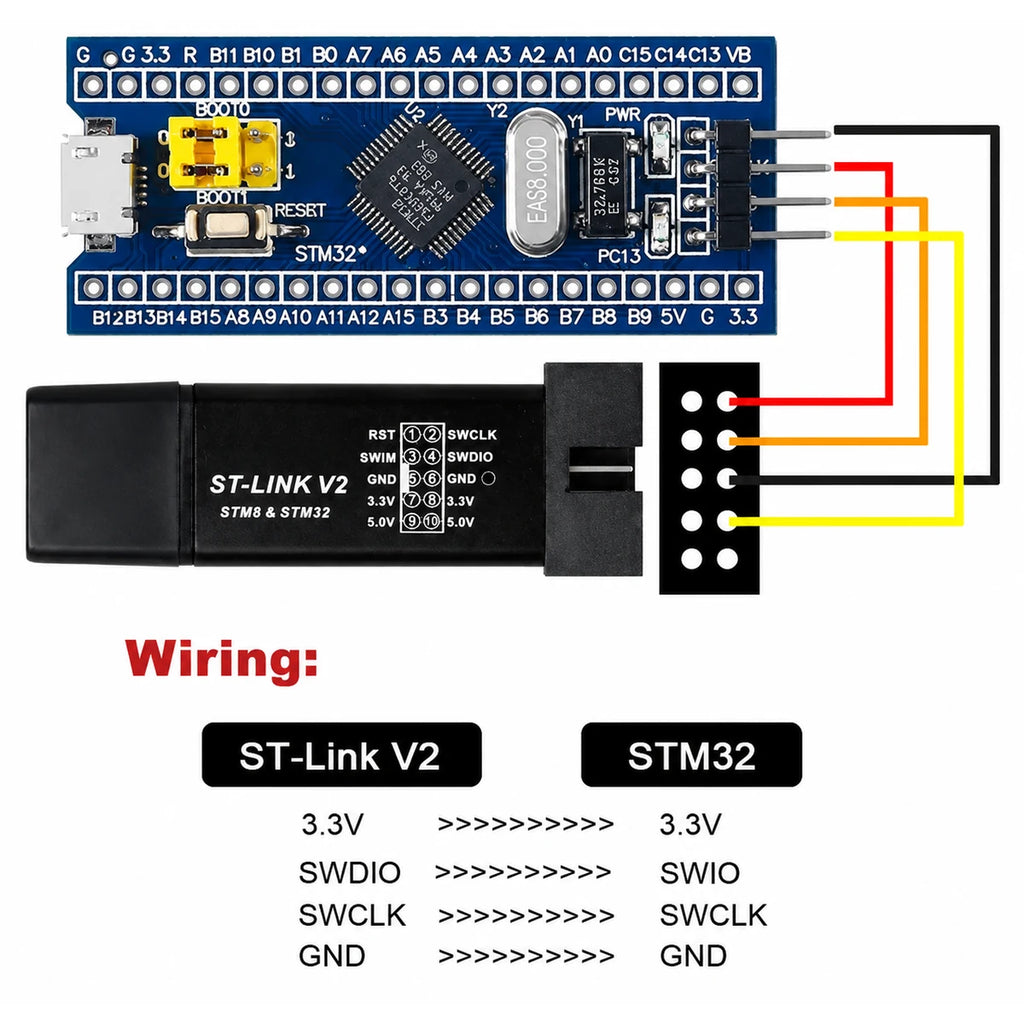

For development and debugging, SWD is particularly useful with an ST-LINK programmer/debugger.

The STM32F103 family officially supports SWD and JTAG debugging at the MCU level.

Communication Interfaces

The STM32F103C8 MCU provides multiple communication peripherals for connecting external hardware:

I2C — useful for compatible sensors, displays and peripheral ICs.

SPI — suitable for displays, memory devices, sensors and high-speed peripherals.

USART — provides serial communication with modules and other controllers.

USB — the MCU supports USB 2.0 full-speed functionality.

CAN — CAN 2.0B Active capability is available at the MCU level for suitable CAN applications with the required external hardware.

Applications

• STM32 programming and learning
• Embedded systems development
• Electronics prototyping
• Engineering student projects
• Robotics projects
• Sensor interfacing
• Motor control projects
• Automation systems
• Data acquisition
• Serial communication projects
• Display interfacing
• IoT device development with external connectivity modules
• Control systems
• Educational electronics projects
• Custom embedded controllers

Package Includes

Based on your actual Chip.pk stock photos:

• 1 × STM32F103C8T6 Blue Pill Development Board
• 2 × Male Header Pin Strips

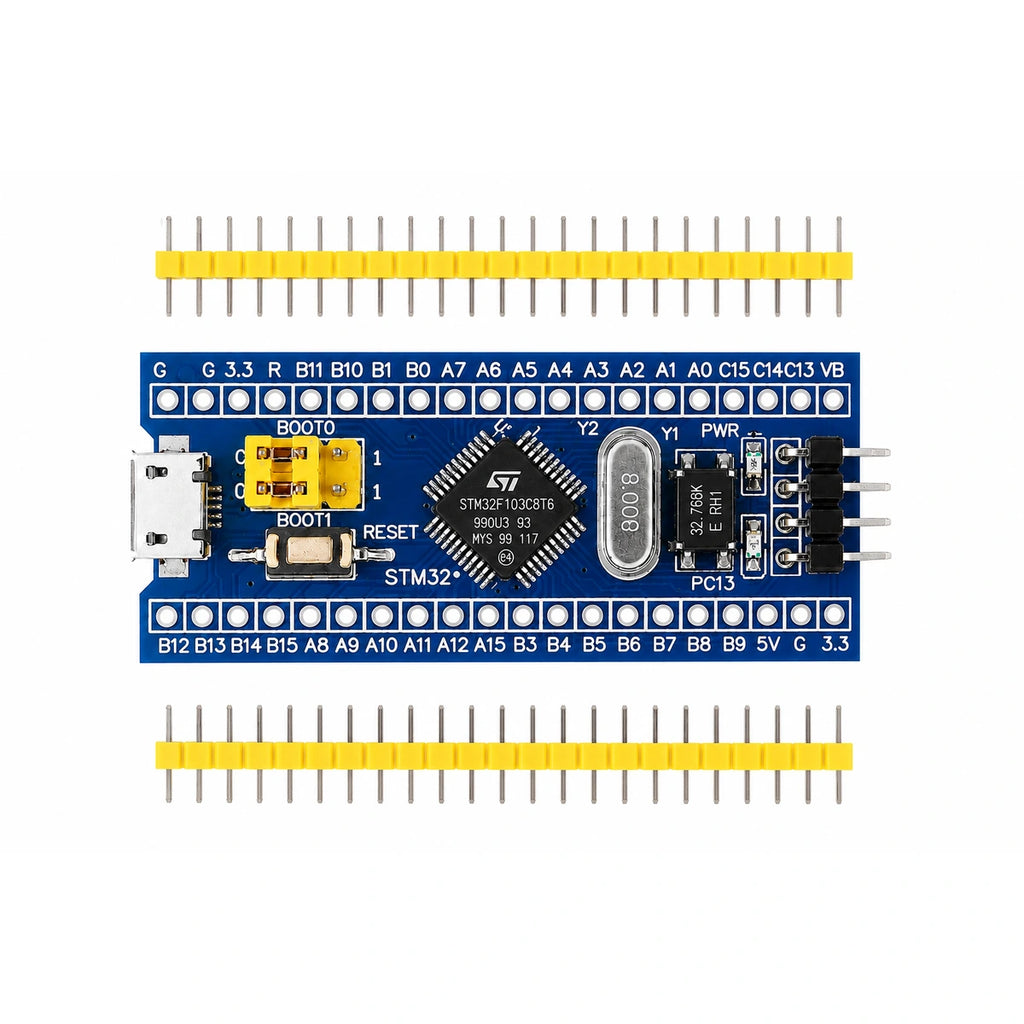

The headers are shown loose/unassembled, so the listing images should not imply that they come pre-soldered.

Buy in Pakistan

Buy the STM32F103C8T6 Blue Pill ARM Cortex-M3 Development Board from Chip.pk for STM32 learning, embedded development, robotics, automation and electronics prototyping in Pakistan.

Its compact form factor, 72 MHz Cortex-M3 processor, flexible communication peripherals and SWD debugging support make it useful for students, engineers, makers and embedded-system developers.
