Product Overview
The Silan 60N60 IGBT is a high-voltage power switching device designed for power supplies, inverters, motor drives, welding machines, and industrial control applications. Its TO-247 package provides reliable thermal performance for demanding power electronics projects.
Description
The Silan 60N60 IGBT Power Transistor is a high-performance switching device commonly used in power conversion and industrial control applications. Combining the advantages of MOSFET gate control with the high-current handling capability of bipolar transistors, the 60N60 IGBT is ideal for high-efficiency switching systems.
This device is widely used in inverter circuits, UPS systems, induction heating equipment, motor controllers, welding machines, solar energy systems, and industrial automation equipment. Its TO-247 package provides effective heat dissipation, making it suitable for medium and high-power applications.
Engineers, technicians, students, and electronics enthusiasts frequently use the 60N60 IGBT in repair work, power electronics projects, industrial prototypes, and educational learning environments.
Whether you're designing a power inverter, repairing industrial equipment, or building a custom motor control system, the Silan 60N60 offers dependable switching performance and durability.
Applications
- Power inverters
- UPS systems
- Motor drive circuits
- Welding machines
- Solar inverter systems
- Industrial automation
- Induction heating equipment
- Power supply repair
- Industrial control systems
- Power electronics projects
- Collector-Emitter Voltage (VCE): 600V
- Continuous Collector Current (IC): 60A (under specified cooling conditions)
This is why the device is commonly referred to as 60N60:
- 60 = approximately 60A current rating
- 60 = approximately 600V voltage rating
Important Clarification
An IGBT does not require 600V and 60A to operate.
Typical gate drive requirements are:
- Gate-Emitter Voltage (VGE): Âą20V maximum
- Recommended Gate Drive: +15V ON, 0V to -5V OFF (depending on circuit design)
The 600V and 60A values are the maximum switching ratings, not the required operating values.
Key Features
- High-voltage switching device
- Suitable for power conversion applications
- TO-247 package for improved heat dissipation
- Reliable industrial-grade performance
- Ideal for inverter and motor control circuits
- Suitable for repair and maintenance applications
- Designed for high-power electronic systems
- Easy integration into power electronics projects
Technical Specifications
- Manufacturer: Silan

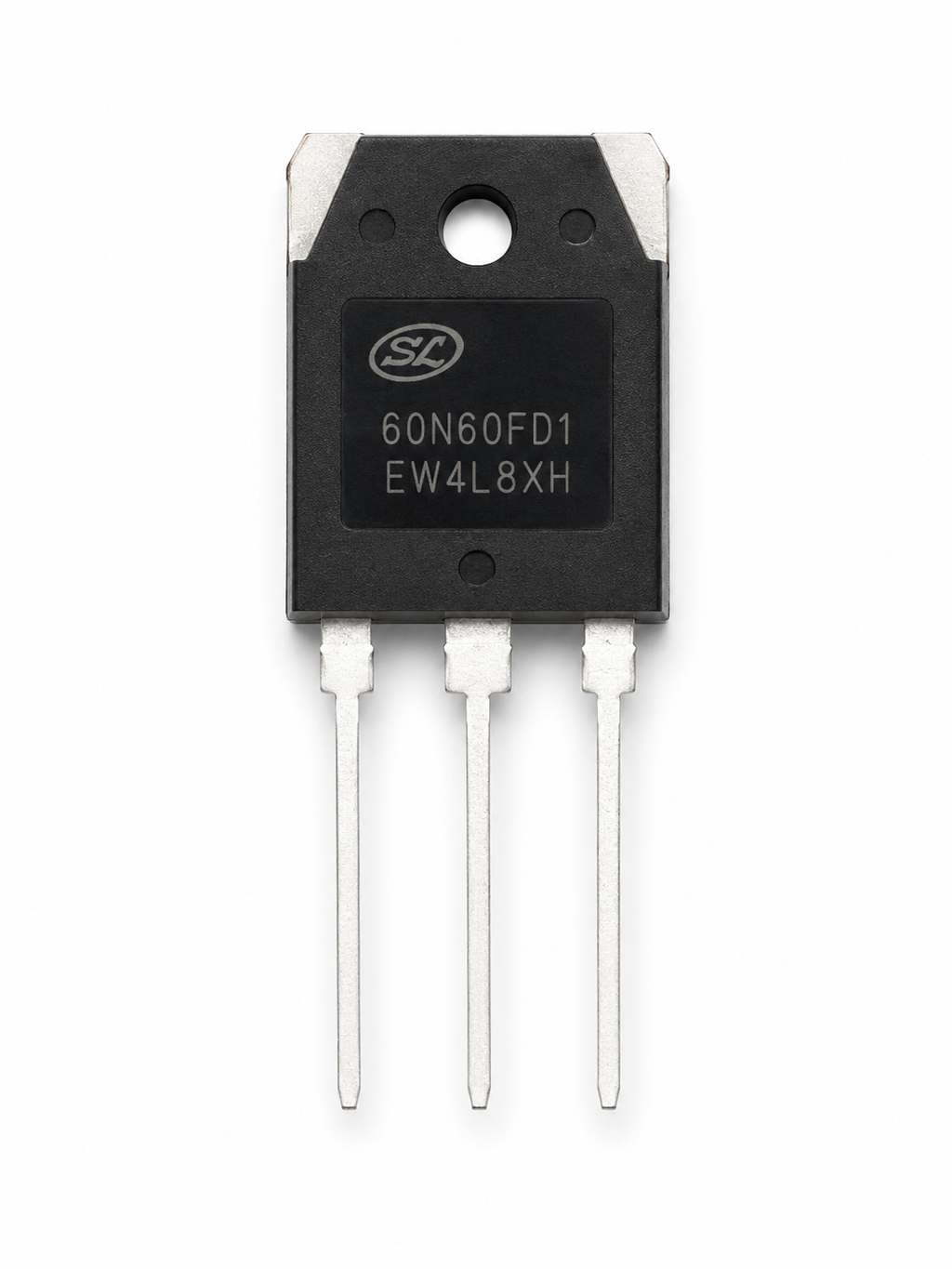

- Model Marking: 60N60FD1
- Package Type: TO-247
- Device Type: IGBT Power Transistor
How It Works
An IGBT (Insulated Gate Bipolar Transistor) acts as an electronic switch for controlling high-voltage and high-current loads. A small voltage applied to the gate terminal controls the flow of current between the collector and emitter terminals.
In inverter and motor control applications, the IGBT rapidly switches power on and off to regulate voltage, current, and motor speed. This allows efficient control of electrical energy in industrial and power conversion systems.
