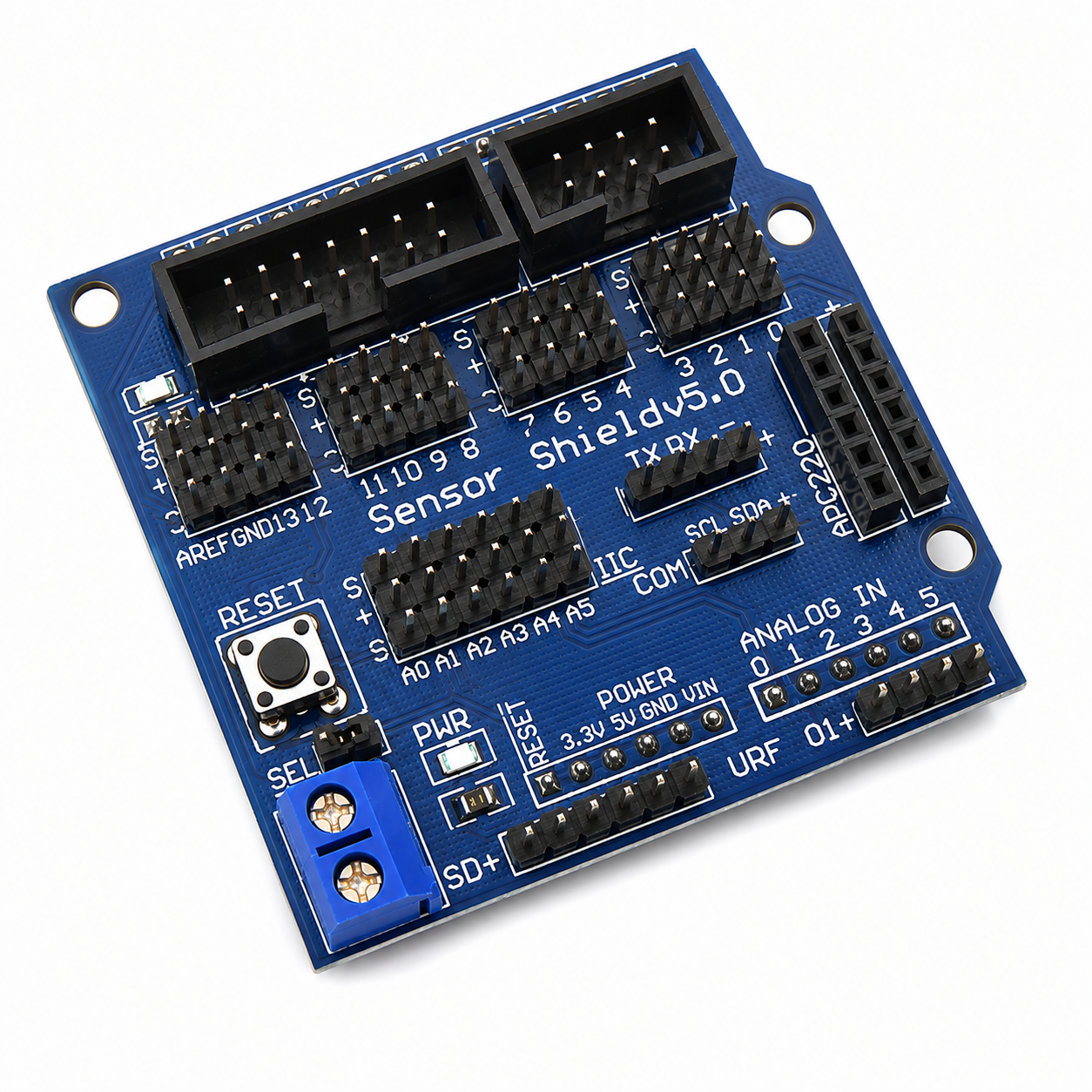

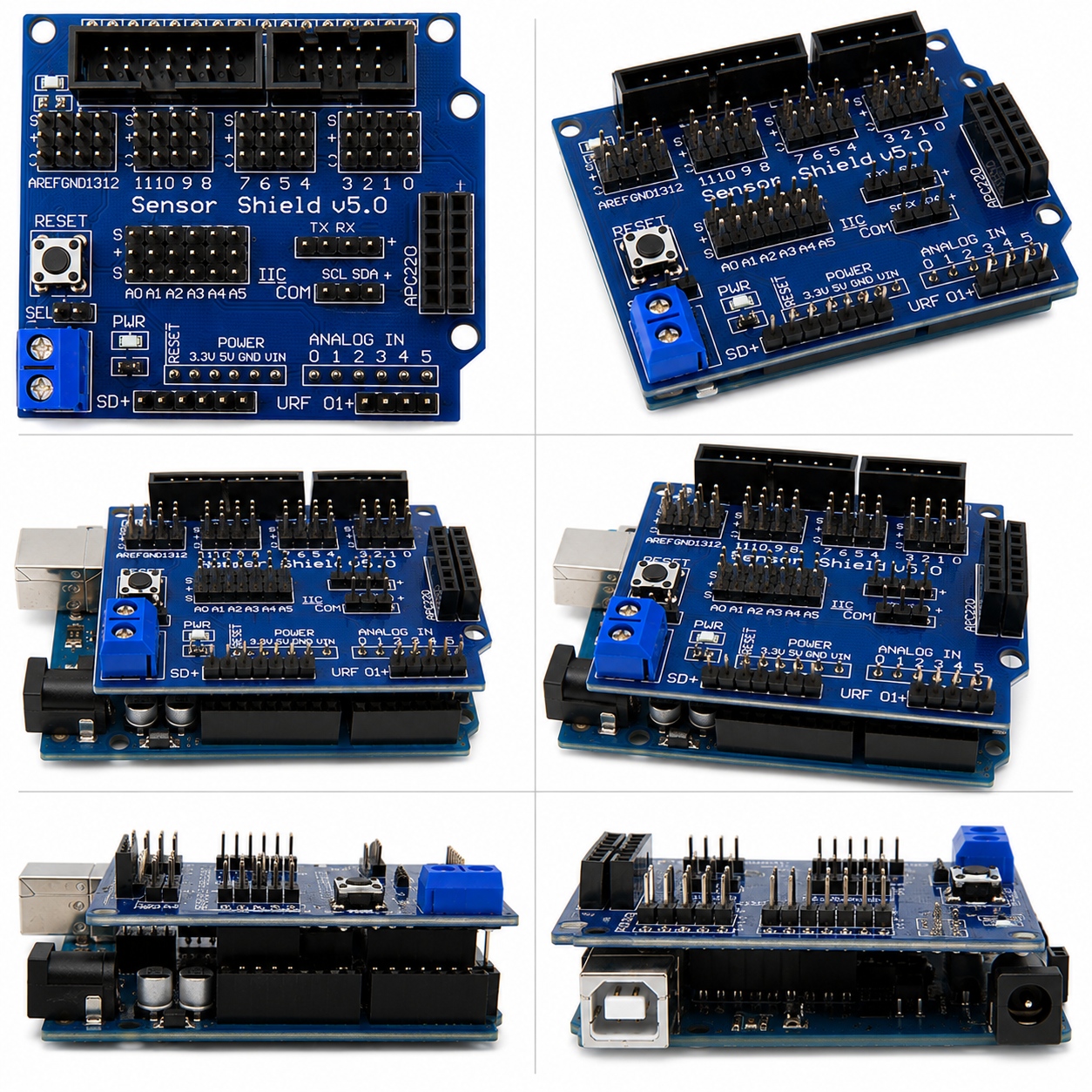

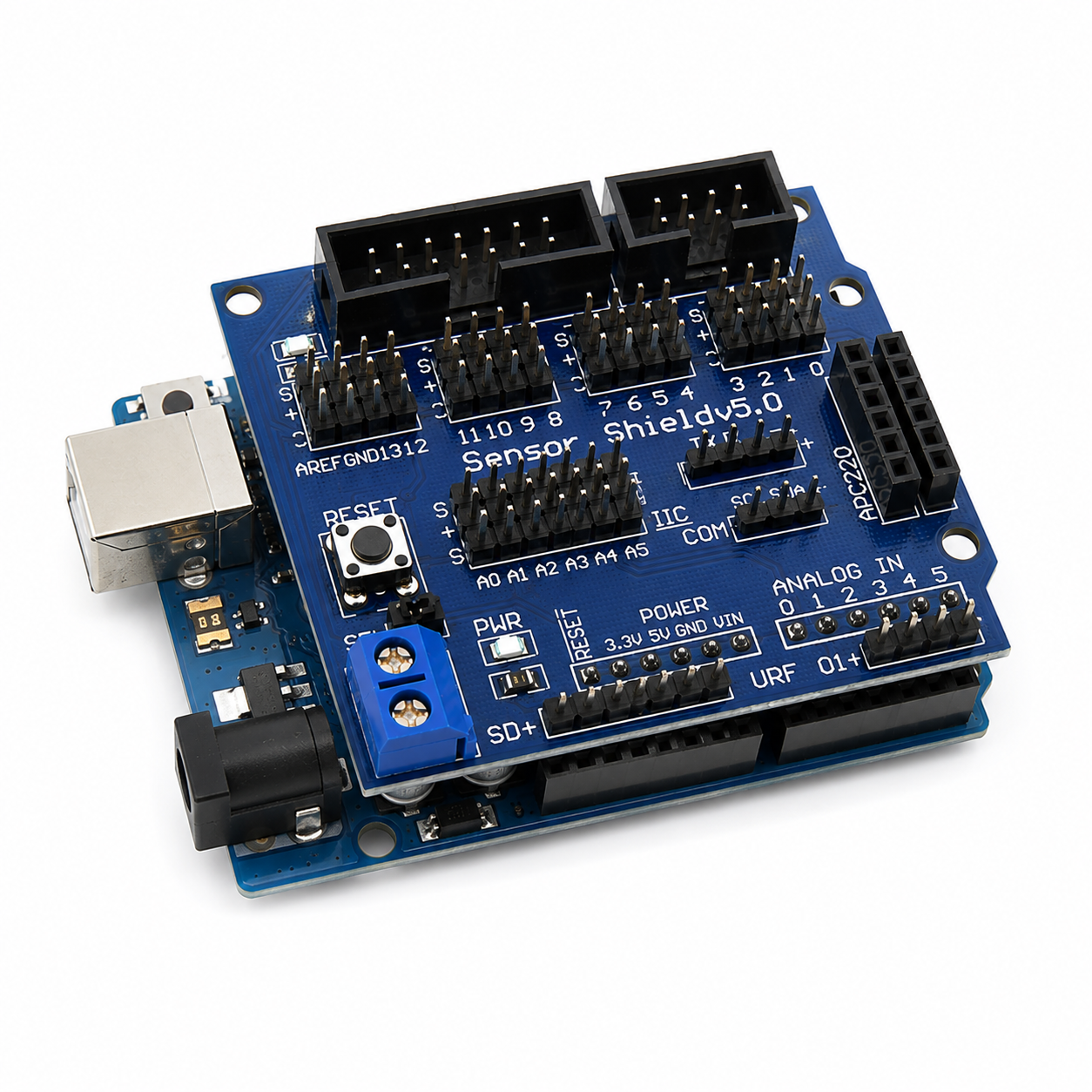

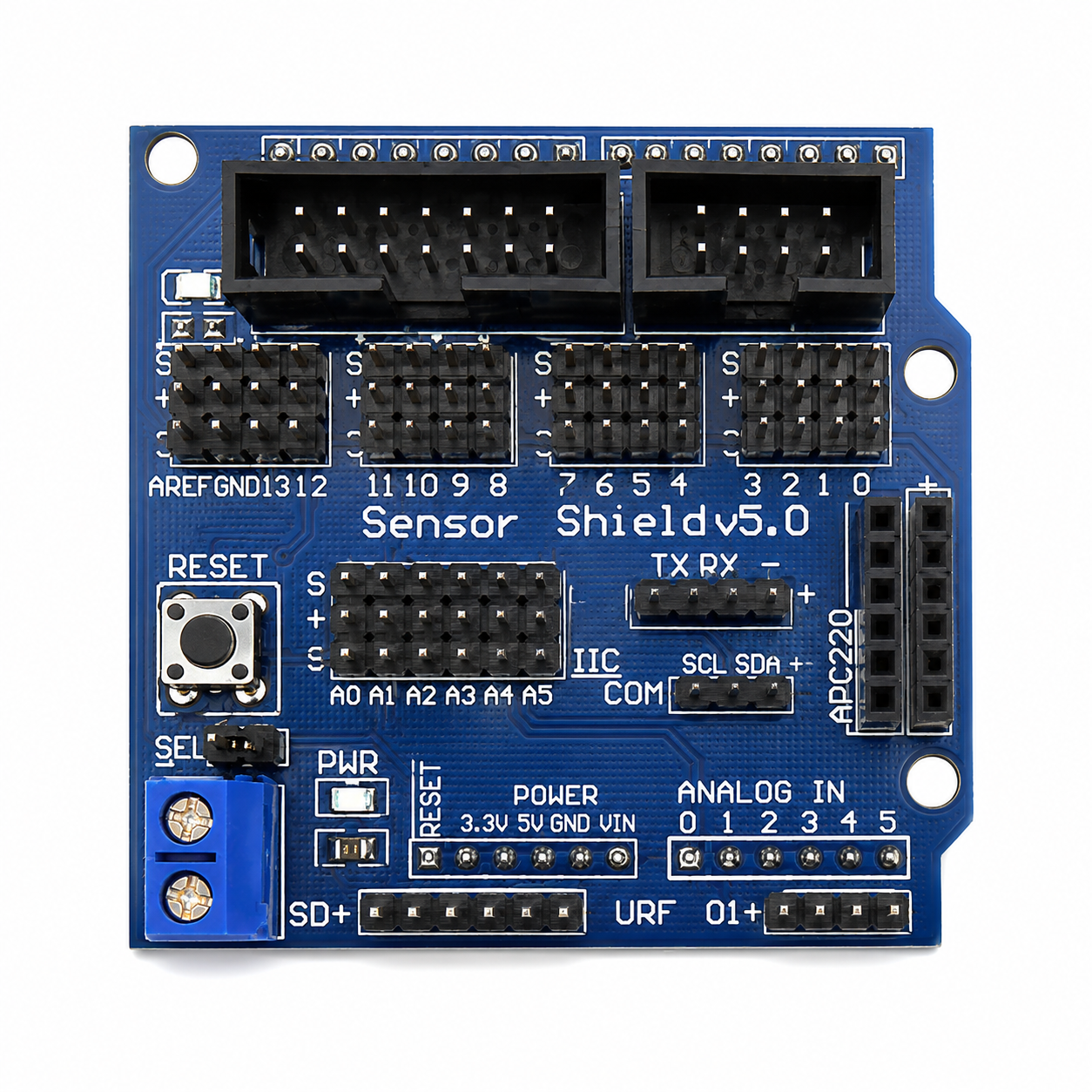

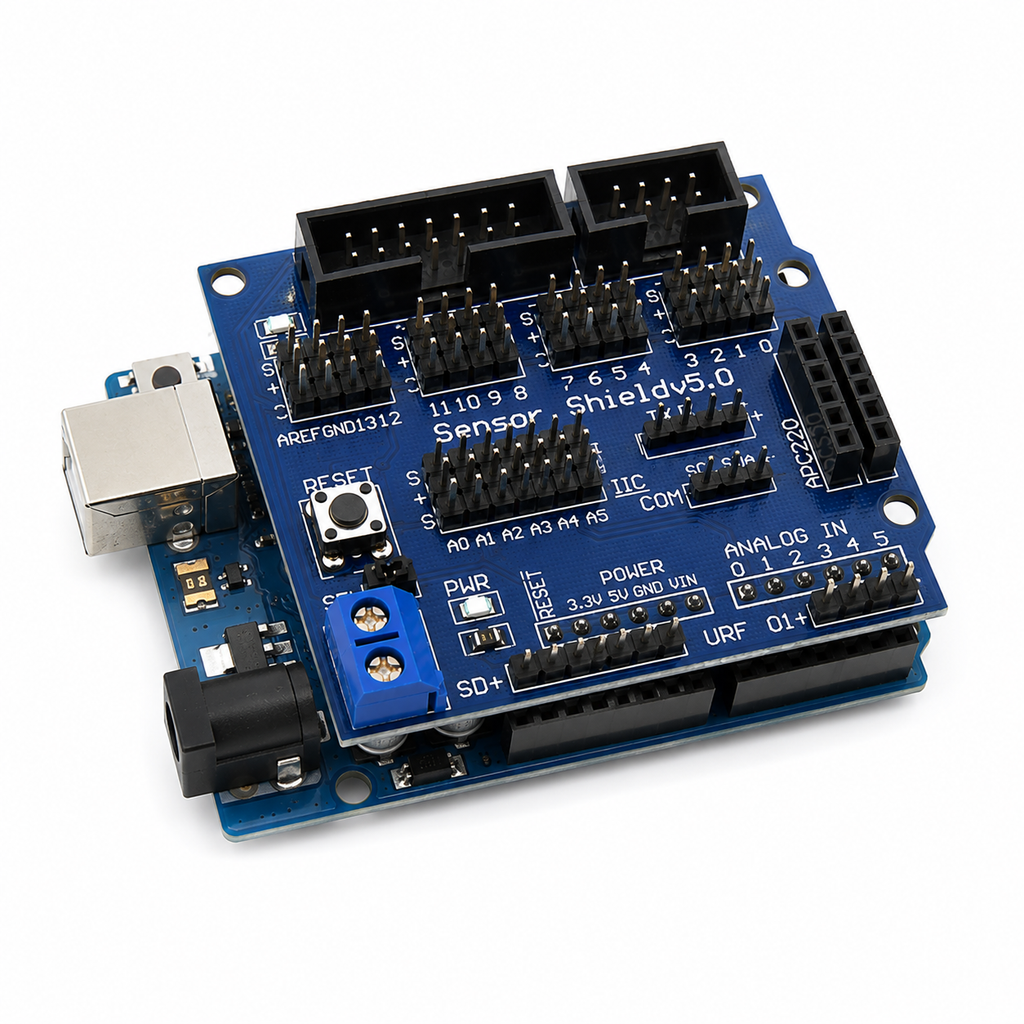

Sensor Shield V5.0 Expansion Board for Arduino Uno R3

The Sensor Shield V5.0 Expansion Board makes it easy to connect sensors, servos, and communication modules to an Arduino Uno R3. With clearly labeled 3-pin connectors and support for multiple interfaces, it is ideal for robotics, automation, IoT, STEM education, and rapid prototyping.

Description

The Sensor Shield V5.0 Expansion Board for Arduino Uno R3 is a practical expansion shield that simplifies wiring and speeds up hardware development. It breaks out the Arduino Uno's digital and analog pins into convenient Signal, VCC, and GND headers, allowing sensors and modules to be connected directly without complex jumper wiring.

The shield also provides access to commonly used communication interfaces, including UART, I²C, and SPI, making it suitable for integrating displays, wireless modules, motor drivers, relays, and other peripherals. Dedicated servo headers and an external power input help support projects that require multiple servo motors or higher current devices.

Whether you're building a robot, smart home controller, environmental monitoring system, or learning Arduino programming, the Sensor Shield V5.0 offers a clean and efficient way to expand your Arduino Uno R3.

Key Features

• Compatible with Arduino Uno R3
• Sensor Shield V5.0 design
• Easy plug-and-play sensor connections
• 3-pin headers for Signal, VCC, and GND
• Supports digital and analog I/O
• Dedicated servo connection headers
• External servo power input
• Access to UART, I²C, and SPI interfaces
• Reduces wiring complexity
• Ideal for rapid prototyping
• Suitable for robotics and IoT projects
• Compact and easy to install

Technical Specifications

Note: Some board revisions may have slight layout differences depending on the manufacturer.

Product Attributes

Pin Details

The Sensor Shield V5.0 provides convenient access to:

• Digital I/O Pins (D0–D13)
• Analog Inputs (A0–A5)
• UART Interface
• I²C Interface
• SPI Interface
• Servo Headers
• Power (5V & GND)
• External Servo Power Terminal

Each I/O connector is arranged as Signal (S), VCC (+), and GND (-) for quick sensor installation.

Compatibility

Compatible with:

• Arduino Uno R3
• Arduino Uno R2
• Arduino Uno R1
• Compatible Uno Development Boards

Supports connection with:

• Servo Motors
• Ultrasonic Sensors
• IR Sensors
• Relay Modules
• Bluetooth Modules
• Wi-Fi Modules
• LCD Displays
• OLED Displays
• Joysticks
• Environmental Sensors

Applications

• Robotics
• STEM Education
• Arduino Learning
• Home Automation
• IoT Projects
• Sensor Prototyping
• Industrial Demonstrations
• Smart Agriculture
• DIY Electronics
• Embedded System Development

Package Includes

• 1 × Sensor Shield V5.0 Expansion Board for Arduino Uno R3

Buy in Pakistan

Buy the Sensor Shield V5.0 Expansion Board for Arduino Uno R3 from Chip.pk to simplify sensor wiring and accelerate Arduino development. With convenient 3-pin connectors, support for multiple communication interfaces, and dedicated servo connections, it is an excellent choice for robotics, IoT, automation, and educational projects. Chip.pk offers quality electronics, competitive prices, secure packaging, and fast nationwide delivery across Pakistan.

Why Choose Chip.pk?

• Genuine quality electronic components
• Quality-tested before dispatch
• Competitive prices
• Fast nationwide delivery across Pakistan
• Secure packaging
• Trusted supplier for Arduino, ESP32, Raspberry Pi, and embedded electronics
• Technical support for makers, students, and engineers
• Reliable customer service and after-sales support
