Raspberry Pi Zero V1.3 Development Board

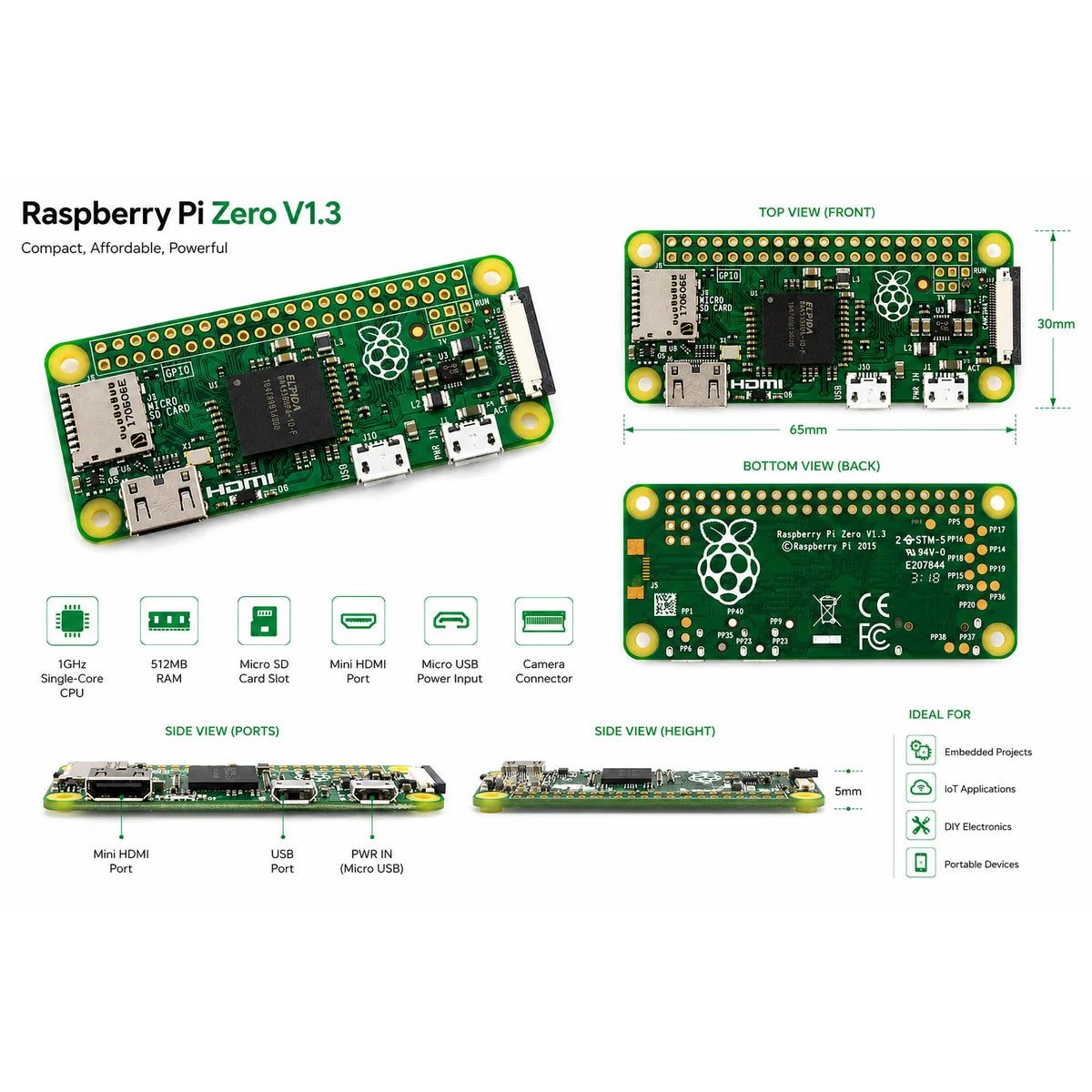

The Raspberry Pi Zero V1.3 is a compact development board featuring a 1GHz single-core processor, 512MB RAM, Mini HDMI, Micro USB OTG, microSD storage, 40-pin GPIO footprint and CSI camera connector. Ideal for embedded systems, electronics prototyping, programming and compact Raspberry Pi projects.

Description

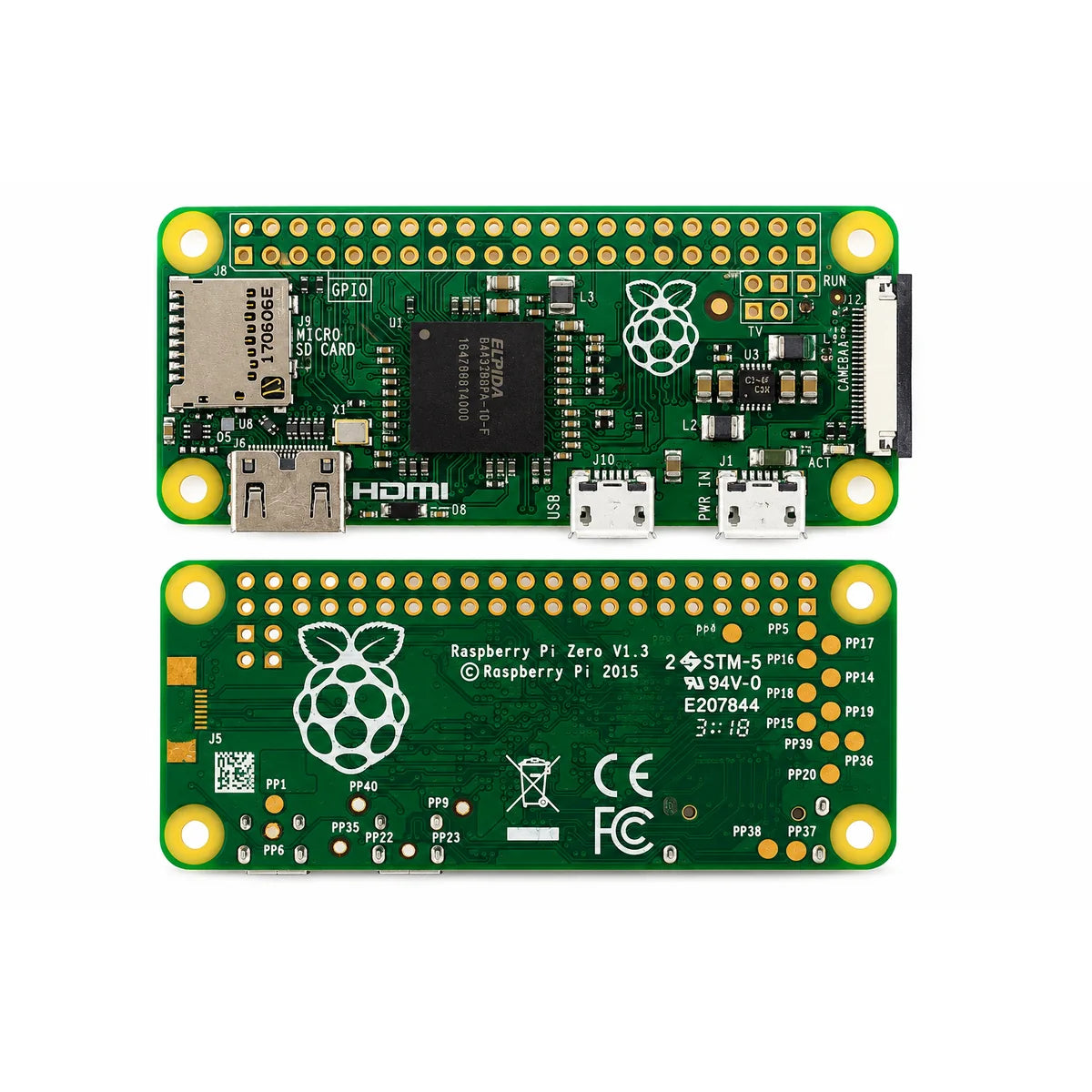

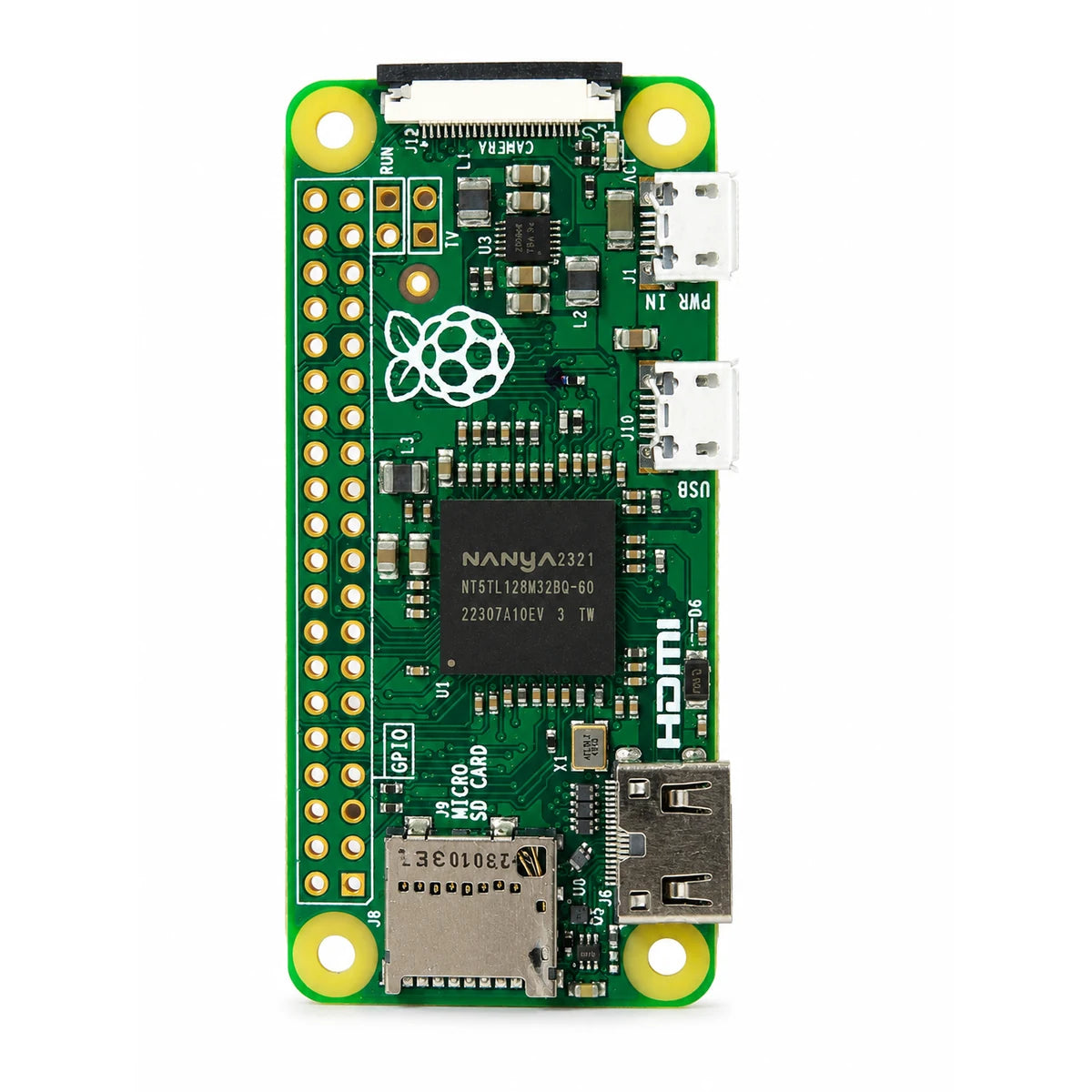

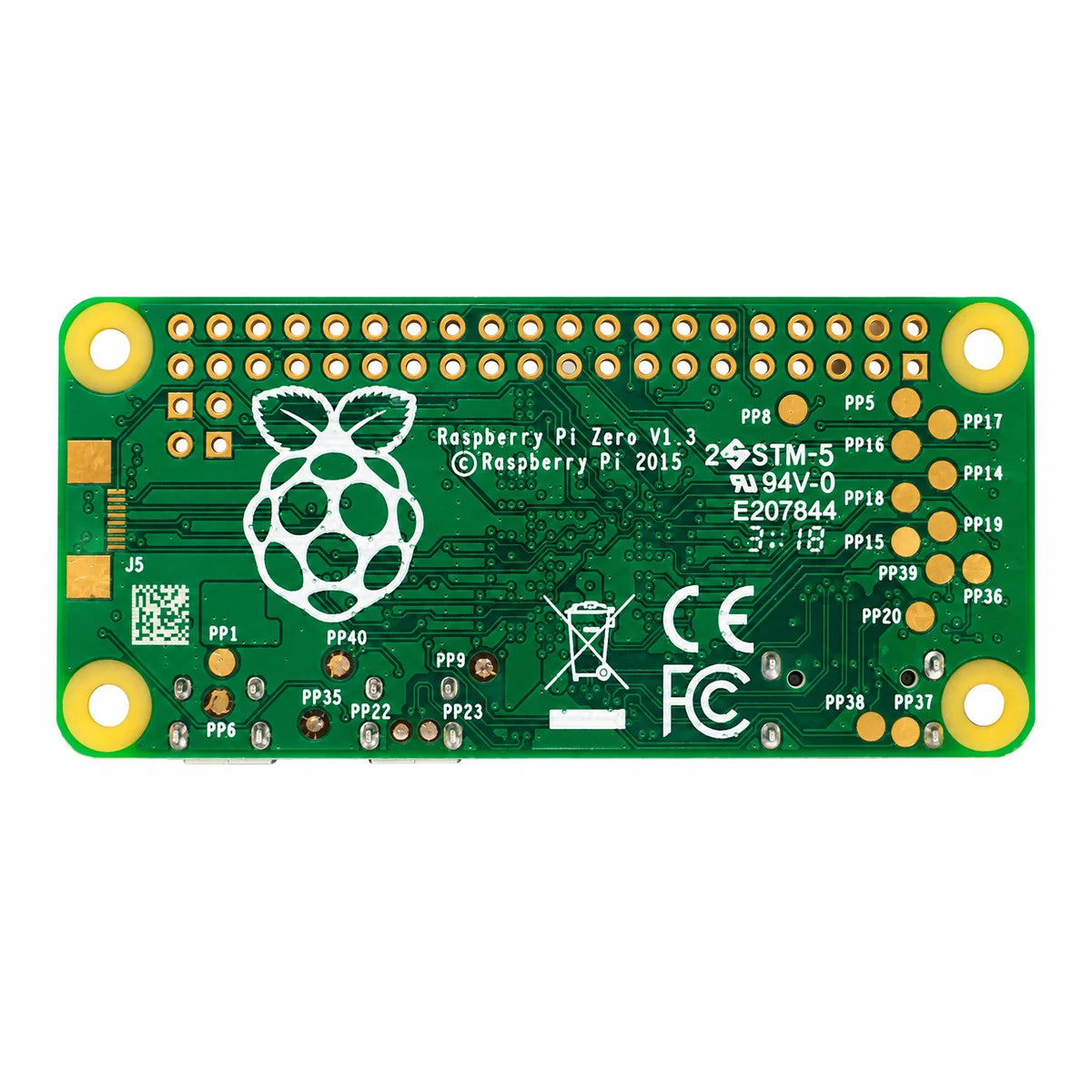

The Raspberry Pi Zero V1.3 Development Board brings Raspberry Pi computing capabilities to a compact form factor, making it suitable for embedded systems, electronics prototyping, educational projects and applications where board space is limited.

Powered by the Broadcom BCM2835 SoC, the board features a 1GHz single-core CPU and 512MB RAM. A microSD card is used for the operating system and storage, while Mini HDMI provides video output.

For connectivity and electronics projects, the Raspberry Pi Zero V1.3 provides a Micro USB OTG port and a 40-pin HAT-compatible GPIO footprint. The GPIO pins are not pre-soldered on this board, allowing users to select and install a suitable header according to their project requirements.

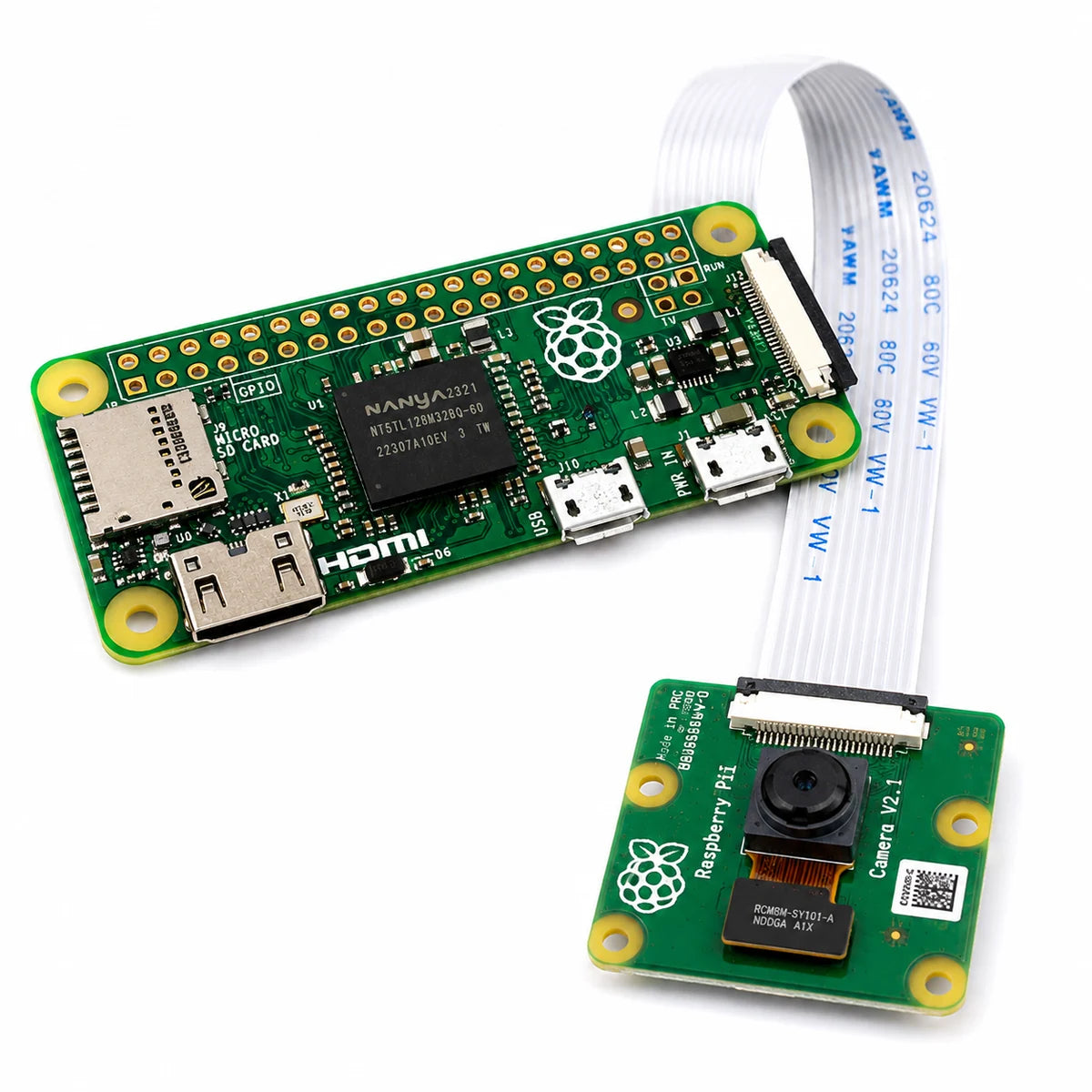

The V1.3 revision includes a CSI camera connector, enabling compatible Raspberry Pi camera applications when used with the appropriate Raspberry Pi Zero camera cable.

This is the standard Raspberry Pi Zero V1.3, not the Zero W or Zero 2 W. It does not include onboard Wi-Fi or Bluetooth.

Key Features

• Raspberry Pi Zero V1.3
• Broadcom BCM2835 SoC
• 1GHz single-core CPU
• 512MB RAM
• Mini HDMI video output
• Micro USB OTG interface
• Dedicated Micro USB power connection
• microSD card slot
• HAT-compatible 40-pin GPIO footprint
• GPIO header not pre-soldered
• CSI camera connector
• Compact single-board computer
• No onboard Wi-Fi or Bluetooth

Technical Specifications

Applications / Use Cases

• Embedded Linux projects
• Electronics prototyping
• Programming and educational projects
• GPIO-based electronics
• Compact automation projects
• Camera-based projects
• Data logging
• Custom controllers and interfaces
• Portable and space-constrained projects

Compatibility

The Raspberry Pi Zero V1.3 supports Raspberry Pi OS and uses a microSD card for the operating system and storage.

Its 40-pin GPIO footprint can be used with compatible Raspberry Pi GPIO hardware after installing the appropriate header where required.

For camera applications, the V1.3 board has the smaller Zero-series CSI camera connector, so an appropriate Raspberry Pi Zero camera cable is required.

For connection to a standard HDMI display, a suitable Mini HDMI-to-HDMI cable or adapter is required.

Important: This board is the standard Raspberry Pi Zero V1.3 and does not have the onboard Wi-Fi and Bluetooth found on Raspberry Pi Zero W models.

Package Contents

1 × Raspberry Pi Zero V1.3 Development Board

Other accessories are not included unless specifically stated with the product.

Buy Raspberry Pi Zero V1.3 in Pakistan

Buy the Raspberry Pi Zero V1.3 in Pakistan from Chip.pk for embedded systems, electronics prototyping, programming, GPIO and compact computing projects. Check the current Raspberry Pi Zero price in Pakistan and stock availability directly on this product page before ordering.

FAQs

1. What is the Raspberry Pi Zero V1.3?

The Raspberry Pi Zero V1.3 is a compact single-board computer featuring a Broadcom BCM2835 SoC, 1GHz single-core CPU, 512MB RAM, Mini HDMI, Micro USB OTG, 40-pin GPIO footprint and CSI camera connector.

2. Does Raspberry Pi Zero V1.3 have Wi-Fi?

No. The standard Raspberry Pi Zero V1.3 does not have onboard Wi-Fi. Wi-Fi is available on other models such as the Raspberry Pi Zero W.

3. Does Raspberry Pi Zero V1.3 have Bluetooth?

No. This board does not include onboard Bluetooth.

4. Does the Raspberry Pi Zero V1.3 have a camera connector?

Yes. The V1.3 revision includes a CSI camera connector. A suitable Raspberry Pi Zero camera cable is required for connecting compatible camera modules.

5. Are GPIO header pins already soldered?

No. The actual Chip.pk stock board has an unpopulated 40-pin GPIO footprint. A suitable header must be installed if physical GPIO pins are required.

6. What storage does the Raspberry Pi Zero use?

The Raspberry Pi Zero V1.3 uses a microSD card for the operating system and storage.

7. Can I connect the Raspberry Pi Zero to an HDMI display?

Yes. The board provides Mini HDMI output. A suitable Mini HDMI-to-HDMI cable or adapter is required for connection to a standard HDMI display.

8. Is this Raspberry Pi Zero W or Raspberry Pi Zero 2 W?

No. This product is the standard Raspberry Pi Zero V1.3. It is different from the Raspberry Pi Zero W and Raspberry Pi Zero 2 W and does not include their onboard wireless connectivity.

9. What is the Raspberry Pi Zero price in Pakistan?

The price may change depending on stock and market conditions. Check the current price displayed on the Chip.pk product page for the latest Raspberry Pi Zero price in Pakistan.

10. Where can I buy Raspberry Pi Zero V1.3 in Pakistan?

You can order the Raspberry Pi Zero V1.3 Development Board from Chip.pk, subject to the current stock availability shown on the product page.
