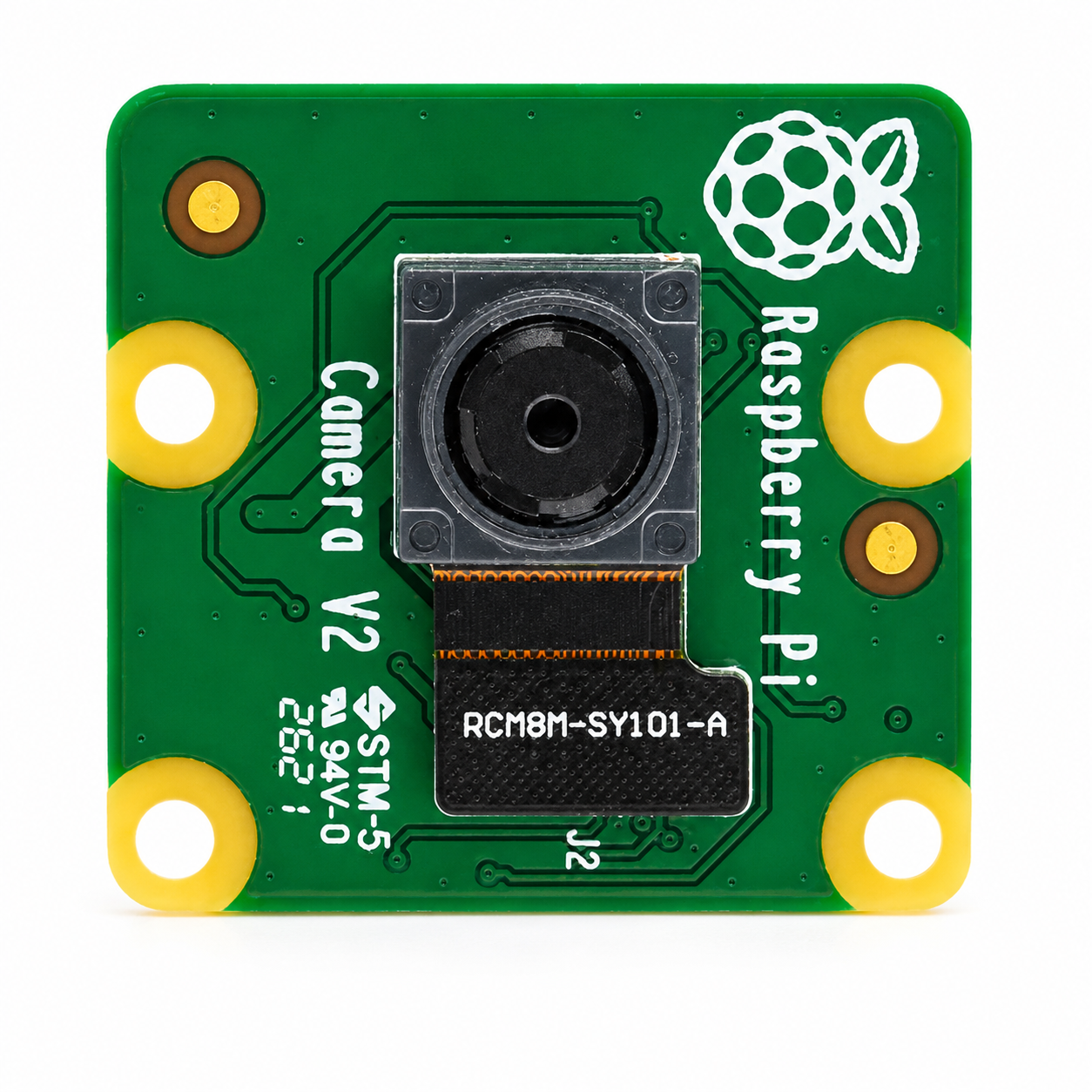

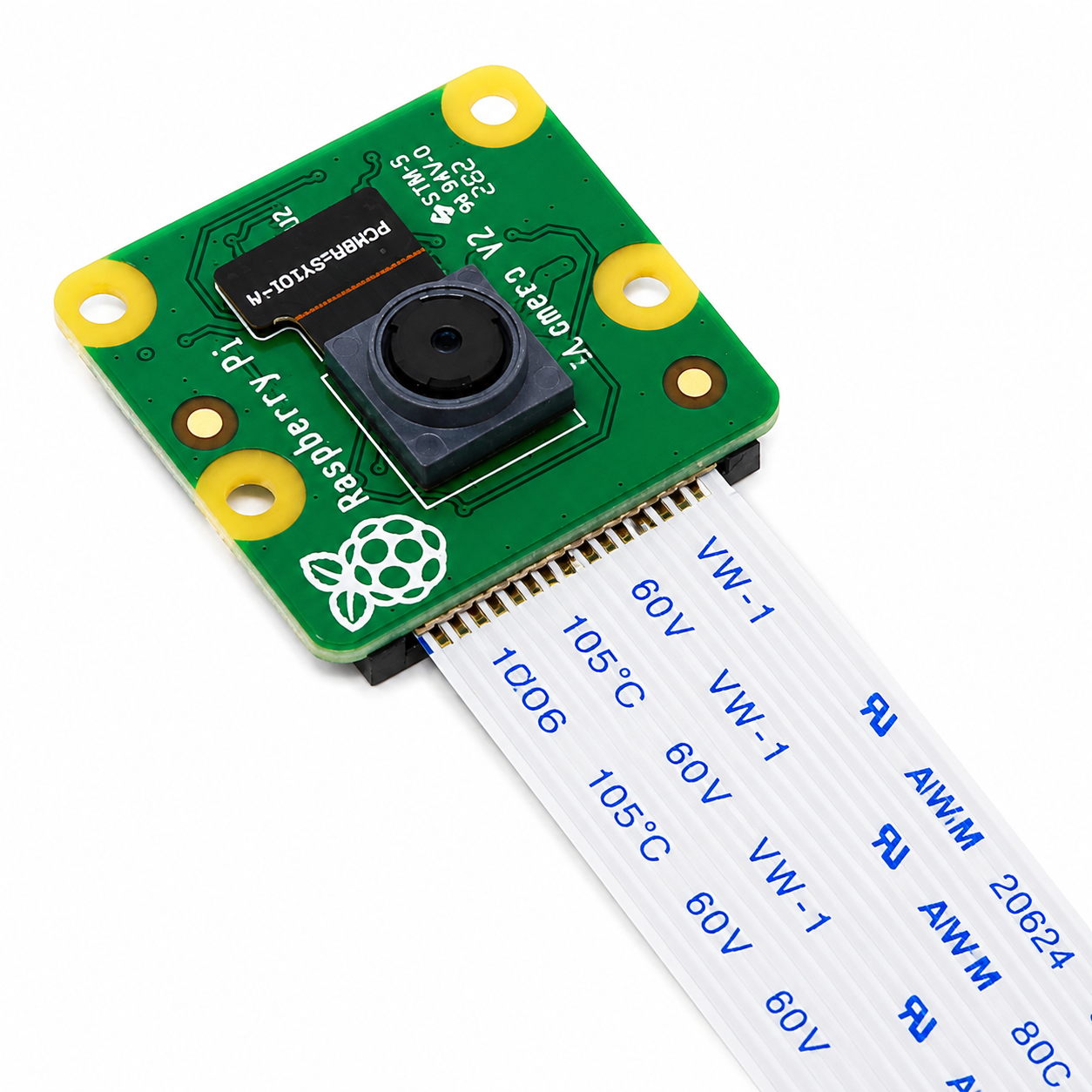

Raspberry Pi Camera Module V2 8MP
Raspberry Pi Camera Module V2 8MP
Product Overview
Capture high-quality images and Full HD video with the official Raspberry Pi Camera Module V2. Featuring the Sony IMX219 8MP sensor, this compact camera is ideal for Raspberry Pi projects, computer vision, robotics, surveillance, and AI applications.
Description
The Raspberry Pi Camera Module V2 is the official camera designed for Raspberry Pi boards, featuring the powerful Sony IMX219 8-Megapixel back-illuminated sensor. It delivers sharp still images and high-quality video recording for a wide range of embedded vision applications.
Connected through the Raspberry Pi CSI interface, the camera integrates directly with Raspberry Pi OS and supports OpenCV, TensorFlow Lite, machine vision software, AI applications, security systems, robotics, and time-lapse photography.
Its compact size, low weight, and excellent image quality make it one of the most popular camera solutions for makers, educators, students, and professionals.
Whether you're building a smart surveillance system, robot vision platform, wildlife monitoring station, or AI-powered project, the Raspberry Pi Camera V2 offers reliable performance and seamless Raspberry Pi integration.
Applications
- Computer Vision Projects
- AI & Machine Learning
- OpenCV Development
- Raspberry Pi Robotics
- Security Cameras
- Time-Lapse Photography
- Smart Home Monitoring
- Object Detection Systems
- Industrial Inspection
- STEM Education
Key Features
- Official Raspberry Pi Camera
- Sony IMX219 8MP Sensor
- High-quality still image capture
- Full HD video recording
- Direct CSI interface connection
- Compact and lightweight design
- Excellent low-light performance
- Compatible with OpenCV
- Ideal for AI applications
- Easy Raspberry Pi integration
Technical Specifications
| Specification | Details |
|---|---|
| Model | Raspberry Pi Camera Module V2 |
| Image Sensor | Sony IMX219 Exmor R |
| Resolution | 8 Megapixels |
| Maximum Image Size | 3280 × 2464 Pixels |
| Video Modes | 1080p @ 30fps, 720p @ 60fps, 640×480 @ 90fps |
| Lens Type | Fixed Focus |
| Focal Length | 3.04 mm |
| Aperture | F2.0 |
| Horizontal FoV | 62.2° |
| Vertical FoV | 48.8° |
| Sensor Size | 1/4 Inch |
| Pixel Size | 1.12μm × 1.12μm |
| Interface | 15-Pin MIPI CSI |
| Dimensions | 25 × 23 × 9 mm |
| Weight | Approximately 3g |
How It Works
The Raspberry Pi Camera V2 connects directly to the Raspberry Pi using the CSI (Camera Serial Interface) connector. The Sony IMX219 sensor captures images and video, which can then be processed by Raspberry Pi software, OpenCV libraries, or AI frameworks. Developers can use the camera for image recognition, object tracking, surveillance systems, machine learning, and robotics applications.
