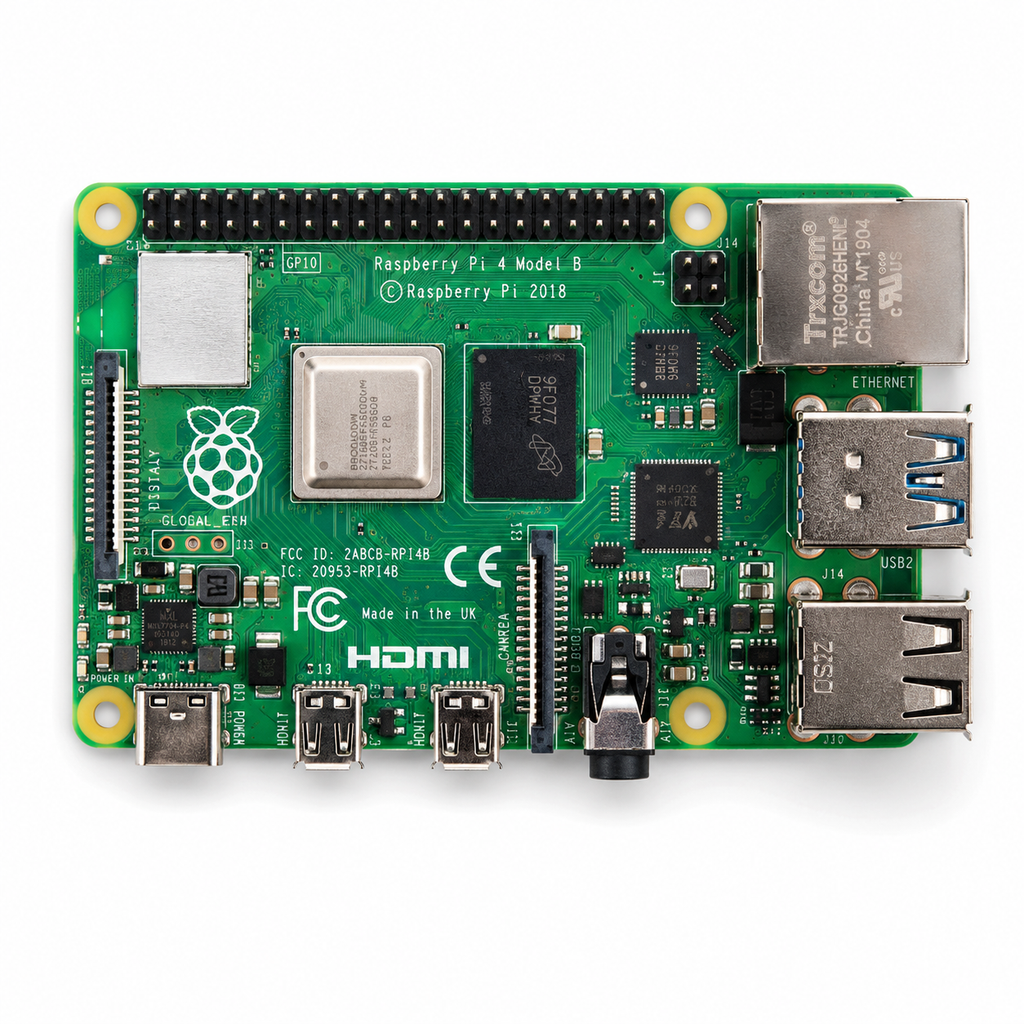

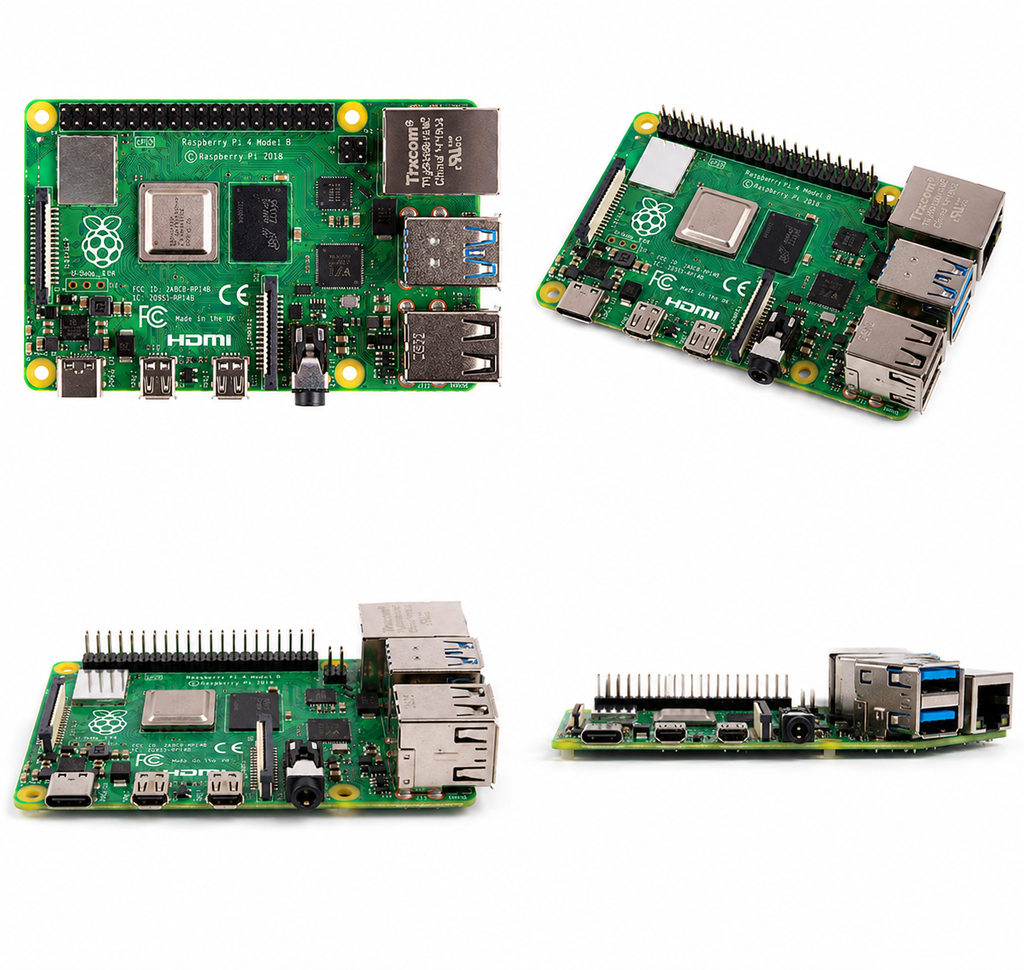

Raspberry Pi 4 Model B 8GB RAM Single Board Computer
Raspberry Pi 4 Model B 8GB RAM Single Board Computer
Product Overview
The Raspberry Pi 4 Model B 8GB is a powerful single-board computer featuring a quad-core Cortex-A72 processor, 8GB LPDDR4 RAM, dual 4K display support, Gigabit Ethernet, WiFi, and Bluetooth. Ideal for IoT, robotics, media centers, servers, and embedded development projects.
Description
The Raspberry Pi 4 Model B 8GB delivers desktop-class performance in a compact and energy-efficient form factor. Powered by the Broadcom BCM2711 quad-core Cortex-A72 processor running at 1.5GHz, it offers significantly improved performance compared to previous Raspberry Pi generations.
Featuring 8GB LPDDR4 memory, the Raspberry Pi 4 is well suited for multitasking, software development, home automation systems, media centers, AI edge computing, and server applications.
The board includes dual micro-HDMI outputs capable of driving two 4K displays simultaneously, Gigabit Ethernet, dual-band WiFi, Bluetooth 5.0, USB 3.0 connectivity, and the familiar 40-pin GPIO header for electronics and embedded projects.
Whether you're building a smart home hub, NAS server, industrial controller, robotics platform, or educational development system, the Raspberry Pi 4 8GB provides exceptional flexibility and performance.
Applications
- Raspberry Pi projects
- Home automation
- Smart home systems
- Robotics development
- IoT gateways
- Media centers
- NAS and home servers
- Edge AI computing
- Industrial automation
- STEM education
Key Features
- Quad-core 64-bit ARM Cortex-A72 processor
- Large 8GB LPDDR4 RAM
- Dual-display 4K support
- True Gigabit Ethernet
- Dual-band WiFi connectivity
- Bluetooth 5.0 support
- USB 3.0 high-speed ports
- Backward-compatible 40-pin GPIO
- Energy-efficient design
- Ideal for advanced Raspberry Pi projects
Technical Specifications
| Specification | Details |
|---|---|
| Model | Raspberry Pi 4 Model B |
| Processor | Broadcom BCM2711 |
| CPU Architecture | Quad-Core ARM Cortex-A72 (64-bit) |
| CPU Speed | 1.5GHz |
| RAM | 8GB LPDDR4-3200 SDRAM |
| WiFi | 2.4GHz & 5GHz IEEE 802.11ac |
| Bluetooth | Bluetooth 5.0 |
| Ethernet | Gigabit Ethernet |
| USB 3.0 Ports | 2 |
| USB 2.0 Ports | 2 |
| Video Output | Dual Micro-HDMI |
| Maximum Display Resolution | Dual 4K |
| GPIO Header | 40-Pin |
| Power Input | USB Type-C |
| Recommended Power Supply | 5V / 3A |
Package Includes
Please confirm package contents before publishing.
Typical package:

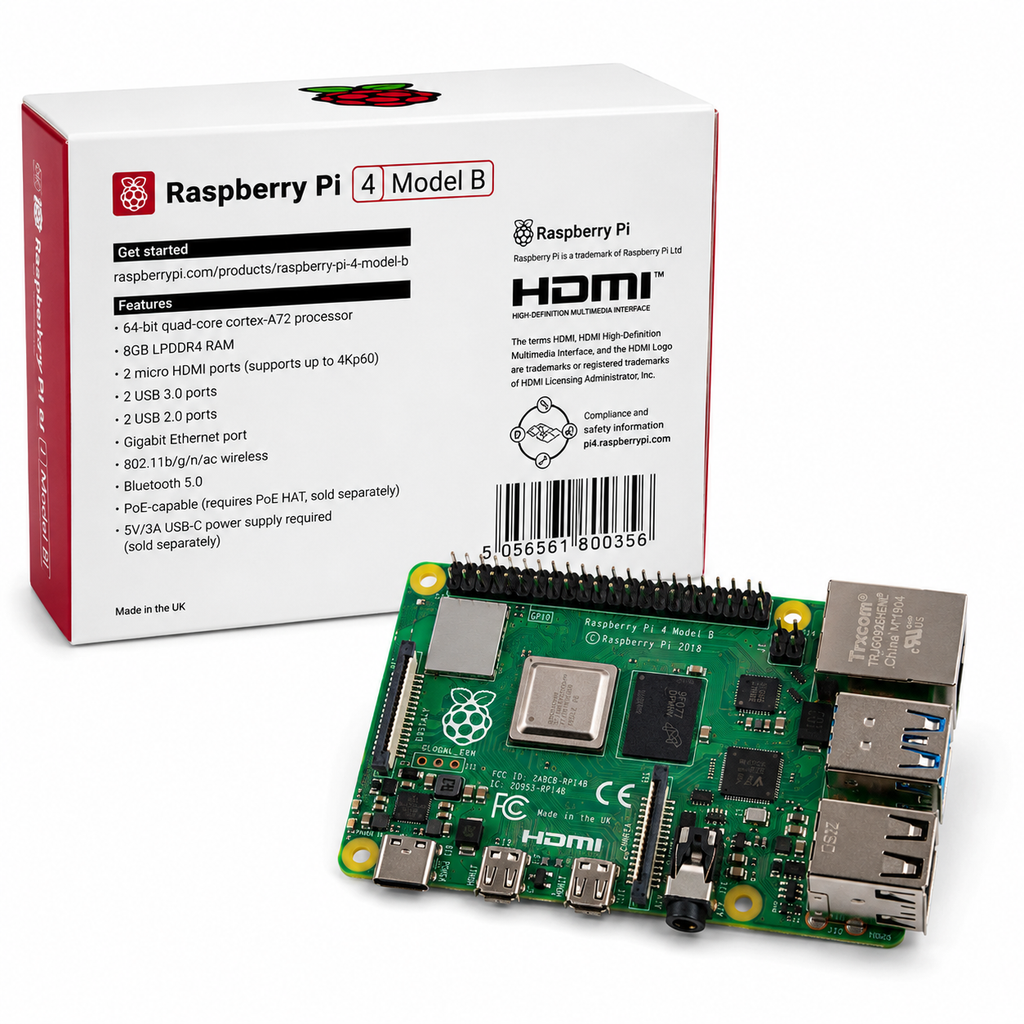

- 1 × Raspberry Pi 4 Model B 8GB
Processor
- Broadcom BCM2711
- Quad-Core Cortex-A72
- 64-bit ARM Architecture
- 1.5GHz Clock Speed
Memory
- 8GB LPDDR4-3200 SDRAM
Wireless Connectivity
- Dual-Band WiFi (2.4GHz / 5GHz)
- Bluetooth 5.0
Networking
- Gigabit Ethernet
USB Connectivity
- 2 × USB 3.0
- 2 × USB 2.0
Display Support
- Dual Micro-HDMI Ports
- Dual 4K Display Output
GPIO
- Standard 40-Pin Header
- Backward Compatible
Power Requirements
- 5V / 3A USB-C Power Supply Recommended
How It Works
The Raspberry Pi 4 functions as a complete computer on a single circuit board. After installing an operating system on a microSD card, users can connect a display, keyboard, mouse, and power supply to begin using it as a desktop computer or embedded controller.
Its GPIO interface enables communication with sensors, motors, displays, and external hardware, making it suitable for robotics, automation, IoT, and industrial applications.
