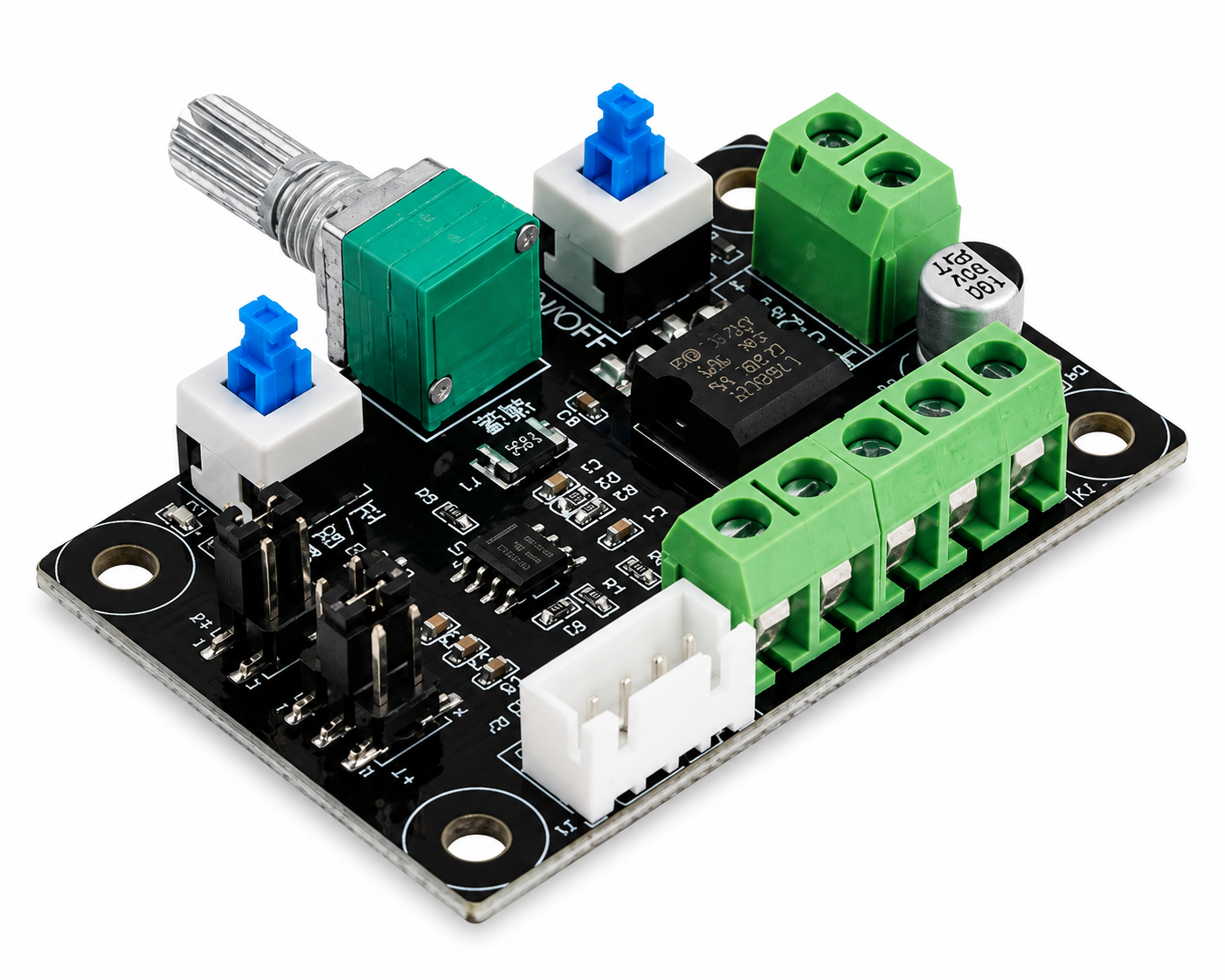

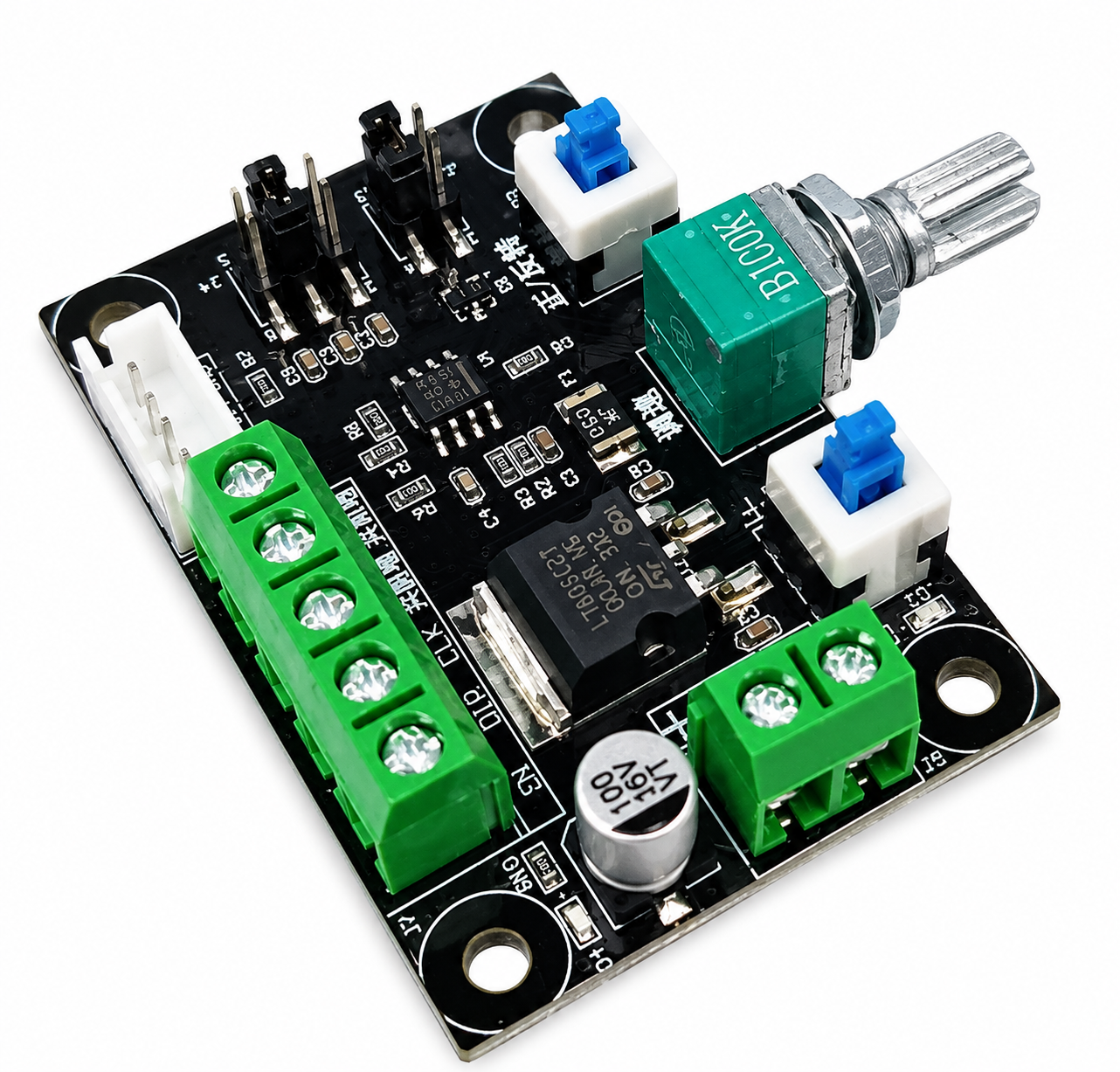

PWM DC Motor Speed Controller Module with Adjustable Potentiometer
PWM DC Motor Speed Controller Module with Adjustable Potentiometer
Product Overview
Easily control the speed of DC motors with this PWM Motor Speed Controller Module. Featuring an adjustable rotary potentiometer, efficient PWM control, and screw terminal connections, it's ideal for robotics, DIY electronics, automation, and motor control applications.
Description
The PWM DC Motor Speed Controller Module is a compact and efficient solution for controlling the speed of brushed DC motors using Pulse Width Modulation (PWM) technology. Designed with an onboard rotary potentiometer, it allows smooth and precise speed adjustment while maintaining motor efficiency and torque.
Unlike traditional voltage regulation, PWM technology minimizes power loss and heat generation, making this controller suitable for continuous operation in robotics, industrial automation, conveyor systems, cooling fans, pumps, and DIY electronics projects.
The module features convenient screw terminals for quick wiring and mounting holes for secure installation. Its compact design makes it easy to integrate into custom enclosures, educational projects, and embedded systems.
Whether you're building a robot, controlling a DC fan, or designing an automation system, this PWM controller provides dependable and accurate motor speed regulation.
Applications
- DC Motor Speed Control
- Arduino Projects
- ESP32 Projects
- Robotics
- Industrial Automation
- Cooling Fan Speed Control
- Water Pump Control
- Conveyor Systems
- DIY Electronics
- Smart Home Projects
- Embedded Systems
- Laboratory Equipment
- Educational STEM Projects
- Motor Testing
Key Features
- PWM Speed Control Technology
- Smooth Rotary Potentiometer Adjustment
- Efficient Motor Control
- Stable Output Performance
- Compact PCB Design
- Screw Terminal Connections
- Easy Installation
- Low Heat Generation
- Suitable for Brushed DC Motors
- Ideal for DIY and Industrial Applications
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | PWM DC Motor Speed Controller |
| Control Method | Pulse Width Modulation (PWM) |
| Speed Adjustment | Rotary Potentiometer |
| Motor Type | Brushed DC Motor |
| Input Connection | Screw Terminal |
| Output Connection | Screw Terminal |
| Mounting | PCB Mounting Holes |
Package Includes
1 Ã PWM DC Motor Speed Controller Module
Datasheet Summary
- PWM Motor Controller
- Rotary Potentiometer
- Screw Terminal Connections
- Compact PCB Design
How It Works
The module uses Pulse Width Modulation (PWM) to regulate the average power delivered to a brushed DC motor. Rotating the onboard potentiometer changes the PWM duty cycle, increasing or decreasing the motor speed while maintaining efficient operation. This method provides smoother control and better energy efficiency than simply reducing the supply voltage.
