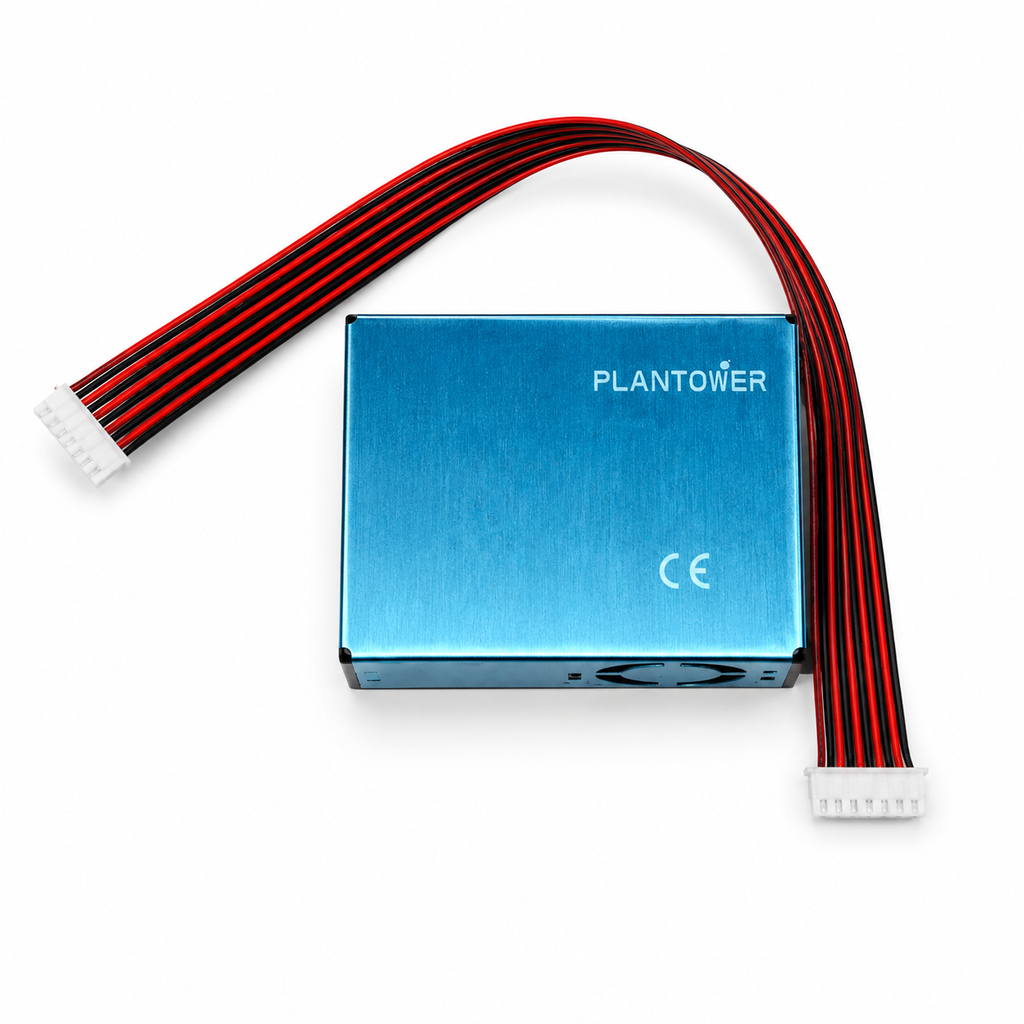

Plantower PMS5003 Air Quality Sensor
Plantower PMS5003 Air Quality Sensor
Product Overview
Monitor air quality accurately with the Plantower PMS5003 laser particle sensor. Designed for environmental monitoring, IoT applications, smart city projects, and air pollution measurement, it provides real-time PM1.0, PM2.5, and PM10 concentration data through a UART interface.
Description
The Plantower PMS5003 Laser Dust Sensor is a highly accurate particulate matter sensor designed for real-time air quality monitoring. Using advanced laser scattering technology, the PMS5003 detects and measures airborne particles ranging from 0.3μm to 10μm and provides PM1.0, PM2.5, and PM10 concentration data.
This sensor is widely used in environmental monitoring systems, smart city projects, indoor air quality stations, industrial pollution monitoring, HVAC systems, weather stations, and IoT-based environmental applications.
The PMS5003 communicates via a UART serial interface, making it easy to integrate with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms. Combined with wireless connectivity modules, it enables real-time cloud-based air quality monitoring and data logging solutions.
Its compact design, low power consumption, and reliable measurements make it an excellent choice for educational, research, commercial, and industrial projects.
Applications
- Air quality monitoring stations
- Smart city monitoring systems
- Environmental monitoring projects
- IoT air quality sensors
- Indoor pollution monitoring
- Weather stations
- HVAC control systems
- Industrial pollution tracking
- Smart home automation
- Educational STEM projects
- Arduino air quality projects
- ESP32 IoT monitoring systems
- Raspberry Pi environmental monitoring
Key Features
- Laser-based particle detection technology
- Real-time PM1.0, PM2.5 and PM10 measurement
- High sensitivity and accuracy
- Digital UART communication interface
- Easy integration with Arduino and ESP32
- Compact and lightweight design
- Suitable for indoor and outdoor monitoring systems
- Low power consumption
- Reliable long-term operation
- Ideal for IoT and environmental projects
Technical Specifications
| Specification | Details |
|---|---|
| Model | PMS5003 |
| Manufacturer | Plantower |
| Measurement Type | Particulate Matter Sensor |
| Detectable Particle Size | 0.3μm – 10μm |
| Measured Parameters | PM1.0, PM2.5, PM10 |
| Communication Interface | UART |
| Baud Rate | 9600 bps |
| Logic Level | 3.3V UART |
| Supply Voltage | 5V DC |
| Current Consumption | ≤100mA |
| Operating Principle | Laser Scattering |
| Output Type | Digital |
Package Includes
- 1 × Plantower PMS5003 Air Quality Sensor

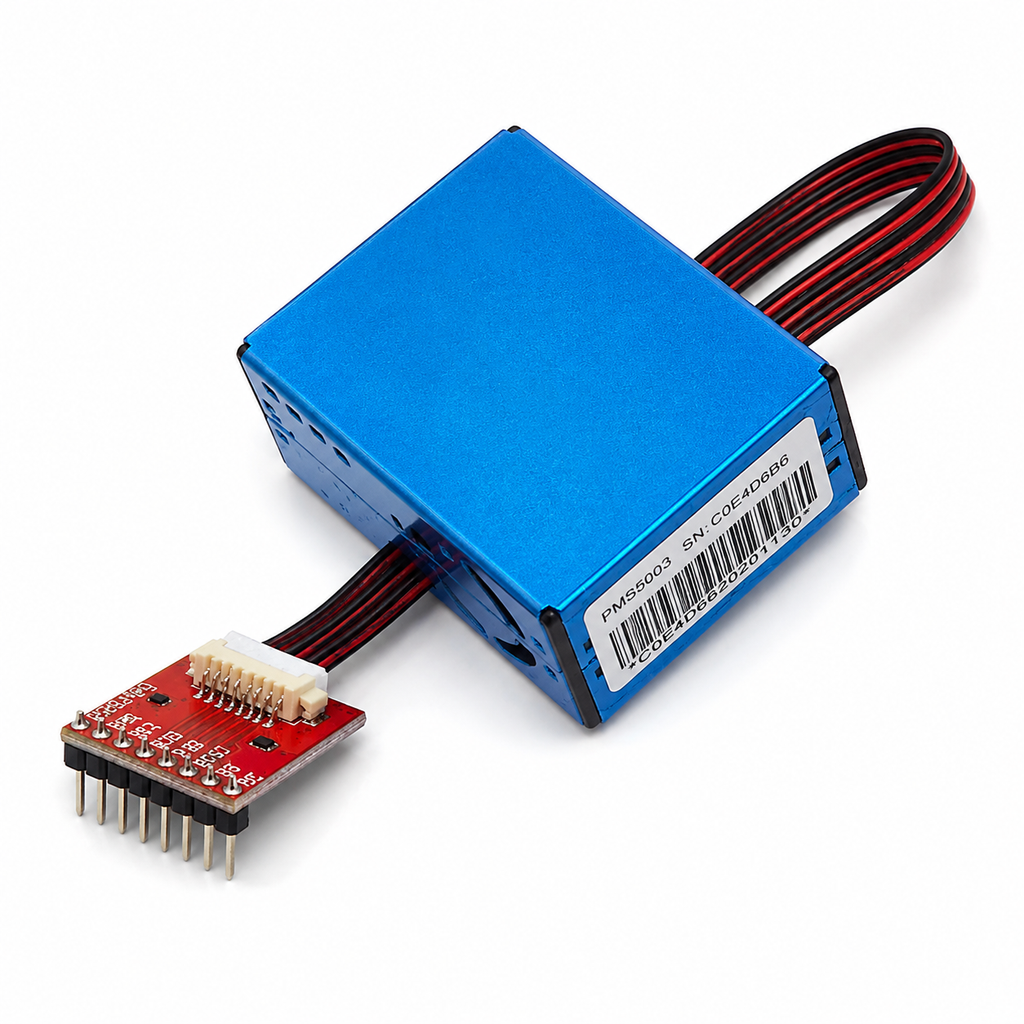

- 1 × Interface Adapter Board
- 1 × Connection Cable
Datasheet Summary
| Parameter | Value |
|---|---|
| Operating Voltage | 5V DC |
| Current Consumption | ≤100mA |
| Communication Protocol | UART |
| Baud Rate | 9600bps |
| Logic Level | 3.3V |
| Particle Detection Range | 0.3μm – 10μm |
| PM Measurement | PM1.0, PM2.5, PM10 |
| Supported Platforms | Arduino, ESP32, Raspberry Pi, STM32 |
How It Works
The PMS5003 uses a laser scattering method to detect airborne particulate matter. A built-in fan draws air through the sensing chamber where a laser beam illuminates suspended particles. The scattered light is analyzed by an internal processor to calculate particle concentration levels.
The sensor then transmits PM1.0, PM2.5, and PM10 values through its UART interface, allowing microcontrollers such as Arduino, ESP32, or Raspberry Pi to display, log, or upload air quality data to cloud platforms.
