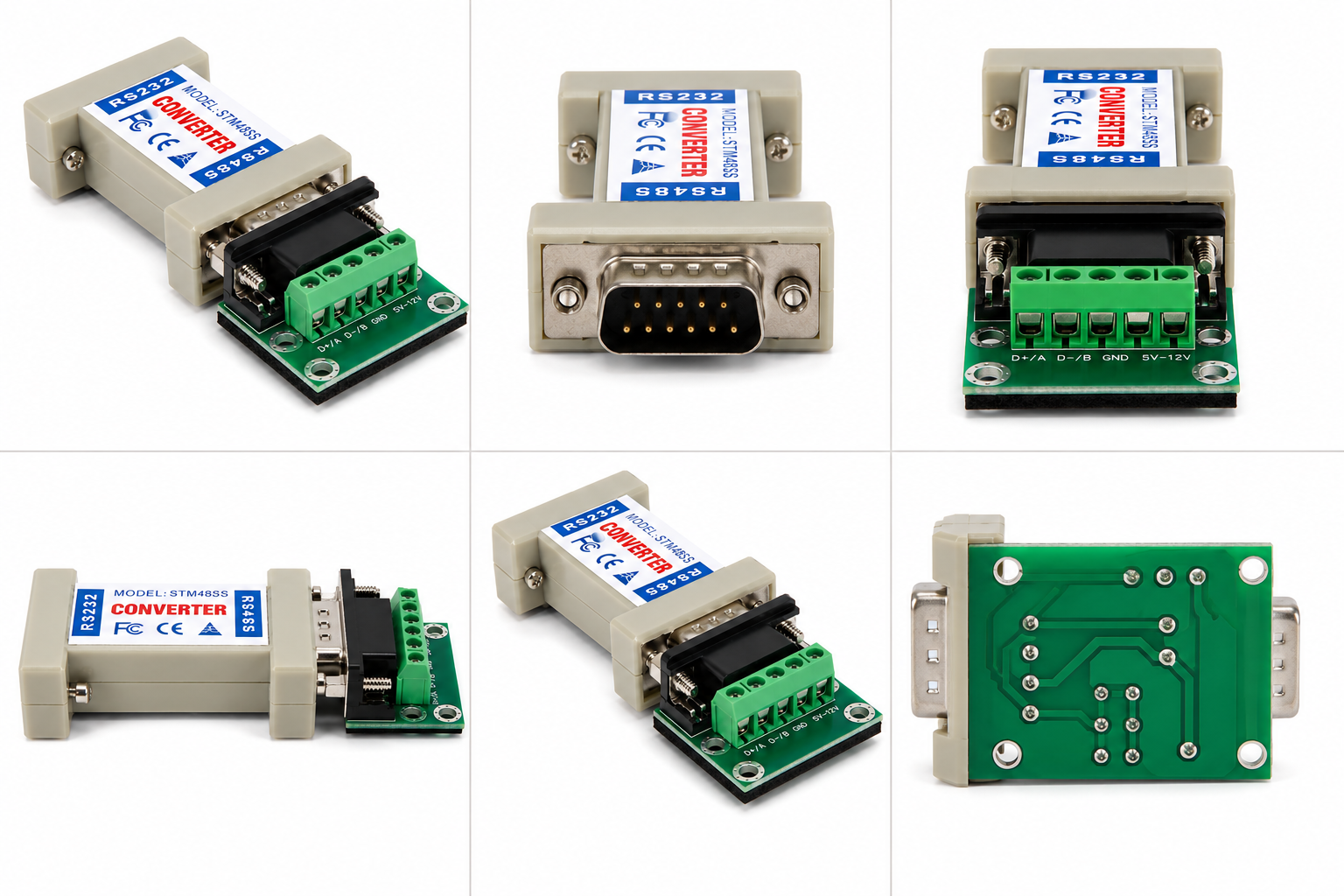

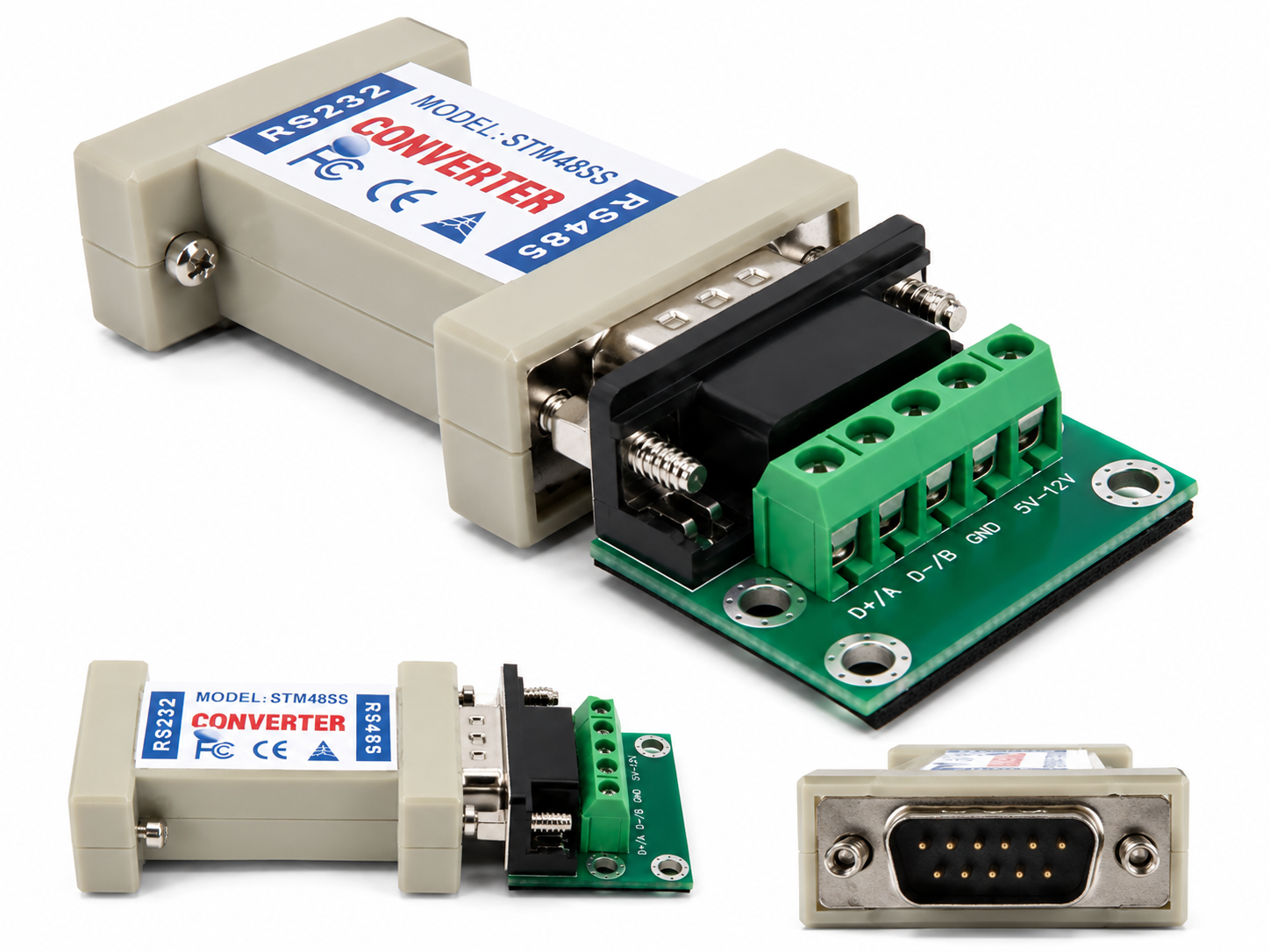

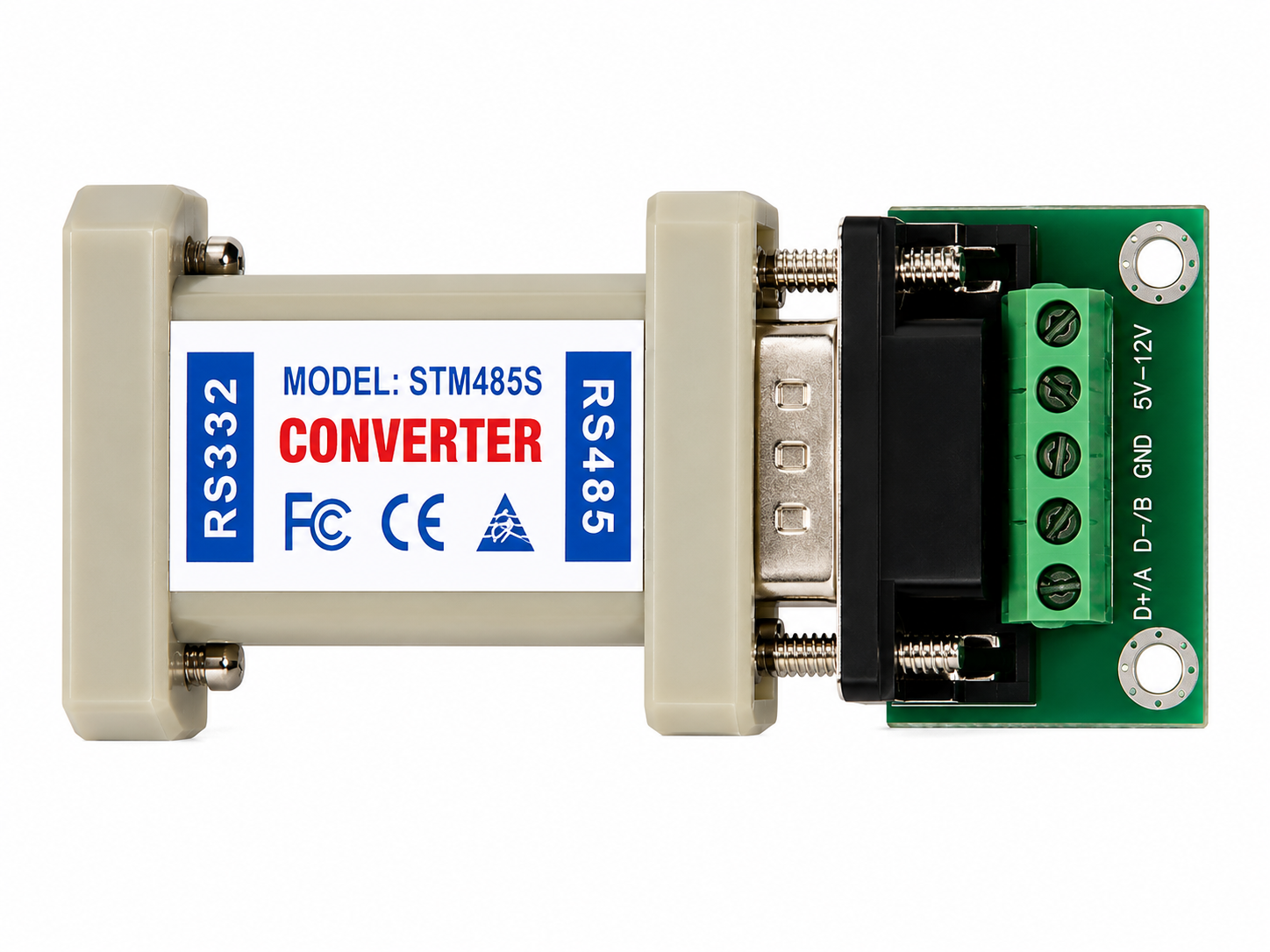

Passive RS232 to RS485 Serial Converter Adapter STM485S

The Passive RS232 to RS485 Serial Converter Adapter STM485S converts standard RS232 serial signals into RS485 differential signals for reliable long-distance communication. Its passive design requires no external power supply, making it suitable for PLCs, Modbus RTU, SCADA systems, industrial automation, embedded systems, and serial communication applications.

Description

The STM485S Passive RS232 to RS485 Serial Converter Adapter is a reliable communication interface that converts RS232 serial signals into RS485 differential signals, allowing stable long-distance communication in industrial and embedded applications. Designed with a passive circuit, it operates without an external power supply, simplifying installation while reducing wiring complexity.

This converter is widely used for connecting computers, PLC controllers, HMIs, SCADA systems, CNC machines, industrial sensors, data acquisition systems, and Modbus RTU networks. Its differential RS485 communication provides excellent resistance to electrical noise, making it suitable for demanding industrial environments where reliable data transmission is essential.

Whether you're upgrading legacy RS232 equipment or integrating modern RS485 devices into an automation system, the STM485S offers a dependable and cost-effective communication solution.

Key Features

• Converts RS232 serial signals to RS485 communication
• Passive design with no external power supply required
• Supports stable long-distance data transmission
• Standard DB9 female RS232 connector
• 2-wire RS485 terminal block interface
• Plug-and-play installation
• High immunity to electrical noise and interference
• Compact and lightweight design
• Suitable for industrial automation applications
• Compatible with Modbus RTU communication networks

Technical Specifications

Product Attributes

Pin Details

RS232 (DB9 Female)

• TXD (Transmit Data)
• RXD (Receive Data)
• GND (Ground)

RS485 Terminal

• A (Data+)
• B (Data−)

Compatibility

Compatible with:

• PLC Controllers
• HMI Panels
• SCADA Systems
• Industrial PCs
• CNC Machines
• Industrial Sensors
• Data Acquisition Systems
• Embedded Controllers
• Modbus RTU Devices
• RS485 Communication Networks
• Desktop Computers with RS232 Ports

Applications

• Industrial Automation
• PLC Communication
• Modbus RTU Networks
• SCADA Systems
• Factory Automation
• Building Automation
• Industrial Monitoring
• Security Systems
• Embedded Systems
• Serial Device Networking
• Long-Distance Data Communication
• Industrial Control Systems

Package Includes

• 1 × Passive RS232 to RS485 Serial Converter Adapter STM485S

Buy in Pakistan

Looking for a genuine Passive RS232 to RS485 Serial Converter Adapter STM485S in Pakistan? Chip.pk offers high-quality serial communication converters for industrial automation, PLC communication, Modbus RTU networks, embedded systems, and professional electronics projects. We provide competitive pricing, secure packaging, and fast nationwide delivery for engineers, industries, students, and electronics enthusiasts across Pakistan.

Why Choose Chip.pk?

• Genuine industrial communication products
• Quality-tested before dispatch
• Competitive prices across Pakistan
• Fast nationwide delivery
• Secure packaging
• Technical support for automation and embedded systems
• Trusted supplier of electronics, IoT, robotics, and industrial components

FAQs

1. What is the STM485S Passive RS232 to RS485 Serial Converter Adapter?

The STM485S Passive RS232 to RS485 Serial Converter Adapter is a serial communication device that converts standard RS232 signals into RS485 differential signals. It enables reliable long-distance communication between computers, PLCs, industrial controllers, and RS485 devices without requiring an external power supply.

2. Does the STM485S require an external power supply?

No. The STM485S is a passive converter that typically operates without an external power supply by utilizing the RS232 interface, making installation simple and cost-effective.

3. What is the difference between RS232 and RS485 communication?

RS232 is designed for short-distance point-to-point communication, whereas RS485 supports long-distance, multi-device communication with higher noise immunity. RS485 is widely used in industrial automation, Modbus RTU, and SCADA systems.

4. What is the maximum communication distance supported?

The STM485S supports RS485 communication over distances of up to 1200 meters, depending on cable quality, baud rate, and installation conditions.

5. Is the STM485S compatible with Modbus RTU?

Yes. The converter is fully suitable for Modbus RTU communication and is commonly used to connect RS232-based computers or controllers with RS485 industrial devices.

6. Which devices are compatible with this converter?

The STM485S is compatible with:

• PLC Controllers
• HMI Panels
• SCADA Systems
• Industrial PCs
• CNC Machines
• Embedded Controllers
• Industrial Sensors
• Data Acquisition Systems
• Modbus RTU Devices
• RS485 Communication Equipment

7. Can I use the STM485S with Arduino or Raspberry Pi?

Yes. The converter can be used with Arduino, Raspberry Pi, ESP32, STM32 boards, and other embedded platforms when used with a compatible RS232 interface or USB-to-RS232 converter.

8. What are the common applications of the STM485S?

Typical applications include:

• Industrial Automation
• PLC Communication
• Modbus RTU Networks
• SCADA Systems
• Building Automation
• Factory Automation
• Security Systems
• Industrial Monitoring
• Embedded System Development
• Long-Distance Serial Communication

9. Is the STM485S easy to install?

Yes. The converter features a plug-and-play design and requires minimal wiring. Simply connect the RS232 and RS485 interfaces according to your communication setup.

10. Does the STM485S support bidirectional communication?

Yes. The converter supports half-duplex bidirectional communication, which is the standard communication mode for most RS485 networks.

11. Where can I buy the STM485S Passive RS232 to RS485 Serial Converter Adapter in Pakistan?

You can purchase the genuine STM485S Passive RS232 to RS485 Serial Converter Adapter from Chip.pk with competitive prices, secure packaging, and fast nationwide delivery across Pakistan.

12. Where can I buy the STM485S Passive RS232 to RS485 Serial Converter Adapter in Lahore?

Customers in Lahore can order the genuine STM485S Passive RS232 to RS485 Serial Converter Adapter from Chip.pk. We provide quick local delivery and technical support from our Hall Road location.
