ST NUCLEO-F446RE STM32F446RE Nucleo-64 Development Board

The ST NUCLEO-F446RE is a Nucleo-64 development board based on the STM32F446RET6 Arm Cortex-M4 MCU running up to 180MHz. It features 512KB Flash, 128KB SRAM, onboard ST-LINK/V2-1 debugging/programming, Arduino Uno V3-style expansion, and ST morpho headers for broad access to STM32 I/O.

Description

The ST NUCLEO-F446RE STM32F446RE Nucleo-64 Development Board is a flexible development platform for embedded systems, real-time control, robotics, motor control, signal processing, communications, and STM32 firmware development.

At its core is the STM32F446RET6, a 32-bit Arm Cortex-M4 microcontroller with single-precision FPU and DSP instructions, operating at up to 180MHz. The MCU provides 512KB Flash memory, 128KB SRAM, and up to 4KB backup SRAM. STMicroelectronics

The board integrates an ST-LINK/V2-1 debugger/programmer through a USB Mini-B connection, allowing the onboard MCU to be programmed and debugged without a separate external probe. ST documents mass-storage programming, Virtual COM Port, and debug functionality through the onboard ST-LINK. STMicroelectronics

For hardware expansion, the NUCLEO-F446RE provides Arduino Uno V3-compatible headers together with ST morpho headers, giving developers access to a wide range of STM32 I/O and peripheral signals. Power can be supplied through the ST-LINK USB connection or supported external power sources. STMicroelectronics

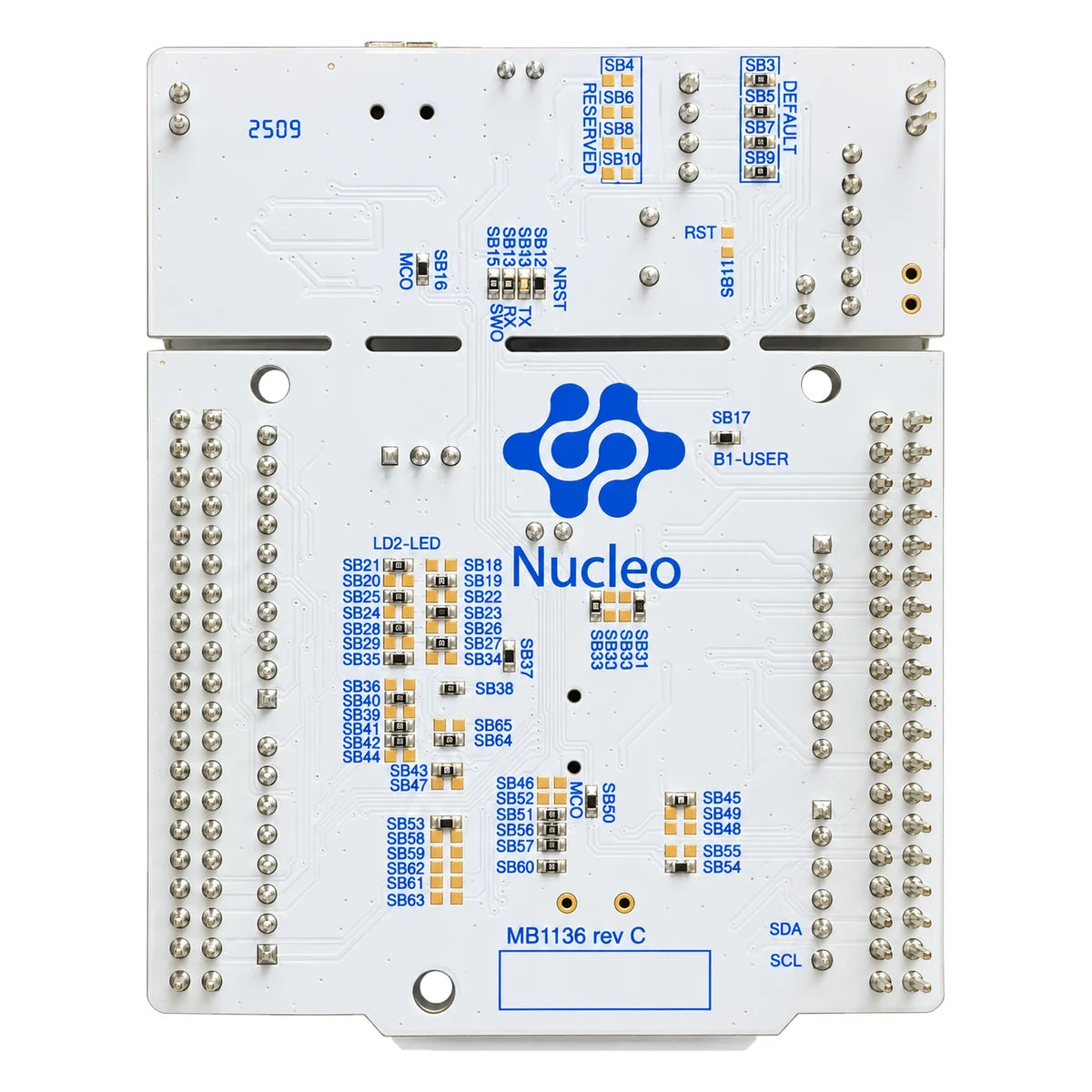

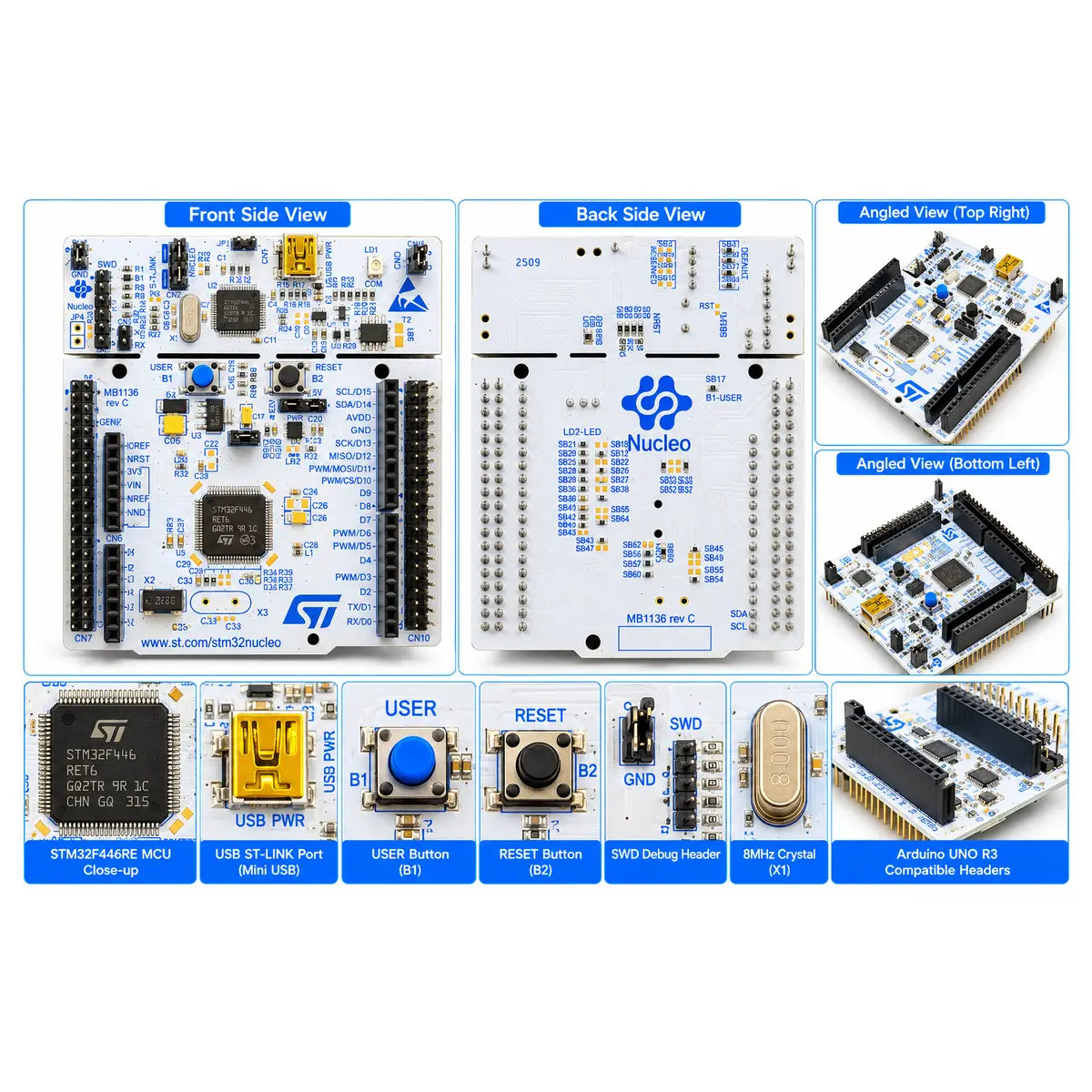

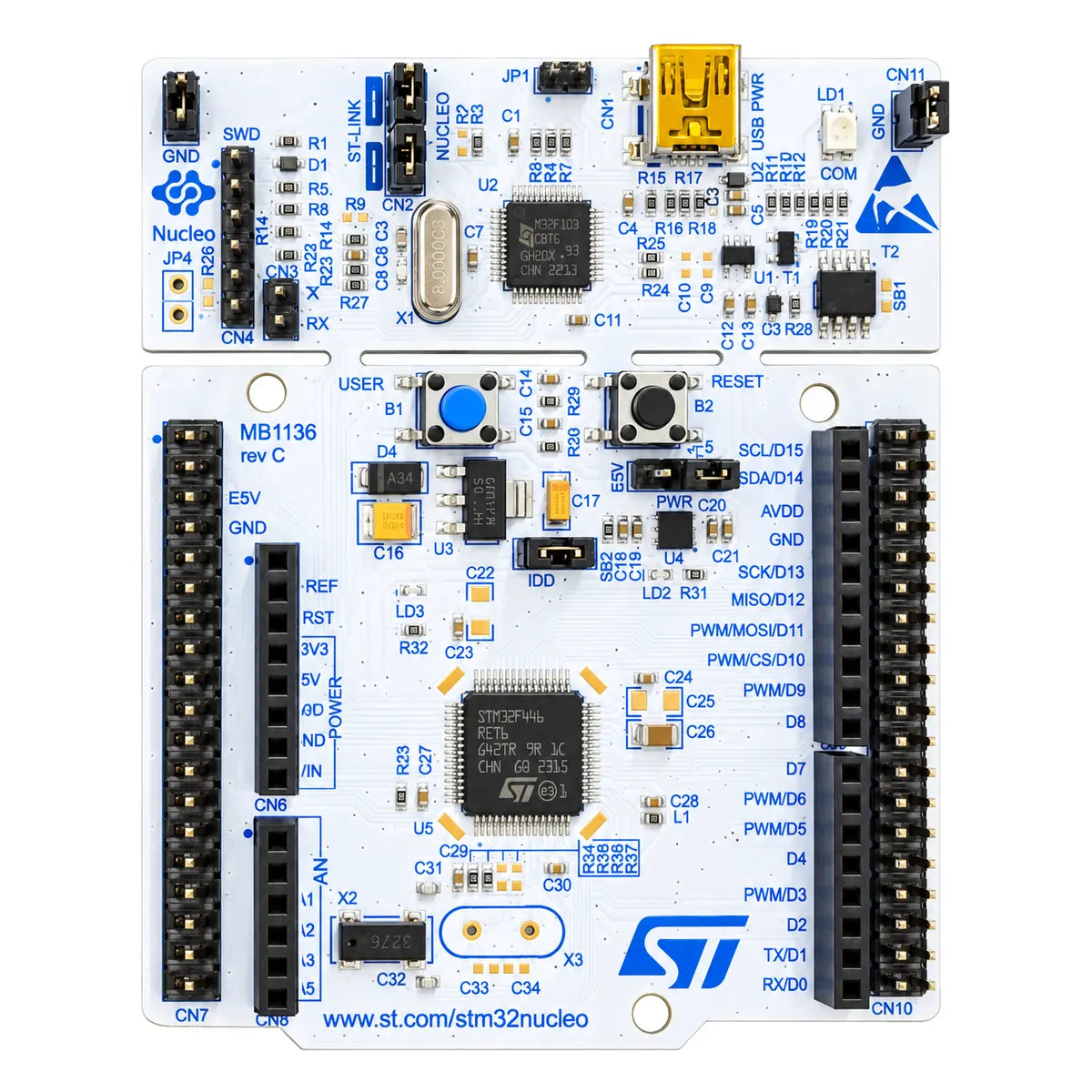

The actual Chip.pk stock images show the MB1136 Rev C board revision, STM32F446RET6 MCU, USER and RESET buttons, ST-LINK section, Arduino-style headers, and ST morpho expansion connectors.

Key Features

• STMicroelectronics NUCLEO-F446RE
• STM32 Nucleo-64 development platform
• STM32F446RET6 microcontroller
• 32-bit Arm Cortex-M4 CPU with FPU
• Up to 180MHz operating frequency
• 512KB Flash
• 128KB SRAM
• Up to 4KB backup SRAM
• Integrated DSP instruction support
• Onboard ST-LINK/V2-1 debugger/programmer
• USB Mini-B connection for ST-LINK
• Virtual COM Port support
• Mass-storage firmware programming support
• Arduino Uno V3-style expansion headers
• ST morpho headers for broad MCU pin access
• USER and RESET push-buttons
• Flexible USB/external power options
• Suitable for STM32CubeIDE and STM32CubeMX development

Technical Specifications

ST currently lists the NUCLEO-F446RE as Active and in volume production. STMicroelectronics

The STM32F446 MCU family also provides extensive peripheral capability including ADCs, DACs, timers, UART/USART, SPI, I²C, CAN, SDIO, camera interface, and USB functionality; actual use on the Nucleo board depends on the corresponding pin mapping and hardware configuration. STMicroelectronics

Applications / Use Cases

• STM32F4 firmware development
• Embedded systems prototyping
• Real-time control applications
• Robotics projects
• Motor-control development
• Signal-processing projects
• Sensor interfacing
• CAN communication projects
• UART, SPI and I²C development
• Data acquisition
• USB-oriented embedded projects
• Educational and laboratory work
• DSP and Cortex-M4 evaluation
• Industrial-control prototypes
• Custom STM32 hardware development

Compatibility

The NUCLEO-F446RE is designed for the STM32 development ecosystem and can be used with STM32CubeIDE, STM32CubeMX, STM32CubeProgrammer, STM32 HAL, and LL libraries.

The board provides Arduino Uno V3-style connectivity, allowing compatible Arduino-format expansion shields to be mechanically connected. Electrical voltage levels, pin assignments, peripheral conflicts, and software support should be verified for each specific shield before use.

The ST morpho headers provide additional access to STM32F446RE signals beyond those available through the Arduino-style headers, making the board suitable for custom circuits, sensors, communication interfaces, and prototyping.

Package Contents

• 1 × STMicroelectronics NUCLEO-F446RE Nucleo-64 Development Board With Cable

Buy in Pakistan

Buy the NUCLEO-F446RE development board in Pakistan from Chip.pk for STM32F4 development, embedded systems, robotics, motor control, communications, signal processing, and educational projects.With its 180MHz STM32F446RET6 MCU, 512KB Flash, 128KB SRAM, onboard ST-LINK/V2-1, Arduino Uno V3-style expansion, and ST morpho headers, the board provides a practical platform for professional and learning-focused STM32 development.

FAQs

1. What is the NUCLEO-F446RE?
The NUCLEO-F446RE is an STMicroelectronics STM32 Nucleo-64 development board based on the STM32F446RET6 Arm Cortex-M4 microcontroller.

2. Which microcontroller is used on the NUCLEO-F446RE?
The board uses the STM32F446RET6, a 32-bit Arm Cortex-M4 MCU with FPU and DSP instruction support.

3. What is the maximum clock speed of the STM32F446RE?
The STM32F446RET6 operates at up to 180MHz.

4. How much memory does the NUCLEO-F446RE have?
The MCU provides 512KB Flash memory and 128KB SRAM, along with backup SRAM resources.

5. Does the NUCLEO-F446RE have an onboard programmer?
Yes. It includes an onboard ST-LINK/V2-1 debugger/programmer, so a separate programmer is generally not required for programming and debugging the onboard MCU.

6. Which USB connector is used for ST-LINK?
This board revision uses a USB Mini-B connector for the onboard ST-LINK/V2-1 section.

7. Can I use Arduino shields with the NUCLEO-F446RE?
The board includes Arduino Uno V3-style expansion headers. Specific shields should still be checked for voltage levels, pin mapping, peripheral conflicts, and software compatibility.

8. What are the ST morpho headers used for?
ST morpho headers expose additional STM32 MCU signals that are not available through the Arduino-style headers, making them useful for custom circuits and advanced prototyping.

9. Which software can be used with the NUCLEO-F446RE?
It is suitable for STM32CubeIDE, STM32CubeMX, STM32CubeProgrammer, STM32 HAL, and LL libraries.

10. Does the STM32F446RE support CAN, SPI, I2C and UART?
Yes. The STM32F446RE MCU provides multiple communication peripherals including CAN, SPI, I²C, UART/USART, and other interfaces. Actual usage depends on the board pin mapping and project configuration.

11. Is the NUCLEO-F446RE suitable for robotics and motor-control projects?
Yes. Its 180MHz Cortex-M4 processor, timers, communication peripherals, GPIO expansion, and development ecosystem make it suitable for robotics, motor control, sensors, automation, and real-time embedded applications.

12. Is a USB cable included with the board?
No USB cable should be assumed to be included unless Chip.pk specifically states it in the package contents.
