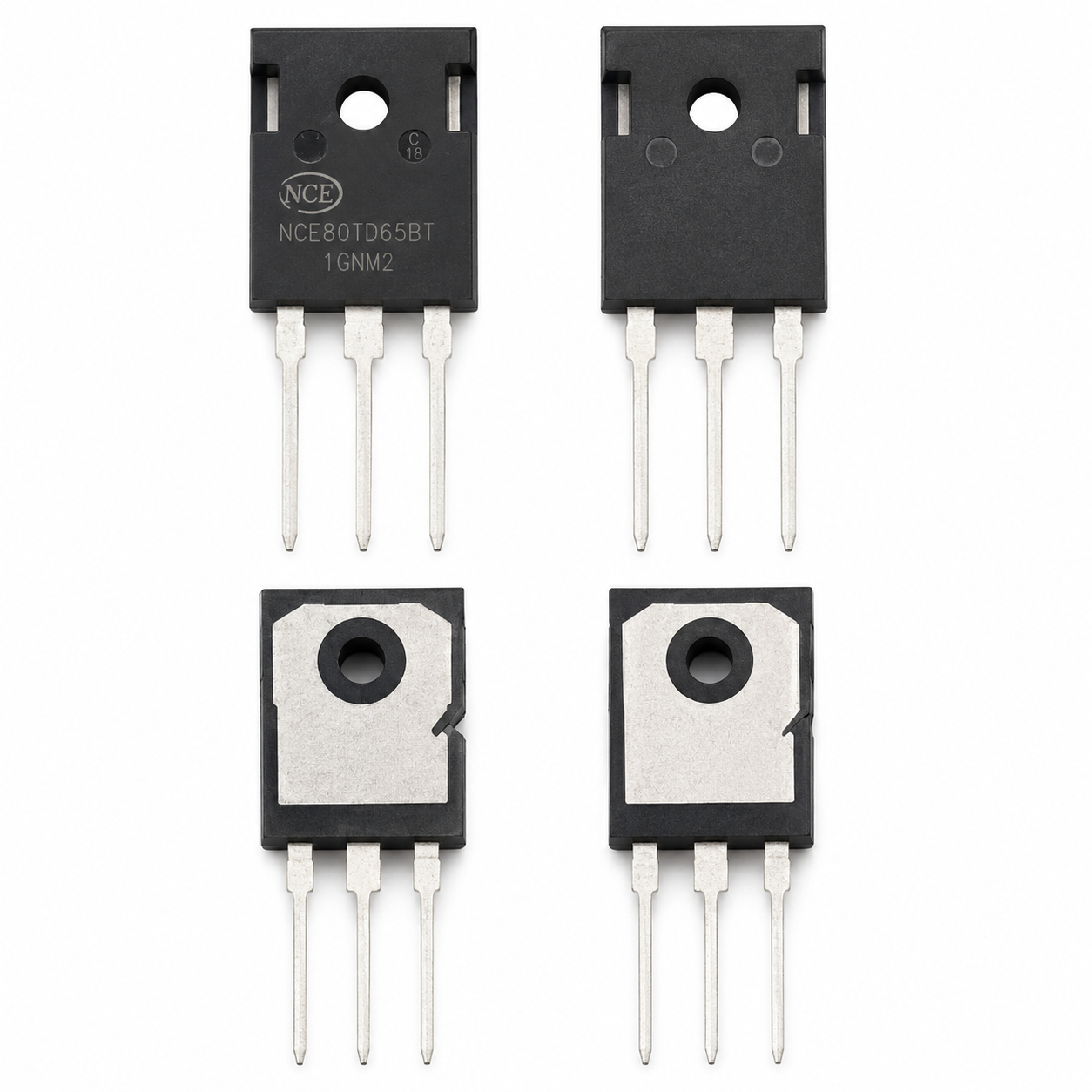

NCE80TD65BT 650V 80A Trench Field Stop IGBT TO-247 for Inverters & Motor Drives

Buy NCE80TD65BT 650V 80A Trench Field Stop IGBT in Pakistan. High-speed TO-247 IGBT for inverters, motor drives, UPS, welding machines and SMPS.

Description

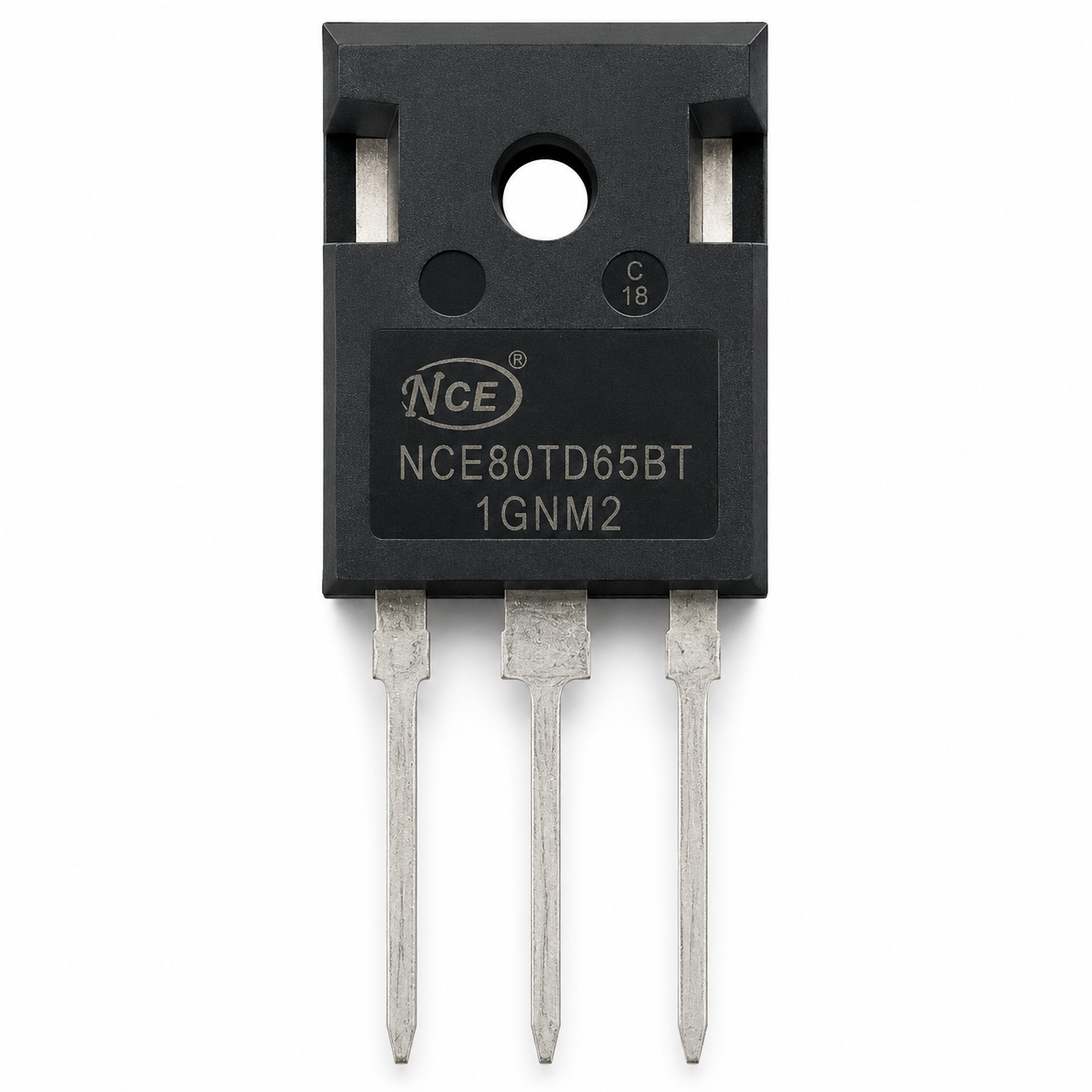

NCE80TD65BT 80A 650V Trench Field Stop IGBT

The NCE80TD65BT 650V 80A Trench Field Stop IGBT is a high-performance power switching transistor developed for demanding industrial and commercial applications. Built using advanced Trench Field Stop II technology, it offers low VCE(sat), fast switching performance and excellent thermal stability for improved efficiency in high-power circuits.

Housed in a TO-247 package, the NCE80TD65BT is widely used in motor drives, welding machines, UPS systems, solar inverters, induction heating equipment, power supplies and industrial automation. Its positive temperature coefficient allows easier parallel operation, making it suitable for high-current power designs.

Key Features

• 650V Collector-Emitter Voltage
• 80A Continuous Collector Current (at 100°C case temperature)
• Advanced Trench Field Stop II technology
• Low VCE(sat)
• High-speed switching
• Excellent thermal stability
• Positive temperature coefficient
• Easy parallel operation
• High reliability
• TO-247 package
• Pb-Free / RoHS compliant
• Suitable for industrial power electronics

Technical Specifications

Applications

Perfect for:

• Solar Inverters
• UPS Systems
• Motor Drives
• Variable Frequency Drives (VFD)
• Welding Machines
• Induction Heating
• Switching Power Supplies (SMPS)
• EV Chargers
• Industrial Automation
• High-Power Power Supplies
• Air Conditioners
• Power Conversion Equipment

Package Includes

• 1 × NCE80TD65BT 650V 80A Trench Field Stop IGBT (TO-247)

Why Buy from Chip.pk?

• Genuine semiconductor components
• Fast delivery across Pakistan
• Retail and wholesale quantities available
• Secure anti-static packaging
• Technical support before purchase
• Trusted supplier for engineers and industries
• High-quality power electronics components

Frequently Asked Questions (FAQs)

Is the NCE80TD65BT suitable for inverter applications?

Yes. It is specifically designed for inverter circuits, motor drives and other high-power switching applications.

What package does this IGBT use?

The NCE80TD65BT is supplied in a TO-247 package.

Can this IGBT be used in welding machines?

Yes. It is commonly used in inverter welding machines due to its high current capability and fast switching characteristics.

Is it suitable for solar inverters and UPS systems?

Yes. It is widely used in solar inverters, UPS units and industrial power conversion equipment.

Does it support parallel operation?

Yes. Its positive temperature coefficient helps simplify parallel operation in high-power designs.
