Mach3 5 Axis CNC Breakout Board with DB25 Interface

The Mach3 5 Axis CNC Breakout Board with DB25 Interface is a parallel-port interface board designed to connect Mach3-based CNC control systems with external stepper motor drivers, limit switches, spindle controls and other machine signals.

Description

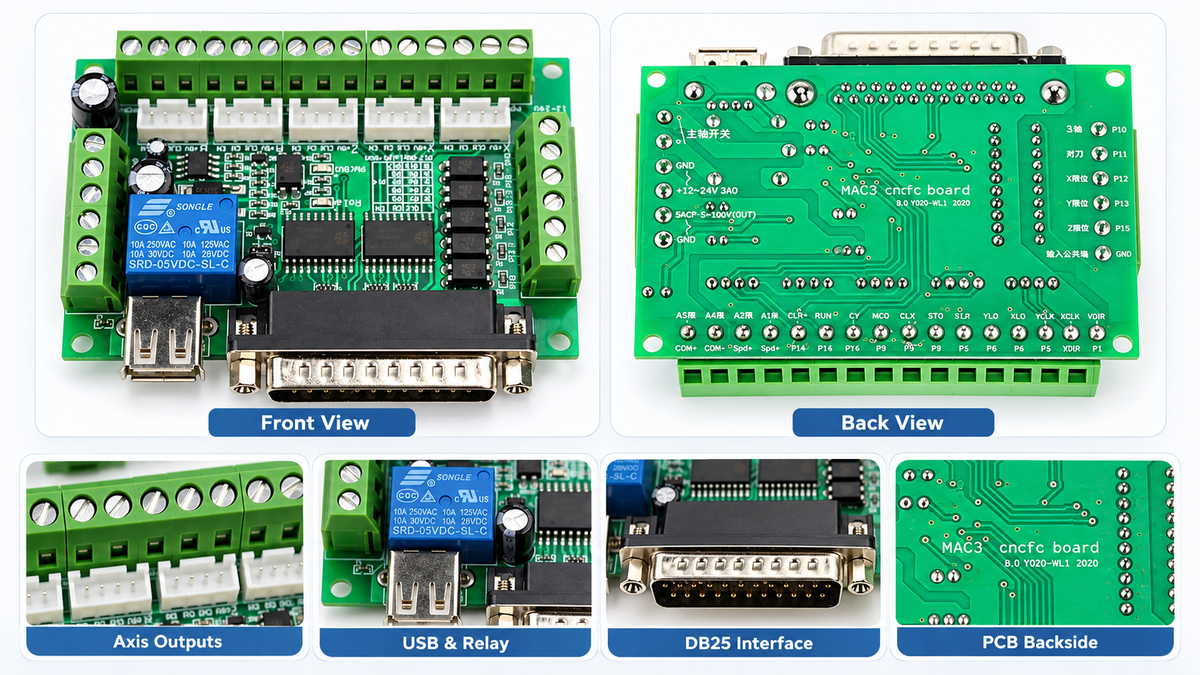

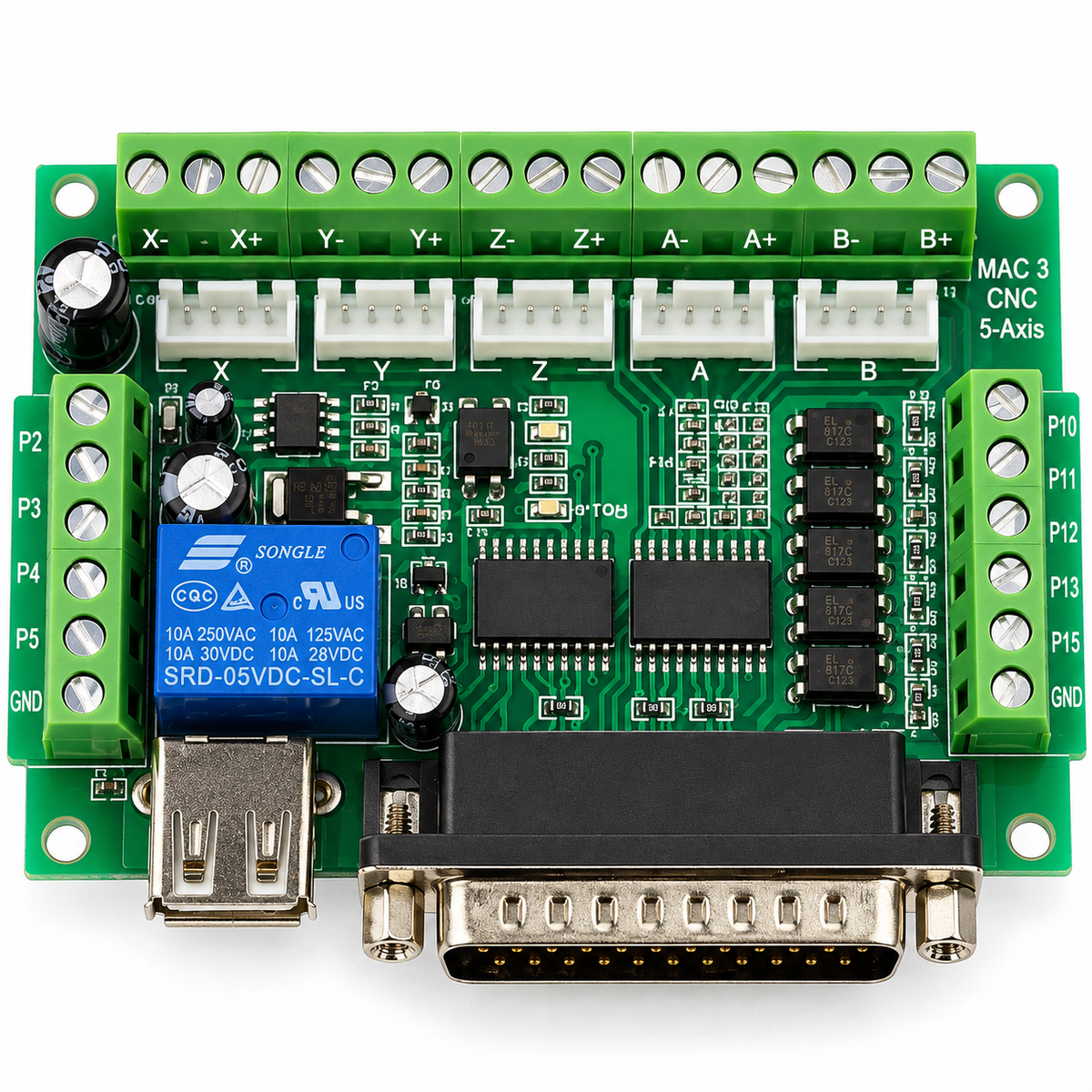

Based on the BL-MACH-V1.1 PCB, this board provides labelled step and direction connections for five axes: X, Y, Z, A and B. It features a DB25 parallel-port connector, onboard relay, 12–24V DC power input and a labelled 0–10V analogue spindle speed output.

The board also provides connections for emergency stop, tool setting and limit switch inputs, making it suitable for building or upgrading compatible CNC routers, engraving machines and other multi-axis motion-control systems.

Important: This is a DB25 parallel-port breakout/interface board, not a standalone CNC motion controller. It requires a compatible PC control setup and external stepper motor drivers. The onboard USB-A connector should not be mistaken for a USB Mach3 motion-control interface.

Key Features

• 5-axis CNC interface: X, Y, Z, A and B step/direction signal connections.

• DB25 parallel-port interface: For compatible Mach3 parallel-port control setups.

• 12–24V DC input: Supply range labelled on the actual PCB.

• Onboard relay: For suitable switching/control applications.

• 0–10V spindle control: Analogue output labelled on the board.

• PWM output: Additional spindle/control signal connection.

• Limit switch inputs: Connections for X, Y and Z axis limit switches.

• Emergency stop input: Dedicated labelled input connection.

• Tool setting input: For compatible probing/tool-setting arrangements.

• External driver connections: Five white connectors and screw-terminal signal connections.

• Clearly labelled PCB: Helps identify axis signals and input/output terminals.

• Compact interface design: Suitable for CNC control cabinet integration.

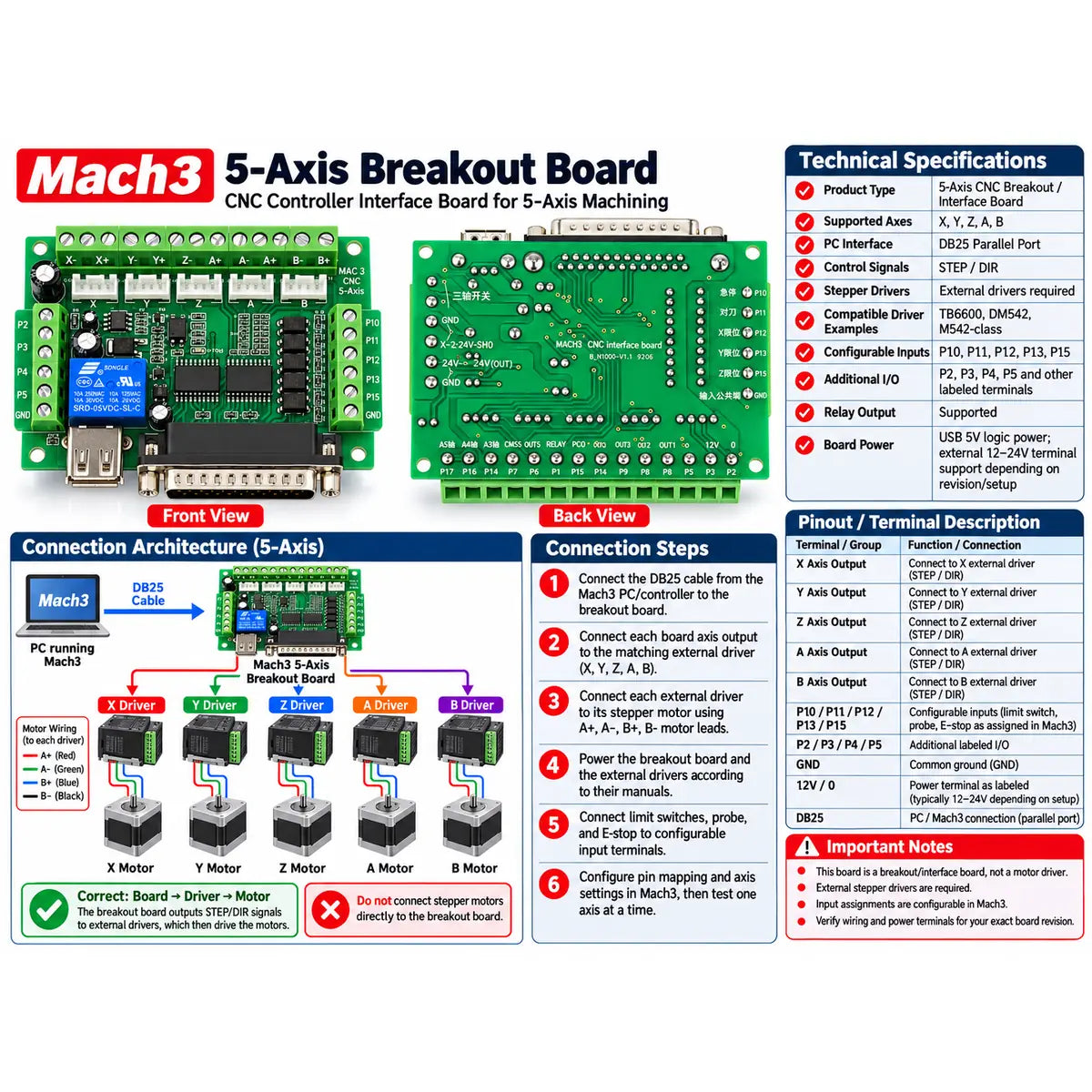

Technical Specifications

Axis Signal Connections

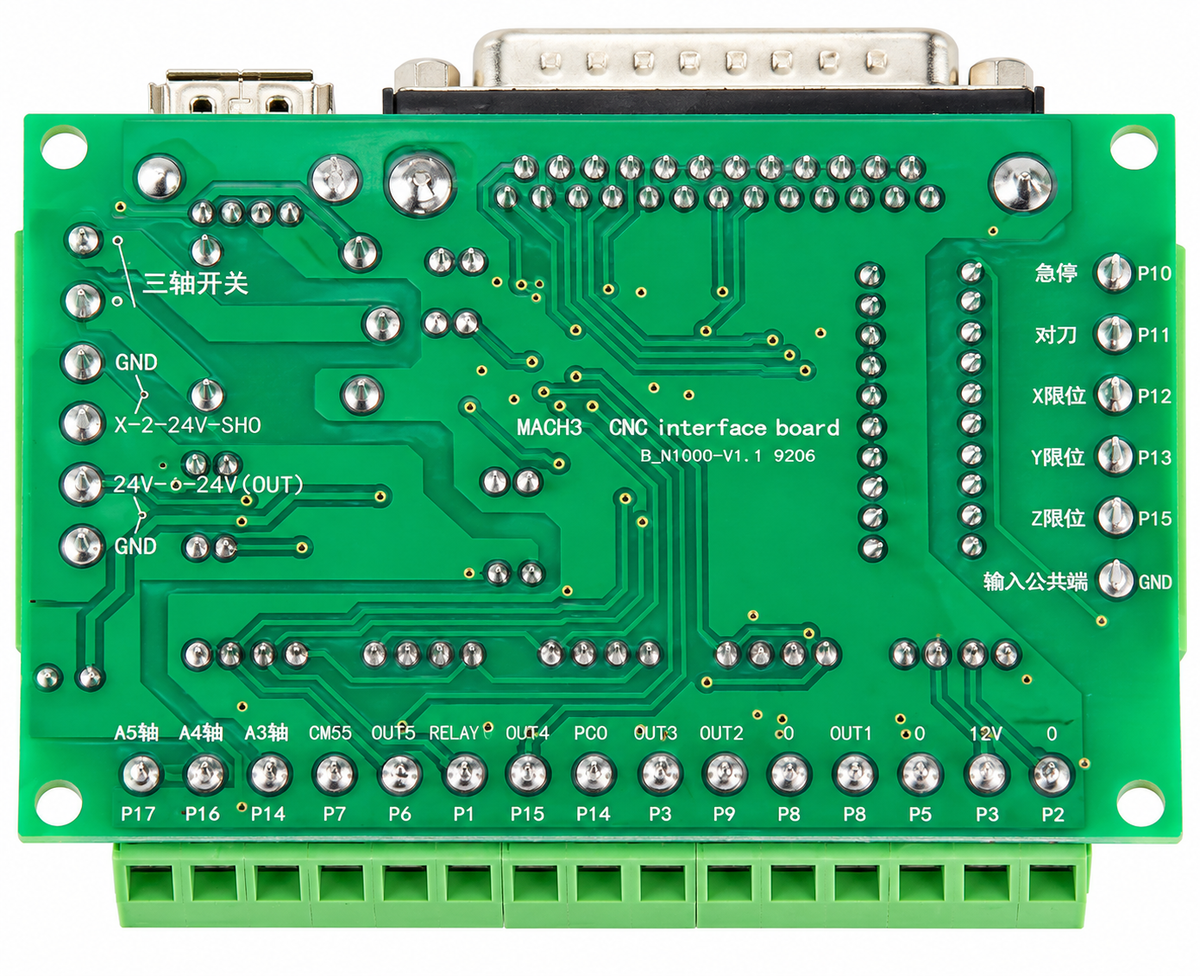

The actual PCB has the following axis signal labels:

These are PCB signal labels. Exact DB25-to-terminal mapping and electrical output levels should be checked against the correct BL-MACH-V1.1 documentation before wiring.

Applications / Use Cases

• Mach3-based CNC router control systems

• 3-axis, 4-axis and 5-axis CNC interface setups

• CNC engraving machines

• DIY CNC machine building

• CNC machine upgrades and retrofits

• Stepper motor driver interfacing

• CNC limit switch and emergency stop wiring

• Spindle ON/OFF and speed-control interfacing

• CNC control cabinet projects

• Multi-axis motion-control experiments

Compatibility

Mach3 CNC Software

Designed for use in a Mach3-compatible DB25 parallel-port control system. Actual operation depends on the computer's parallel-port hardware, Mach3 configuration, operating environment and signal assignments.A DB25 connector alone does not guarantee compatibility with every modern computer or USB-to-parallel adapter.

External Stepper Drivers

The board provides pulse/step and direction signals for connecting compatible external stepper motor drivers.Driver input voltage, signal polarity, wiring and common-anode/common-cathode arrangements must be checked against the selected driver's documentation.

Spindle / VFD Control

The labelled 0–10V output, PWM connection and relay may be used in suitable spindle-control arrangements.Before connecting a VFD or spindle controller, verify its required analogue input, control wiring, signal ground and electrical compatibility.

Limit Switches and Emergency Stop

The board provides labelled connections for limit switches, emergency stop and tool setting. The exact input circuit, switching logic and wiring configuration should be verified before use.For machine safety, do not rely solely on Mach3 software or an unverified breakout-board input as the only emergency-stop mechanism.

Package Contents

1 × Mach3 5 Axis CNC Breakout Board (BL-MACH-V1.1)

FAQs

1. What is a Mach3 5 Axis CNC Breakout Board?

The Mach3 5 Axis CNC Breakout Board is an interface board that connects a compatible Mach3 parallel-port control system to external stepper motor drivers, limit switches, spindle controls and other CNC machine signals.

2. Does this Mach3 breakout board support 5 axes?

Yes. The actual BL-MACH-V1.1 PCB has labelled step and direction connections for five axes: X, Y, Z, A and B. The number of axes that can be operated depends on the control software, configuration and connected hardware.

3. Is this a USB Mach3 CNC controller?

No. This board uses a DB25 parallel-port interface for CNC control. Although a USB-A connector is visible, it should not be treated as a USB motion-control connection.

4. What power supply does the Mach3 breakout board require?

The actual PCB is labelled for a 12–24V DC input. Verify supply polarity and the correct terminals before connecting power.

5. Can this board drive stepper motors directly?

No. It provides step/pulse and direction control signals for compatible external stepper motor drivers. It does not replace the motor power drivers.

6. Does the Mach3 CNC breakout board support spindle speed control?

The board has a labelled 0–10V analogue output, PWM connection and onboard relay. These can be used in suitable spindle-control setups after verifying the connected spindle controller or VFD requirements.

7. Can I connect CNC limit switches to this board?

Yes. The board has labelled input connections associated with limit switches, emergency stop and tool setting. Exact wiring, switching logic and input characteristics must be verified before installation.

8. Is the Mach3 breakout board compatible with Windows 10 or Windows 11?

Compatibility depends on the complete Mach3 setup, particularly the parallel-port motion-control method, operating system and hardware. A DB25 breakout board alone does not guarantee operation with Windows 10 or Windows 11.

9. Can I use a USB-to-parallel printer cable with this board?

A typical USB-to-parallel printer cable is not a direct substitute for a compatible CNC motion-control parallel port. Use a control interface supported by your Mach3 configuration.

10. What is the difference between a Mach3 breakout board and a motion controller?

A breakout board distributes and interfaces control signals. A motion controller generates the required motion-control signals through its supported hardware and software system. This BL-MACH-V1.1 board is a parallel-port breakout/interface board, not a standalone USB motion controller.

11. Is this board suitable for CNC routers and engraving machines?

Yes, it is suitable for compatible CNC router, engraving and multi-axis machine-control projects that use external motor drivers and a supported DB25 parallel-port control setup.

12. Can I buy the Mach3 5 Axis CNC Breakout Board in Pakistan?

The product is listed for Chip.pk customers in Pakistan. Current price, stock availability and delivery options should be checked on the product page before ordering.
