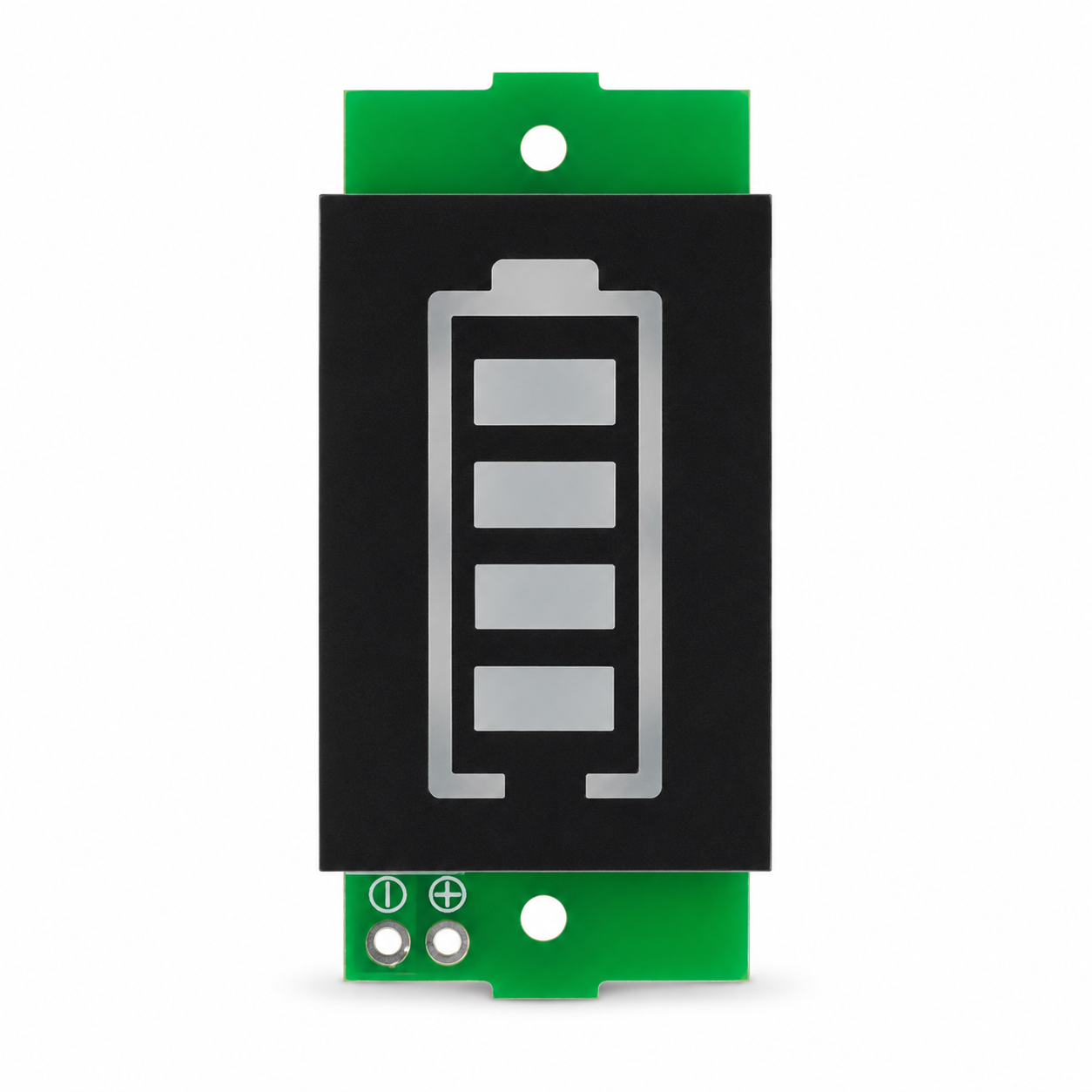

Li-ion Battery Level Indicator Module 4S (LED Capacity Display)
Li-ion Battery Level Indicator Module 4S (LED Capacity Display)
Product Overview
The 4S Li-ion Battery Level Indicator Module provides a quick visual indication of lithium battery charge status using bright LED bars. Ideal for battery packs, portable electronics, DIY power banks, robotics, and energy storage projects.
Description
The 4S Li-ion Battery Level Indicator Module is designed to monitor the approximate charge level of a lithium battery pack using an easy-to-read multi-LED display. It provides users with an instant visual indication of remaining battery capacity without requiring a digital display or complex monitoring system.
Its compact design makes it suitable for integration into portable electronic devices, battery packs, robotics, UPS systems, DIY power solutions, and industrial equipment. The module is easy to install and offers a convenient way to monitor battery status during operation.
This battery indicator is widely used in lithium-ion battery applications where quick charge-level monitoring improves usability and helps prevent unexpected battery depletion.
Applications
- Lithium Battery Packs
- DIY Power Banks
- Portable Electronics
- Robotics Projects
- Arduino Power Systems
- ESP32 Projects
- Solar Battery Systems
- UPS Backup Systems
- Electric Vehicles
- Battery Chargers
- Industrial Equipment
- STEM Education
Key Features
- LED battery capacity indication
- Compact PCB design
- Quick battery status monitoring
- Low power consumption
- Easy wiring and installation
- Suitable for lithium battery packs
- Reliable operation
- Ideal for DIY and professional projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Lithium Battery Level Indicator Module |
| Display Type | Multi-LED Bar Indicator |
| Mounting | PCB Module |
Package Includes
- 1 × Li-ion Battery Level Indicator Module
How It Works
The battery level indicator continuously measures the battery pack voltage. Based on the measured voltage, it illuminates the corresponding number of LED segments to indicate the approximate remaining battery capacity. As the battery discharges, fewer LEDs remain illuminated, providing a simple visual indication of the charge level.
