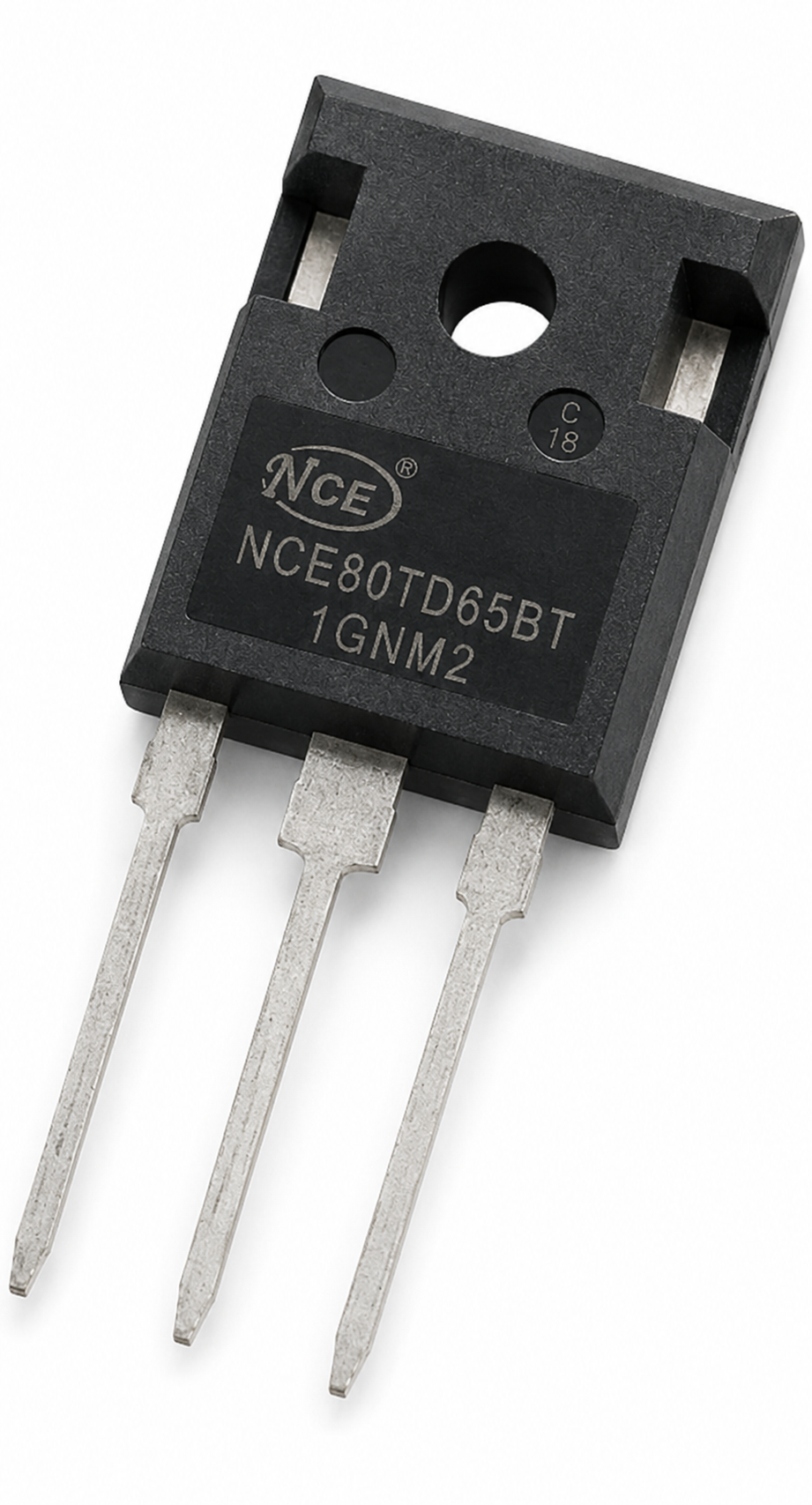

IGBT NCE80TD65BT 650V 80A TO-247 Transistor

The IGBT NCE80TD65BT 650V 80A TO-247 Transistor is a high-performance power semiconductor featuring Trench Field Stop technology for efficient switching and low power loss. It is suitable for inverters, motor drives, UPS systems, solar inverters, welding machines, and industrial power electronics.

Description

The IGBT NCE80TD65BT 650V 80A TO-247 Transistor is designed for demanding power switching applications requiring high efficiency and reliable performance. Manufactured using advanced Trench Field Stop (FS II) technology, it combines low saturation voltage, fast switching speed, and excellent thermal stability to improve overall system efficiency.

Its robust 650V voltage rating, 80A collector current, and industry-standard TO-247 package make it an excellent choice for high-power converters, industrial motor control systems, solar energy equipment, induction heating systems, UPS units, and inverter applications. The device delivers dependable operation in both commercial and industrial environments where efficient power management is essential.

Key Features

• NCE80TD65BT power IGBT
• 650V collector-emitter voltage
• 80A continuous collector current
• Trench Field Stop (FS II) technology
• Low conduction loss
• Fast switching performance
• Excellent thermal characteristics
• TO-247 through-hole package
• High efficiency power switching
• Suitable for high-frequency applications
• Reliable industrial performance
• Easy heatsink mounting

Technical Specifications

Note: Refer to the manufacturer's datasheet for detailed electrical characteristics, switching times, thermal resistance, gate drive requirements, and Safe Operating Area (SOA).

Product Attributes

Pin Configuration

Compatibility

Suitable for use in:

• Pure Sine Wave Inverters
• Solar Inverters
• Motor Drive Controllers
• Variable Frequency Drives (VFD)
• UPS Systems
• Induction Heating Circuits
• Welding Machines
• SMPS Power Supplies
• High-Power DC-AC Converters
• Industrial Power Electronics

Applications

• Power Inverters
• Solar Energy Systems
• Motor Drives
• UPS Systems
• Welding Equipment
• Industrial Automation
• Induction Heating
• Battery Chargers
• High-Power Power Supplies
• Renewable Energy Equipment

Package Includes

• 1 × IGBT NCE80TD65BT 650V 80A TO-247 Transistor

Buy in Pakistan

Buy the IGBT NCE80TD65BT 650V 80A TO-247 Transistor from Chip.pk for inverter repairs, motor drive systems, solar power equipment, UPS systems, and industrial power electronics. Designed for efficient high-power switching and reliable long-term operation, it is suitable for professional engineers, technicians, manufacturers, and electronics enthusiasts. Chip.pk provides quality electronic components, competitive pricing, secure packaging, and fast nationwide delivery across Pakistan.

Why Choose Chip.pk?

• Genuine quality electronic components
• Quality-tested before dispatch
• Competitive prices
• Fast nationwide delivery across Pakistan
• Secure packaging
• Trusted supplier for semiconductors, MOSFETs, IGBTs, diodes, development boards, and industrial electronic components
• Technical support for students, engineers, repair technicians, and manufacturers
• Reliable customer service and after-sales support

FAQs

1. What is the NCE80TD65BT IGBT?

The NCE80TD65BT is a high-performance 650V, 80A Insulated Gate Bipolar Transistor (IGBT) designed for high-efficiency power switching applications. It is commonly used in inverters, motor drives, UPS systems, welding equipment, and industrial power electronics.

2. What are the voltage and current ratings of this IGBT?

The device offers:

• Collector-Emitter Voltage (VCES): 650V
• Continuous Collector Current (IC): 80A

These ratings make it suitable for medium- and high-power switching applications.

3. What package does the NCE80TD65BT use?

The transistor comes in a TO-247 through-hole package, providing excellent thermal performance and easy heatsink mounting.

4. What technology is used in this IGBT?

The NCE80TD65BT uses Trench Field Stop (FS II) technology, which helps reduce switching losses, improve efficiency, and enhance thermal performance.

5. What are the main applications of this IGBT?

Common applications include:

• Pure Sine Wave Inverters
• Solar Inverters
• UPS Systems
• Motor Drives
• Variable Frequency Drives (VFD)
• Welding Machines
• Induction Heating Equipment
• SMPS Power Supplies
• Industrial Automation

6. Can this IGBT be used for inverter repair?

Yes. The NCE80TD65BT is commonly used in inverter design, maintenance, and repair, provided the electrical specifications match the original circuit requirements.

7. Is this device suitable for high-frequency switching?

Yes. Thanks to its Trench Field Stop technology, the transistor provides fast switching characteristics suitable for many high-frequency power conversion applications.

8. Does this IGBT require a heatsink?

Yes. In medium- and high-power applications, an appropriate heatsink and proper thermal design are recommended to maintain reliable operation.

9. What is the pin configuration?

The TO-247 package has the following pinout:

• Pin 1: Gate (G)
• Pin 2: Collector (C)
• Pin 3: Emitter (E)
• Metal Tab: Collector

Always verify the datasheet before installation.

10. Where can I buy the NCE80TD65BT IGBT in Pakistan?

You can purchase the IGBT NCE80TD65BT 650V 80A TO-247 Transistor from Chip.pk with fast nationwide delivery, secure packaging, and reliable customer support.

11. Where can I buy the NCE80TD65BT IGBT in Lahore?

Customers in Lahore can order the IGBT NCE80TD65BT 650V 80A TO-247 Transistor from Chip.pk for quick local delivery or convenient pickup, subject to product availability.

12. Why choose the NCE80TD65BT IGBT?

The NCE80TD65BT combines 650V voltage capability, 80A current handling, Trench Field Stop technology, and a TO-247 package, making it a dependable choice for industrial power conversion and switching applications.
