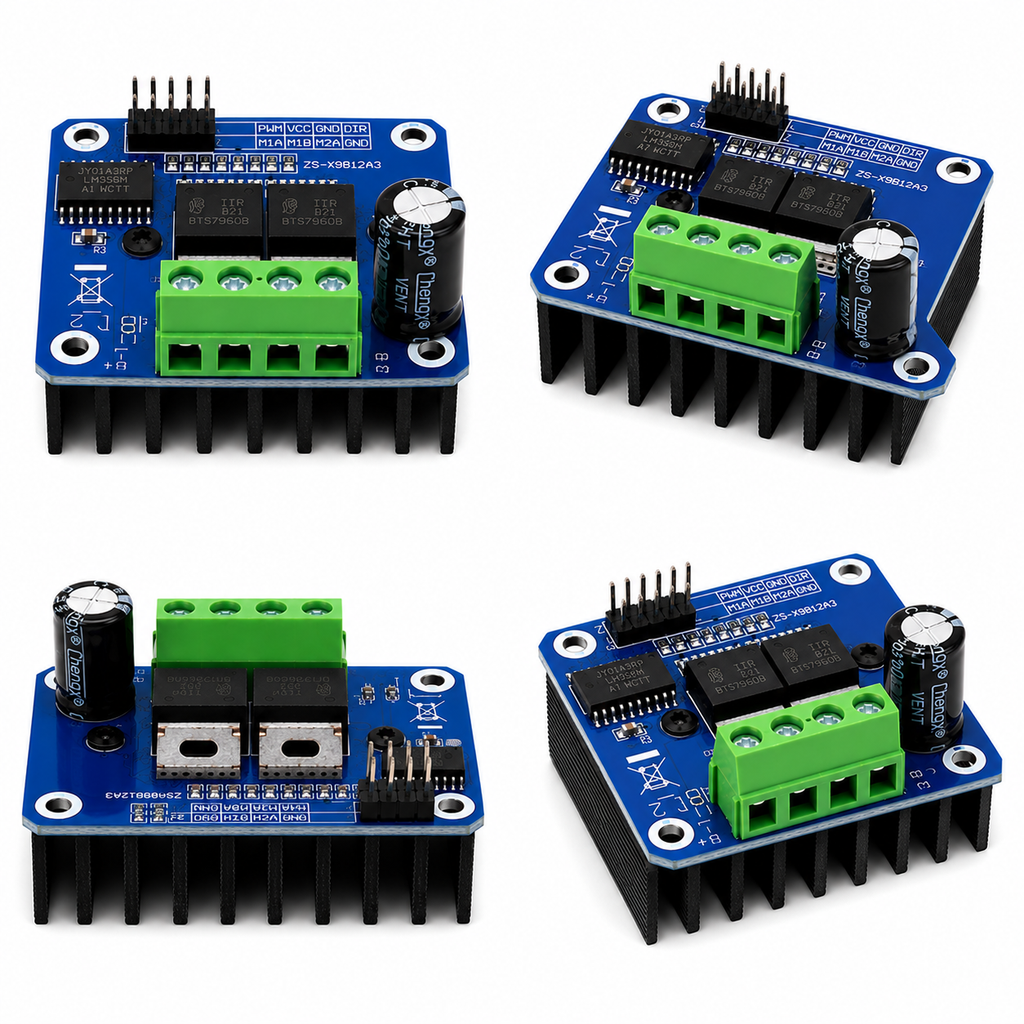

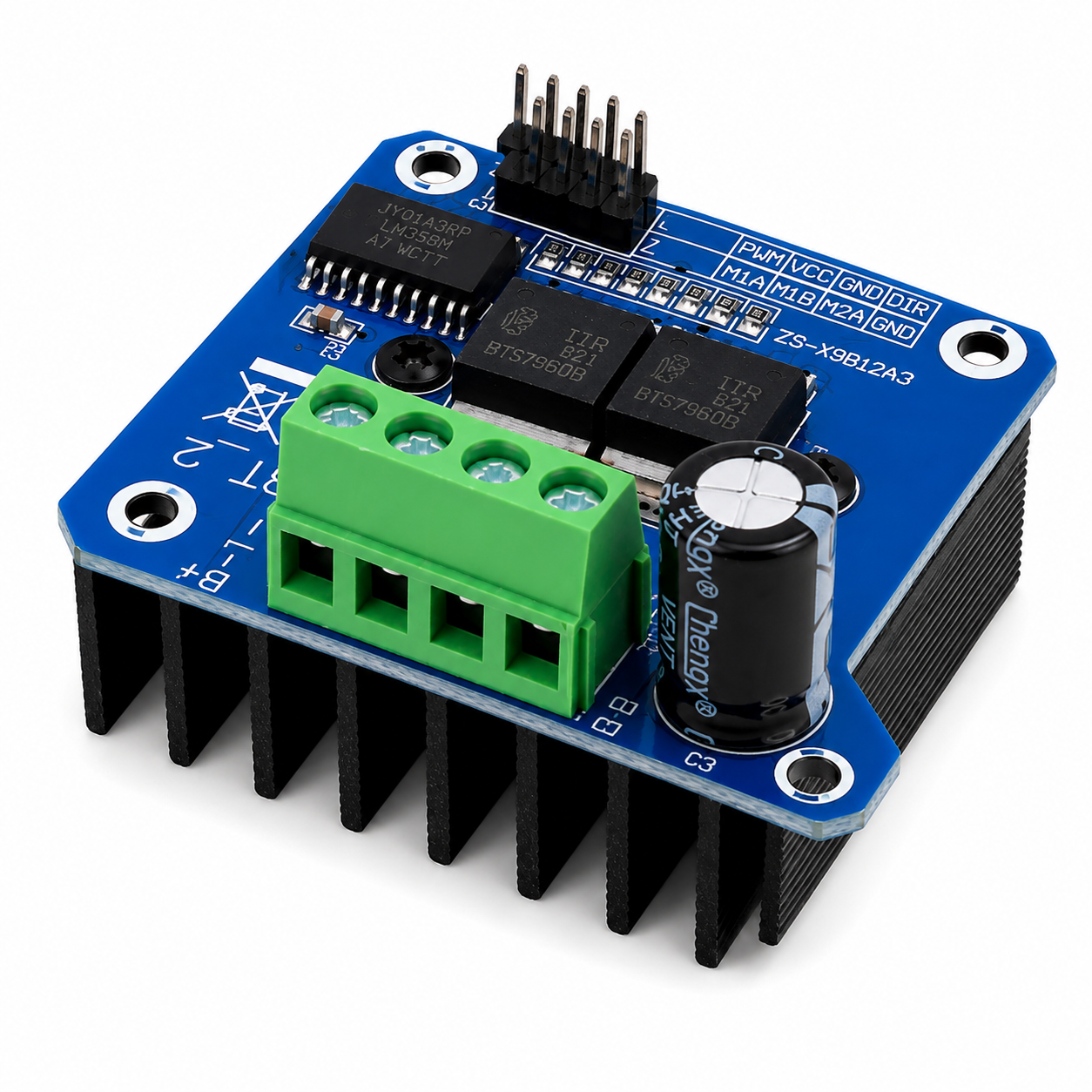

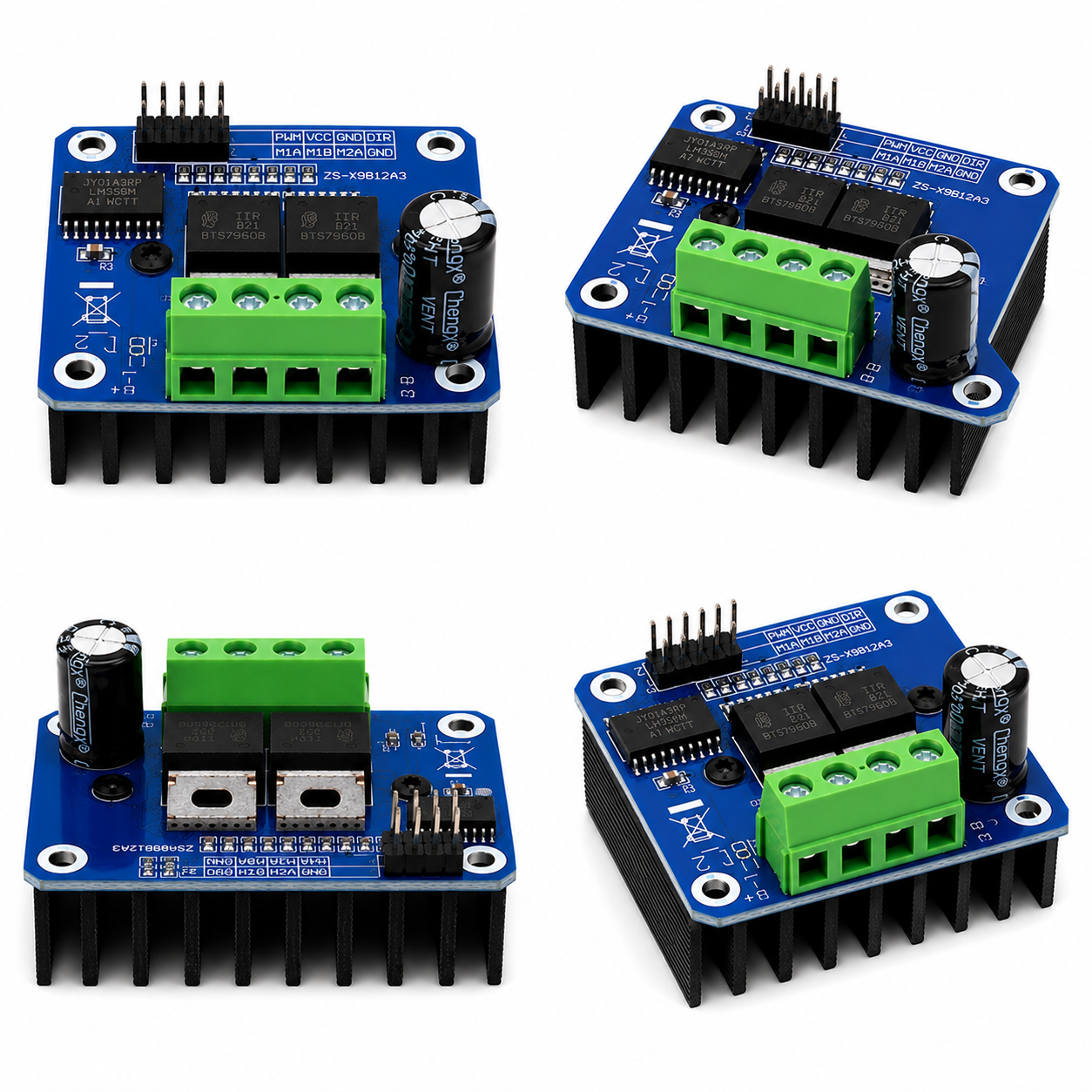

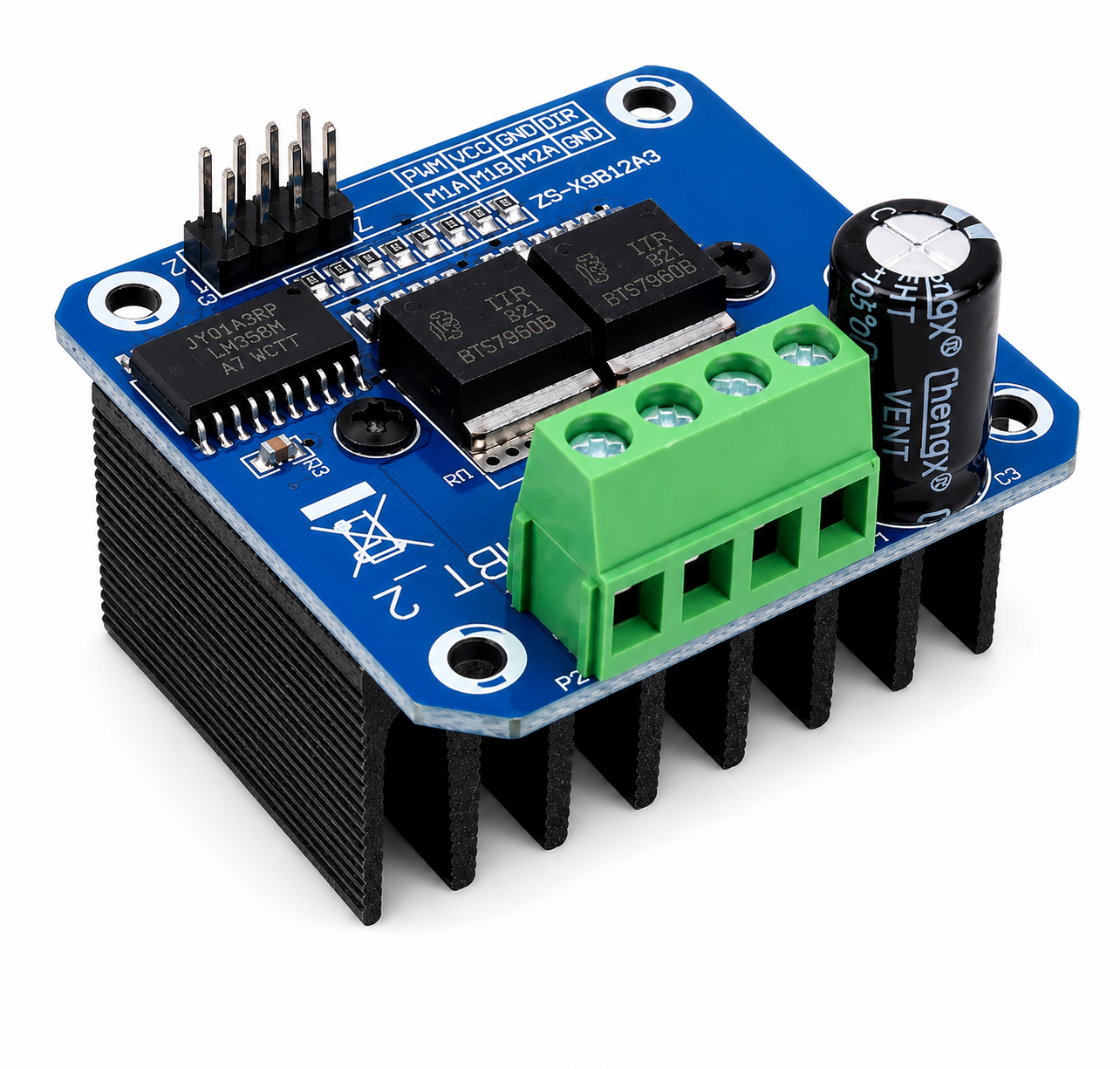

IBT-2 BTS7960 43A High Power H-Bridge Motor Driver Module

The IBT-2 BTS7960 43A High Power H-Bridge Motor Driver Module is a robust DC motor controller designed for high-current applications. Featuring dual Infineon BTS7960 half-bridge driver ICs, it supports 6V–27V DC motor voltage, 3.3V–5V logic control, PWM speed regulation, and forward/reverse motor operation. It is ideal for Arduino, ESP32, Raspberry Pi, STM32, robotics, electric vehicles, and industrial automation projects.

Description

The IBT-2 BTS7960 43A High Power H-Bridge Motor Driver Module is a powerful motor control solution built around two Infineon BTS7960 high-current half-bridge MOSFET driver ICs. Together they form a complete H-Bridge capable of driving high-power brushed DC motors with smooth speed control, direction control, and electronic braking.

Designed for demanding applications, the module supports motor supply voltages from 6V to 27V DC and logic input levels of 3.3V or 5V, making it compatible with popular development boards such as Arduino, ESP32, STM32, Raspberry Pi, and PLC controllers.

The driver supports PWM frequencies up to 25kHz, enabling quieter motor operation and precise speed regulation. Built-in protection features—including overcurrent, overtemperature, undervoltage, overvoltage, and short-circuit protection—help improve reliability and safeguard both the module and connected equipment.

Whether you're building a robotic platform, electric vehicle prototype, conveyor system, CNC accessory, automated gate, or industrial automation project, the IBT-2 BTS7960 delivers dependable high-current motor control.

Key Features

• Dual Infineon BTS7960 half-bridge driver ICs
• High-power H-Bridge DC motor driver
• Supports up to 43A peak current
• Motor operating voltage: 6V–27V DC
• Logic voltage: 3.3V–5V
• PWM speed control up to 25kHz
• Forward and reverse motor control
• Electronic braking function
• Low heat generation with low MOSFET on-resistance
• Large aluminum heatsinks for improved cooling
• Built-in overcurrent protection
• Overtemperature protection
• Undervoltage and overvoltage protection
• Short-circuit protection
• Easy interface with microcontrollers

Technical Specifications

Note: The advertised 43A is a peak current rating. Continuous current capability depends on power supply quality, ambient temperature, wiring, heatsinking, and airflow. Additional cooling may be required for sustained high-load operation.

Typical Uses

The IBT-2 BTS7960 Motor Driver Module is commonly used in high-power DC motor control applications, including robotic vehicles, conveyor systems, electric scooters, AGVs, motorized platforms, linear actuators, CNC accessories, automatic doors, industrial automation equipment, and research projects.

Applications

Robotics

• Mobile Robots
• Robot Cars
• Robotic Platforms
• Battle Robots

Electric Vehicles

• Electric Scooters
• Electric Go-Karts
• Electric Wheelchairs
• Small Electric Vehicles

Industrial Automation

• Conveyor Systems
• Automatic Gates
• Material Handling Equipment
• Industrial Motion Control

Embedded Systems

• Arduino Projects
• ESP32 Projects
• Raspberry Pi Projects
• STM32 Development Boards
• PIC Microcontrollers
• PLC Controllers

Compatibility

Compatible with:

• Arduino Uno
• Arduino Nano
• Arduino Mega 2560
• ESP32 Development Boards
• ESP8266 Development Boards
• Raspberry Pi
• STM32 Development Boards
• PIC Microcontrollers
• AVR Microcontrollers
• PLC Systems
• 3.3V and 5V logic controllers

Package Includes

• 1 × IBT-2 BTS7960 43A High Power H-Bridge Motor Driver Module

Important Notes

• Designed for brushed DC motors only.
• Not suitable for driving stepper motors or brushless DC (BLDC) motors.
• Use a regulated 6V–27V DC motor power supply.
• Always connect the controller ground and motor power ground together.
• Use thick power cables for high-current applications.
• Provide additional airflow or heatsinking for continuous high-current operation.
• Verify motor voltage and current ratings before connecting the module.

Why Buy from Chip.pk

• Genuine robotics and automation components
• Fast delivery across Pakistan
• Secure packaging for sensitive electronic modules
• Large selection of Arduino, ESP32, Raspberry Pi, sensors, motor drivers, and embedded development boards
• Reliable support for students, makers, engineers, robotics enthusiasts, and industrial automation professionals
• Trusted electronics marketplace in Pakistan for IoT, robotics, embedded systems, and automation solutions

Frequently Asked Questions (FAQs)

1. What is the IBT-2 BTS7960 Motor Driver Module?

The IBT-2 BTS7960 43A High Power H-Bridge Motor Driver Module is a high-current DC motor driver built using two Infineon BTS7960 half-bridge driver ICs. It provides forward, reverse, braking, and PWM speed control for brushed DC motors.

2. What voltage does the IBT-2 BTS7960 support?

The module supports a motor supply voltage of 6V to 27V DC and accepts 3.3V or 5V logic signals, making it compatible with most popular microcontrollers.

3. Can I use the IBT-2 BTS7960 with Arduino?

Yes. The module is fully compatible with Arduino Uno, Nano, Mega 2560, and other Arduino boards. It can be controlled using standard digital and PWM pins.

4. Is the IBT-2 BTS7960 compatible with ESP32 and Raspberry Pi?

Yes. It works with ESP32, ESP8266, Raspberry Pi, STM32, PIC, AVR, and PLC controllers that provide suitable PWM and digital control signals.

5. What type of motors can this module drive?

The IBT-2 BTS7960 is designed for brushed DC motors. It is not suitable for brushless DC (BLDC) motors or stepper motors.

6. What does the 43A rating mean?

The 43A specification refers to the module's peak current capability. Continuous current depends on cooling, power supply quality, ambient temperature, and operating conditions. Additional heatsinking or airflow may be required for sustained high-current applications.

7. Does the module support PWM speed control?

Yes. The IBT-2 BTS7960 supports PWM frequencies up to 25kHz, enabling smooth and efficient motor speed control with reduced motor noise.

8. What protection features are built into the module?

The module includes protection against:

• Overcurrent
• Overtemperature
• Overvoltage
• Undervoltage
• Short circuit

These features help improve reliability and protect the driver during operation.

9. What are the common applications of the IBT-2 BTS7960?

Typical applications include:

• Robot platforms
• Electric vehicles
• Conveyor systems
• Automatic gates
• Linear actuators
• Industrial automation
• Motion control systems
• DIY robotics projects

10. Is the IBT-2 BTS7960 suitable for beginners?

Yes. Although designed for high-power motor control, it is widely used by beginners, students, hobbyists, and professionals due to its simple control interface and extensive online documentation.
