HLK-LD2420 24GHz Human Presence Radar Sensor Module

The Hi-Link HLK-LD2420 is a compact 24GHz FMCW mmWave human presence radar sensor designed to detect moving and micro-motion human targets. It operates from 3.3V, supports UART and GPIO status output, offers configurable detection zones and sensitivity, and can detect moving targets at distances up to 8m in wall-mounted applications.

Description

The HLK-LD2420 24GHz Human Presence Radar Sensor Module is designed for smart-home, lighting, security, occupancy sensing, automation, and AIoT applications where reliable human-presence detection is required.

Unlike a basic PIR motion sensor, the HLK-LD2420 uses 24GHz FMCW millimeter-wave radar technology together with onboard signal processing to detect human movement and micro-motion within a configurable sensing area. The module can continuously report detection results and allows parameters such as detection distance, zone sensitivity, and reporting behavior to be adjusted through Hi-Link's configuration software.

For wall-mounted operation, the manufacturer specifies a maximum moving-person detection distance of approximately 8m and micro-motion detection up to approximately 6m. The sensing angle can reach approximately ±60°, depending on mounting, environment, target movement, and configuration.

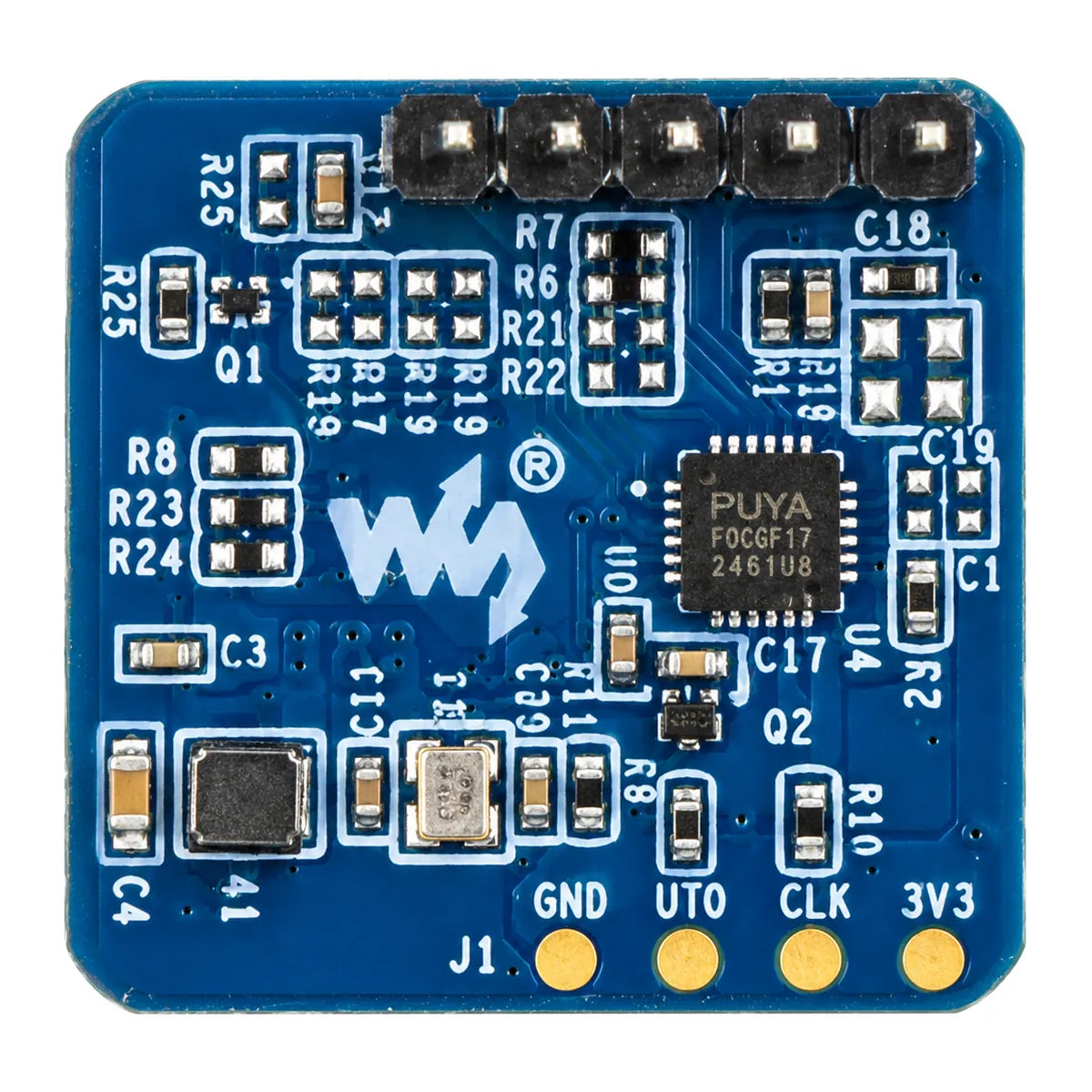

The actual Chip.pk stock is marked HLK-LD2420 V2.1. It uses a compact 20 × 20mm PCB and provides a 5-pin power/communication interface for integration with microcontrollers, controllers, and embedded systems.

Key Features

• Hi-Link HLK-LD2420
• Actual stock PCB revision: V2.1
• 24GHz FMCW mmWave radar
• Human presence, movement, and micro-motion detection
• Moving-person detection up to approximately 8m with wall mounting
• Micro-motion detection up to approximately 6m with wall mounting
• Detection coverage up to approximately ±60°
• Near-range sensing down to approximately 0.2m
• Configurable sensing distance and zone sensitivity
• UART communication interface
• Dedicated presence-status GPIO output
• Real-time detection reporting
• Approx. 10Hz data refresh rate
• Nominal 3.3V operation
• Compact 20 × 20mm module size
• Suitable for smart lighting, occupancy detection, automation, and security applications

Technical Specifications

Manufacturer specifications for sensing distance, angle, accuracy, current, refresh rate, voltage, and dimensions are documented in the current HLK-LD2420 user manual. r0.hlktech.com

Interface / Pinout

The official Hi-Link manual defines the main 5-pin J2 connector as:

The OT2 output goes high when human presence is detected and low when no presence is detected. The official interface operates at 3.3V logic levels. Hailinke Support Center

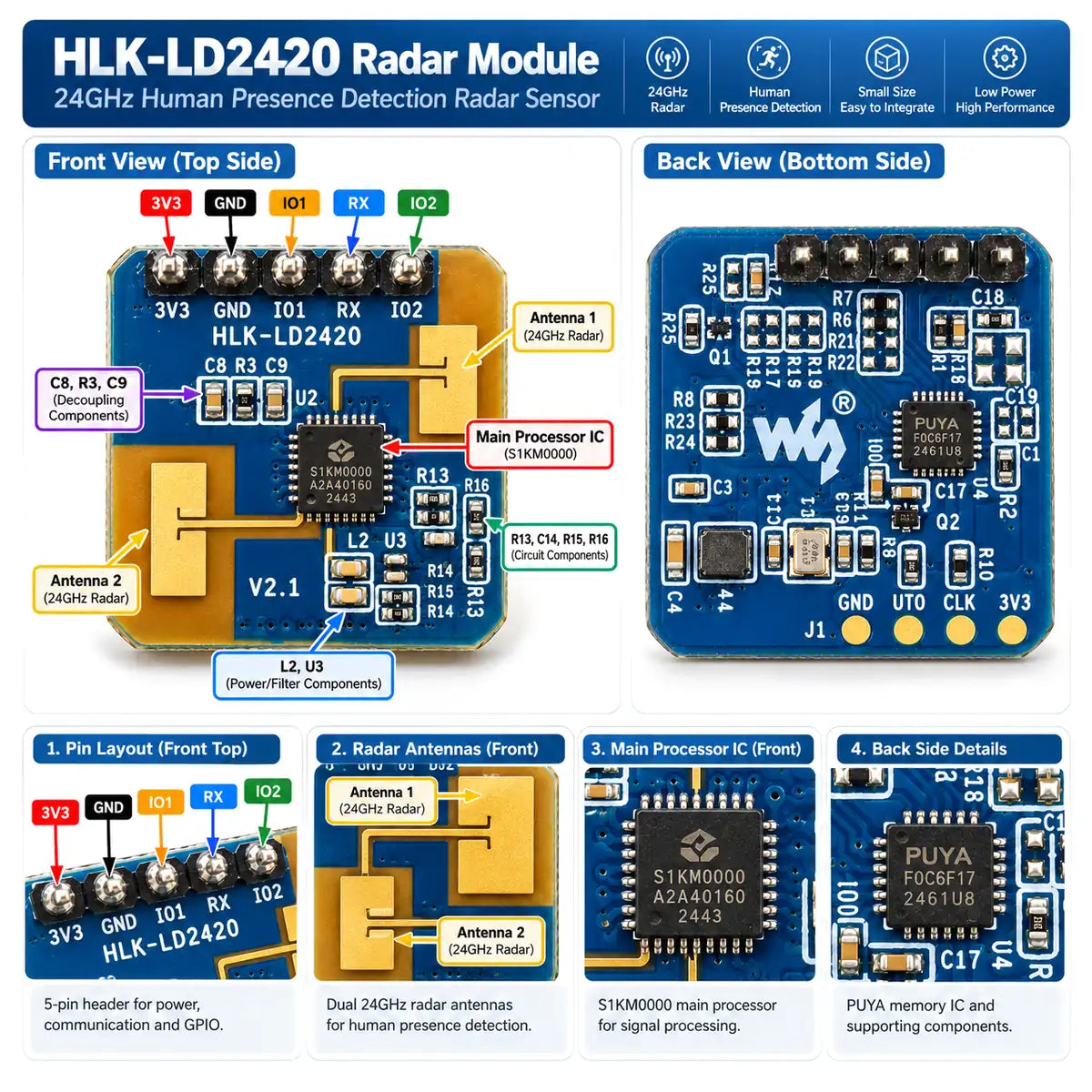

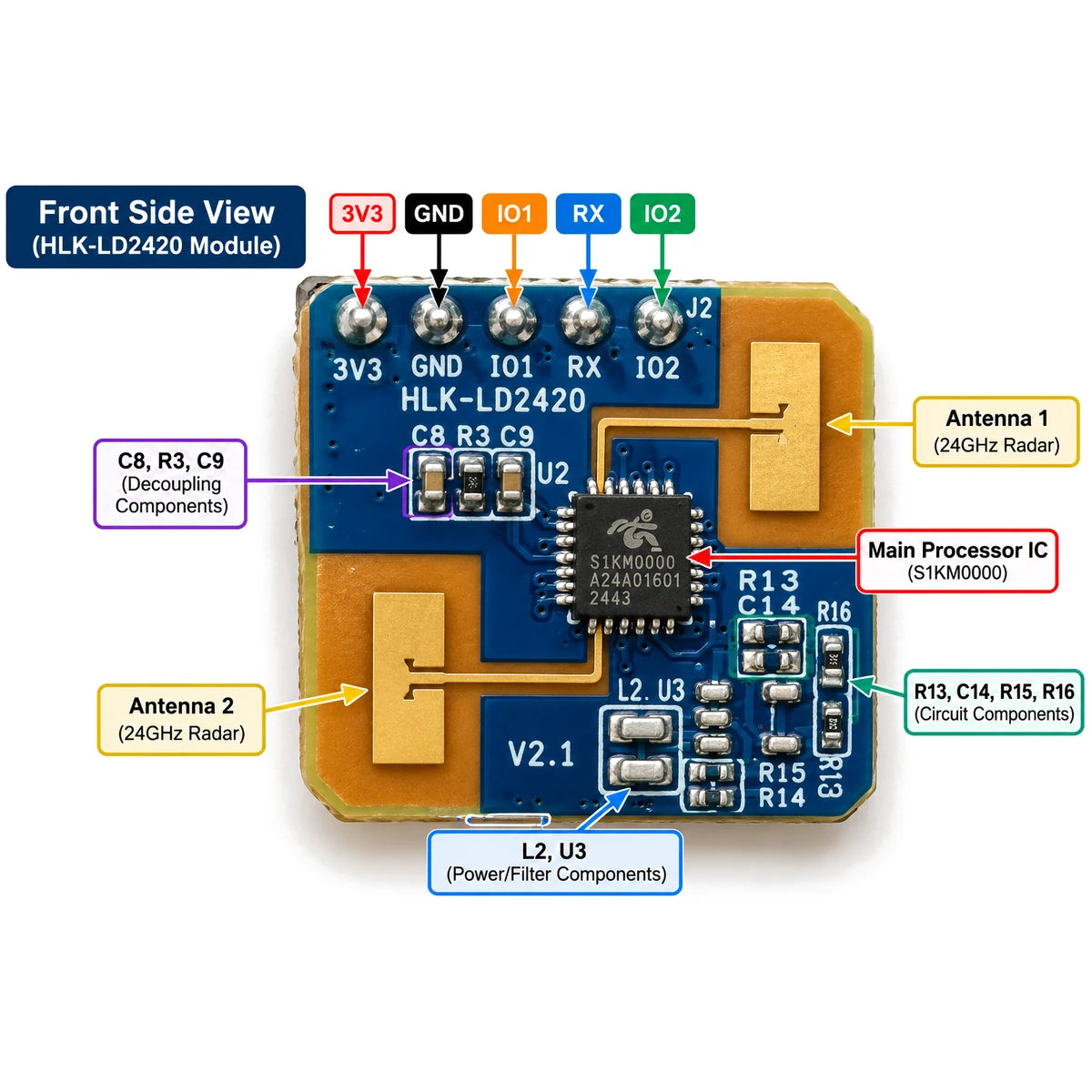

Stock marking note: the supplied V2.1 PCB imagery labels the signal pins as IO1 / RX / IO2, while the current Hi-Link manual refers to the corresponding functional pins as OT1 / RX / OT2. Chip.pk should describe the functions according to the official manual rather than guessing from the abbreviated PCB labels.

Applications / Use Cases

• Human presence detection
• Smart lighting control
• Room occupancy sensing
• Smart home automation
• Energy-saving systems
• Automatic display wake/sleep systems
• Building automation
• Security and access systems
• Smart switches
• AIoT occupancy sensing
• Indoor monitoring
• Appliance presence control
• Micro-motion detection
• Embedded radar sensing projects

Compatibility

The HLK-LD2420 can be integrated with microcontrollers and embedded control systems through its 3.3V UART interface and GPIO presence-status output.

It may be used with platforms such as ESP32, STM32, Arduino-compatible controllers, PLC-interface circuitry, or custom embedded boards, provided their electrical interface is compatible.

The module itself uses 3.3V logic. Do not assume direct compatibility with a 5V UART or GPIO system without checking the controller's electrical specifications or using suitable level conversion.

For configuration through a computer, Hi-Link documents use of a USB-to-TTL serial adapter and a UART baud rate of 115200 with its configuration utility.

Detection performance can vary with mounting position, room layout, moving objects, reflective materials, sensitivity settings, and environmental conditions. Manufacturer maximum-range values should therefore be treated as application-dependent rather than guaranteed in every installation.
