High Power DC-DC Boost Converter Step-Up Power Supply Module
High Power DC-DC Boost Converter Step-Up Power Supply Module
Product Overview
Efficiently increase DC voltage with this High Power DC-DC Boost Converter Module. Designed for adjustable output and high-efficiency power conversion, it's ideal for battery systems, solar applications, robotics, LED projects, Arduino, ESP32, and industrial electronics.
Description

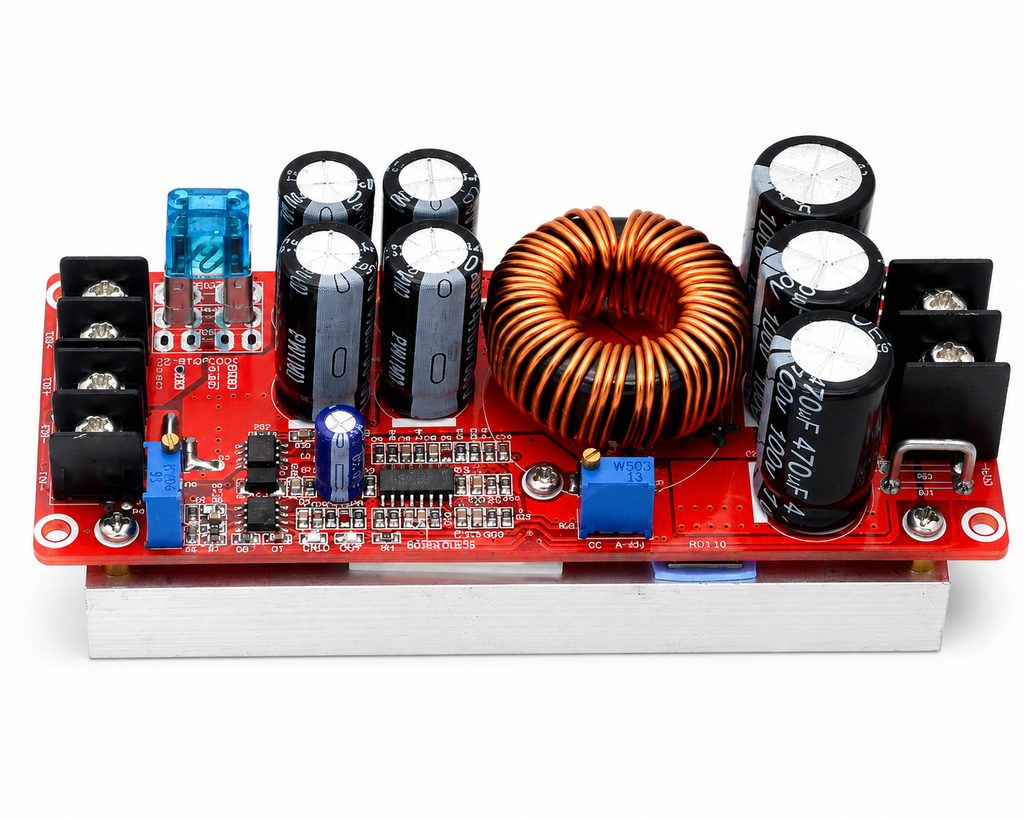

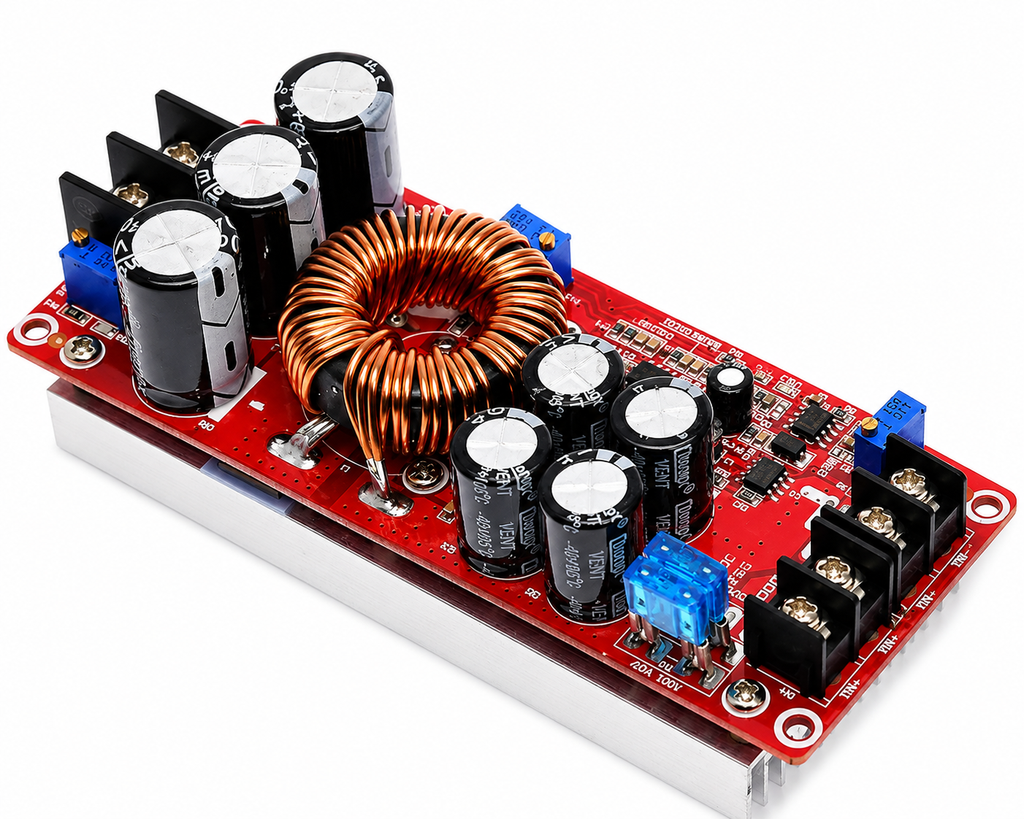

The High Power DC-DC Boost Converter Step-Up Module is a high-efficiency switching power supply designed to convert a lower DC input voltage into a higher adjustable output voltage. Its robust design features a large toroidal inductor, high-quality capacitors, and efficient switching circuitry for stable and reliable power conversion.
This module is suitable for powering LED systems, battery-powered devices, solar energy projects, industrial equipment, robotics, laboratory power supplies, and embedded electronics. Compared to linear voltage regulators, boost converters offer significantly higher efficiency with lower heat generation.
Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other embedded platforms, this converter is widely used in DIY electronics, renewable energy projects, electric vehicles, and industrial automation.
Whether you're boosting battery voltage, building a portable power system, or developing an IoT device, this module provides dependable voltage conversion for demanding applications.
Applications
- Battery Voltage Boosting
- Solar Power Systems
- Arduino Projects
- ESP32 Projects
- Raspberry Pi Power Supply
- LED Lighting Systems
- Robotics
- Industrial Automation
- Portable Power Supplies
- Laboratory Equipment
- DIY Electronics
- Embedded Systems
- Renewable Energy Projects
- Electric Vehicle Projects
Key Features
- High-Power DC-DC Boost Converter
- High Conversion Efficiency
- Adjustable Output Voltage
- Stable Power Regulation
- Large Toroidal Inductor
- Compact PCB Design
- Screw Terminal Connections
- Low Heat Generation
- Reliable Performance
- Suitable for Industrial & DIY Applications
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | DC-DC Boost Converter Module |
| Converter Type | Step-Up (Boost) |
| Output | Adjustable DC Output |
| Input Connection | Screw Terminal |
| Output Connection | Screw Terminal |

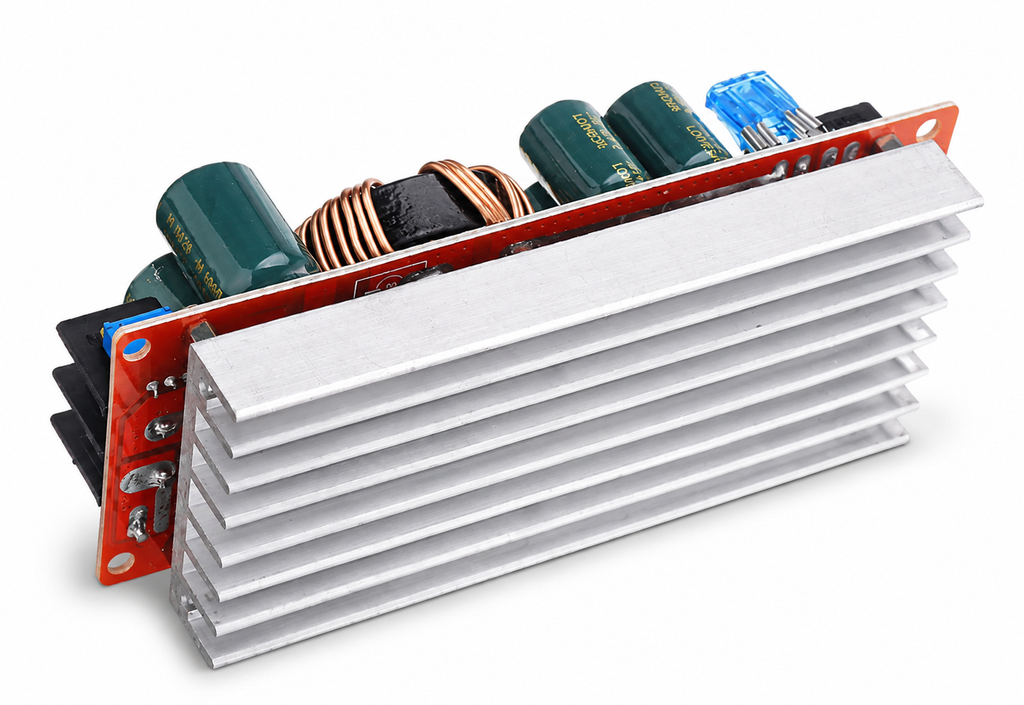

| Cooling | Passive |
| Inductor | High-Power Toroidal Inductor |
Package Includes
1 Ã High Power DC-DC Boost Converter Module
Datasheet Summary
- DC-DC Boost Converter
- Adjustable Output
- High-Power Inductor
- Screw Terminal Connections
- Compact PCB Design
How It Works
The module accepts a lower DC input voltage and uses high-frequency switching technology, an inductor, and power regulation circuitry to generate a higher adjustable DC output voltage. By adjusting the onboard potentiometer, the output voltage can be set to the desired level while maintaining efficient power conversion.
