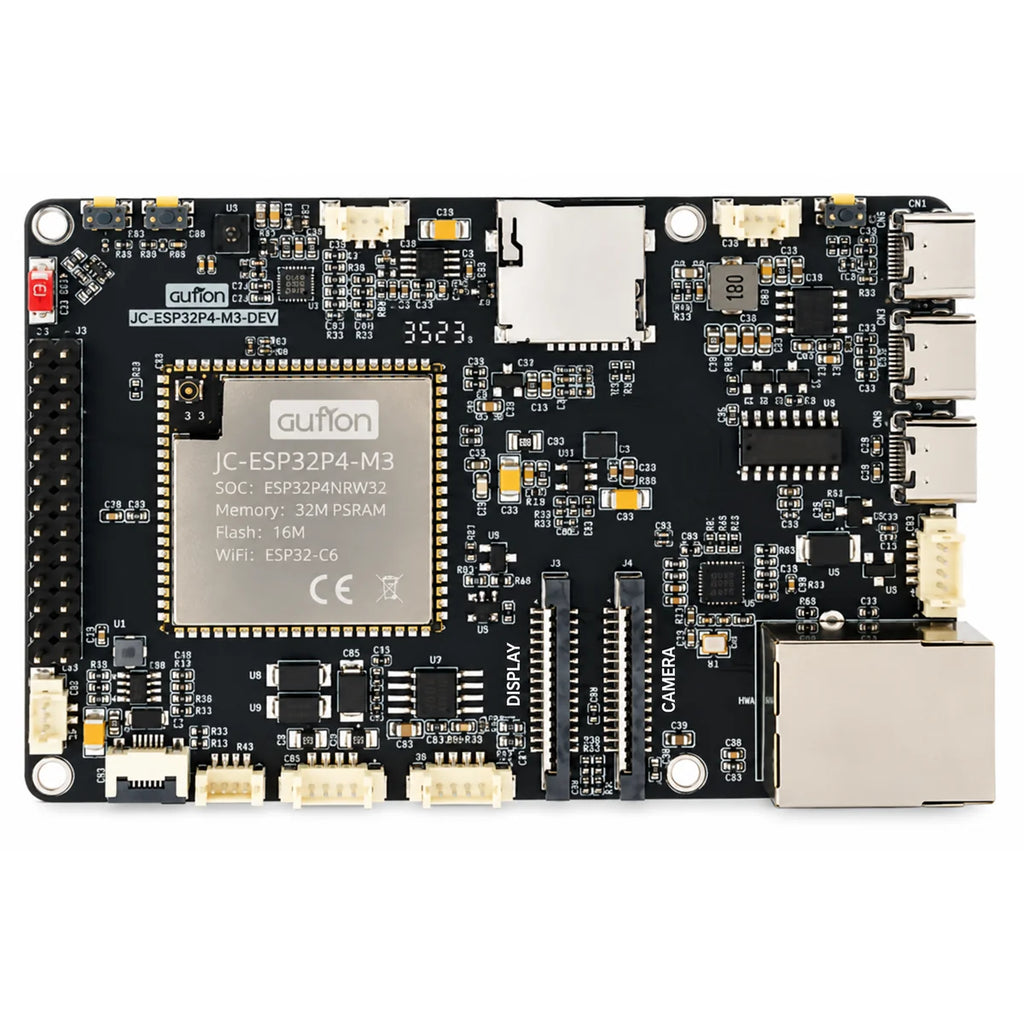

GUITION ESP32-P4-M3 ESP32-C6 Wi-Fi 6 Development Board

The GUITION JC-ESP32P4-M3-DEV is a high-performance ESP32-P4 development board with 32MB PSRAM, 16MB Flash, onboard ESP32-C6 for Wi-Fi 6 and Bluetooth LE, MIPI-DSI display interface, MIPI-CSI camera interface, 100Mbps Ethernet, microSD support, multiple USB Type-C ports, and extensive expansion interfaces.

Description

The GUITION ESP32-P4-M3 ESP32-C6 Wi-Fi 6 Development Board is designed for advanced embedded systems, graphical interfaces, multimedia applications, computer vision, networking, IoT, and high-performance ESP32 development.

At the center of the board is the JC-ESP32P4-M3 module, marked with the ESP32P4NRW32 SoC, 32MB PSRAM, and 16MB Flash. The ESP32-P4 provides a high-performance dual-core RISC-V processing platform for demanding embedded applications.

Wireless connectivity is provided separately by the onboard ESP32-C6 companion processor. This is important because the ESP32-P4 itself does not integrate Wi-Fi or Bluetooth. On this board, the ESP32-C6 provides Wi-Fi 6 and Bluetooth LE connectivity.

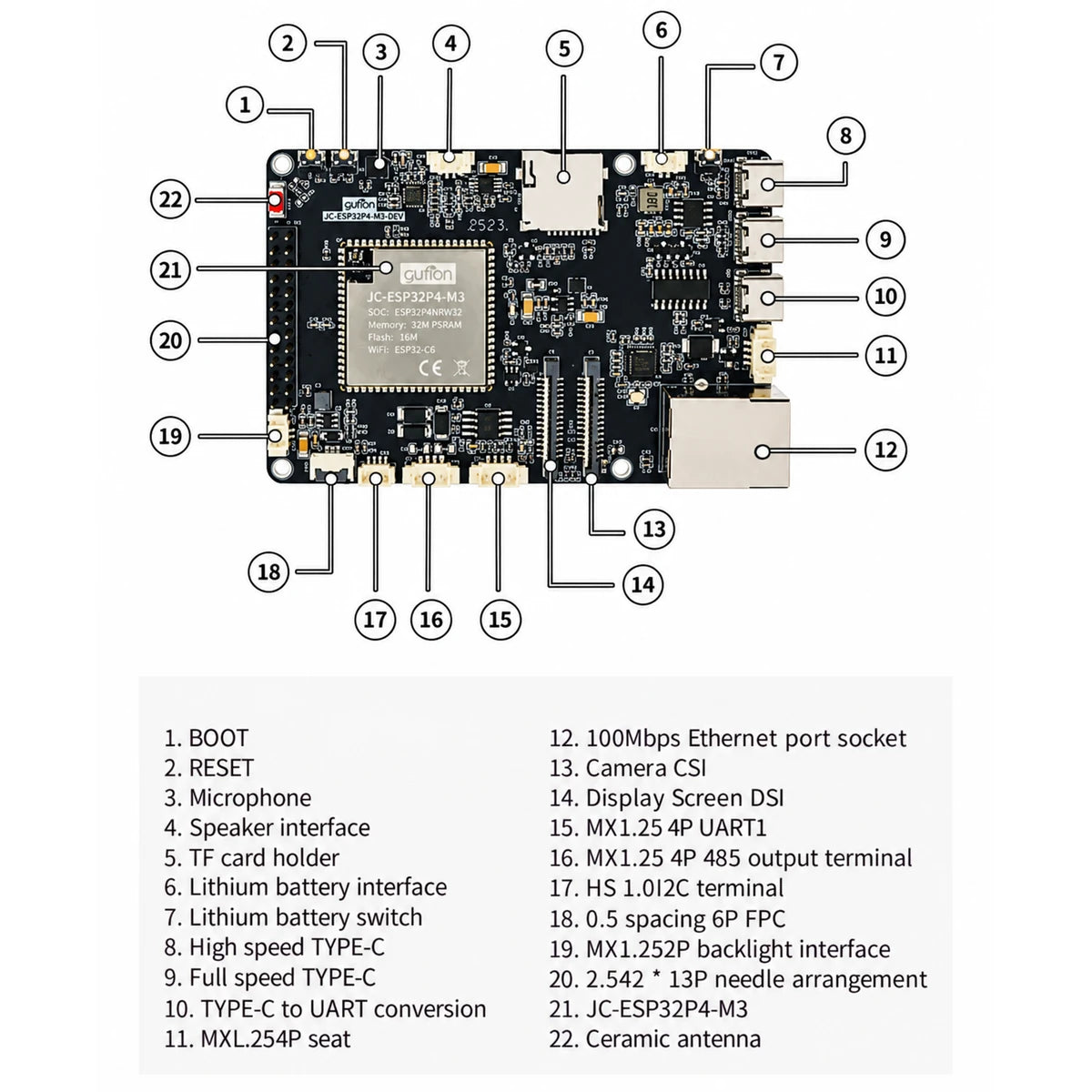

For display and camera applications, the board includes dedicated MIPI-DSI display and MIPI-CSI camera connectors. It also provides 100Mbps Ethernet, microSD/TF card support, USB Type-C interfaces, GPIO expansion, UART, I²C, RS485, audio interfaces, and a lithium battery connector with switch.

The board is especially suitable for LVGL graphical interfaces, HMI systems, connected displays, camera applications, multimedia interfaces, IoT gateways, industrial control prototypes, and advanced embedded development.

Key Features

• GUITION JC-ESP32P4-M3-DEV development board
• ESP32-P4 dual-core RISC-V processing platform
• Main module marked ESP32P4NRW32
• 32MB PSRAM
• 16MB Flash
• Onboard ESP32-C6 wireless companion processor
• Wi-Fi 6 connectivity
• Bluetooth LE connectivity
• MIPI-DSI display interface
• MIPI-CSI camera interface
• Hardware image-processing capabilities
• H.264 hardware encoding support
• 100Mbps Ethernet interface
• microSD / TF card slot
• Multiple USB Type-C interfaces
• USB-to-UART programming interface
• BOOT and RESET buttons

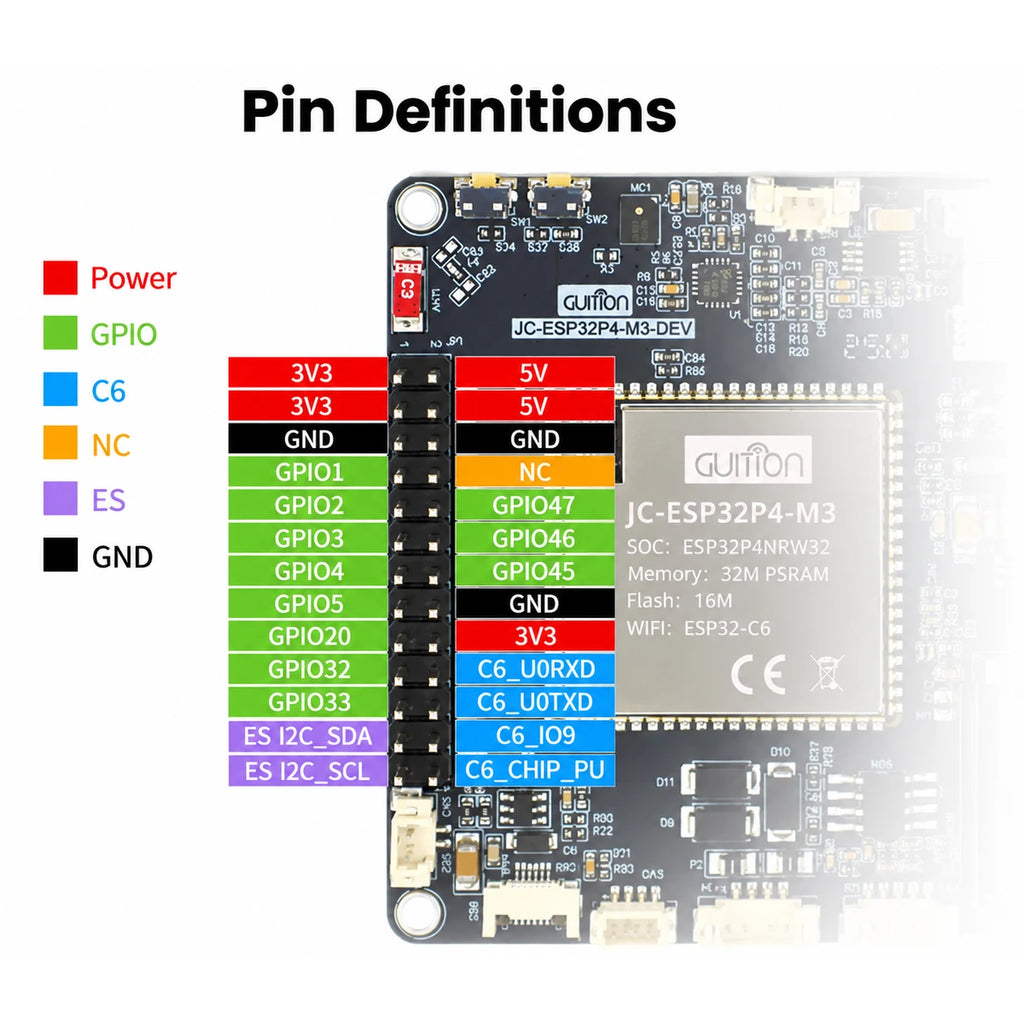

• GPIO expansion header
• UART interface
• I²C interface
• RS485 interface
• Microphone and speaker connectivity
• Lithium battery interface and power switch
• Suitable for LVGL and graphical HMI development
• Suitable for camera, networking, multimedia, and IoT projects

Technical Specifications

Frequency note: GUITION board documentation lists a 360MHz main frequency for this development board. Some ESP32-P4 platform documentation references higher maximum processor capability, so Chip.pk should retain the board-specific 360MHz figure for this product listing.

Applications / Use Cases

• ESP32-P4 development
• LVGL graphical user interfaces
• HMI control panels
• Smart display systems
• MIPI-DSI display projects
• MIPI-CSI camera projects
• Embedded computer vision
• Multimedia interfaces
• IoT gateways
• Wi-Fi 6 connected devices
• Bluetooth LE applications
• Ethernet-connected embedded systems
• Industrial control prototypes
• Robotics interfaces
• Camera monitoring systems
• Data acquisition and visualization
• Advanced embedded Linux-style interface prototyping where supported software stacks are used

Compatibility

The board is designed around the ESP32-P4 platform with an onboard ESP32-C6 wireless companion processor.

It can be developed using supported Espressif software environments and current ESP32-P4 development tools. ESP32-P4 also has support within the Arduino-ESP32 ecosystem, although board-specific pin mapping, peripherals, display configuration, camera configuration, and interface setup may require the appropriate GUITION board files, libraries, or project configuration.

The board is suitable for LVGL-based GUI development through its graphical and display capabilities. MIPI-DSI displays and MIPI-CSI cameras must match the electrical, connector, driver, and software requirements of the board.

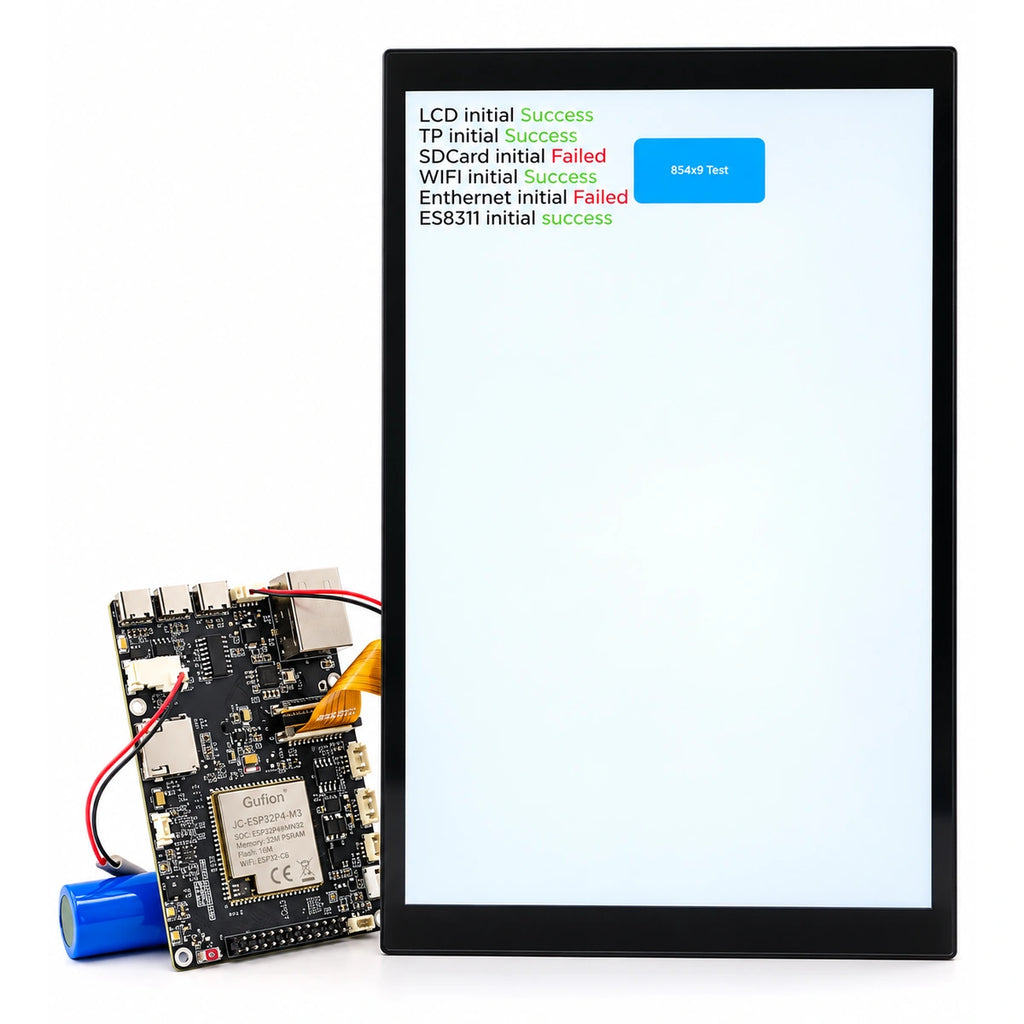

External displays, cameras, batteries, speakers, and other accessories shown in demonstration images should not be assumed to be included with the board.

Package Contents

• 1 × GUITION JC-ESP32P4-M3-DEV Development Board

Display, camera module, speaker, battery, cables, microSD card, and other accessories shown in demonstration images are not included unless specifically stated with the product.

Buy in Pakistan

Buy the GUITION ESP32-P4-M3 development board in Pakistan from Chip.pk for high-performance embedded development, LVGL interfaces, camera applications, IoT, networking, and multimedia projects.

With 32MB PSRAM, 16MB Flash, ESP32-C6 Wi-Fi 6 connectivity, Bluetooth LE, MIPI-DSI, MIPI-CSI, Ethernet, USB Type-C, and extensive expansion interfaces, the board provides a versatile platform for advanced ESP32-P4 applications.

FAQs

1. What is the GUITION ESP32-P4-M3 development board?
The GUITION JC-ESP32P4-M3-DEV is an ESP32-P4 development board with 32MB PSRAM, 16MB Flash, onboard ESP32-C6 wireless connectivity, MIPI-DSI display support, MIPI-CSI camera support, Ethernet, USB Type-C, microSD, and multiple expansion interfaces.

2. Does the ESP32-P4 have built-in Wi-Fi and Bluetooth?
The ESP32-P4 itself does not provide integrated Wi-Fi or Bluetooth. This GUITION board includes an onboard ESP32-C6 companion processor that provides Wi-Fi 6 and Bluetooth LE connectivity.

3. How much memory does the GUITION ESP32-P4-M3 board have?
The JC-ESP32P4-M3 module is marked with 32MB PSRAM and 16MB Flash.

4. Does this ESP32-P4 board support Wi-Fi 6?
Yes. Wi-Fi 6 connectivity is provided through the onboard ESP32-C6 wireless processor.

5. Does this board support Bluetooth?
Yes. The onboard ESP32-C6 provides Bluetooth Low Energy (Bluetooth LE) support.

6. Can I use this ESP32-P4 board with LVGL?
Yes. The ESP32-P4 platform is suitable for LVGL graphical interface development, and this board provides a dedicated MIPI-DSI display interface for supported displays.

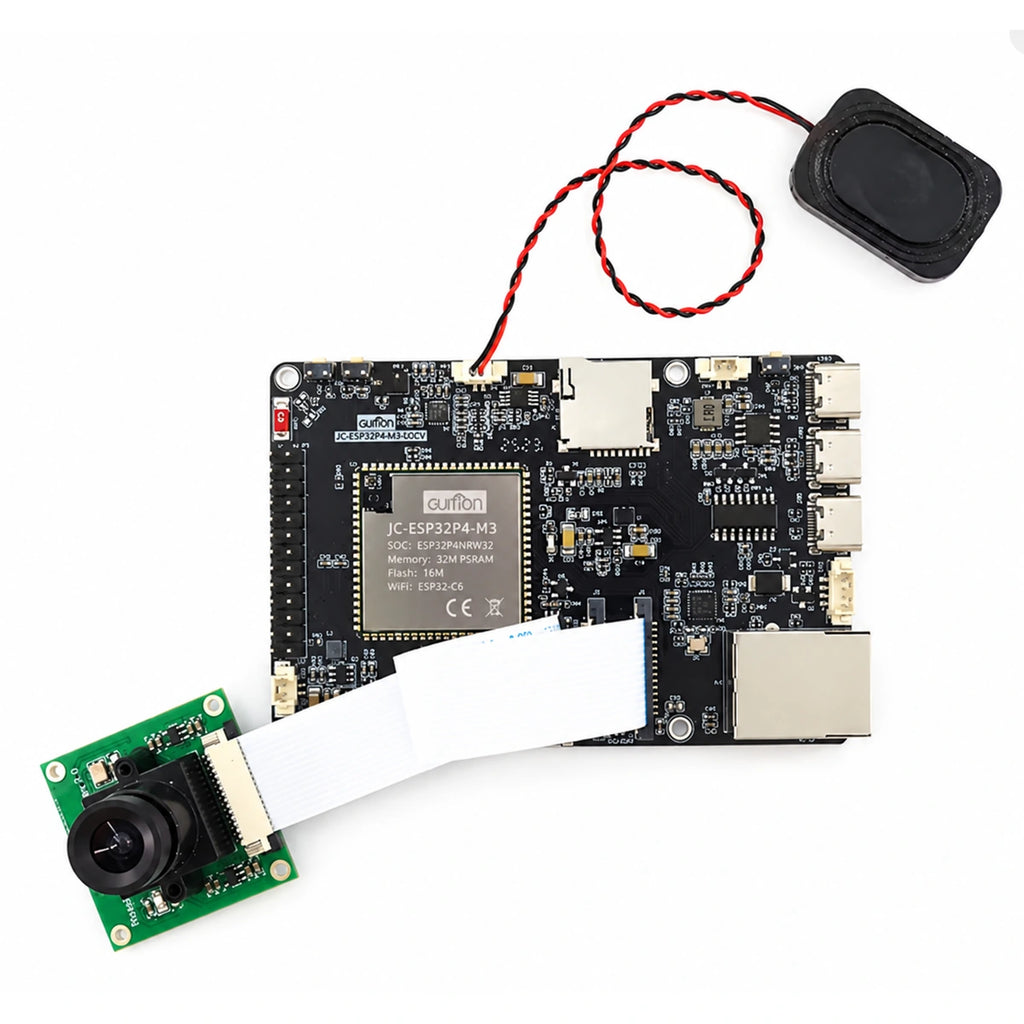

7. Does the board have a camera interface?
Yes. A dedicated MIPI-CSI camera connector is provided for supported camera modules.

8. Does this ESP32-P4 development board have Ethernet?
Yes. The board includes an RJ45 Ethernet port identified for 100Mbps Ethernet operation.

9. Does the board support microSD cards?
Yes. A TF/microSD card slot is provided for removable storage applications.

10. What USB ports are available on the board?
The board includes multiple USB Type-C interfaces, including high-speed USB, full-speed USB, and USB-to-UART functionality as identified in the board documentation.

11. Can this board be programmed with Arduino?
The ESP32-P4 platform is supported within the Arduino-ESP32 ecosystem. Board-specific pin assignments, displays, cameras, and other peripherals may require appropriate configuration and libraries.

12. Are the display, camera, battery and speaker included?
No. These components are shown in demonstration images only and should not be considered included unless Chip.pk specifically states otherwise on the product page.
