Product Overview

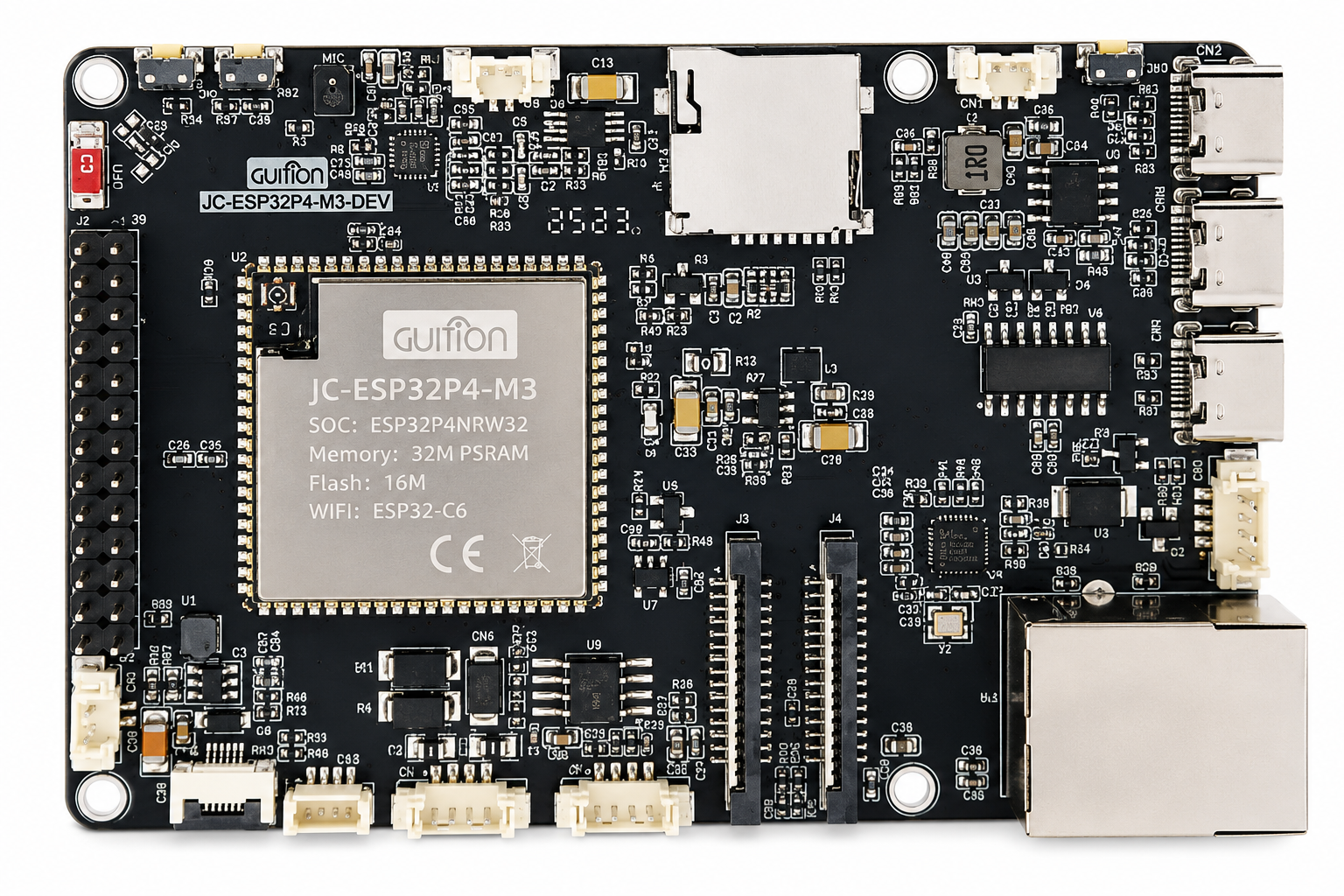

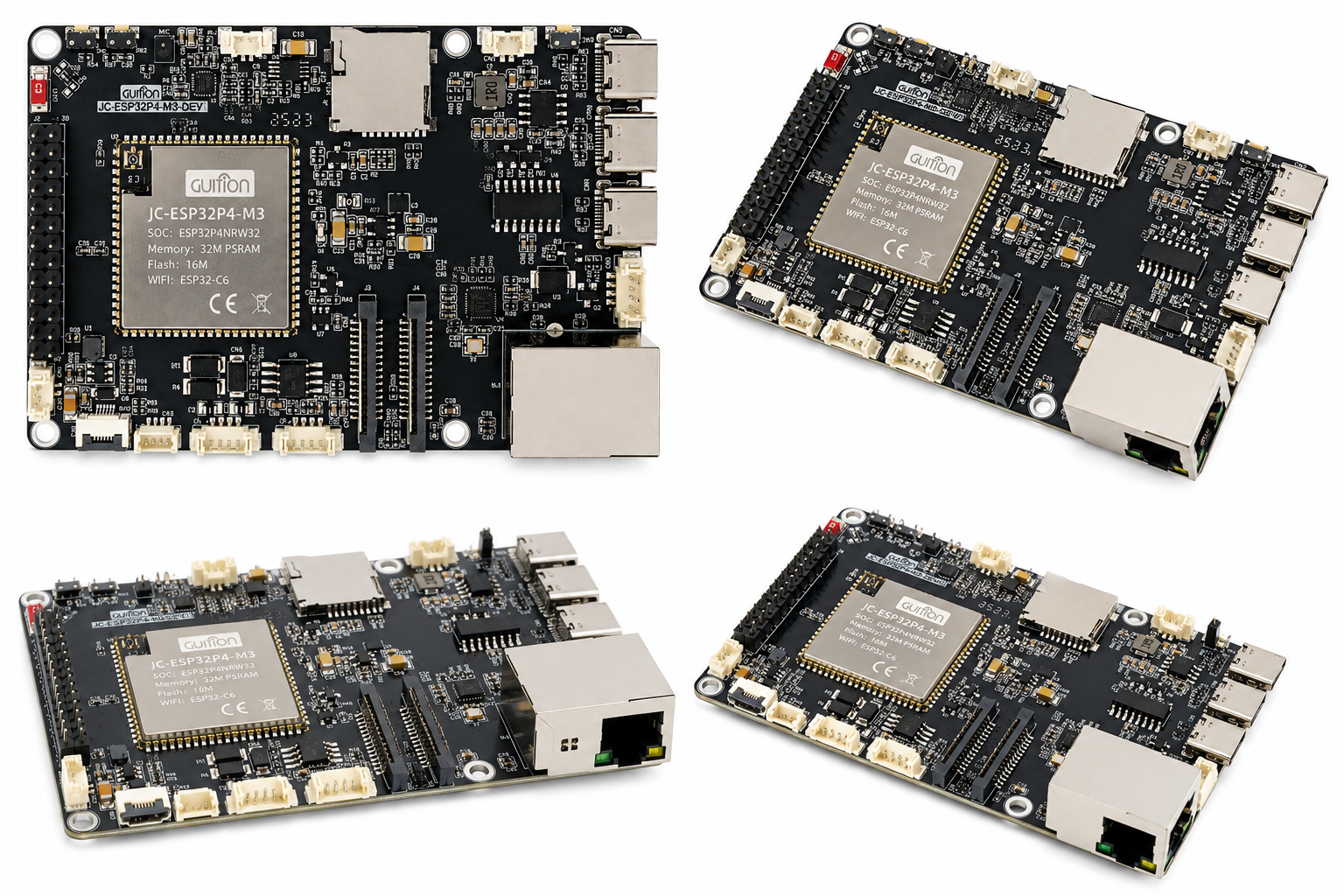

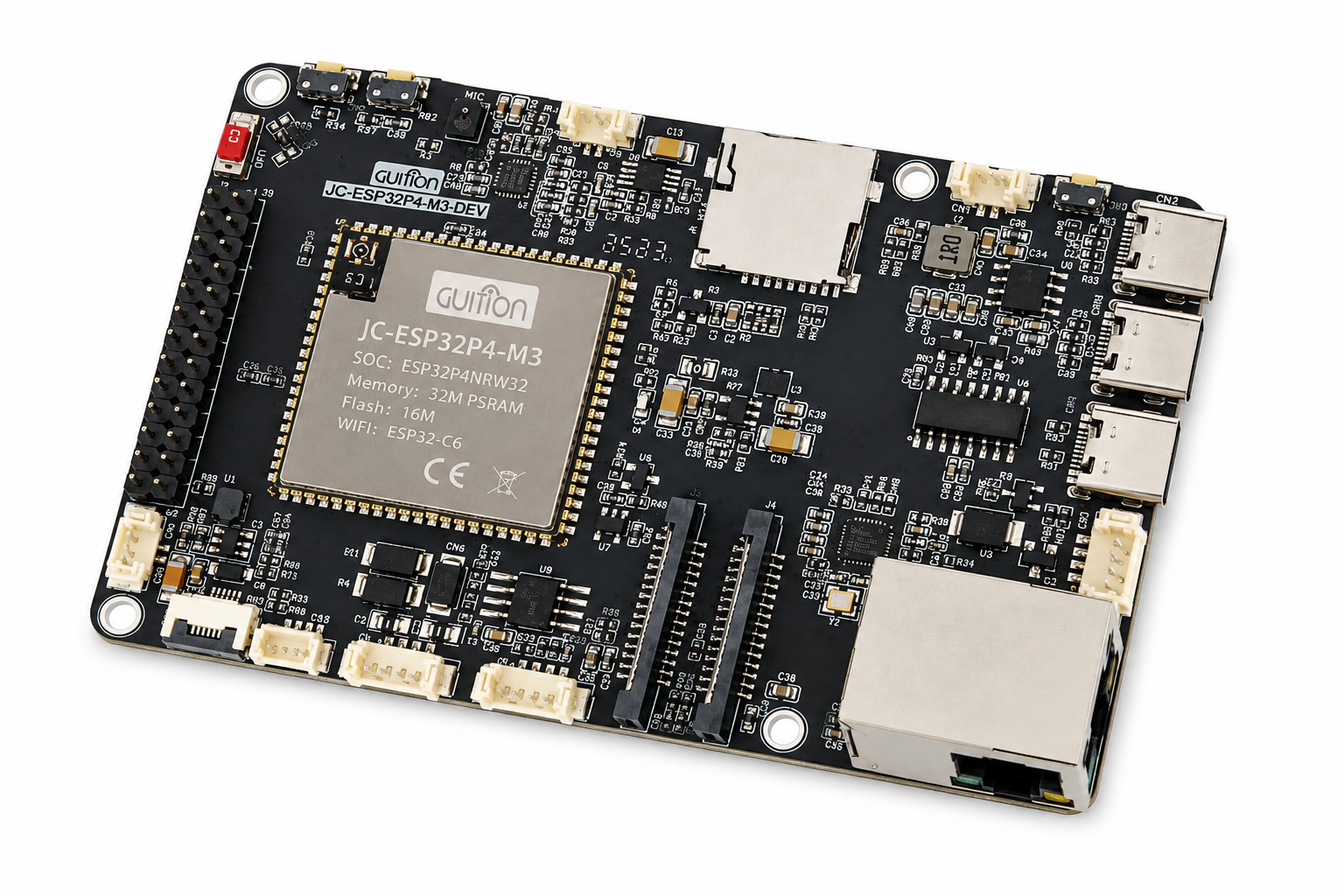

The GUITION ESP32-P4-M3 Development Board is a powerful embedded platform featuring the ESP32-P4 dual-core RISC-V processor and an integrated ESP32-C6 wireless coprocessor. With Wi-Fi 6, Bluetooth 5, Thread, Zigbee, 32MB PSRAM, 16MB Flash, Ethernet, MIPI-CSI, MIPI-DSI and dual USB Type-C ports, it is ideal for AI, HMI, multimedia and industrial IoT development.
Description
The GUITION ESP32-P4-M3 Development Board is an advanced development platform built around Espressif's latest ESP32-P4 processor, designed for high-performance embedded applications. It combines the computing power of the ESP32-P4 with an onboard ESP32-C6 wireless coprocessor, enabling Wi-Fi 6, Bluetooth Low Energy, Thread and Zigbee connectivity while allowing the main processor to focus on graphics, AI and multimedia processing.
The board includes 32MB PSRAM and 16MB NOR Flash, making it suitable for memory-intensive applications such as LVGL graphical interfaces, edge AI, image processing and multimedia systems. Rich hardware interfaces including MIPI-CSI camera, MIPI-DSI display, USB 2.0 OTG, 100Mbps Ethernet, TF card slot, UART, I²C, SPI, I²S, ADC, PWM and TWAI (CAN) provide excellent flexibility for professional embedded system development.
Designed for engineers, researchers and makers, the GUITION ESP32-P4-M3 Development Board is an excellent choice for building smart displays, industrial controllers, AI cameras, robotics systems, IoT gateways and multimedia devices. It supports ESP-IDF, and community support is expanding for Arduino and MicroPython.
https://devices.esphome.io/devices/guition-esp32-p4-m3-dev/
Key Features
- Official GUITION ESP32-P4-M3 Development Board
- ESP32-P4 dual-core 32-bit RISC-V processor
- ESP32-C6-MINI wireless coprocessor with Wi-Fi 6, Bluetooth 5 LE, Thread & Zigbee
- 32MB onboard PSRAM and 16MB NOR Flash
- MIPI 2-Lane CSI camera interface with ISP
- MIPI 2-Lane DSI display interface
- Built-in 100Mbps Ethernet (IP101 PHY)
- USB 2.0 OTG High-Speed & USB 1.1 OTG Full-Speed Type-C ports
- SDIO 3.0 MicroSD (TF) card slot
- 11 programmable GPIO expansion pins
- Onboard microphone & 8Ω 2W speaker header
- Li-Ion battery connector for portable applications
- 0.5mm 6-pin FPC touch connector
- UART/RS485 (MX1.25) & High-Speed I²C expansion connectors
- Rich peripheral interfaces including SPI, UART, I²C, I²S, ADC, PWM & TWAI (CAN)
- Ideal for AI, HMI, Robotics, Industrial Automation, Edge Computing & IoT
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GUITION |
| Model | JC-ESP32P4-M3-DEV |
| Main Processor | ESP32-P4 Dual-Core RISC-V |
| CPU Frequency | Up to 360MHz (up to 400MHz supported by SoC) |
| Wireless Processor | ESP32-C6 |
| Wireless | Wi-Fi 6, Bluetooth 5 LE, Thread, Zigbee |
| PSRAM | 32MB |
| Flash Memory | 16MB NOR Flash |
| USB | USB 2.0 OTG High-Speed + USB Type-C |
| Ethernet | 100Mbps RJ45 |
| Display Interface | MIPI-DSI |
| Camera Interface | MIPI-CSI with ISP |
| Storage | TF (MicroSD) Card Slot |
| Audio | Onboard Microphone, Speaker Interface |
| Interfaces | SPI, I²C, I²S, UART, SDIO, ADC, PWM, MCPWM, RMT, TWAI |
| Battery Support | Lithium Battery Connector |
| Antenna | Ceramic Antenna |
| Board Size | Approximately 92 × 62 mm |
| Operating Voltage | 5V DC via USB Type-C |
Applications
- AI Vision Systems
- Smart HMI Displays
- Industrial Automation
- Robotics
- Edge AI Computing
- Smart Home Controllers
- IoT Gateways
- Multimedia Applications
- Ethernet-Based Embedded Systems
- Machine Vision
- Voice Recognition
- Industrial Control Panels
Compatibility
- ESP-IDF
- Arduino IDE (community support)
- MicroPython (community support)
- LVGL Graphics Library
- MIPI CSI Cameras
- MIPI DSI Displays
- SPI Sensors
- I²C Modules
- UART Devices
- CAN (TWAI) Networks
- Ethernet Networks
Package Includes
- 1 × GUITION ESP32-P4-M3 Development Board
Important Notes
- Operates at 5V input through USB Type-C.
- Uses 3.3V logic levels for GPIO.
- ESP32-C6 manages wireless connectivity.
- Supports MIPI-CSI cameras and MIPI-DSI displays.
- Ideal for advanced AI, HMI and multimedia applications.
- Framework support continues to expand as the ESP32-P4 ecosystem matures.
FAQs
1. What processor does this board use?
It uses the ESP32-P4 dual-core RISC-V processor with an integrated ESP32-C6 wireless coprocessor.
2. Does it support Wi-Fi and Bluetooth?
Yes. It supports Wi-Fi 6, Bluetooth 5 LE, Thread and Zigbee through the ESP32-C6.
3. Does the board include Ethernet?
Yes. It features a built-in 100Mbps RJ45 Ethernet port for wired networking.
4. Can I connect MIPI cameras and displays?
Yes. The board includes both MIPI-CSI and MIPI-DSI interfaces for compatible cameras and displays.
5. How much memory does it have?
The board includes 32MB PSRAM and 16MB NOR Flash.
6. Which software framework should I use?
ESP-IDF is the recommended development framework. Community support is also available for Arduino IDE and MicroPython.
7. Does it have a TF card slot?
Yes. The board includes a MicroSD (TF) card slot for storage expansion.
8. Is this suitable for AI projects?
Yes. It is designed for edge AI, computer vision, HMI, multimedia and industrial IoT applications.
