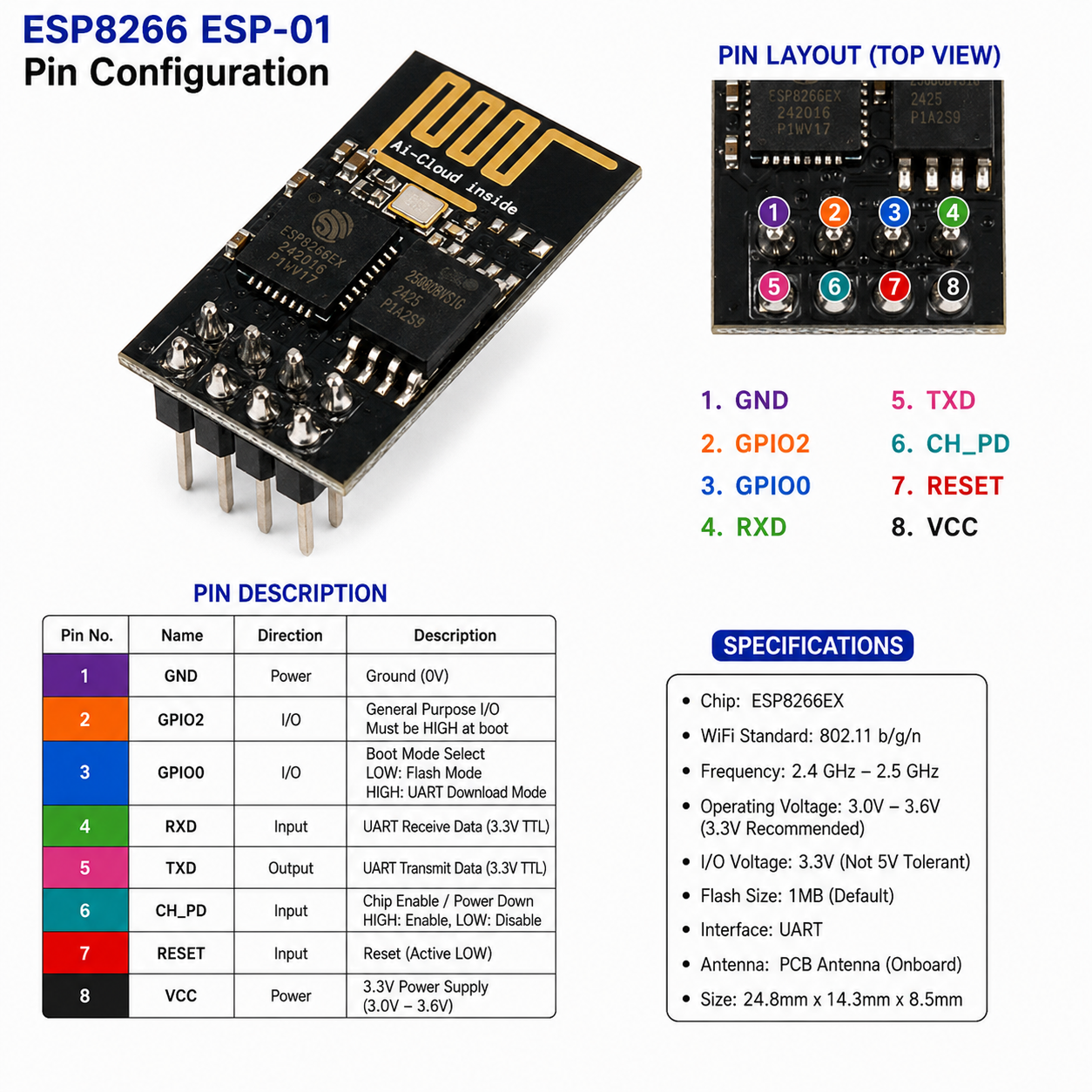

ESP8266 ESP-01 Serial WiFi Module

The ESP8266 ESP-01 Serial WiFi Module is a compact 2.4GHz wireless transceiver based on the ESP8266EX chip. It provides reliable WiFi connectivity through a UART interface, making it ideal for Arduino, Raspberry Pi, STM32, and IoT applications.

Description

The ESP8266 ESP-01 Serial WiFi Module is a low-cost wireless communication module designed for Internet of Things (IoT), home automation, wireless data transmission, and embedded systems. Built around the Espressif ESP8266EX SoC, it integrates a 32-bit processor, onboard PCB antenna, and IEEE 802.11 b/g/n WiFi support in a compact form factor.

The module communicates via a UART serial interface and is commonly supplied with AT command firmware, allowing easy integration with Arduino and other microcontrollers. It can also be reprogrammed using the Arduino IDE, MicroPython, or other supported development environments. Operating at 3.3V, the ESP-01 requires a stable power supply capable of handling WiFi transmission current peaks.

Key Features

• ESP8266EX WiFi SoC
• IEEE 802.11 b/g/n 2.4GHz WiFi
• UART serial communication
• Compact ESP-01 form factor
• Onboard PCB antenna
• Supports AT firmware
• Programmable using Arduino IDE
• Supports MicroPython and custom firmware
• Low power consumption
• Ideal for IoT and wireless communication
• 3.3V logic operation

Technical Specifications

Note: Flash memory capacity and firmware may vary between ESP-01 and ESP-01S module revisions. Never power the module directly from 5V.

Typical Uses

The ESP8266 ESP-01 Serial WiFi Module is widely used for IoT devices, home automation, wireless sensor networks, smart appliances, remote monitoring, cloud-connected projects, serial WiFi communication, and embedded system development.

Applications

Internet of Things (IoT)

• Smart Home Devices
• IoT Sensors
• Cloud Connectivity
• Remote Monitoring

Wireless Communication

• UART WiFi Communication
• Wireless Data Transmission
• Serial-to-WiFi Bridge
• Remote Device Control

Embedded Systems

• Arduino Projects
• Raspberry Pi Projects
• STM32 Projects
• PIC Microcontrollers
• AVR Microcontrollers

Automation

• Home Automation
• Industrial Monitoring
• Wireless Control Systems
• Smart Agriculture

Compatibility

Compatible with:

• Arduino Uno
• Arduino Nano
• Arduino Mega
• ESP8266 Programmers
• Raspberry Pi
• STM32 Development Boards
• PIC Microcontrollers
• AVR Microcontrollers
• USB-to-TTL Serial Adapters (3.3V)
• PlatformIO
• Arduino IDE
• MicroPython

Package Includes

• 1 × ESP8266 ESP-01 Serial WiFi Module

Important Notes

• Operates on 3.3V only; do not connect directly to 5V.
• Use a regulated 3.3V power supply capable of supplying the current peaks required during WiFi transmission.
• GPIO0 must be configured appropriately when entering firmware flashing mode.
• Firmware version and flash size may differ depending on the module revision (ESP-01 or ESP-01S).

Why Buy from Chip.pk

• Genuine embedded and IoT development modules
• Fast delivery across Pakistan
• Secure packaging for electronic components
• Wide selection of Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and robotics products
• Reliable technical support for students, makers, engineers, and developers
• Trusted electronics marketplace for IoT, embedded systems, and wireless communication solutions in Pakistan

Frequently Asked Questions (FAQs)

1. What is the ESP8266 ESP-01 Serial WiFi Module?

The ESP8266 ESP-01 Serial WiFi Module is a compact WiFi communication module based on the ESP8266EX chip. It enables wireless connectivity for IoT, home automation, and embedded system projects through a UART serial interface.

2. Can I use the ESP8266 ESP-01 with Arduino?

Yes. The ESP-01 can be connected to Arduino Uno, Nano, Mega, and other compatible boards using a UART interface. It can be controlled using AT commands or programmed directly with the Arduino IDE.

3. Is the ESP8266 ESP-01 compatible with Raspberry Pi?

Yes. The module can communicate with Raspberry Pi through its UART interface, making it suitable for wireless communication and IoT applications.

4. What operating voltage does the ESP8266 ESP-01 require?

The ESP8266 ESP-01 operates on 3.3V DC only. Applying 5V directly to the module can permanently damage it.

5. Can I program the ESP8266 ESP-01 using the Arduino IDE?

Yes. The module can be programmed using the Arduino IDE after installing the ESP8266 board package. It also supports PlatformIO and other compatible development environments.

6. What wireless standard does the ESP8266 ESP-01 support?

The module supports IEEE 802.11 b/g/n wireless networking on the 2.4GHz frequency band.

7. How many GPIO pins are available?

The standard ESP-01 module provides two general-purpose I/O pins (GPIO0 and GPIO2) that can be used for digital input and output.

8. What are the common applications of the ESP8266 ESP-01?

The module is widely used in IoT devices, smart home systems, wireless sensor networks, home automation, remote monitoring, cloud-connected projects, and serial-to-WiFi communication.

9. What is the difference between ESP-01 and ESP-01S?

The ESP-01S is an improved version of the ESP-01 and may include enhanced circuit design and different flash memory capacities depending on the manufacturer. Always verify the exact module version before development.

10. Is the ESP8266 ESP-01 suitable for beginners?

Yes. It is one of the most popular WiFi modules for learning IoT, wireless communication, and embedded programming, with extensive community support and documentation.
