ESP01 Programmer CH340 USB Adapter for ESP8266 ESP-01

The ESP01 Programmer CH340 USB Adapter for ESP8266 ESP-01 is a compact USB-to-serial converter designed to connect an ESP8266 ESP-01 WiFi module to a computer through a standard USB-A port.

Description

Featuring a CH340-family USB-to-UART interface and a dedicated 8-pin ESP-01 socket, this adapter provides a convenient connection for serial communication, development, testing and firmware programming setups.

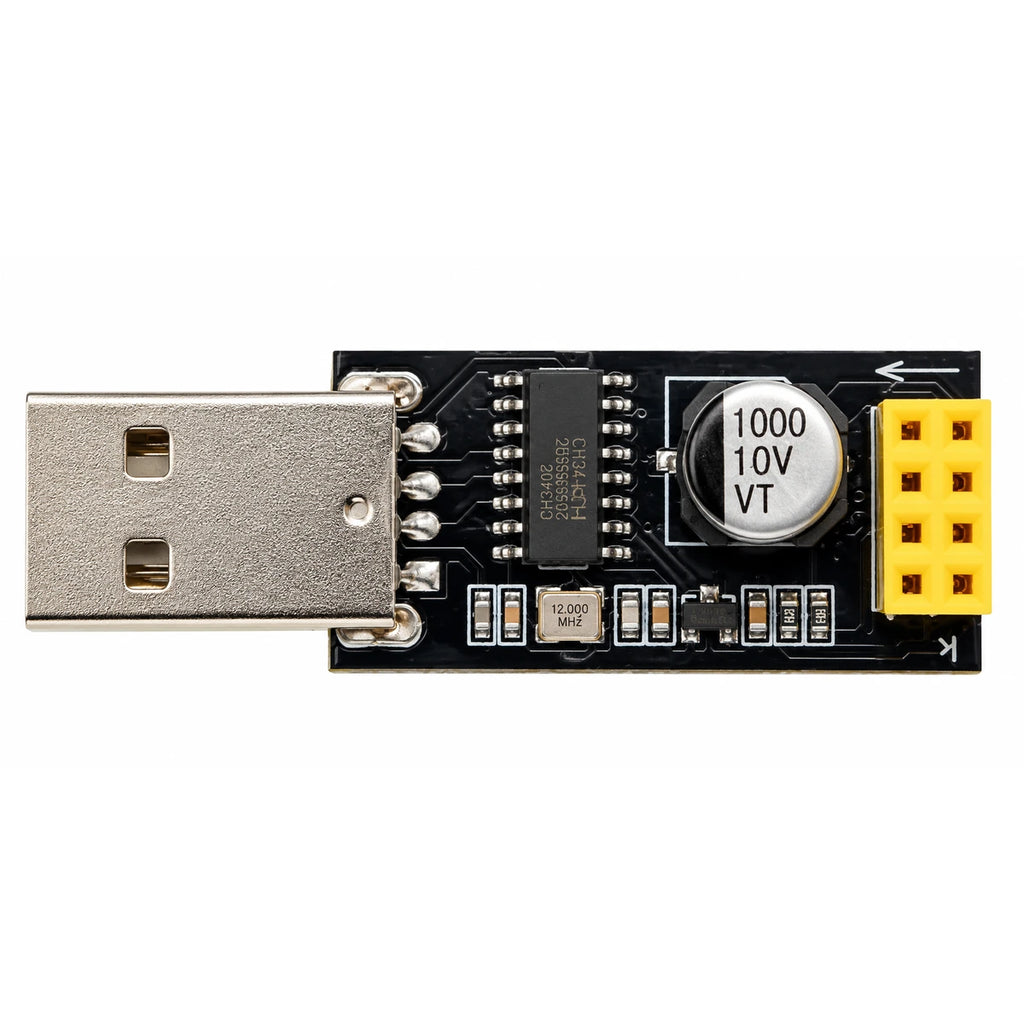

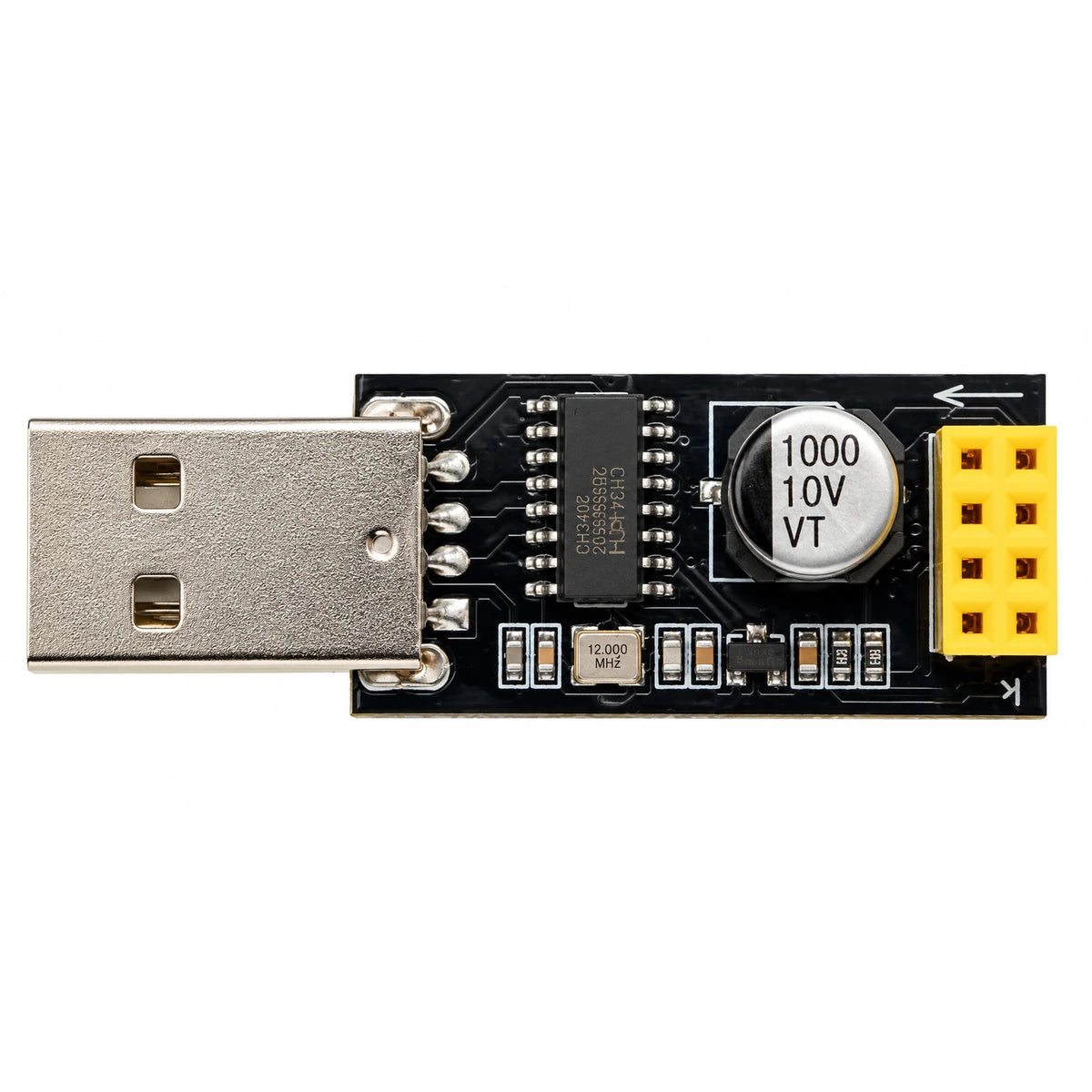

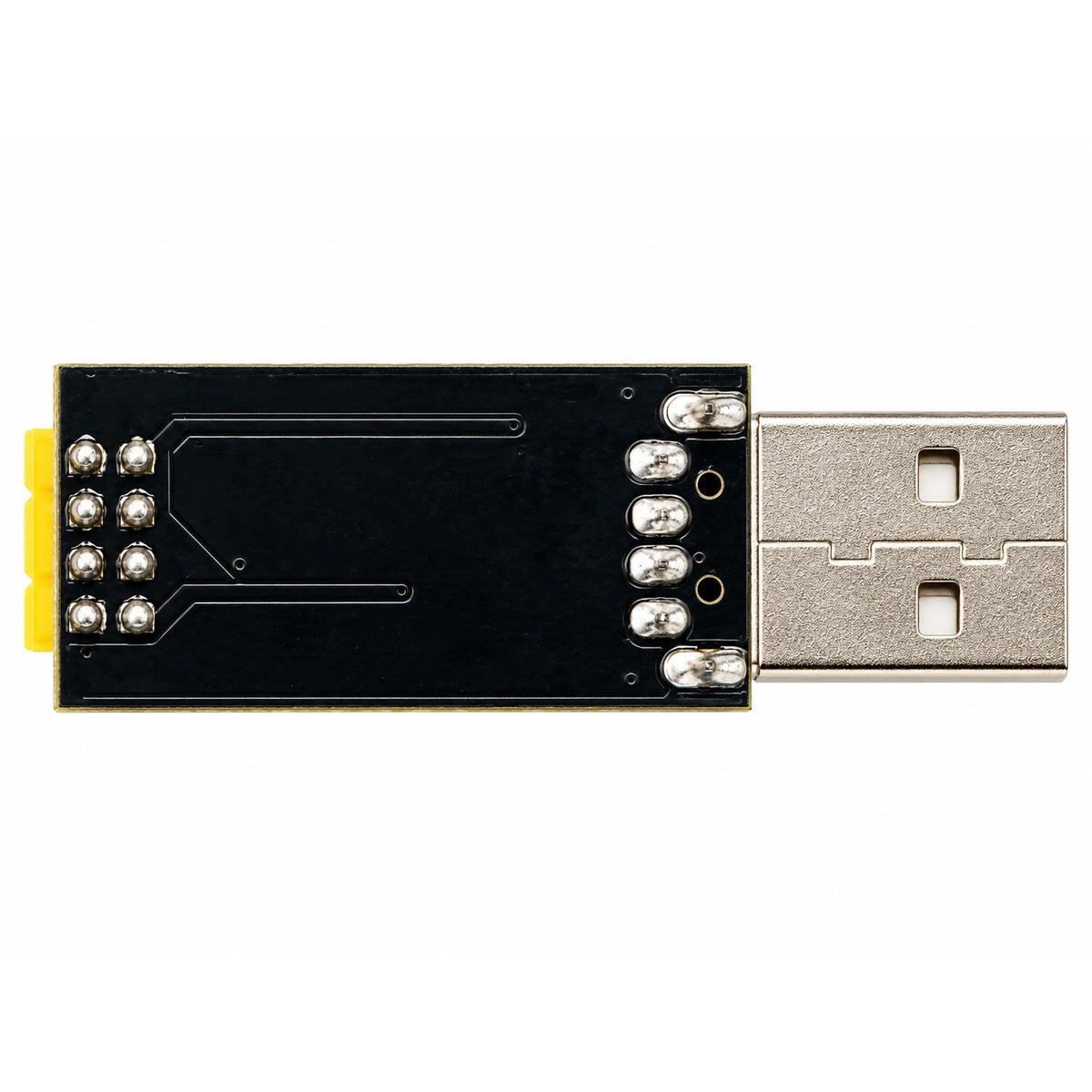

The board includes a yellow 2×4 female socket for an ESP-01 module, a USB-A male connector and onboard power-conditioning components. Its compact plug-in design reduces the need for separate jumper-wire connections when working with compatible ESP-01 modules.

Programming note: This adapter provides USB-to-serial connectivity. Automatic entry into ESP8266 firmware flashing mode has not been verified for this exact board. Firmware uploading may require a suitable GPIO0 boot-mode arrangement or board modification, depending on the hardware configuration.

Key Features

• CH340 USB-to-serial interface: Connects an ESP-01 module to a computer.

• Dedicated ESP-01 socket: Yellow 8-pin (2×4) female connector.

• USB-A male connector: Direct connection to a compatible computer USB port.

• ESP8266 ESP-01 support: Designed around the ESP-01 module's pin arrangement.

• Serial communication: Suitable for UART-based communication and testing.

• Firmware development: Can be used in programming setups with the correct ESP8266 boot-mode configuration.

• Onboard power circuitry: Includes power-conditioning components.

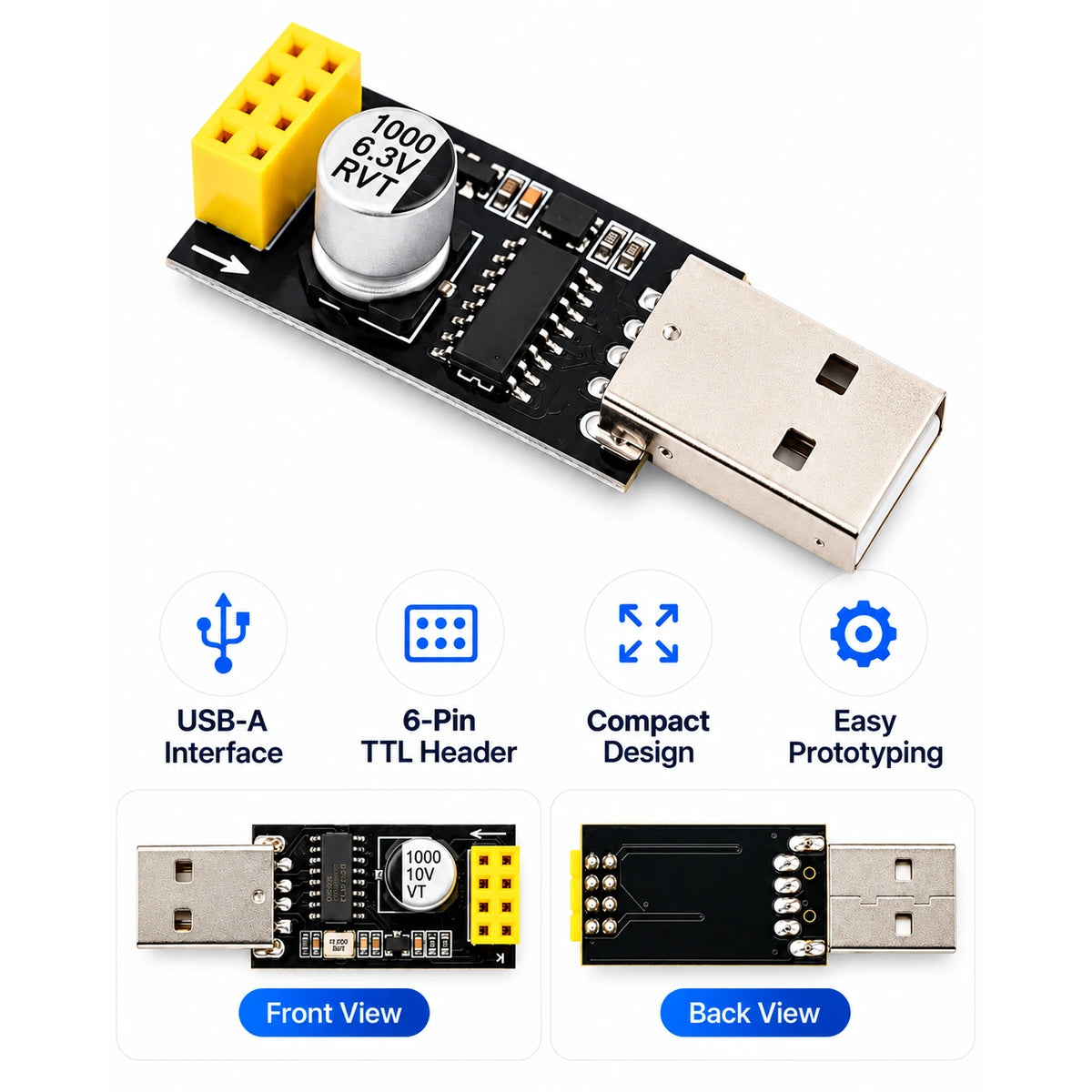

• 1000µF capacitor: Visible component marked 1000µF, 6.3V.

• Compact PCB: Convenient for ESP-01 development and troubleshooting.

• No separate jumper wires for normal socket connection: The ESP-01 plugs directly into the onboard socket.

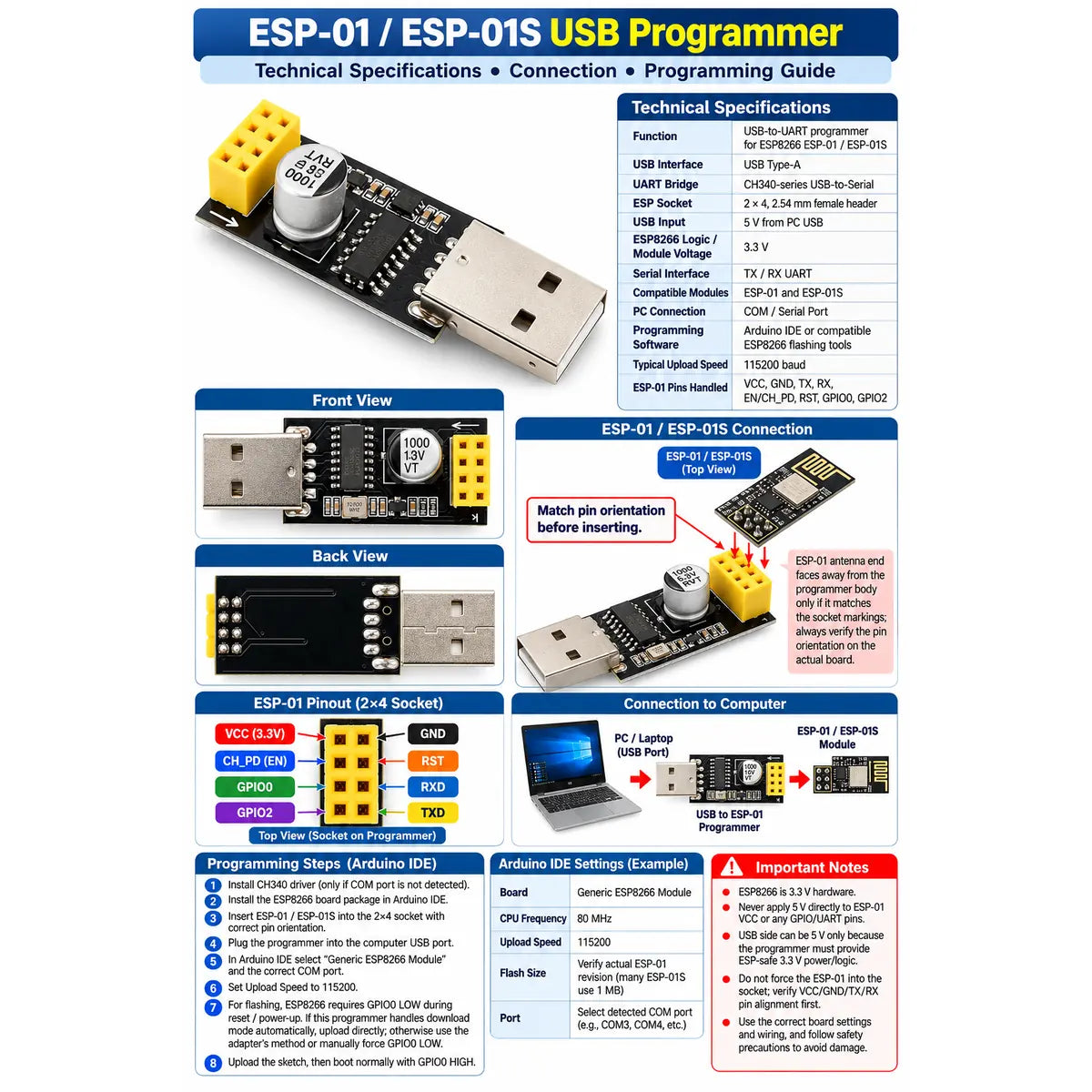

Technical Specifications

Applications / Use Cases

• ESP8266 ESP-01 serial communication

• ESP-01 firmware development and flashing setups

• ESP8266 AT command testing

• WiFi module configuration

• UART communication troubleshooting

• ESP-01 module testing

• Embedded WiFi development

• IoT prototyping

• Serial monitor communication

• ESP8266 development and learning projects

Compatibility

ESP8266 ESP-01 Modules

The adapter is designed for the standard ESP8266 ESP-01 8-pin module form factor.

The ESP-01 module plugs into the yellow female socket. Ensure correct orientation and pin compatibility before insertion.

Computer USB Connection

The USB-A connector can connect to a compatible computer USB port.

The computer may require an appropriate CH340 USB-to-serial driver, depending on its operating system and existing driver support.

Arduino IDE and ESP8266 Development Tools

The adapter may be used with serial monitoring and ESP8266 development utilities once the USB-to-UART connection is recognized by the computer.

For firmware uploading, the ESP8266 must enter the correct bootloader mode. This adapter's automatic flashing capability has not been confirmed.

ESP-01S Compatibility

Some ESP-01S modules share the standard ESP-01 socket arrangement. However, exact compatibility should be checked against the module's pinout and the adapter's electrical characteristics before use.

Package Contents

1 × CH340 USB to ESP8266 ESP-01 Adapter Board

FAQs

1. What is an ESP01 Programmer CH340 USB Adapter?

The ESP01 Programmer CH340 USB Adapter is a USB-to-serial converter designed to connect an ESP8266 ESP-01 WiFi module to a computer. It is useful for UART communication, AT command testing, development and firmware programming setups.

2. Can I program an ESP8266 ESP-01 using this adapter?

The adapter provides USB-to-UART connectivity, which is needed for serial programming. However, automatic flashing-mode support has not been verified for this exact board. Firmware uploading may require a separate method of placing the ESP8266 into bootloader mode.

3. Does this ESP01 USB adapter support automatic flashing?

Automatic flashing is not confirmed. No dedicated FLASH or RESET button is visible in the supplied stock images. Buyers should not assume that the adapter automatically controls GPIO0 and reset.

4. Which ESP8266 modules are compatible with this adapter?

The adapter is designed for the standard 8-pin ESP8266 ESP-01 form factor. Some ESP-01S modules may also fit, but their pinout and electrical compatibility should be verified before use.

5. Does the adapter include an ESP8266 ESP-01 WiFi module?

No ESP-01 module is shown in the supplied product images. The listed item is the USB adapter board itself.

6. What is the purpose of the CH340 chip?

The CH340-family IC converts USB communication into UART serial communication, allowing a computer to exchange serial data with a connected ESP-01 module.

7. Does this ESP01 programmer require a driver?

Depending on the operating system, a compatible CH340 USB-to-serial driver may be required. After successful driver installation or detection, the adapter should appear as a serial device.

8. Can I use this adapter with Arduino IDE?

It can be used for ESP8266 serial communication and development workflows. Firmware uploading through Arduino IDE additionally requires the ESP-01 to be placed in the correct flashing mode.

9. Does this adapter provide 3.3V to the ESP-01?

The board contains power-conditioning components, but its exact output voltage and available current have not been independently verified. Confirm the electrical output before relying on it to power an ESP8266 module.

10. Can I use this adapter for ESP8266 AT commands?

Yes, UART communication through the adapter can be used for AT command testing when the connected ESP-01 has suitable AT firmware and the correct serial settings are selected.

11. Is this adapter compatible with ESP32 boards?

It is designed around the ESP8266 ESP-01 socket. It should not be treated as a universal ESP32 programming adapter because ESP32 boards generally have different pin arrangements and programming requirements.

12. Where can I buy an ESP01 CH340 USB adapter in Pakistan?

Chip.pk lists the ESP01 Programmer CH340 USB Adapter for customers in Pakistan. Check the product page for current pricing, availability and delivery details.
