DWIN 7 Inch HMI LCD Capacitive Touch TFT Display 800×480 UART DMG80480C070-03WTC
Rs.12,000.00 PKR
Sale price
Rs.12,000.00 PKR
Regular price
Product Overview
Buy DWIN HMI LCD 7 Inch Capacitive Touch TFT Display DMG80480C070-03WTC in Pakistan. 800×480 UART display for PLC, Arduino, ESP32 and industrial HMI projects.
Description

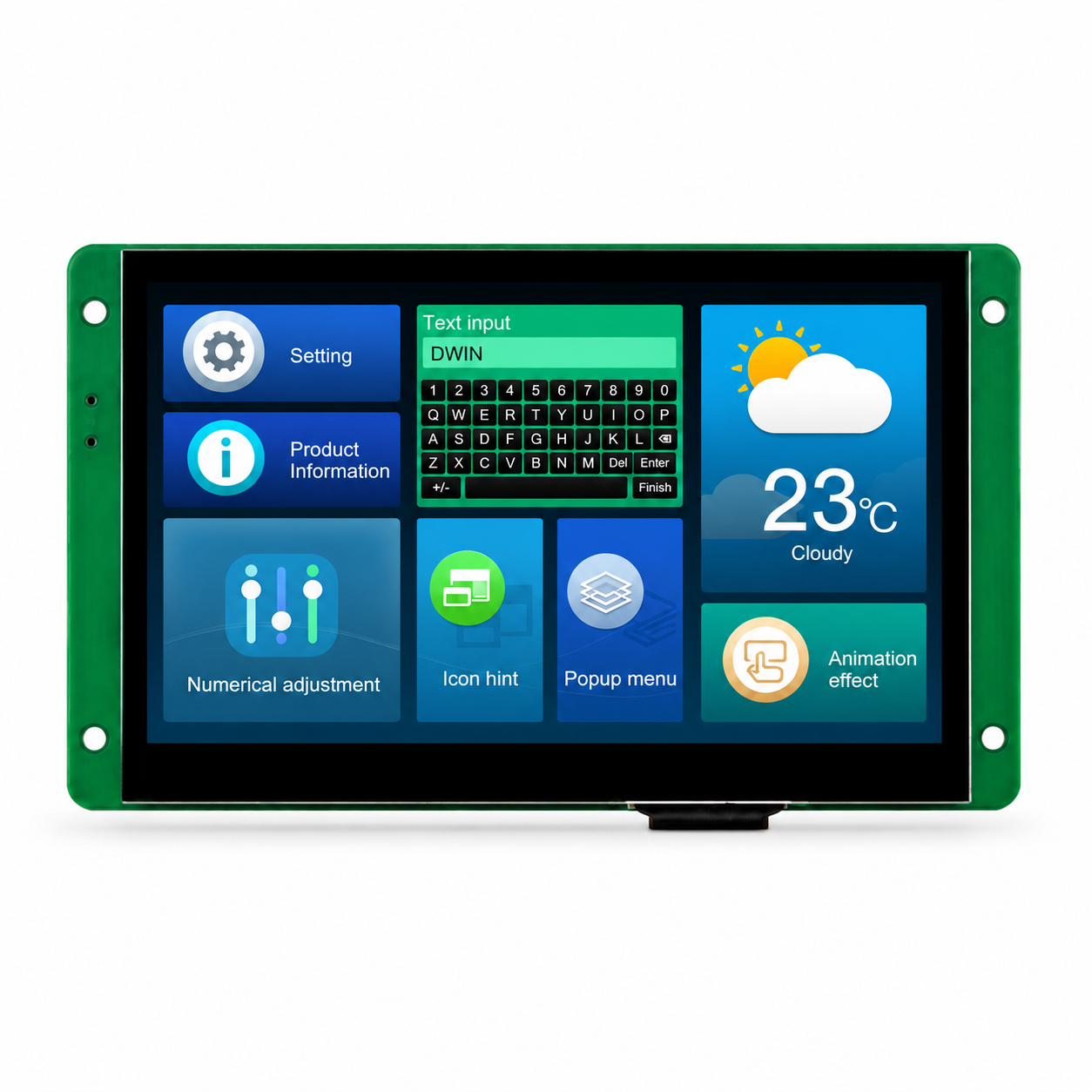

DWIN HMI LCD 7 Inch Capacitive Touch TFT Display Module 800×480 UART | DMG80480C070-03WTC
The DWIN HMI LCD 7 Inch Capacitive Touch TFT Display Module (DMG80480C070-03WTC) is a professional industrial Human Machine Interface (HMI) display designed for intelligent embedded systems. Featuring an 800×480 pixel TFT LCD, capacitive touch panel, and UART serial communication, it provides a fast and reliable solution for creating modern graphical user interfaces.
Powered by the DWIN T5L ASIC and compatible with the DGUS development platform, the display enables rapid interface development without complex graphics programming. It is widely used in industrial automation, PLC control systems, smart home devices, medical instruments, laboratory equipment, EV charging stations and IoT applications.
The module supports TTL UART communication, making it easy to interface with Arduino, ESP32, STM32, Raspberry Pi, PLCs and other embedded controllers. It also includes onboard flash memory, SD card download support and adjustable backlight for flexible deployment.
Key Features
- 7-inch TFT LCD display
- 800 × 480 resolution
- Capacitive multi-touch panel
- UART serial communication
- DGUS development platform support
- DWIN T5L intelligent controller
- Bright LED backlight
- High-speed UART communication
- SD card project download
- Industrial-grade reliability
- Low power consumption
- Suitable for HMI applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | DMG80480C070-03WTC |
| Display Size | 7 Inch |
| Resolution | 800 × 480 Pixels |
| Display Type | TFT LCD |
| Touch Type | Capacitive Touch |
| Controller | DWIN T5L ASIC |
| Communication | UART (TTL/CMOS) |
| Operating Voltage | 5V DC |
| Operating Current | Approx. 500mA (Backlight On) |
| Brightness | Approx. 270 nits |
| Flash Memory | Onboard NOR Flash |
| Software | DGUS Development Platform |
| Compatible Controllers | Arduino, ESP32, STM32, Raspberry Pi, PLC |
Applications
Perfect for:
- Industrial Automation
- PLC Control Panels
- ESP32 Projects
- Arduino Projects
- STM32 Projects
- Raspberry Pi Systems
- Smart Home Interfaces
- Medical Equipment
- Laboratory Instruments
- CNC Machines
- EV Charging Stations
- IoT HMI Systems
Package Includes
- 1 × DWIN HMI LCD 7 Inch Capacitive Touch TFT Display Module (DMG80480C070-03WTC)
Why Buy from Chip.pk?
- Genuine DWIN HMI displays
- Fast delivery across Pakistan
- Retail and wholesale quantities available
- Secure packaging
- Technical support before purchase
- Trusted supplier for industrial and embedded electronics
- High-quality automation products
Frequently Asked Questions (FAQs)
Is this display compatible with Arduino and ESP32?
Yes. The display communicates through UART (TTL/CMOS) and can be interfaced with Arduino, ESP32, STM32 and other compatible controllers.
What software is used to design the interface?
The module uses the DWIN DGUS development platform, which allows you to create graphical interfaces and download them via an SD card or serial connection.
Does this display have a capacitive touchscreen?
Yes. The DMG80480C070-03WTC model features a capacitive touch panel, providing smooth touch operation.
Can I use it for industrial automation?
Yes. It is widely used in PLC systems, industrial machinery, medical devices and smart control panels.
Does it require graphics programming?
No. The DGUS platform enables rapid HMI development with minimal coding for many applications.
