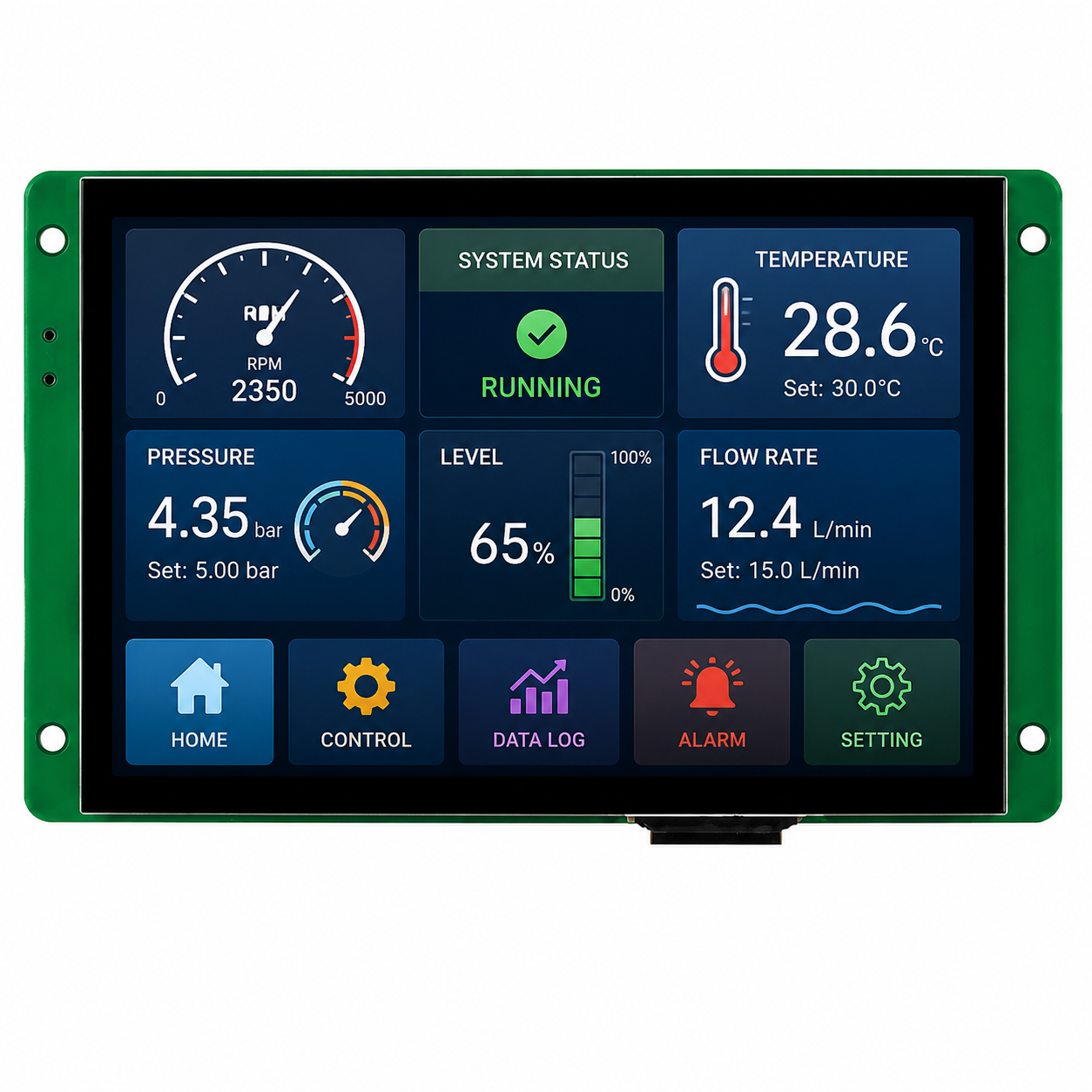

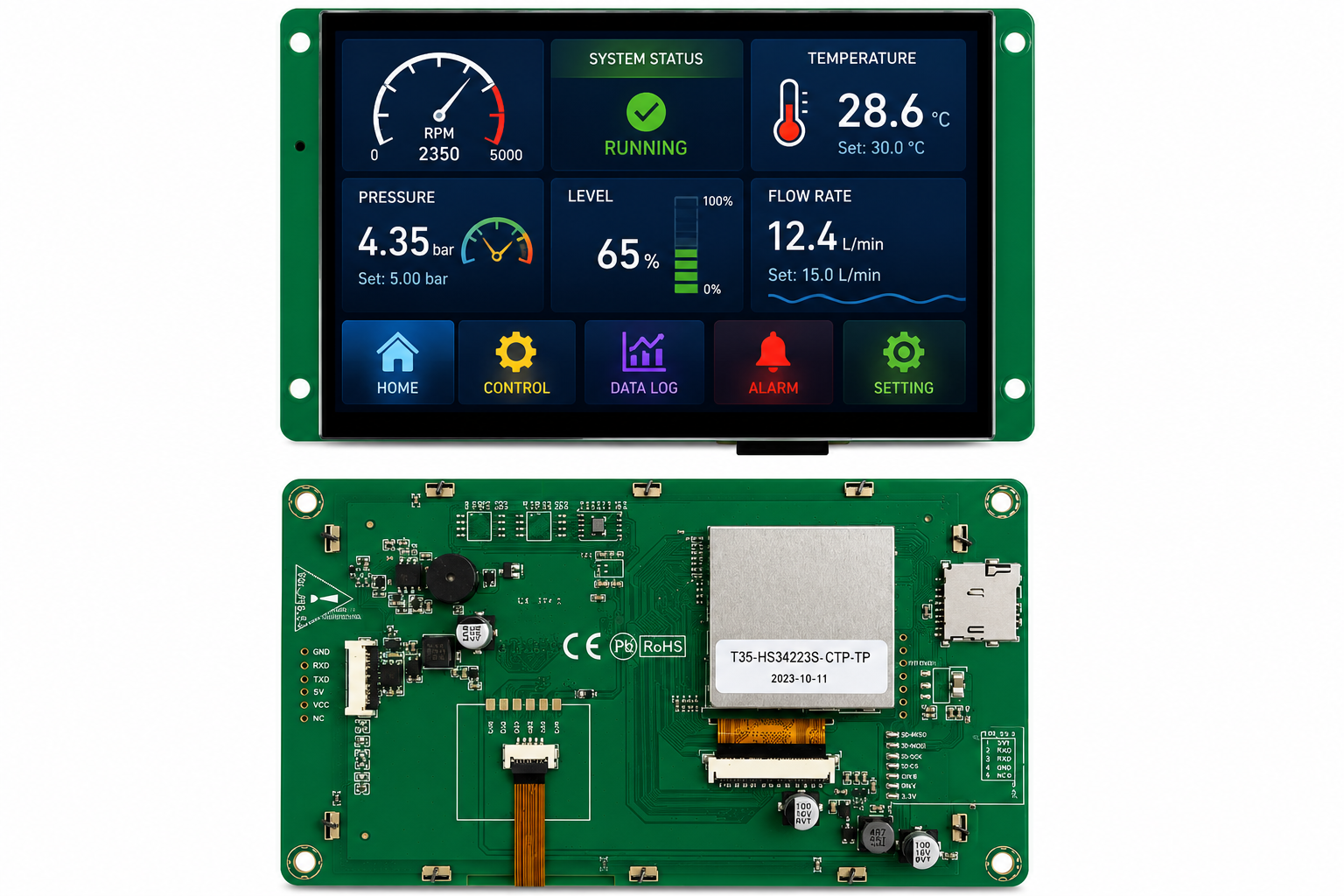

DWIN 5 Inch HMI LCD UART Touch Display DMG80480C050_03WTC

The DWIN 5 Inch HMI LCD UART Touch Display DMG80480C050_03WTC is a commercial-grade intelligent TFT display featuring an 800×480 resolution, capacitive touch panel, and DGUS II platform. With configurable UART communication and responsive touch control, it is ideal for industrial automation, instrumentation, smart devices, and embedded HMI applications.

Description

The DWIN 5 Inch HMI LCD UART Touch Display DMG80480C050_03WTC is an intelligent HMI module designed for reliable human-machine interface applications. It features a 5-inch TFT LCD with 800 × 480 resolution, a capacitive touch panel, and the DGUS II operating platform, enabling rapid HMI development with minimal programming.

The display communicates through a configurable UART interface (TTL/RS232) and includes built-in flash memory for storing graphics, fonts, and user interfaces. It supports smooth touch interaction, high-quality graphics, and stable performance for industrial and commercial embedded systems. The module operates from a 5V supply and is designed for long-term reliability in automation and control applications.

Key Features

• 5-inch intelligent HMI TFT display
• 800 × 480 pixel resolution
• Capacitive touch panel
• DGUS II intelligent operating platform
• UART communication interface
• TTL/RS232 configurable interface
• Commercial-grade design
• 16.7 million color display
• LED backlight
• Built-in flash memory
• Easy GUI development
• Suitable for industrial automation

Technical Specifications

These specifications are based on the manufacturer's datasheet.

Product Attributes

Pin Details

The module uses a 10-pin 1.0 mm connector for power and serial communication and supports project download via microSD.

Compatibility

Compatible with:

• Arduino
• ESP32
• STM32
• Raspberry Pi
• PLC Systems
• Industrial Controllers
• UART Devices
• Embedded Systems
• Automation Controllers
• DGUS II Development Environment

Applications

• Industrial HMI
• Factory Automation
• Smart Home Control Panels
• Medical Equipment
• Laboratory Instruments
• CNC Machines
• IoT Dashboards
• Industrial Monitoring
• Test & Measurement Systems
• Embedded Control Panels

Package Includes

• 1 × DWIN 5 Inch HMI LCD UART Touch Display DMG80480C050_03WTC

Buy in Pakistan

Buy the DWIN 5 Inch HMI LCD UART Touch Display DMG80480C050_03WTC from Chip.pk for industrial and embedded HMI projects. It features a responsive capacitive touch panel, DGUS II platform, and configurable UART communication, making it suitable for automation, control systems, and intelligent display applications. Chip.pk provides genuine products, secure packaging, competitive pricing, and fast nationwide delivery across Pakistan.

Why Choose Chip.pk?

• Genuine DWIN display modules
• Quality-tested before dispatch
• Competitive prices
• Fast nationwide delivery across Pakistan
• Secure packaging
• Technical support for HMI and embedded projects
• Trusted supplier of industrial displays and electronics
• Reliable customer service and after-sales support

FAQs

1. What is the DWIN 5 Inch HMI LCD UART Touch Display DMG80480C050_03WTC?

The DWIN 5 Inch HMI LCD UART Touch Display DMG80480C050_03WTC is a commercial-grade intelligent TFT display with an 800×480 resolution, capacitive touch panel, and UART communication for industrial and embedded HMI applications.

2. What is the display resolution?

The display features a resolution of 800 × 480 pixels, providing clear graphics, icons, and user interface elements.

3. Does this display have a capacitive touch screen?

Yes. It includes a capacitive touch panel (CTP) that supports smooth, responsive, and accurate touch input.

4. Which communication interface does this display use?

The module communicates through a UART interface and supports TTL and RS232 communication depending on the hardware configuration.

5. What operating system does this display use?

It runs on the DWIN DGUS II platform, allowing developers to build graphical user interfaces without extensive programming.

6. What supply voltage is required?

The display operates from a 5V DC power supply with a recommended operating range of 4.5V–5.5V DC.

7. Which controllers are compatible with this display?

The display is compatible with:

• Arduino
• ESP32
• STM32
• Raspberry Pi
• PLC Controllers
• UART-Based Embedded Systems

8. Can I design my own graphical interface?

Yes. Using DGUS II development software, you can create custom screens, buttons, icons, animations, and user interfaces stored in the module's internal memory.

9. What are the common applications of this display?

Typical applications include:

• Industrial Automation
• HMI Control Panels
• Smart Home Systems
• Medical Equipment
• Laboratory Instruments
• CNC Machines
• IoT Dashboards
• Industrial Monitoring
• Test & Measurement Equipment
• Embedded Control Systems

10. Does this display support MicroSD card programming?

Yes. Project files and graphical resources can be downloaded using the MicroSD card slot supported by the DGUS II platform.
