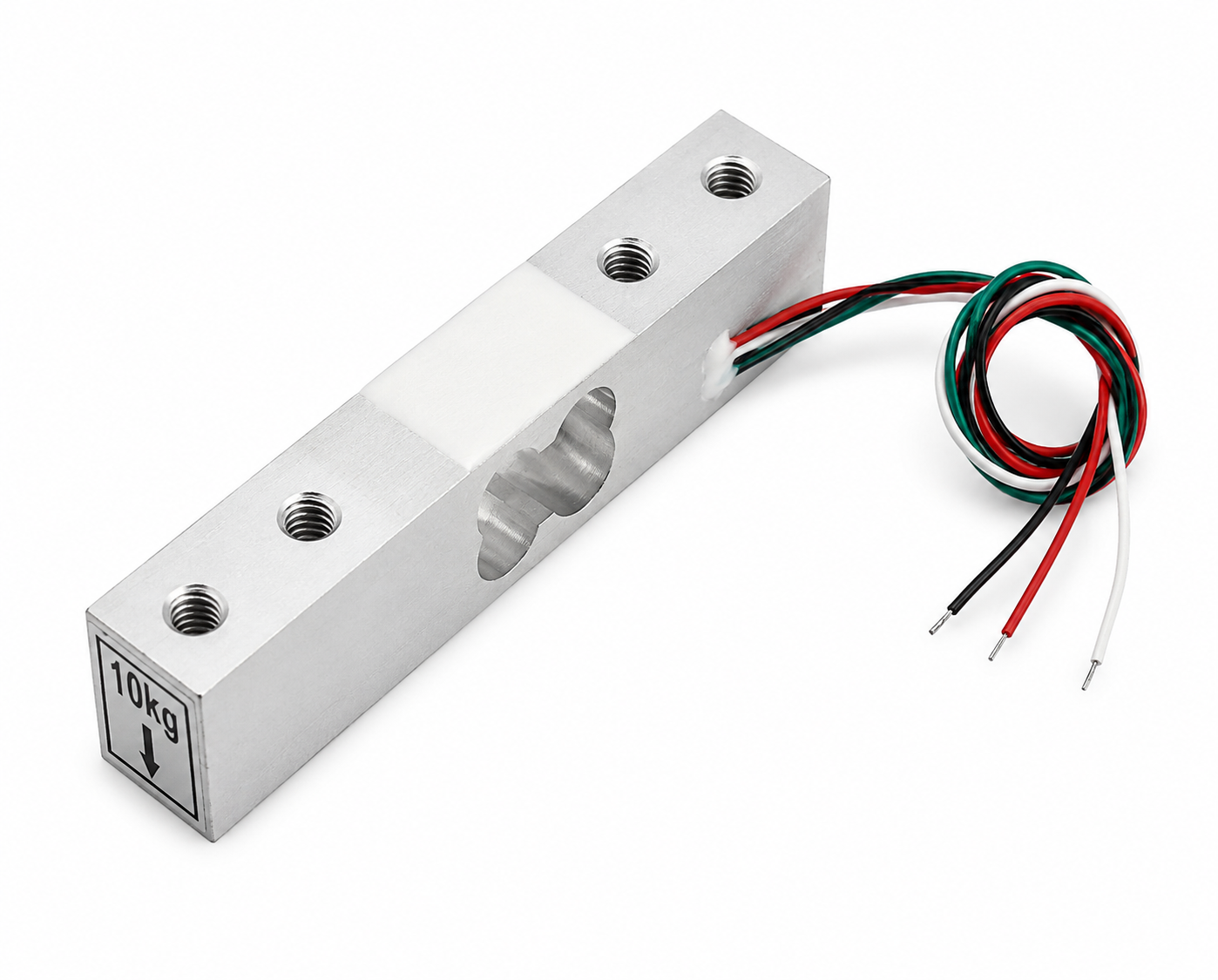

Bar Type Load Cell Weight Sensor for Electronic Weighing Scale
Bar Type Load Cell Weight Sensor for Electronic Weighing Scale
Product Overview
Measure weight accurately with this bar-type load cell sensor. Ideal for electronic weighing scales, Arduino projects, IoT systems, robotics, and industrial force measurement applications.
Description
The Bar Type Load Cell Weight Sensor is a precision strain gauge sensor designed to convert mechanical force into an electrical signal for accurate weight and force measurement. It is widely used in digital weighing scales, industrial automation, smart measurement systems, and embedded electronics projects.
Constructed from durable aluminum alloy, this load cell offers excellent sensitivity, stability, and long-term reliability. It can be integrated with microcontrollers such as Arduino, ESP32, Raspberry Pi, STM32, and other embedded platforms when used with a compatible load cell amplifier such as the HX711.
This sensor is ideal for building digital weighing scales, smart inventory systems, industrial monitoring equipment, force measurement devices, agricultural automation, and educational electronics projects.
Whether you're designing a DIY weighing machine or developing a professional automation system, this load cell provides dependable performance and accurate measurement.
Applications
- Electronic Weighing Scales
- Arduino Projects
- ESP32 Projects
- Raspberry Pi Projects
- HX711 Load Cell Systems
- Industrial Automation
- Robotics
- Force Measurement
- Smart Inventory Systems
- Agricultural Automation
- IoT Monitoring
- Laboratory Equipment
- DIY Electronics
- STEM Education
Key Features
- High Precision Weight Measurement
- Durable Aluminum Alloy Construction
- Strain Gauge Technology
- Stable and Reliable Performance
- Compact Bar-Type Design
- Easy Integration with HX711 Amplifier
- Suitable for Arduino & ESP32
- Low Power Operation
- High Sensitivity
- Ideal for DIY and Industrial Applications
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Bar Type Load Cell |
| Sensor Technology | Strain Gauge |
| Material | Aluminum Alloy |
| Output Type | Analog Signal |
| Cable | 4-Wire |
Package Includes
1 × Bar Type Load Cell Weight Sensor
Datasheet Summary
- Bar-Type Load Cell
- Aluminum Body
- 4-Wire Connection
- Strain Gauge Sensor
How It Works
The load cell uses strain gauge technology to measure force or weight. When a load is applied, the metal body deforms slightly, causing the internal strain gauges to change their electrical resistance. This small resistance change is converted into a measurable voltage signal, typically using an HX711 load cell amplifier, which then sends digital data to a microcontroller such as Arduino or ESP32 for processing and display.
