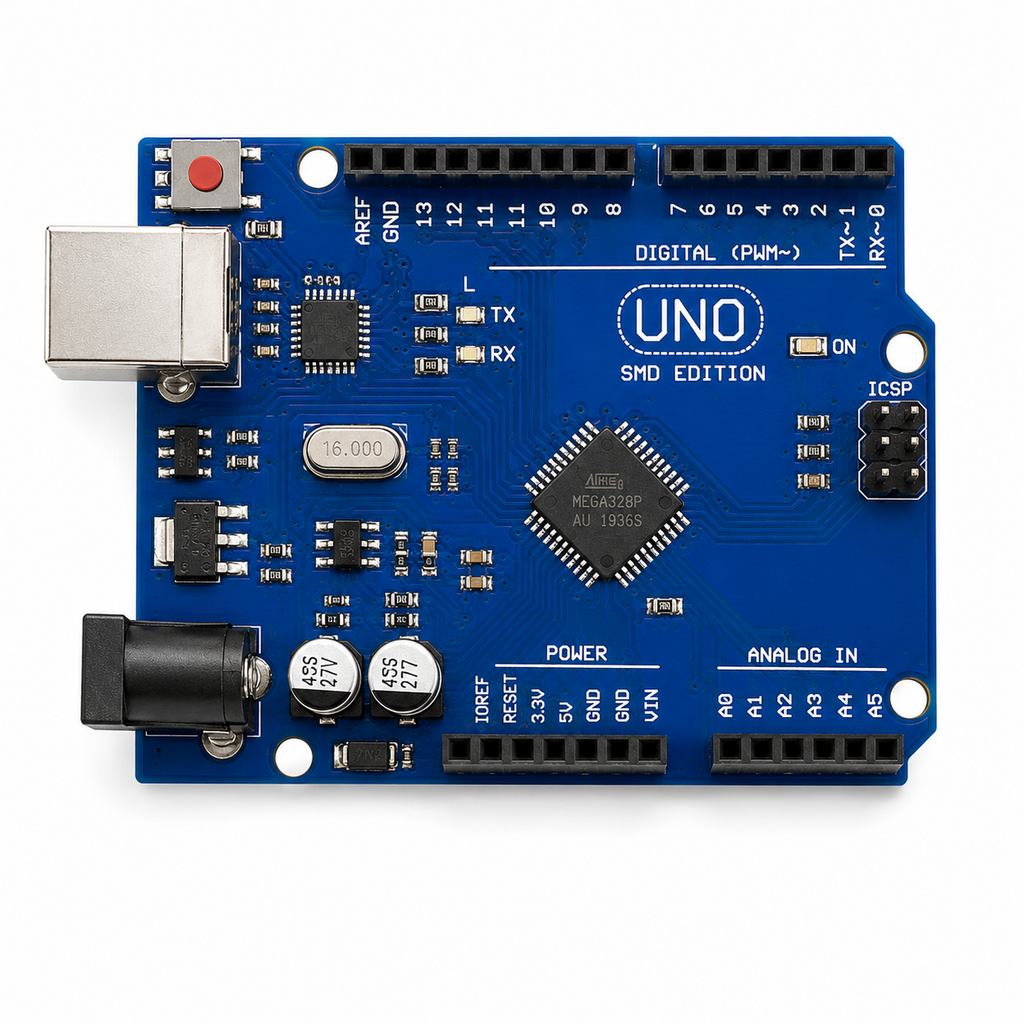

  • Arduino UNO SMD front side

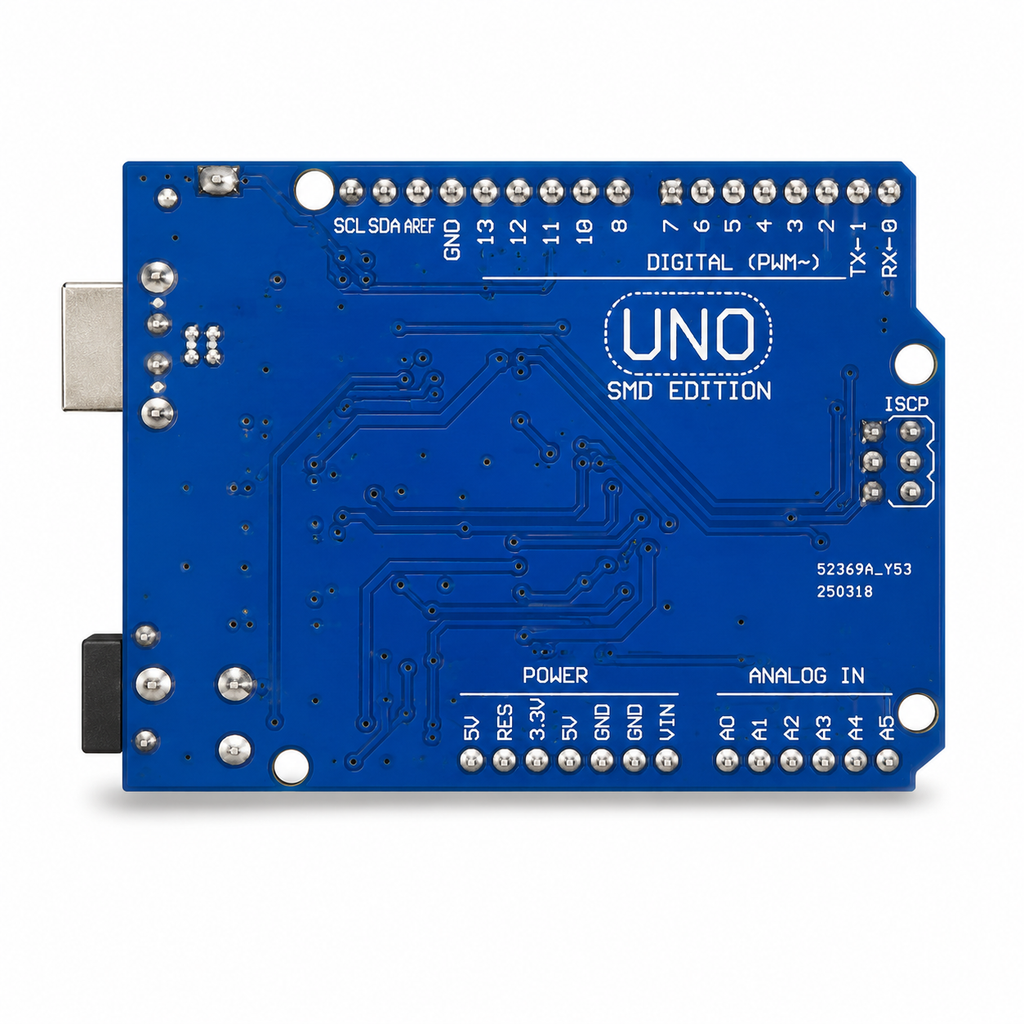

  • Arduino UNO SMD back side
Arduino UNO SMD | ATmega328P UNO SMD

Arduino UNO SMD | ATmega328P UNO SMD

Rs.800.00 PKR
Rs.800.00 PKR

Product Overview

The Arduino UNO R3 SMD Development Board is one of the most popular microcontroller platforms for electronics, robotics, and IoT projects. Featuring the ATmega328P microcontroller and USB connectivity, it is ideal for beginners, students, makers, and professionals developing embedded systems and automation projects.

Discription

The Arduino UNO R3 SMD Development Board is a versatile and widely used microcontroller platform designed for electronics prototyping, robotics development, automation systems, STEM education, and IoT applications. Built around the ATmega328P microcontroller, this board provides a reliable and user-friendly environment for learning and developing embedded projects. Its USB interface enables easy programming directly from the Arduino IDE, making it suitable for beginners and experienced developers alike. The board offers digital I/O pins, analog inputs, PWM outputs, UART communication, SPI, and I2C interfaces, allowing seamless integration with sensors, displays, motors, relays, and wireless modules. Whether you're building a smart home automation system, robotics platform, environmental monitoring device, or educational project, the Arduino UNO R3 remains one of the most trusted development boards in the maker community. The included pin headers allow convenient soldering and custom project integration.

Arduino UNO SMD

For more details visit:



Applications:

  • Arduino development projects
  • Robotics systems
  • IoT device prototyping
  • STEM education and learning
  • Smart home automation
  • Sensor interfacing
  • Motor control applications
  • Embedded systems development
  • Industrial prototypes
  • DIY electronics projects
  • Data acquisition systems
  • Automation projects


Key Features

  • Original UNO R3 compatible design
  • Based on ATmega328P microcontroller
  • USB programming interface
  • Multiple digital and analog I/O pins
  • Supports PWM functionality
  • Compatible with Arduino IDE
  • Easy sensor and module integration
  • Suitable for beginners and professionals
  • Reliable performance for prototyping
  • Includes male pin header strip


Specifications

Parameter Details
Board Type Arduino UNO R3 Compatible
Microcontroller ATmega328P (marking visible on main MCU)
USB Interface IC SMD USB-to-Serial IC present (exact model not clearly readable)
USB Connector USB Type-B
DC Power Jack Present
Digital I/O Pins Digital 0–13 visible
Analog Inputs A0–A5 visible
ICSP Header Present
Reset Button Present

How It Works

The Arduino UNO R3 SMD board uses the ATmega328P microcontroller as its processing unit. Programs are uploaded from a computer through the USB connection using the Arduino IDE. Once programmed, the microcontroller reads inputs from sensors, buttons, or communication modules and processes the information according to the uploaded code. It then controls outputs such as LEDs, relays, motors, displays, buzzers, and other electronic devices. For example, an Arduino UNO can read temperature data from a sensor and automatically switch on a cooling fan through a relay module. It can also communicate with Wi-Fi, Bluetooth, GPS, and various sensor modules to build complete IoT and automation systems.
