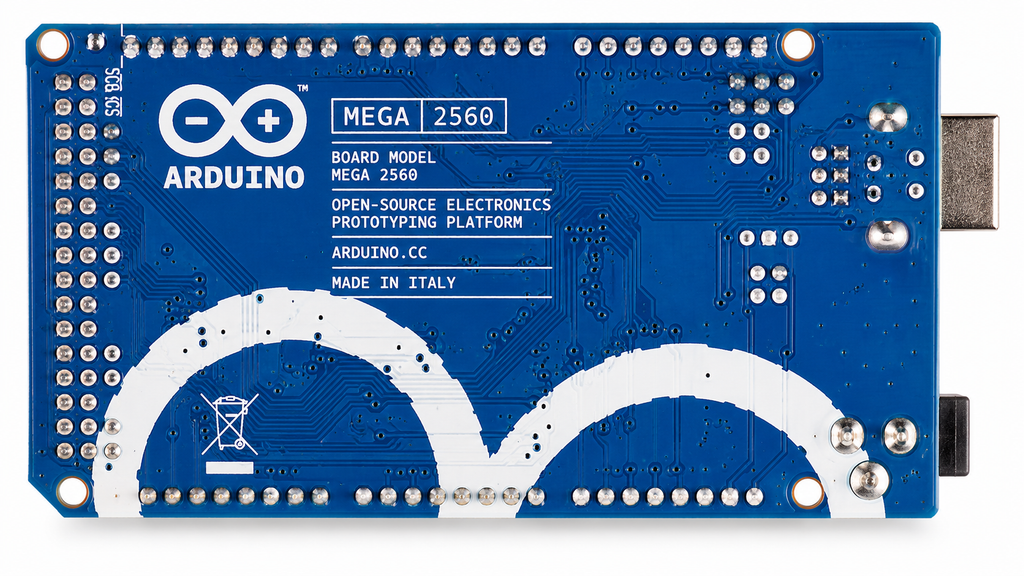

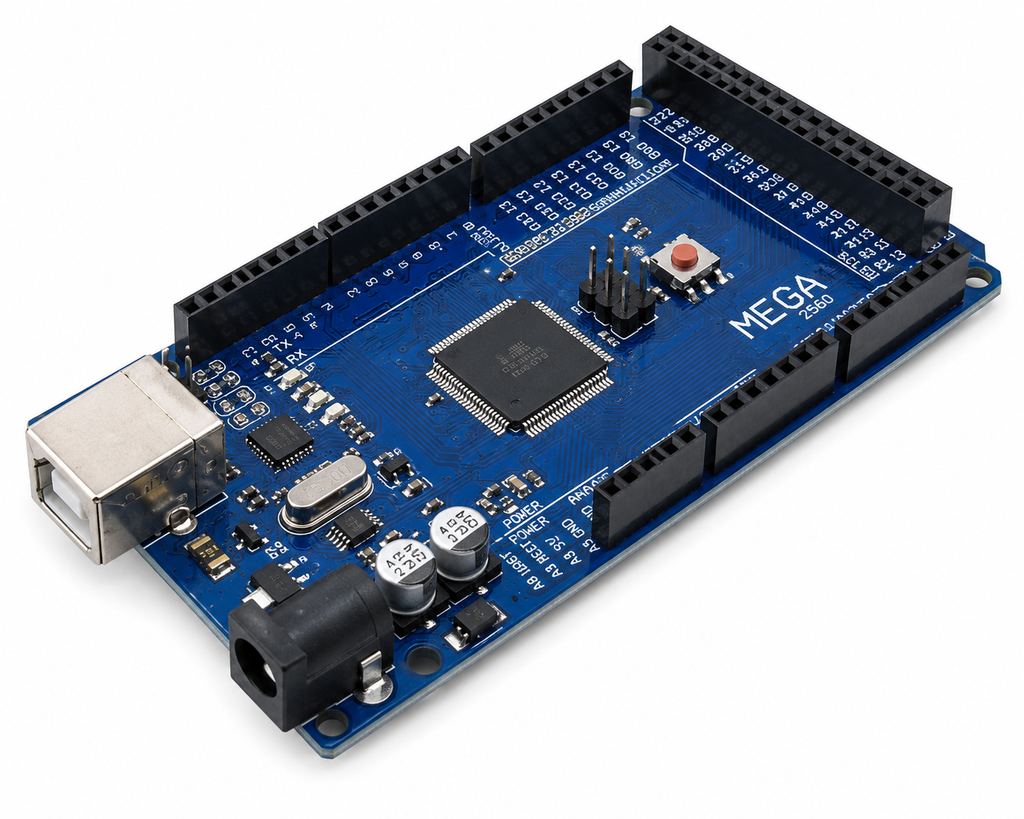

Arduino Mega 2560 R3 ATmega2560 Development Board Compatible
Arduino Mega 2560 R3 ATmega2560 Development Board Compatible
Product Overview
The Arduino Mega 2560 R3 Development Board is powered by the ATmega2560 microcontroller and offers a large number of digital and analog I/O pins, making it ideal for robotics, automation, 3D printers, CNC machines, IoT, and advanced embedded system projects.
Description
The Arduino Mega 2560 R3 ATmega2560 Development Board is a powerful microcontroller platform designed for projects requiring more memory, additional I/O pins, and multiple communication interfaces. Built around the ATmega2560 microcontroller, it is the preferred choice for complex robotics, industrial automation, CNC controllers, 3D printers, data logging systems, and Internet of Things (IoT) applications.
Compared to the Arduino Uno, the Mega 2560 provides significantly more digital and analog pins, allowing multiple sensors, motors, displays, communication modules, and peripherals to operate simultaneously. Its large Flash memory enables developers to create feature-rich firmware for demanding embedded applications.
Fully compatible with the Arduino IDE and thousands of open-source libraries, the Arduino Mega 2560 supports rapid development and easy integration with displays, GSM, GPS, Wi-Fi, Bluetooth, Ethernet, relays, motor drivers, and various sensor modules.
Whether you're an engineering student, maker, educator, or professional developer, the Arduino Mega 2560 offers reliable performance for advanced electronics and automation projects.
Applications
- Robotics Projects
- CNC Machine Controllers
- 3D Printer Controllers
- Industrial Automation
- Smart Home Systems
- IoT Projects
- Data Logging
- Weather Stations
- Sensor Networks
- Motor Control
- Embedded Systems
- STEM Education
- Home Automation
- Electronic Prototyping
Key Features
- ATmega2560 Microcontroller
- 54 Digital Input/Output Pins
- 16 Analog Input Pins
- 15 PWM Output Channels
- 256 KB Flash Memory
- Multiple UART Serial Ports
- USB Programming Interface
- Compatible with Arduino IDE
- Supports Hundreds of Arduino Libraries
- Ideal for Large Embedded Projects
Technical Specifications
| Specification | Value |
|---|---|
| Board Type | Arduino Mega 2560 R3 Compatible |
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Recommended Input Voltage | 7–12V |
| Input Voltage Limits | 6–20V |
| Digital I/O Pins | 54 |
| PWM Outputs | 15 |
| Analog Inputs | 16 |
| Flash Memory | 256 KB (8 KB used by bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
| UART Ports | 4 |
| SPI | Yes |
| I²C | Yes |
| USB Connector | USB Type-B |
Package Includes
- 1 × Arduino Mega 2560 R3 Compatible Development Board
Datasheet Summary
| Parameter | Details |
|---|---|
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Recommended Input | 7–12V |
| Clock Frequency | 16 MHz |
| Flash Memory | 256 KB |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Digital I/O | 54 |
| PWM Channels | 15 |
| Analog Inputs | 16 |
| UART | 4 Hardware Serial Ports |
| SPI | Supported |
| I²C | Supported |
| USB Interface | USB Type-B |
| Programming | Arduino IDE |
How It Works
The Arduino Mega 2560 executes programs uploaded through the Arduino IDE using the onboard ATmega2560 microcontroller. It reads data from sensors, processes inputs according to the uploaded code, and controls outputs such as motors, relays, displays, LEDs, and communication modules.
Its expanded memory and abundant I/O pins make it ideal for applications requiring multiple devices or complex control logic. With support for UART, SPI, and I²C communication, the board can easily interface with GPS, GSM, Wi-Fi, Bluetooth, Ethernet, LCDs, touchscreens, and many other peripherals.
