A4988 Stepper Motor Driver Module with Heatsink for Arduino & 3D Printers
A4988 Stepper Motor Driver Module with Heatsink for Arduino & 3D Printers
Product Overview
The A4988 Stepper Motor Driver Module is a compact microstepping driver designed for precise control of bipolar stepper motors. Ideal for Arduino, CNC machines, 3D printers, robotics, and DIY automation projects. Includes an aluminum heatsink for improved thermal performance.
Description
The A4988 Stepper Motor Driver Module is a high-performance microstepping motor driver based on the Allegro A4988 driver IC. It provides an easy and reliable solution for controlling bipolar stepper motors with precise positioning and smooth motion.
Supporting full-step, half-step, quarter-step, eighth-step, and sixteenth-step microstepping, the A4988 significantly reduces vibration and improves motion accuracy. Adjustable current limiting protects both the driver and the motor while allowing optimal performance for various applications.
Compatible with RAMPS 1.4, CNC Shield V3, Arduino, ESP32, STM32, and other microcontroller platforms, this driver is widely used in 3D printers, CNC routers, laser engravers, robotic systems, camera sliders, and automation equipment.

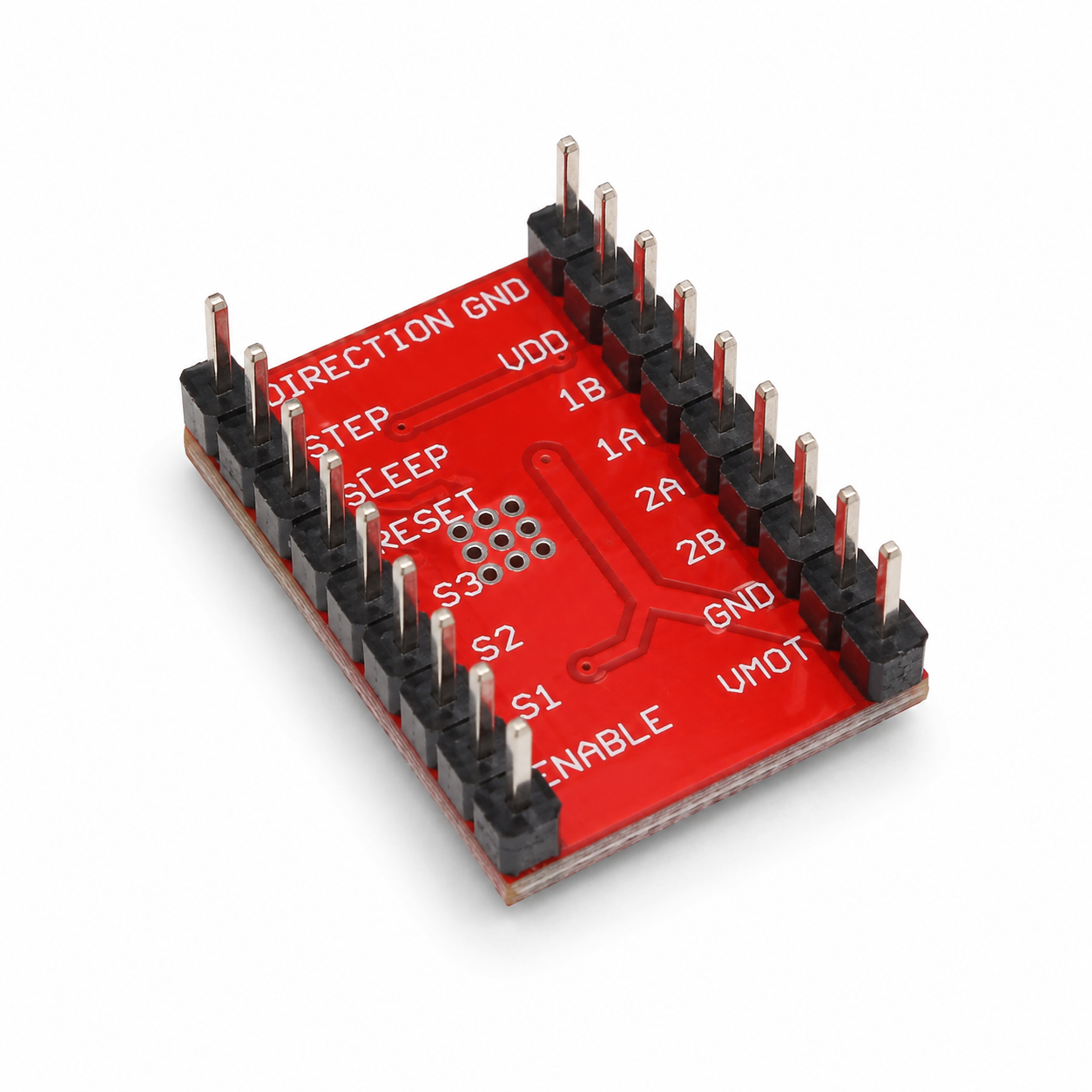

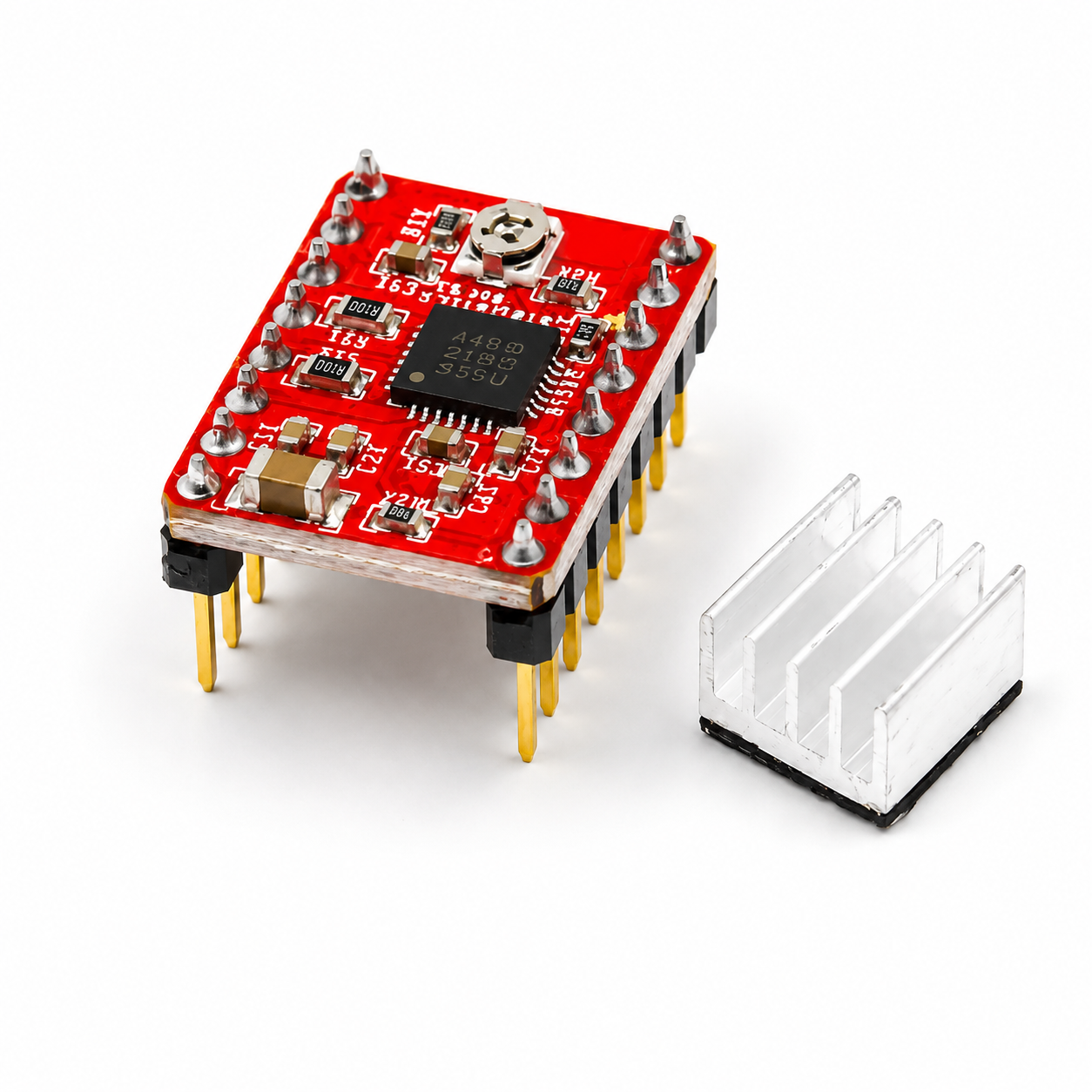

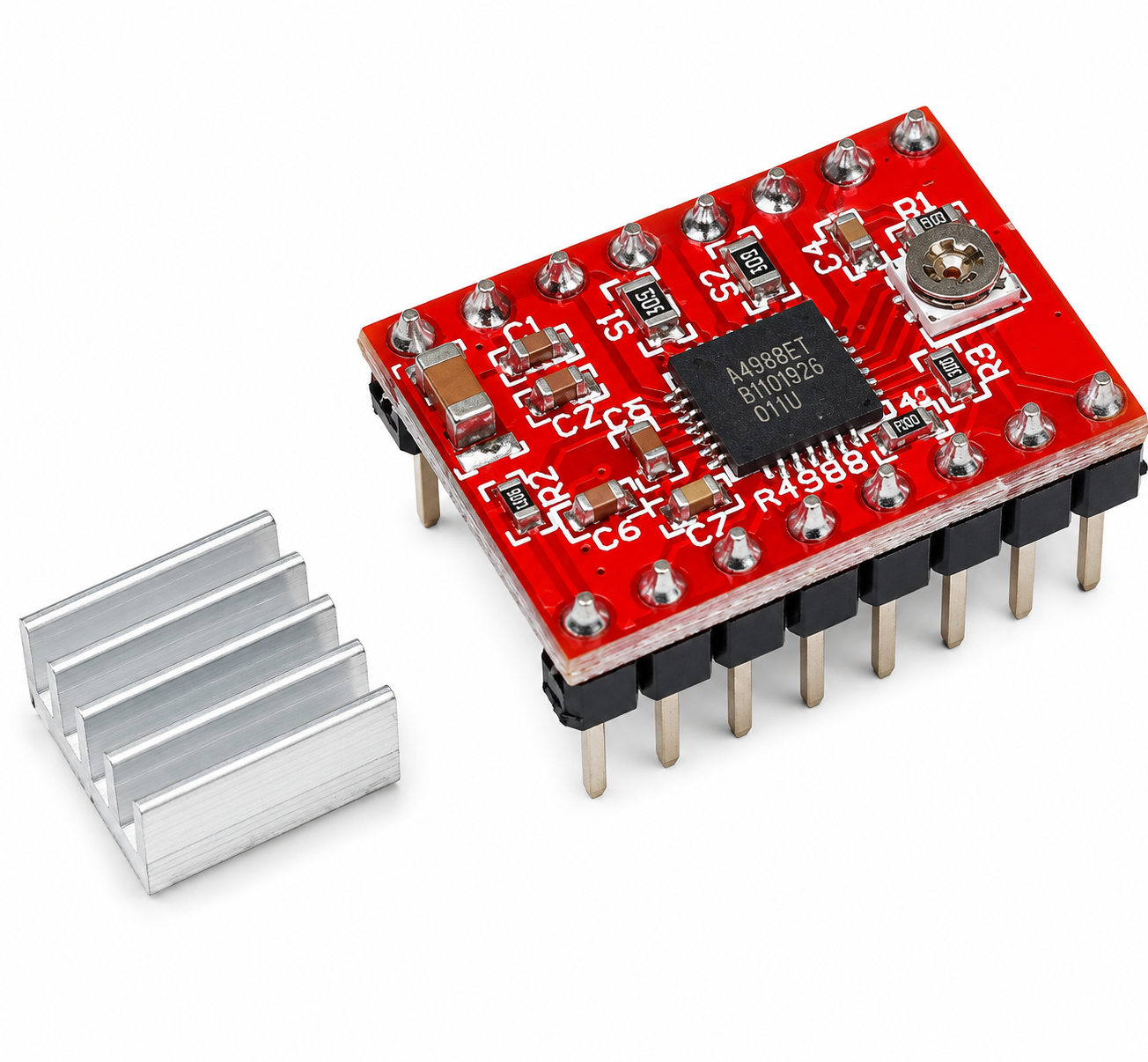

The included aluminum heatsink helps dissipate heat during continuous operation, improving reliability in demanding applications.
Applications
- Arduino Projects
- ESP32 Development
- STM32 Projects
- Raspberry Pi Motion Control
- CNC Machines
- 3D Printers
- Laser Engravers
- Robotics
- DIY Automation
- Camera Sliders
- Industrial Prototypes
- STEM Education
Key Features
- Original A4988 stepper motor driver design
- Supports up to 1/16 microstepping
- Adjustable motor current limiting
- Built-in over-temperature protection
- Short-circuit protection
- Under-voltage lockout
- Compact Pololu-compatible footprint
- Easy integration with CNC Shield and RAMPS
- Includes aluminum heatsink
- Smooth and accurate motor control
Technical Specifications
| Specification | Details |
|---|---|
| Driver IC | Allegro A4988 |
| Motor Type | Bipolar Stepper Motor |
| Logic Voltage | 3V–5.5V |
| Motor Supply Voltage | 8V–35V |
| Maximum Output Current | Up to 2A per coil (with adequate cooling) |
| Continuous Current | Approximately 1A–1.2A without additional cooling |
| Microstepping | Full, 1/2, 1/4, 1/8, 1/16 Step |
| Interface | STEP and DIR |
| Current Adjustment | Via onboard potentiometer |
| Protection | Over-temperature, Over-current, Under-voltage |
| PCB Size | Approximately 20 × 15 mm |
Package Includes
- 1 × A4988 Stepper Motor Driver Module
- 1 × Aluminum Heatsink
Datasheet Summary
| Parameter | Value |
|---|---|
| Operating Voltage | 8V–35V Motor Supply |
| Logic Voltage | 3V–5.5V |
| Maximum Output Current | Up to 2A per coil (with cooling) |
| Control Interface | STEP & DIR |
| Microstepping | Up to 1/16 Step |
| Compatible Platforms | Arduino, ESP32, STM32, Raspberry Pi, RAMPS, CNC Shield |
| Current Control | Adjustable via Potentiometer |
| Built-in Protection | Thermal Shutdown, Over-current, UVLO |
How It Works
The A4988 driver receives STEP and DIR signals from a microcontroller such as Arduino or ESP32. Each pulse on the STEP pin moves the stepper motor one microstep (depending on the selected microstepping mode), while the DIR pin determines the direction of rotation. The onboard potentiometer allows users to adjust the maximum motor current, protecting both the motor and the driver. Microstepping provides smoother movement, quieter operation, and improved positioning accuracy for precision motion-control applications.
