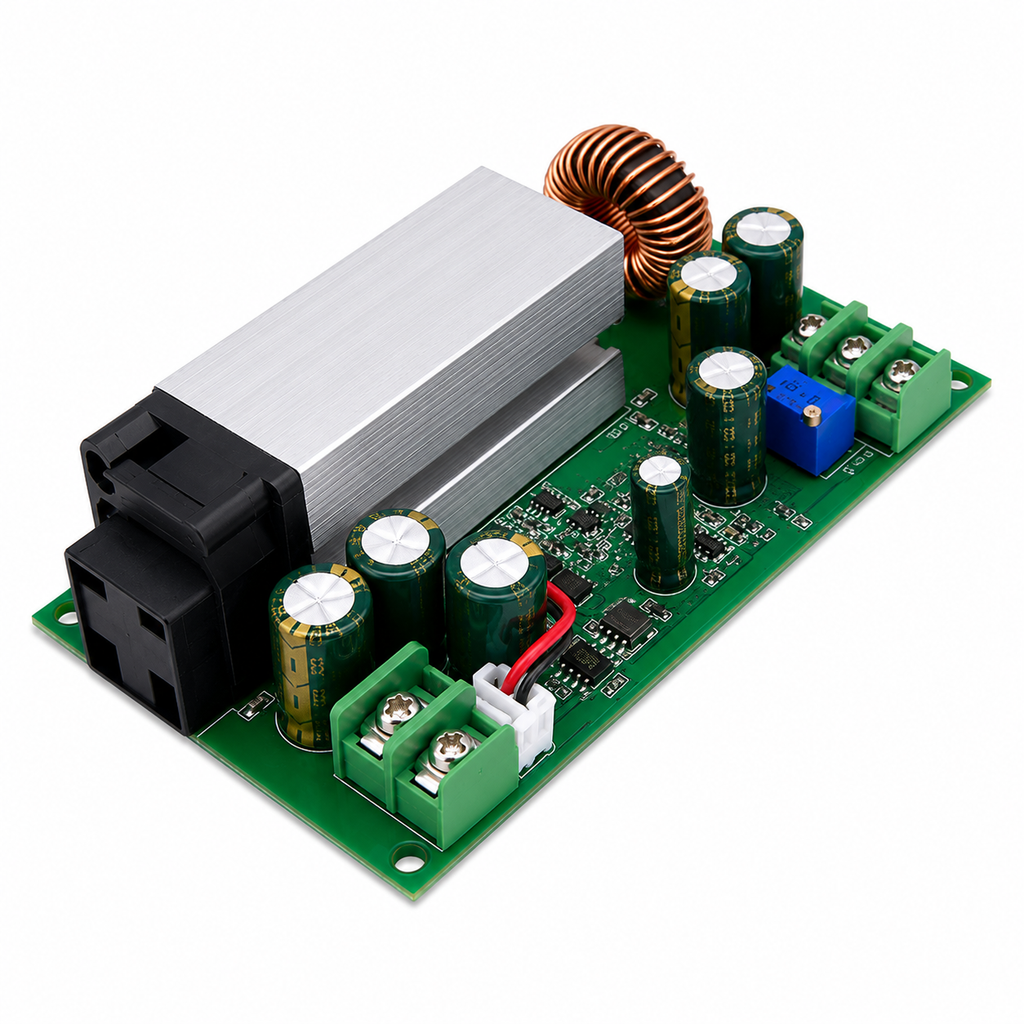

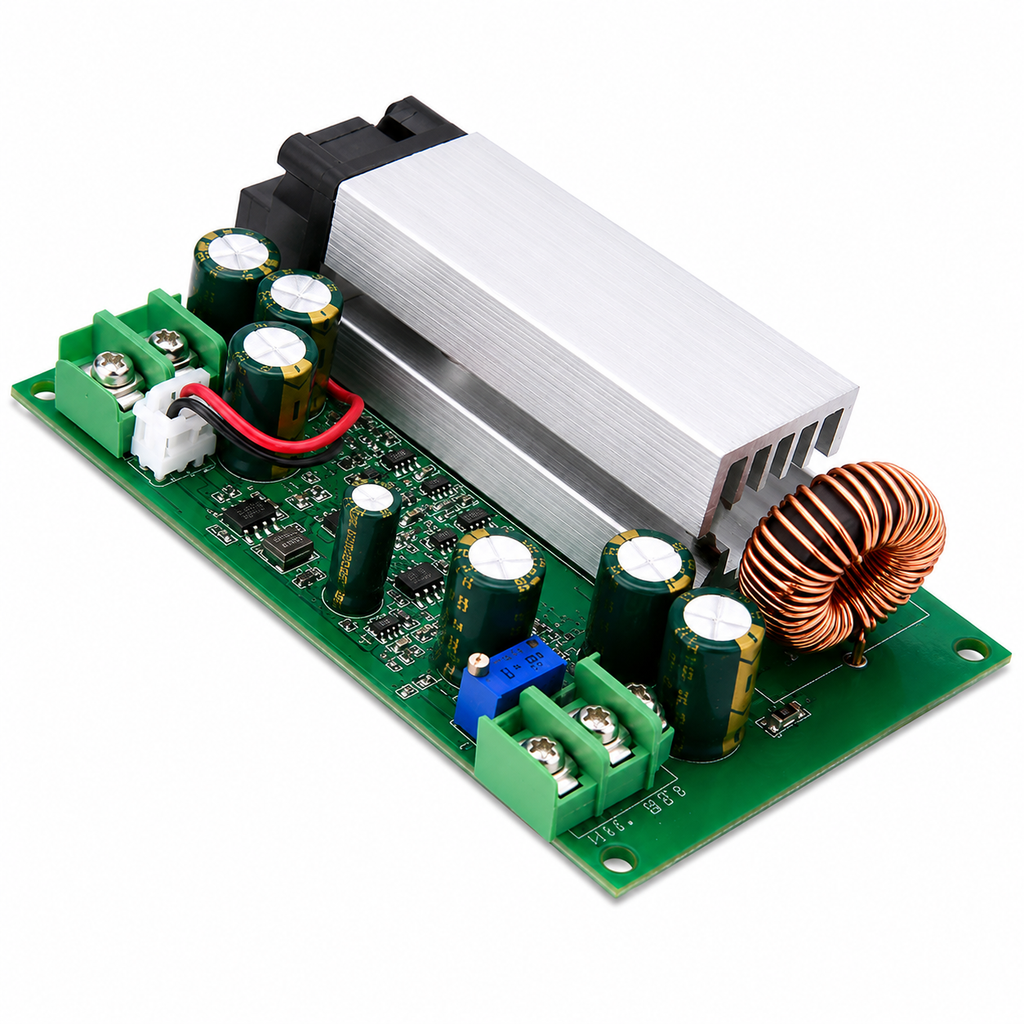

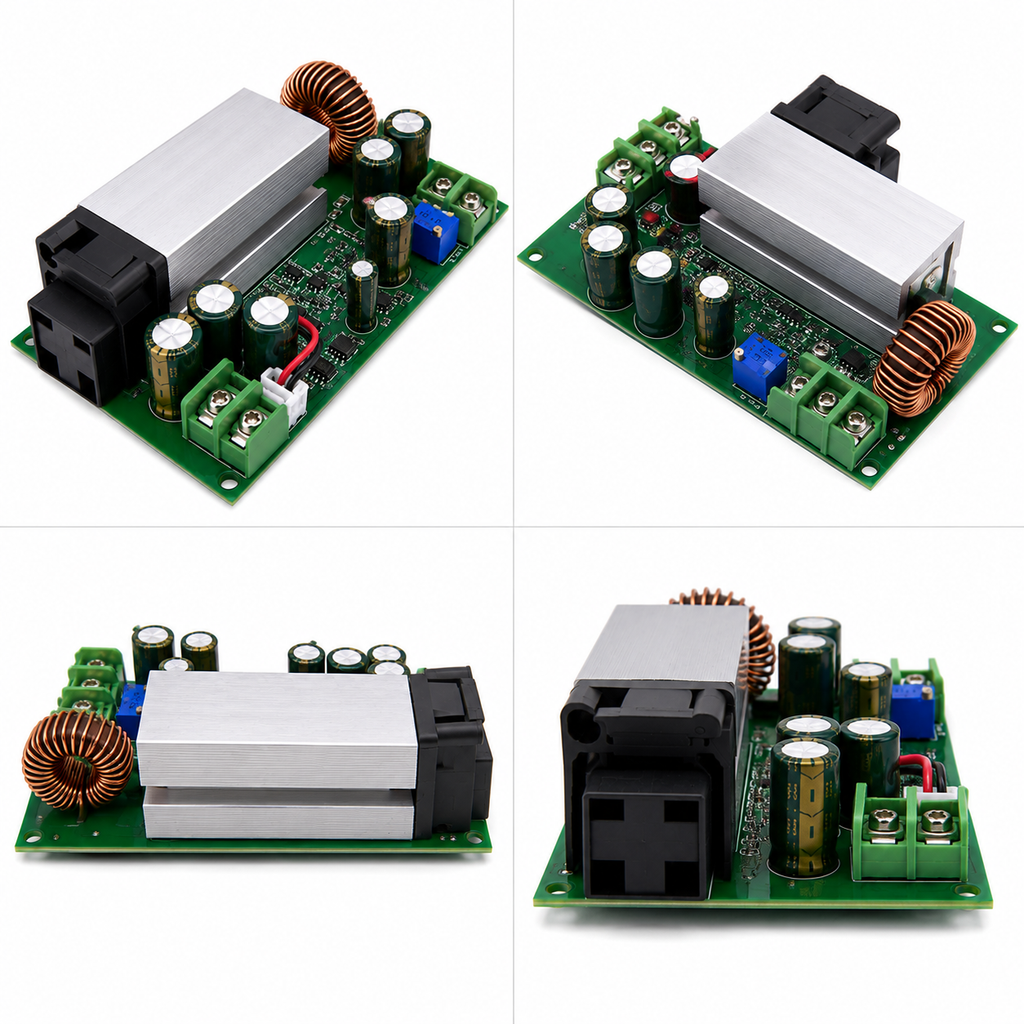

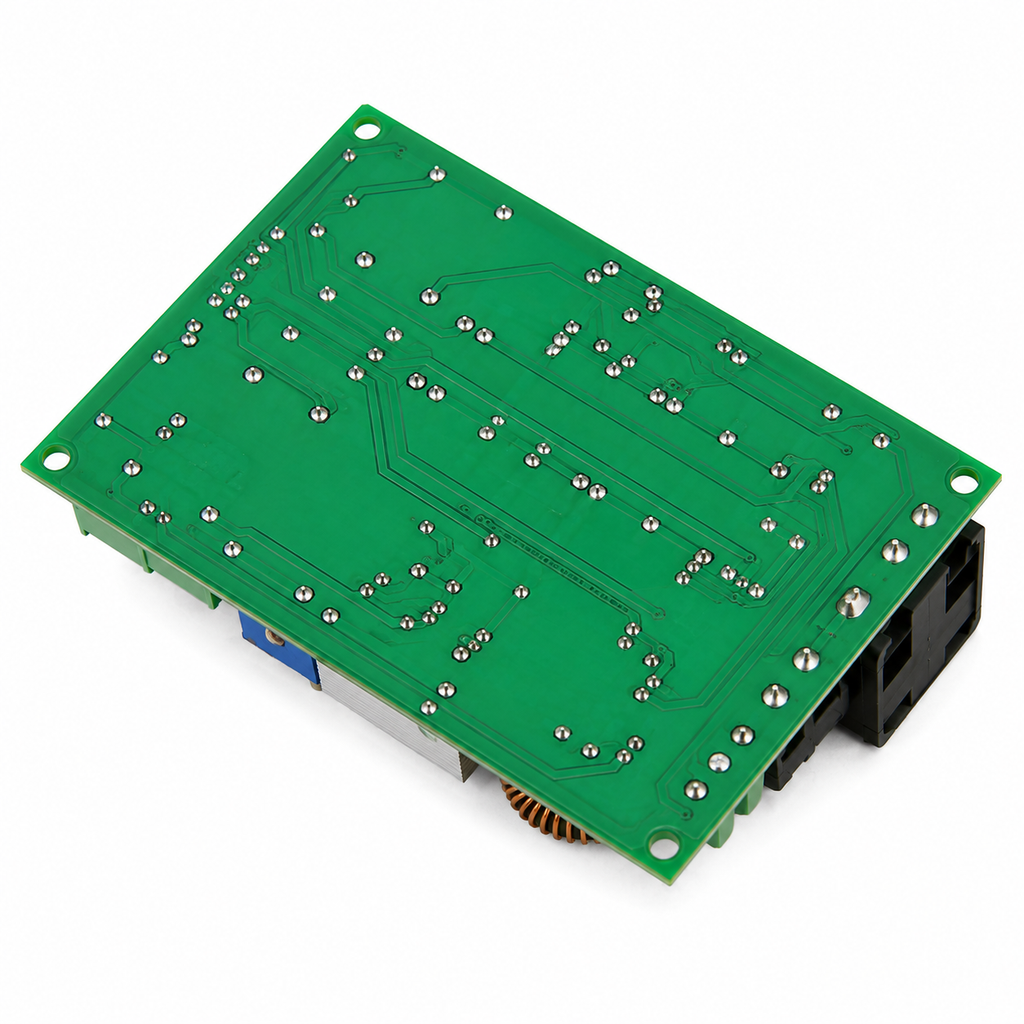

600W 25A High-Power DC-DC Adjustable Step-Down Buck Converter Module 12V–75V to 2.5V–50V

The 600W 25A High-Power DC-DC Adjustable Step-Down Buck Converter Module is a high-efficiency voltage regulator designed to convert 12V–75V DC input into a stable 2.5V–50V adjustable output. With up to 95% conversion efficiency, it is suitable for battery charging, solar systems, LED drivers, industrial automation and laboratory power supplies.

Description

The 600W 25A High-Power DC-DC Adjustable Step-Down Buck Converter Module is a professional-grade DC voltage regulator engineered for applications requiring high current, stable output voltage and excellent conversion efficiency. It accepts a wide 12V to 75V DC input and provides a fully adjustable 2.5V to 50V DC output, making it suitable for numerous industrial, commercial and DIY power conversion projects. As a buck (step-down) converter, it efficiently reduces higher DC voltages while minimizing energy loss and heat generation.

Designed with a heavy-duty PCB, high-current terminals and a large aluminium heatsink, this module can deliver up to 25A maximum output current and 600W maximum output power under appropriate operating conditions. The precision VADJ potentiometer allows accurate voltage adjustment, while its high conversion efficiency of up to 95% improves overall system performance. Common applications include converting 48V to 24V, 24V to 12V, 12V to 5V, powering high-current electronics, charging battery packs and supplying regulated DC voltage to industrial equipment.

This converter is widely used in solar energy systems, electric vehicles, CNC machines, robotics, LED lighting, communication equipment and laboratory power supplies. For optimal performance, use thick wiring, proper ventilation and additional cooling when operating at high loads. When charging batteries, install a suitable blocking diode or reverse-current protection device to prevent battery backflow when the input power is disconnected.

Features

• High-power DC-DC step-down (Buck) converter
• Wide 12V–75V DC input range
• Adjustable 2.5V–50V DC output
• Maximum output current up to 25A (manufacturer rating)
• Maximum output power up to 600W (manufacturer rating)
• High conversion efficiency up to 95%
• Precision output voltage adjustment (VADJ)
• Large aluminium heatsink for efficient cooling
• Heavy-duty PCB for high-current applications
• Ideal for battery charging, solar systems and industrial DC power regulation

Technical Specifications

Common Voltage Conversion Examples

Applications

The 600W 25A High-Power DC-DC Adjustable Step-Down Buck Converter Module is suitable for a wide range of high-current DC power applications, including:

• Battery charging systems (Li-ion, LiFePO₄ and Lead-acid with proper charging control)
• Solar power systems
• Adjustable laboratory DC power supplies
• Industrial automation equipment
• CNC machines
• Robotics and automation projects
• LED lighting and high-power LED drivers
• Electric vehicle (EV) projects
• Communication and networking equipment
• Automotive and 24V/48V DC power conversion
• DIY electronics and embedded systems
• DC motor power regulation

Package Includes

• 1 × 600W 25A High-Power DC-DC Adjustable Step-Down Buck Converter Module

Important Notes

• This is a Step-Down (Buck) Converter and cannot increase (boost) voltage.
• The input voltage must always be higher than the selected output voltage.
• The 600W output power and 25A output current are maximum manufacturer ratings. Actual continuous performance depends on input/output voltage difference, cooling, ambient temperature and load conditions.
• For high-current operation, use short, thick power cables to minimize voltage drop and heat generation.
• Ensure proper ventilation or use an additional cooling fan for prolonged high-power operation.
• Always verify the output voltage with a digital multimeter before connecting sensitive electronic equipment.
• Double-check input and output polarity before powering the module to avoid permanent damage.
• Do not operate the module in humid, wet or corrosive environments.

Battery Charging Safety Note

This module can be used as an adjustable power supply for battery charging when configured correctly. However:

• Set the correct charging voltage before connecting the battery.
• Use an appropriate charging current for the battery type and capacity.
• Install a blocking diode or suitable reverse-current protection device at the output to prevent battery backflow when the input supply is removed.
• Always use a compatible Battery Management System (BMS) when charging lithium battery packs.
• Never leave batteries unattended during charging.

Output Voltage Adjustment

1. Connect the DC input power supply to IN+ and IN−.
2. Before connecting your load, measure the output using a digital multimeter.
3. Rotate the VADJ multi-turn potentiometer:
   • Clockwise: Increases the output voltage (most module versions).
   • Counter-clockwise: Decreases the output voltage.
4. Adjust until the desired output voltage is reached.
5. Power off the module before connecting your load if significant adjustments were made.

Note: Potentiometer rotation direction may vary slightly between manufacturers. Always monitor the output voltage while adjusting.

FAQs

Is this a Buck or Boost converter?

This is a DC-DC Buck (Step-Down) Converter. It only reduces the input voltage and cannot increase it.

Can I convert 48V to 24V?

Yes. The module is ideal for converting 48V DC to 24V DC and many other lower output voltages within its adjustment range.

Can I use it for battery charging?

Yes. It is suitable for battery charging when the output voltage and charging current are correctly configured. A suitable BMS and reverse-current protection are recommended.

Does the module support continuous 600W output?

The 600W rating is the manufacturer's maximum specification. Continuous output depends on cooling, airflow, wiring quality and the difference between input and output voltage.

Is additional cooling required?

For high-current or continuous heavy-load operation, using an external cooling fan is strongly recommended to maintain stable performance.
