Product Overview
Build accurate line-following robots with this 5-Channel IR Line Tracking Sensor Module. Designed for Arduino, ESP32, Raspberry Pi, and robotics projects, it provides fast and reliable line detection for autonomous navigation.
Description

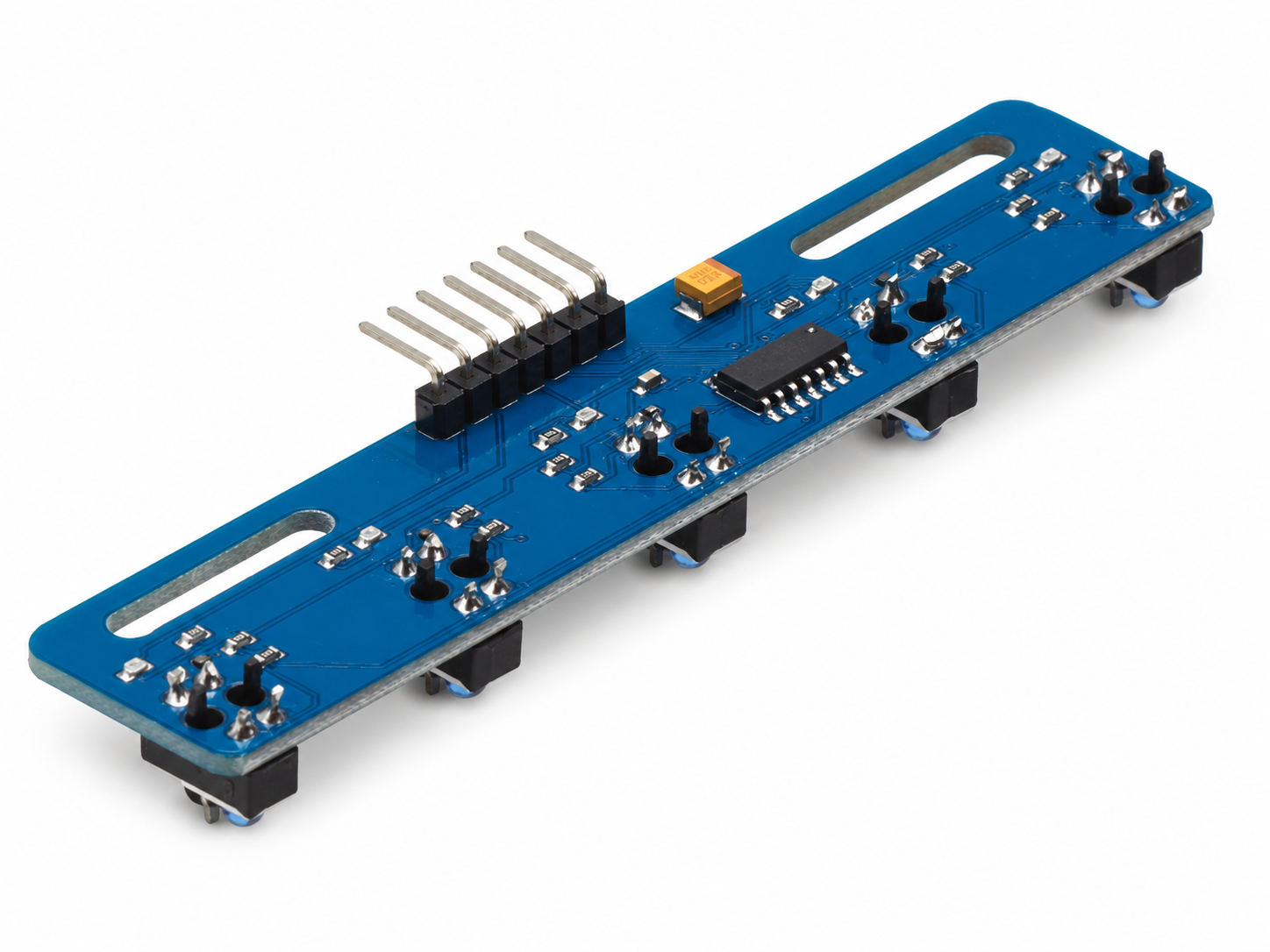

The 5-Channel IR Line Tracking Sensor Module is a high-performance infrared sensor array designed for line-following robots, autonomous vehicles, and robotics applications. Equipped with five independent infrared sensors, it accurately detects black and white surfaces, enabling precise path tracking and navigation.
Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, and other microcontroller platforms, this sensor module is ideal for educational robotics, STEM learning, automation, and DIY electronics projects.
Each infrared sensor continuously emits and receives reflected infrared light, allowing the module to determine the position of a line beneath the robot. The multiple sensing channels improve tracking accuracy, especially on curves and intersections.
Its slim PCB design, easy wiring, and digital outputs make it an excellent choice for beginners, students, hobbyists, and professional robotics developers.
Applications
- Line Following Robots
- Arduino Projects
- ESP32 Development
- Raspberry Pi Robotics
- Smart Robot Cars
- Autonomous Vehicles
- STEM Education
- DIY Electronics
- Industrial Automation
- Embedded Systems
- Object Path Detection
- Robot Competitions
- Educational Robotics
- Sensor Learning Projects
Key Features
- 5 Independent IR Tracking Sensors
- High-Speed Line Detection
- Accurate Black & White Surface Recognition
- Digital Output Signals
- Compact Linear Design
- Easy Microcontroller Interface
- Low Power Consumption
- Reliable Detection Performance
- Ideal for Educational Robotics
- Compatible with Popular Development Boards
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | IR Line Tracking Sensor Module |
| Sensor Channels | 5 |
| Detection Method | Infrared Reflection |
| Output Type | Digital |
| Interface | Header Pins |
Package Includes

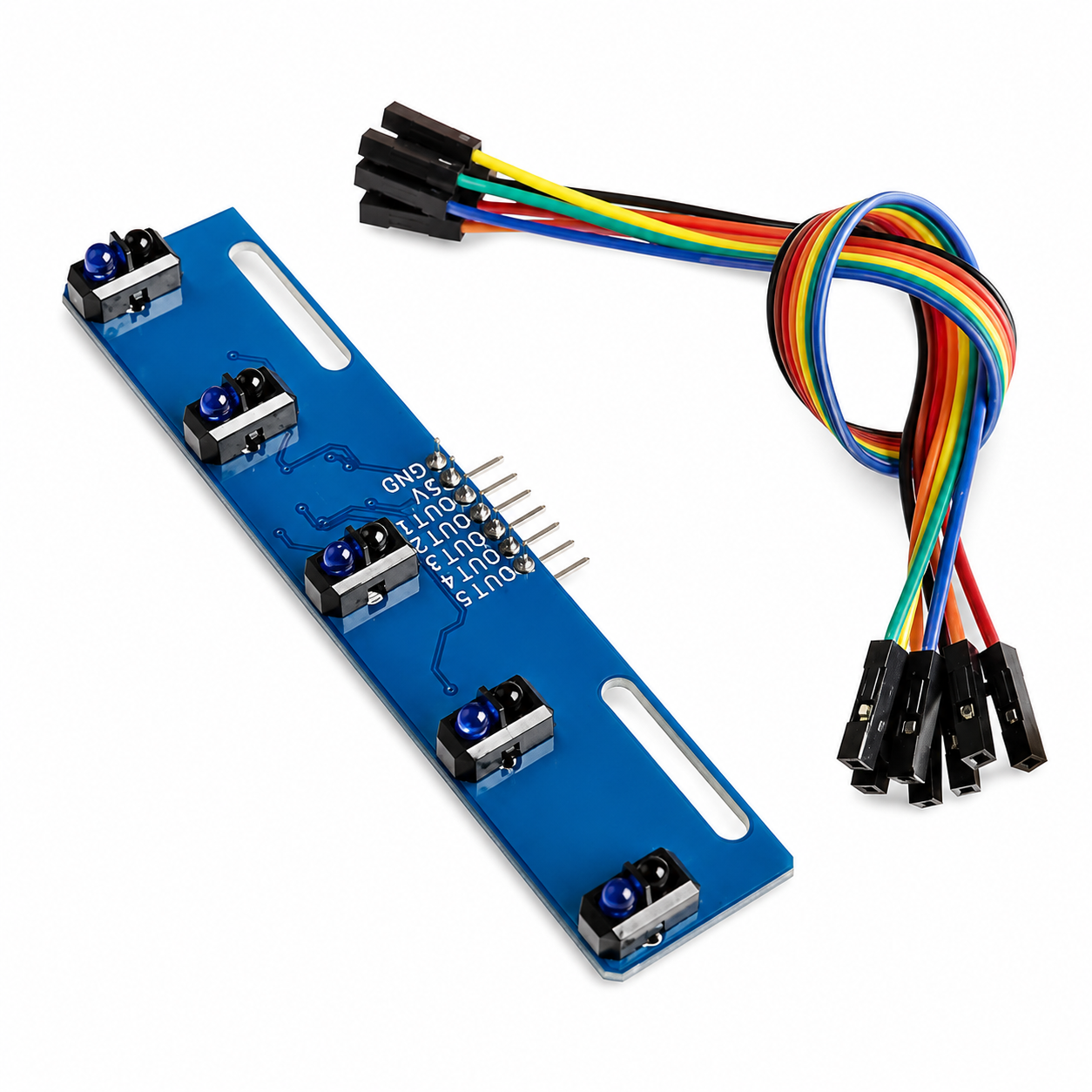

1 × 5-Channel IR Line Tracking Sensor Module 1 × Jumper Wire Cable
Datasheet Summary
- 5 IR Sensors
- Digital Output
- Linear Sensor Array
- Microcontroller Interface
- Jumper Cable Included
How It Works
The module uses five infrared transmitter and receiver pairs to detect reflected infrared light from the surface below. White surfaces reflect more infrared light than black lines. Each sensor outputs a digital signal indicating whether it detects a light or dark surface. By reading all five outputs simultaneously, a microcontroller can determine the position of the line and adjust the robot's steering for accurate path following.
