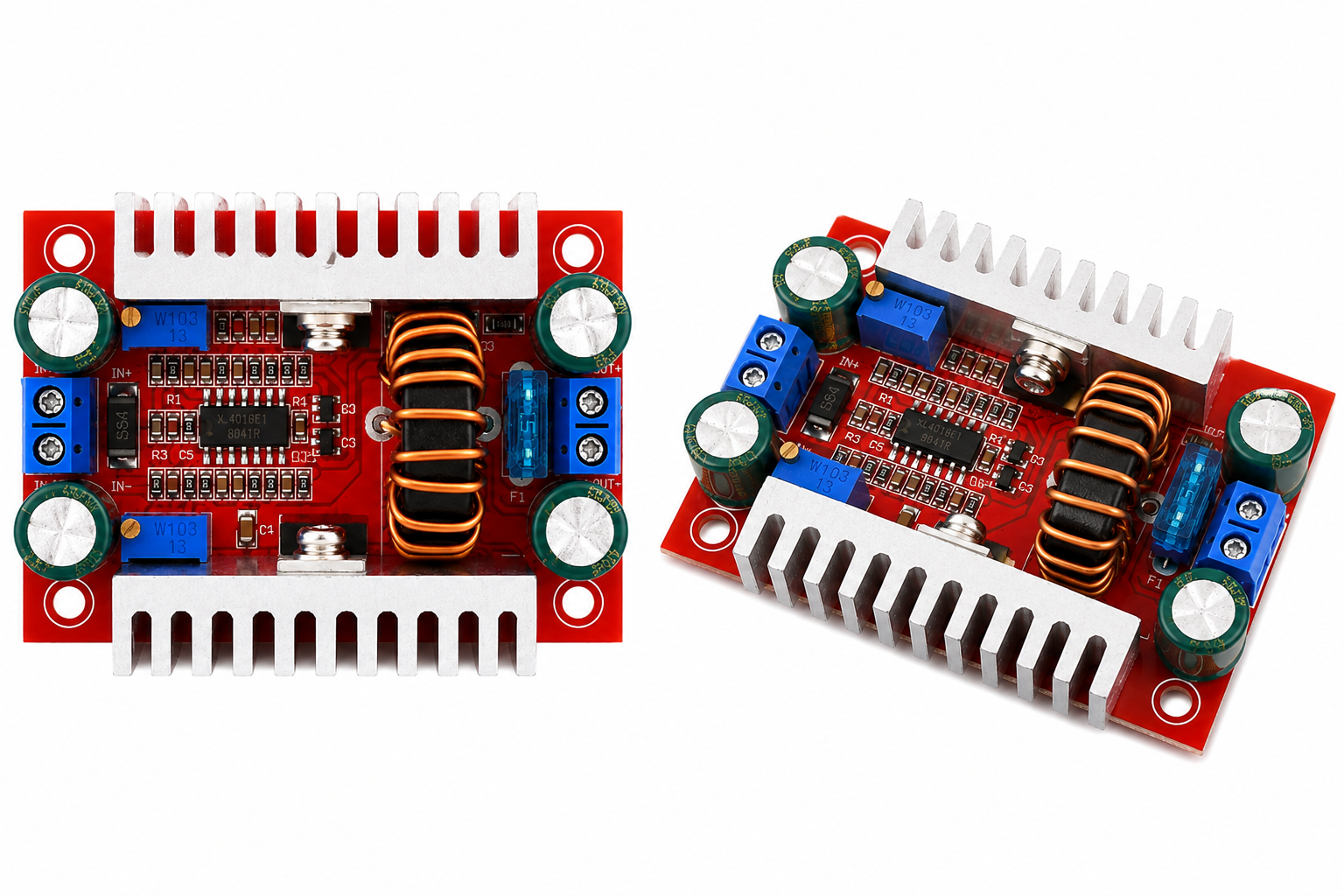

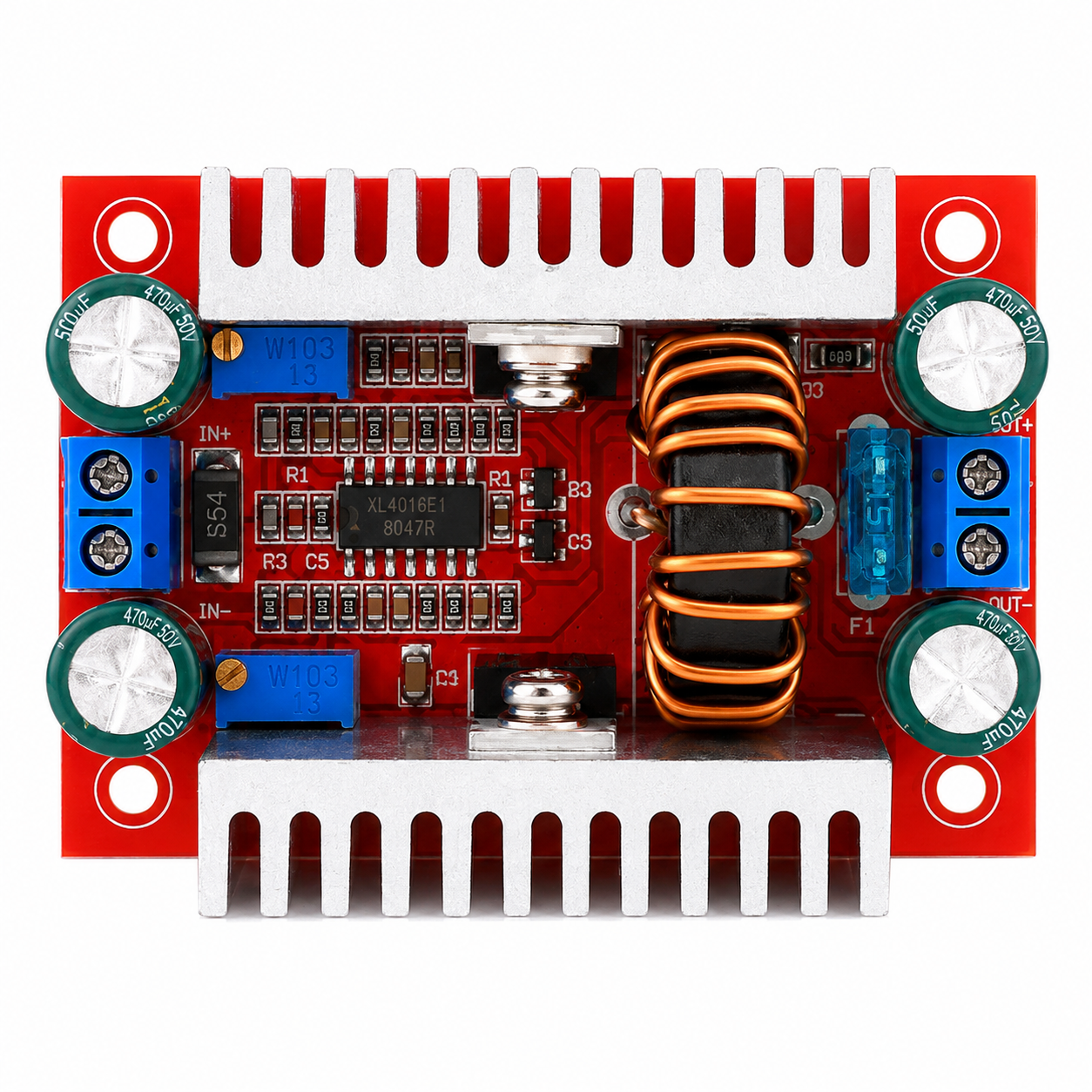

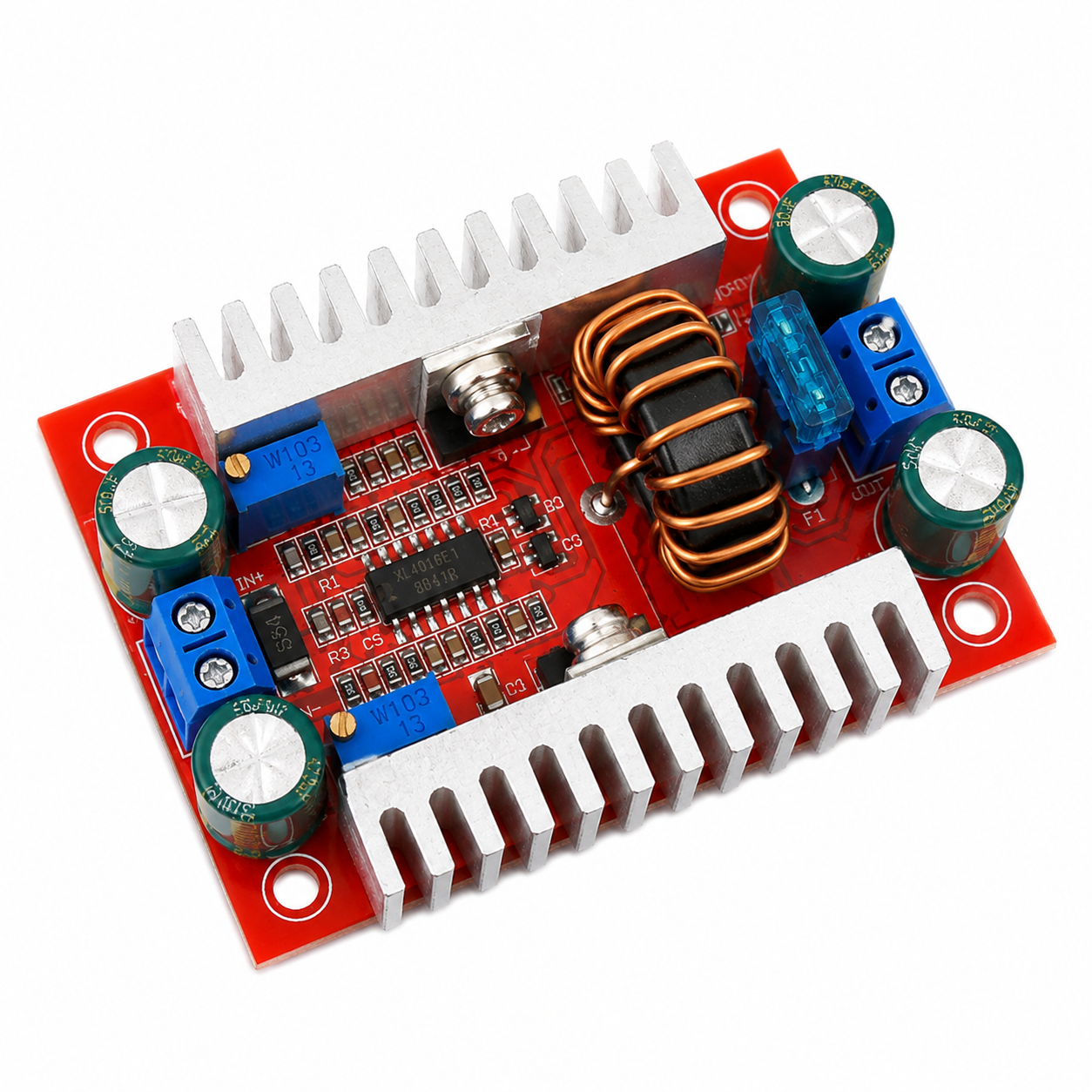

400W DC-DC Step-Up Boost Converter Module CC/CV

The 400W DC-DC Step-Up Boost Converter Module CC/CV is a high-efficiency adjustable voltage booster with constant current and constant voltage control. It supports an 8.5V–50V DC input, delivers an adjustable 10V–60V DC output, and is ideal for battery charging, solar systems, LED drivers, robotics, and laboratory power supplies.

Description

The 400W DC-DC Step-Up Boost Converter Module CC/CV is a powerful DC voltage booster designed for applications requiring a stable and adjustable higher output voltage. With a maximum output power of 400W and conversion efficiency of up to 96%, it provides reliable performance for demanding electronic projects.

The module features independent constant voltage (CV) and constant current (CC) adjustment, allowing precise control for battery charging, LED driving, and regulated power supply applications. Large dual aluminum heatsinks improve heat dissipation during high-current operation, while high-quality components ensure stable and efficient power conversion for industrial, automotive, laboratory, and DIY electronics projects.

Key Features

• High-power 400W boost converter
• Adjustable output voltage from 10V to 60V DC
• Wide input voltage range of 8.5V to 50V DC
• Constant Voltage (CV) adjustment
• Constant Current (CC) adjustment
• High conversion efficiency up to 96%
• Dual aluminum heatsinks for improved cooling
• Precision multi-turn adjustment potentiometers
• Suitable for battery charging applications
• Stable and reliable output regulation
• High-current screw terminal connections
• Compact PCB design

Technical Specifications

Note: High-power operation requires adequate ventilation or additional cooling for reliable long-term performance.

Product Attributes

Pin Details

Adjustment Controls

• CV Potentiometer: Adjusts the output voltage.
• CC Potentiometer: Adjusts the output current limit.

Compatibility

Compatible with:

• Solar Power Systems
• Lead-Acid Battery Charging
• Lithium Battery Charging
• LED Lighting Systems
• Automotive Electronics
• Laboratory Power Supplies
• DIY Electronics
• Robotics Projects
• Industrial Control Systems
• Embedded Power Applications

Applications

• Battery Chargers
• Solar Energy Systems
• LED Drivers
• Adjustable Power Supplies
• Automotive Voltage Boosting
• Industrial Equipment
• Robotics
• Laboratory Testing
• DIY Electronics
• Embedded System Power Supplies

Package Includes

• 1 × 400W DC-DC Step-Up Boost Converter Module CC/CV

Buy in Pakistan

Buy the 400W DC-DC Step-Up Boost Converter Module CC/CV from Chip.pk for high-efficiency DC voltage boosting and precise current control. Designed for battery charging, solar power systems, LED drivers, robotics, and industrial electronics, this module delivers stable performance with adjustable output voltage, constant current regulation, and efficient heat dissipation. Chip.pk offers genuine electronic components, secure packaging, competitive prices, and fast nationwide delivery across Pakistan.

Why Choose Chip.pk?

• Genuine quality electronic components
• Quality-tested before dispatch
• Competitive prices
• Fast nationwide delivery across Pakistan
• Secure packaging
• Reliable technical support
• Trusted supplier for electronics, automation, and robotics
• Excellent customer service and after-sales support

FAQs

1. What is the 400W DC-DC Step-Up Boost Converter Module CC/CV?

The 400W DC-DC Step-Up Boost Converter Module CC/CV is a high-power DC-DC voltage booster that increases a lower DC input voltage to a higher adjustable output voltage. It features Constant Voltage (CV) and Constant Current (CC) control for stable and accurate power regulation.

2. What input voltage does this module support?

The module accepts an input voltage range of 8.5V to 50V DC.

3. What is the adjustable output voltage range?

The output voltage can be adjusted from 10V to 60V DC, provided the input voltage is lower than the desired output voltage.

4. What is the maximum output power?

The module supports a maximum output power of 400W under suitable operating conditions with adequate cooling.

5. What is the maximum output current?

The maximum output current is 12A, while a continuous current of up to 10A is recommended with proper heat dissipation.

6. What is the difference between Constant Voltage (CV) and Constant Current (CC)?

• Constant Voltage (CV): Maintains a fixed output voltage.
• Constant Current (CC): Limits the output current to a preset value, making it suitable for battery charging and LED driving applications.

7. Can this module be used for battery charging?

Yes. The module is commonly used for charging lead-acid, lithium-ion, and LiFePO4 batteries when the output voltage and current are properly configured.

8. What are the common applications?

This module is suitable for:

• Battery Chargers
• Solar Power Systems
• LED Drivers
• Laboratory Power Supplies
• Robotics Projects
• Automotive Electronics
• Industrial Equipment
• DIY Electronics
• Embedded Systems
• DC Power Conversion

9. Does this module include cooling?

Yes. It features dual aluminum heatsinks and an input fuse to improve safety and heat dissipation during high-power operation.

10. Is this module suitable for beginners?

Yes. It is suitable for beginners with basic knowledge of DC power systems. Proper adjustment of the output voltage and current before connecting a load is recommended.
