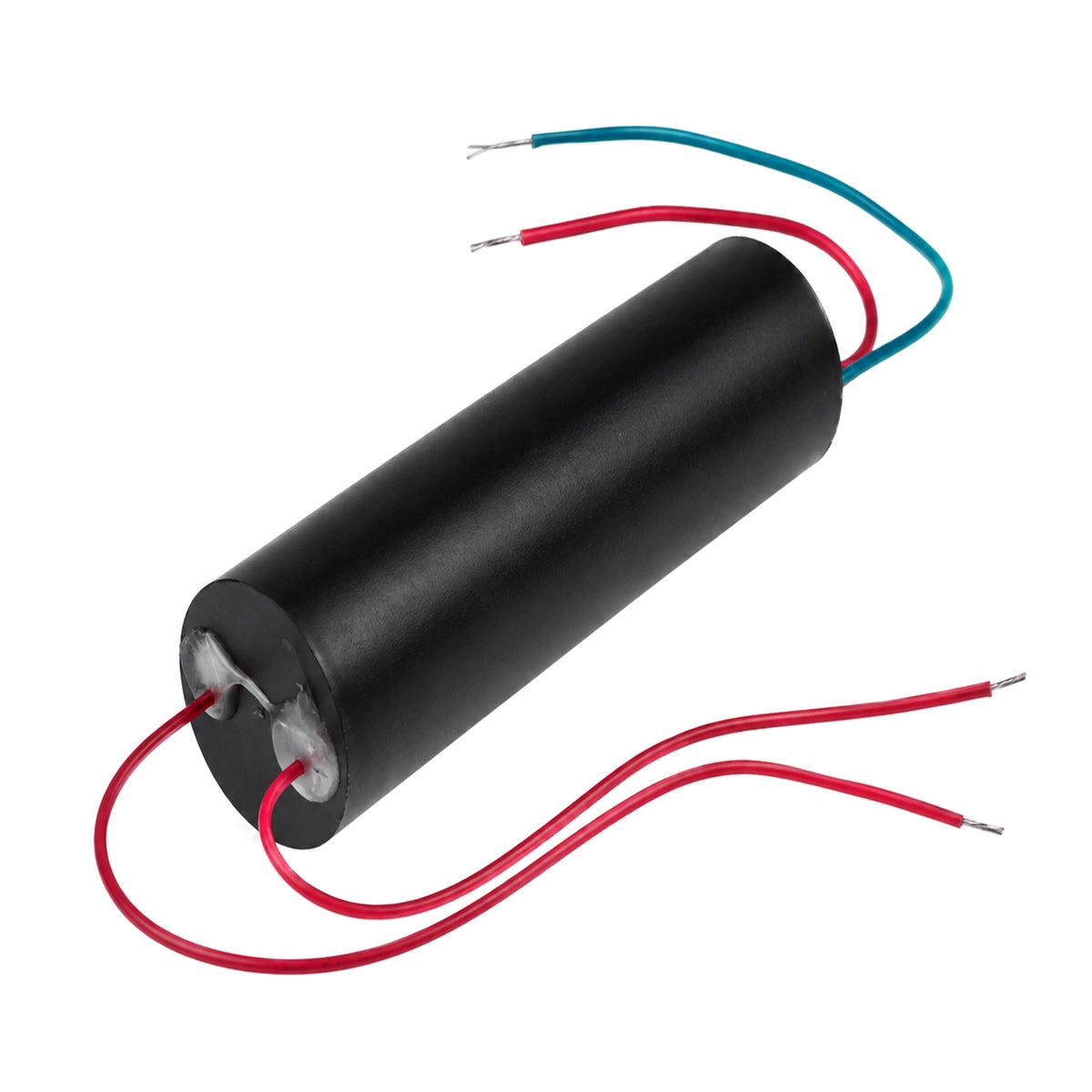

400KV High Voltage Generator Step-Up Power Module

The 400KV High Voltage Generator Step-Up Power Module is a compact DC high-voltage pulse generator designed for controlled electronics experiments and educational high-voltage applications. It operates from a low-voltage 3V–6V DC input and provides high-voltage pulse output through insulated output leads.

Description

The 400KV High Voltage Generator Module is a compact step-up module designed to produce high-voltage pulse output from a low-voltage DC supply. Similar modules are commonly specified for 3V–6V DC input, making them useful for controlled high-voltage electronics demonstrations and experimental projects.

The internal circuitry is enclosed inside an insulated cylindrical housing. Separate low-voltage input and high-voltage output leads simplify integration into appropriately designed experimental setups.

This module should be treated as high-voltage equipment rather than a conventional low-voltage DC converter. Appropriate insulation, spacing and electrical safety precautions are essential during use.

The term 400KV is retained because it is the common commercial designation used for this product category. Actual output depends on the specific module, input supply, load, operating conditions and measurement method; Chip.pk should therefore not represent 400,000V as a calibrated guaranteed output.

Key Features

• Compact high-voltage generator module
• 400KV commercial/module designation
• Low-voltage DC input
• Typical 3V–6V DC supply range
• High-voltage pulse output
• Integrated step-up circuitry
• Insulated cylindrical enclosure
• Separate input and output leads
• Compact design
• Suitable for controlled electronics experiments
• Simple module-level integration

Technical Specifications

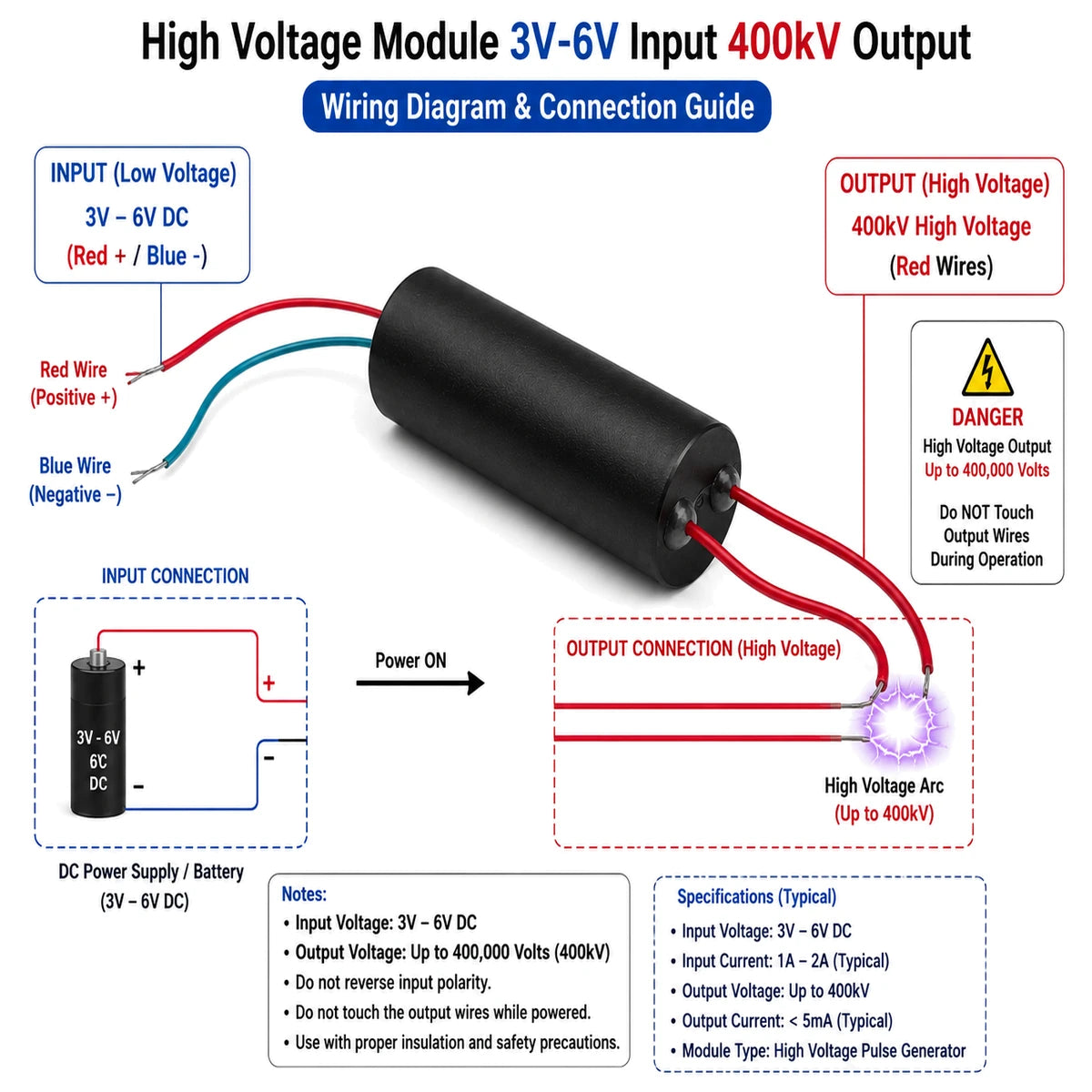

Connections

The product has two separate sets of leads:

Low-Voltage Input:
Used to supply the module from an appropriate low-voltage DC source.

High-Voltage Output:
The opposite pair of insulated leads provides the module's high-voltage pulse output.

Applications

Suitable applications include:

• Controlled high-voltage experiments
• Electronics laboratory demonstrations
• Educational electrical experiments
• High-voltage pulse experiments
• Science projects involving voltage transformation
• Experimental high-voltage circuits

This product should not be marketed or described for use as a stun gun, weapon, or personal-defense device.

Safety Warning

High Voltage Hazard: This module can generate hazardous high-voltage pulses. Do not touch the output leads while the module is powered or immediately after operation.Use appropriate electrical insulation, safe separation distances and controlled test equipment. Keep away from children and untrained users. Do not use near flammable materials, sensitive electronics or living subjects.

Package Includes

1 × 400KV High Voltage Generator Step-Up Power Module

Buy in Pakistan

Buy the 400KV High Voltage Generator Step-Up Power Module from Chip.pk for controlled electronics experiments, educational demonstrations and high-voltage laboratory projects in Pakistan.

FAQs

1. What is a 400KV High Voltage Generator Module?
It is a compact step-up power module designed to convert a low-voltage DC input into high-voltage pulse output for controlled electronics experiments and educational demonstrations.

2. What input voltage does this high voltage generator use?
This module is typically designed for a 3V–6V DC input.

3. Does this module actually produce exactly 400,000 volts?
400KV is the common commercial designation for this generic module family. It should not be interpreted as a calibrated or independently verified 400,000V output. Actual output can vary with the module, supply, load and operating conditions.

4. Is this a DC-to-DC step-up module?
It accepts a low-voltage DC supply and uses internal circuitry to generate a substantially higher-voltage pulse output. It should not be treated like a conventional regulated DC-DC converter.

5. How many wires does the module have?

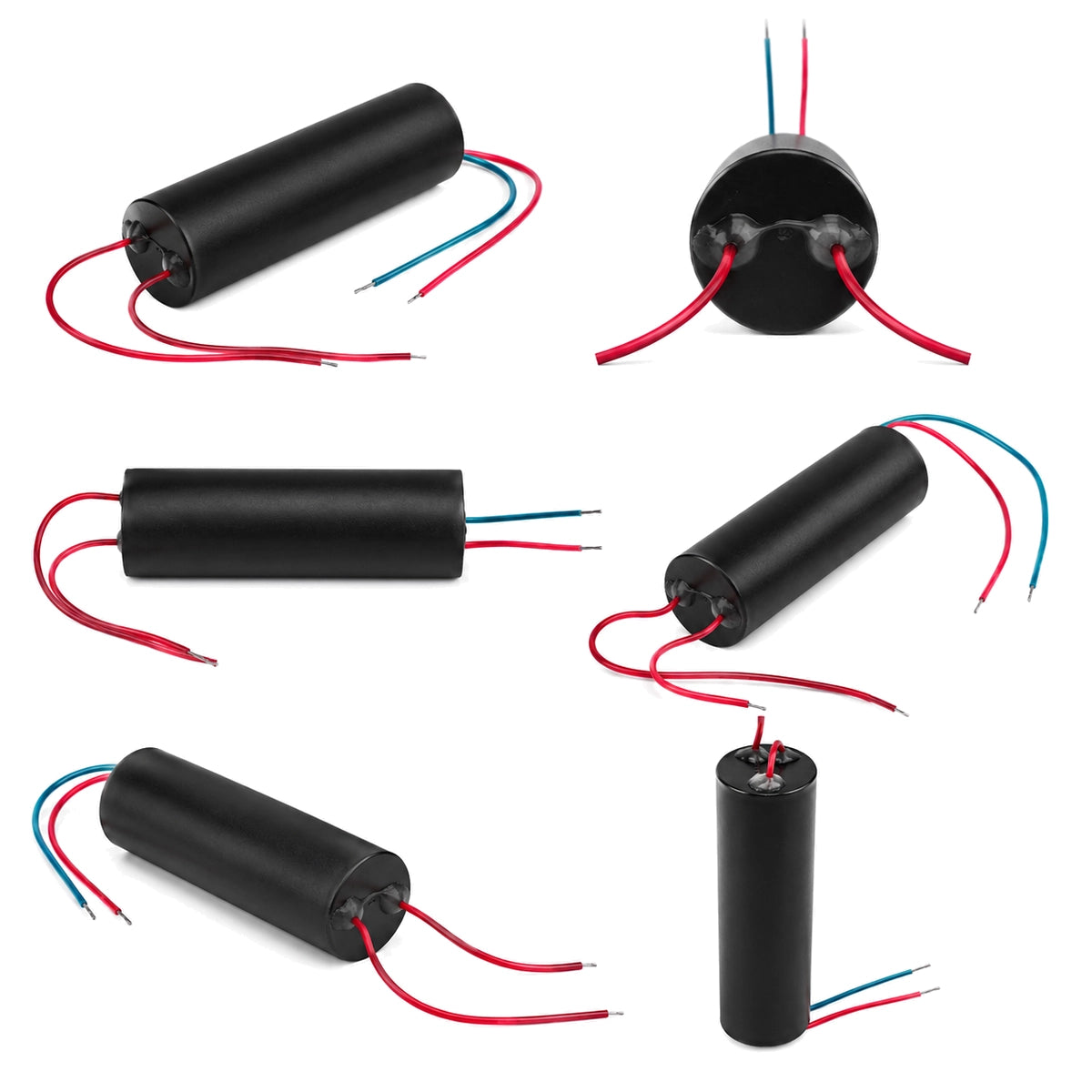

The pictured module has four external leads: two for the low-voltage input and two for the high-voltage output.

6. What are the red and blue input wires used for?
For this commonly sold module configuration, the red input lead is typically positive and the blue lead negative. Because generic production batches can vary, polarity should be confirmed before connection rather than relying solely on wire color.

7. Can this high voltage generator operate continuously?
Prolonged continuous operation is not recommended for this generic module family. Short, controlled operating periods help reduce overheating and potential module damage.

8. What projects can this module be used for?
It can be used in appropriately supervised high-voltage electronics experiments, educational demonstrations, voltage-transformation demonstrations and laboratory projects.

9. Is the output of this module dangerous?
Yes. The output can present a serious high-voltage electrical hazard. Output leads should never be touched while powered, and appropriate insulation, spacing and electrical safety procedures are required.

10. Can this module be used as a stun gun?
Chip.pk lists this product as a high-voltage electronics module for controlled experimental and educational applications, not as a weapon or personal-defense device.

11. Does the package include a battery or power supply?
No. Unless otherwise stated with the supplied stock, the package contains only 1 × High Voltage Generator Step-Up Power Module.

12. Where can I buy a 400KV High Voltage Generator in Pakistan?
You can purchase the 400KV High Voltage Generator Step-Up Power Module from Chip.pk for suitable electronics and educational high-voltage experiments in Pakistan.
