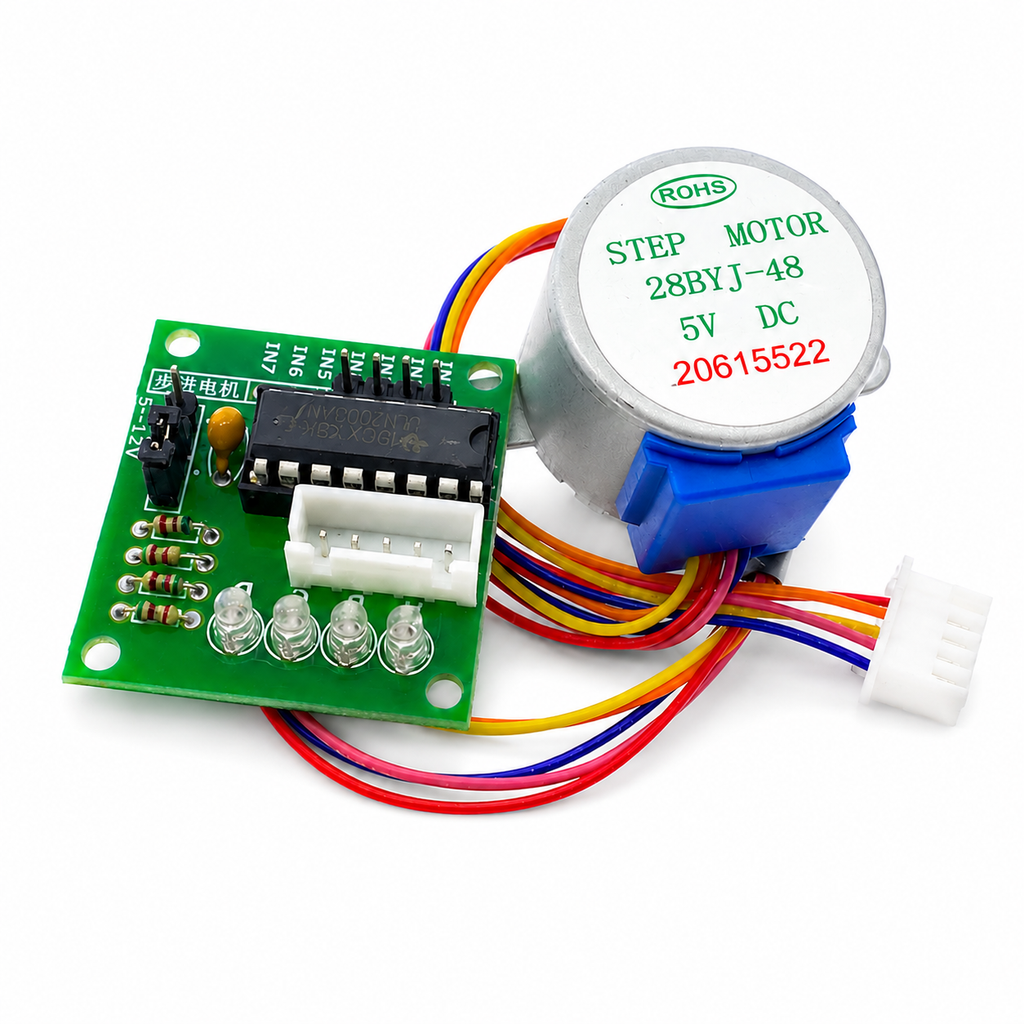

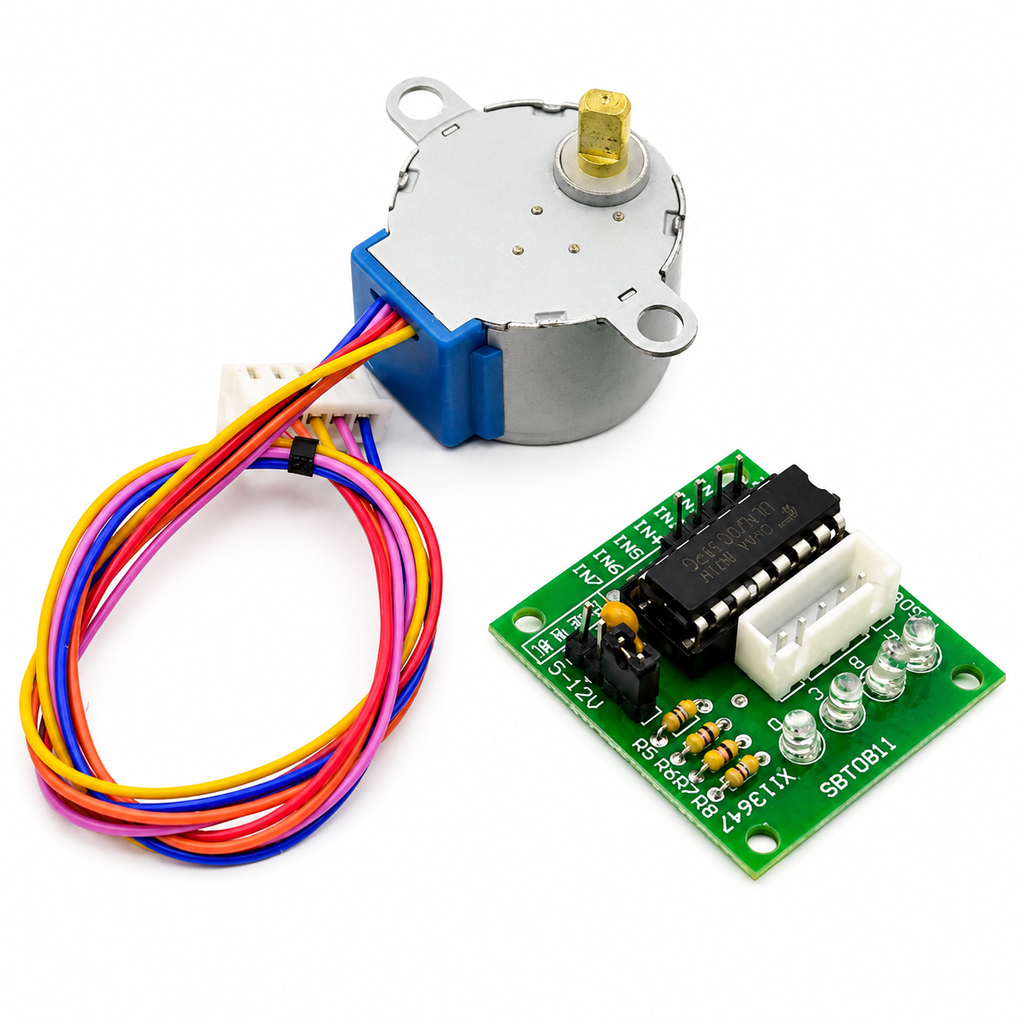

28BYJ-48 5V Stepper Motor with ULN2003 Driver Board for Arduino & ESP32
28BYJ-48 5V Stepper Motor with ULN2003 Driver Board for Arduino & ESP32
Product Overview
The 28BYJ-48 5V Stepper Motor with ULN2003 Driver Board is an affordable and reliable motion control kit for Arduino, ESP32, Raspberry Pi, and robotics projects. Ideal for precise positioning, automation, and educational electronics.
Description
The 28BYJ-48 5V Stepper Motor with ULN2003 Driver Board is one of the most widely used stepper motor kits for beginners and professionals working with embedded systems and robotics. The kit combines the reliable 28BYJ-48 geared stepper motor with the ULN2003 driver board, allowing simple control from popular microcontrollers.
The geared stepper motor provides smooth, accurate rotational movement, making it ideal for applications that require precise positioning rather than continuous high-speed rotation. The included ULN2003 driver board simplifies interfacing by providing transistor-based current amplification and convenient indicator LEDs.
Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, PIC, and other development platforms, this motor kit is perfect for robotics, smart home devices, camera sliders, automatic curtains, valve control, educational STEM projects, and DIY automation.
Its low power consumption, compact size, and simple wiring make it one of the best choices for learning stepper motor control and building precision motion systems.
Applications
- Arduino Projects
- ESP32 Projects
- Raspberry Pi Projects
- Robotics
- Smart Home Automation
- Camera Sliders
- Automatic Curtain Systems
- Valve Control
- Educational Robotics
- STEM Learning
- CNC Learning Projects
- DIY Electronics
- Embedded Systems
- Precision Motion Control
Key Features
- 28BYJ-48 Geared Stepper Motor
- ULN2003 Driver Board Included
- Precise Step-by-Step Rotation
- Simple 5-Pin Motor Connection
- Low Power Consumption
- Smooth Motion Control
- LED Status Indicators on Driver Board
- Easy Interface with Microcontrollers
- Ideal for Robotics & Automation
- Beginner-Friendly Design
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Stepper Motor Kit |
| Motor Model | 28BYJ-48 |
| Driver Board | ULN2003 |
| Operating Voltage | 5V DC |
| Motor Type | 4-Phase Unipolar Stepper Motor |
| Connector | 5-Pin JST Connector |
| Driver Interface | IN1, IN2, IN3, IN4, VCC, GND |
| Gearbox | Integrated Reduction Gear |
Package Includes
1 × 28BYJ-48 5V Stepper Motor 1 × ULN2003 Driver Board
Datasheet Summary
| Parameter | Details |
|---|---|
| Motor Model | 28BYJ-48 |
| Driver IC | ULN2003 |
| Operating Voltage | 5V DC |
| Motor Type | 4-Phase Unipolar Stepper Motor |
| Driver Inputs | IN1, IN2, IN3, IN4 |
| Motor Connector | 5-Pin JST |
| Compatible Platforms | Arduino, ESP32, Raspberry Pi, STM32, AVR |
How It Works
The ULN2003 driver board receives digital control signals from a microcontroller such as an Arduino or ESP32 and energizes the motor coils in sequence. This controlled switching causes the 28BYJ-48 stepper motor to rotate in precise increments, enabling accurate position and speed control. The integrated gear reduction improves torque and positioning accuracy, making it suitable for robotics and automation applications.
