IGBT Bridge 100A 1600V Bridge For IGBT
IGBT Bridge 100A 1600V Bridge For IGBT
Product Overview

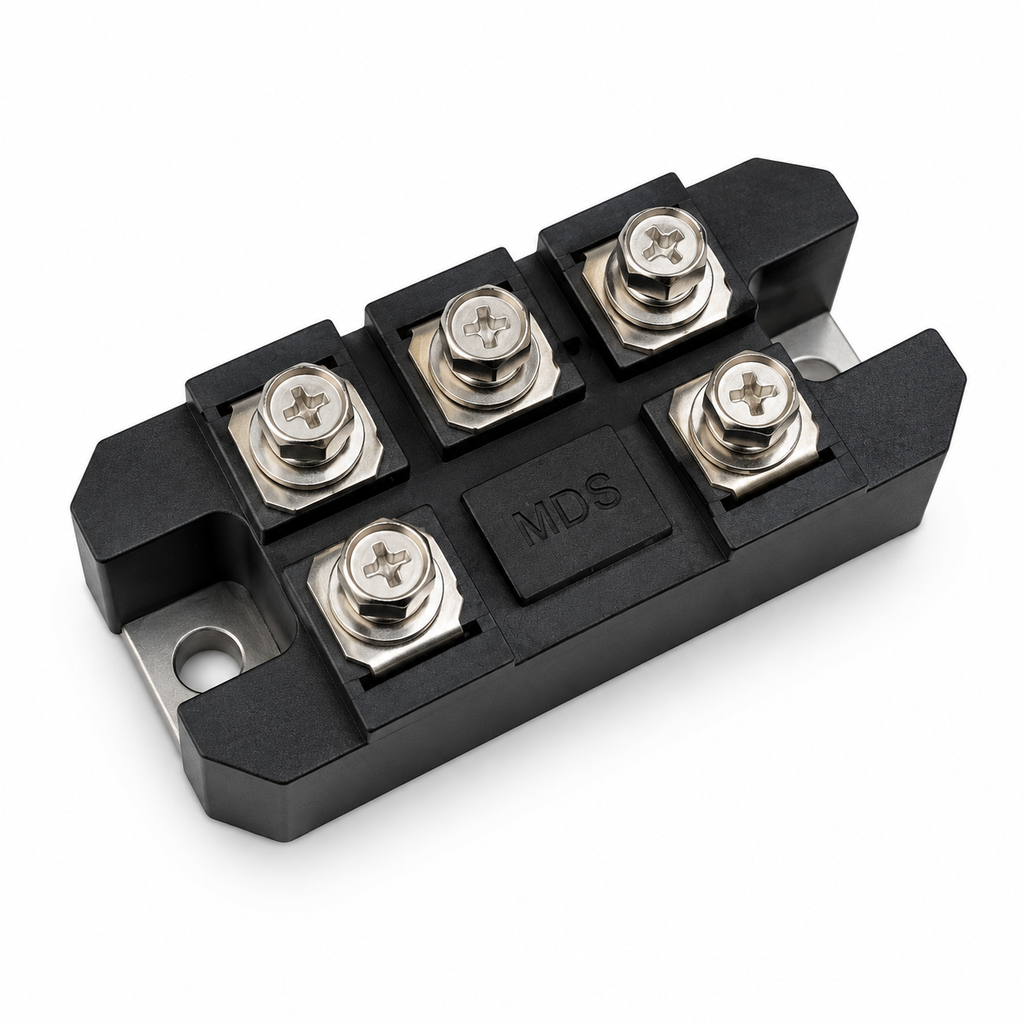

The 6RI100G-160 100A 1600V IGBT Bridge Rectifier Module is a high-power three-phase rectifier designed for industrial motor drives, welding machines, induction heating systems, and inverter applications. With a robust 100A current rating and 1600V voltage capacity, it efficiently converts AC power to DC for reliable IGBT-based power control systems.
Description
The 100A 1600V IGBT Bridge Rectifier Module (6RI100G-160) is a high-power three-phase rectifier designed for industrial power conversion systems. Manufactured for demanding applications, this module efficiently converts three-phase AC power into stable DC voltage for use in IGBT-based inverter systems.
With a maximum forward current rating of 100A and a reverse voltage rating of 1600V, this bridge rectifier is suitable for high-power motor drives, welding equipment, induction heating systems, UPS systems, battery chargers, industrial automation equipment, and power electronics projects.
Its robust construction ensures reliable operation under heavy electrical loads while providing efficient rectification performance. The module is commonly used as the front-end rectifier stage before IGBT inverter modules in industrial frequency converters and high-power switching systems.
Designed for industrial environments, the 6RI100G-160 offers high current handling capability, low conduction losses, and dependable long-term performance.
Applications
- Industrial motor drives
- Variable Frequency Drives (VFDs)
- IGBT inverter systems
- Induction heating machines
- Welding machines
- UPS systems
- Industrial power supplies
- Battery charging systems
- Solar inverter systems
- CNC machinery
- Automation equipment
- High-power rectification circuits
Key Features
- High current capability up to 100A
- High voltage rating of 1600V
- Three-phase bridge rectifier design
- Suitable for industrial power electronics
- Reliable DC bus generation for IGBT inverters
- Rugged industrial-grade construction
- Low conduction losses
- High surge current tolerance
- Suitable for continuous operation
- Easy mounting and installation
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | FUJI Electric |

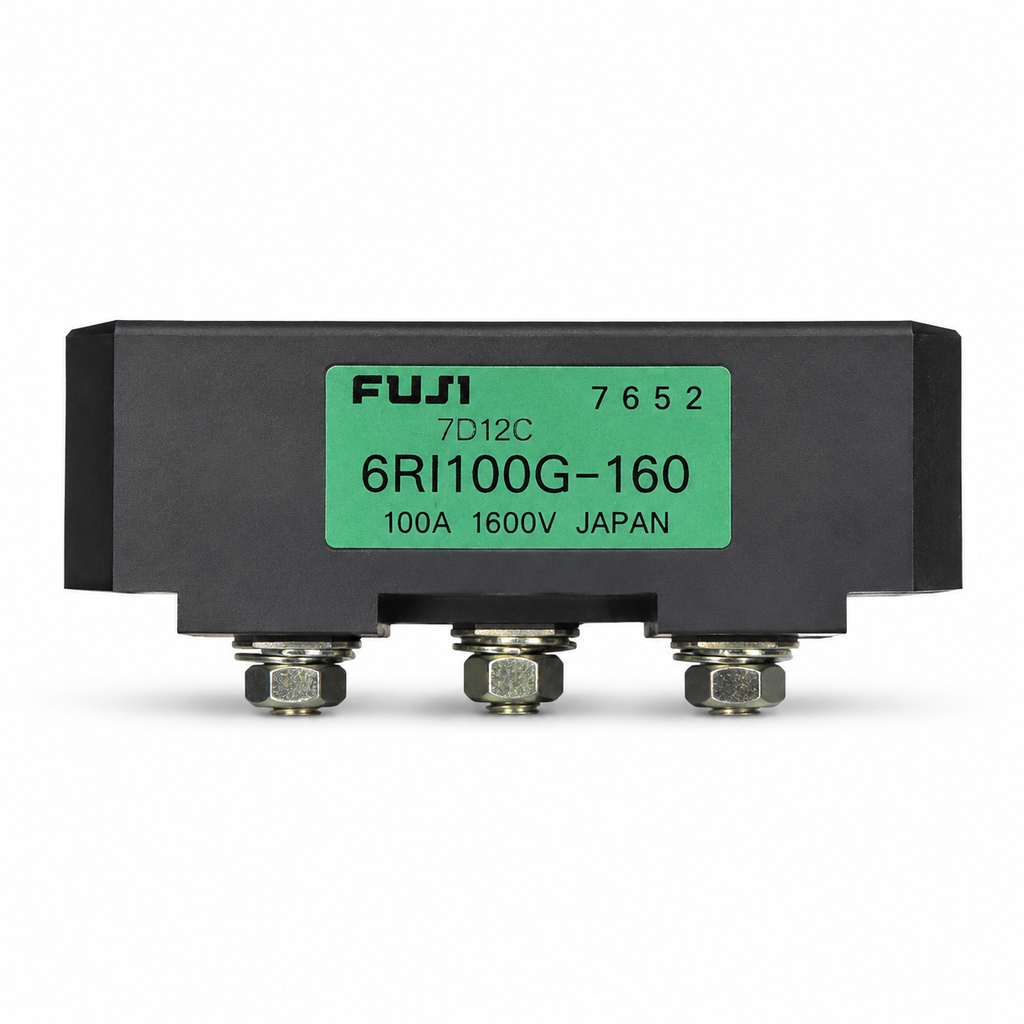

| Model Number | 6RI100G-160 |
| Device Type | IGBT Bridge Rectifier Module |
| Maximum Output Current | 100A |
| Maximum Reverse Voltage | 1600V |
| Country Marking | Japan |
| Terminal Type | Bolt Mount Power Terminals |
Industry Information
| Parameter | Value |
|---|---|
| Configuration | Three-Phase Bridge Rectifier |
| Rectifier Type | 6-Diode Bridge |
| Application | AC to DC Power Conversion |
Package Includes
- 1 × FUJI 6RI100G-160 IGBT Bridge Rectifier Module
Datasheet Summary
| Parameter | Details |
|---|---|
| Model | 6RI100G-160 |
| Manufacturer | FUJI Electric |
| Current Rating | 100A |
| Voltage Rating | 1600V |
| Configuration | Three-Phase Bridge Rectifier |
| Application | DC Bus Rectification |
| Mounting Type | Chassis Mount |
| Terminal Type | Stud/Bolt Terminals |
How It Works
The 6RI100G-160 functions as a three-phase bridge rectifier. It receives three-phase AC input from the power source and converts it into DC output using an internal six-diode bridge configuration.
The resulting DC voltage is supplied to capacitor banks and IGBT inverter stages, where it is converted into controlled AC output for motors, induction heating systems, welders, and industrial automation equipment.
This module serves as the critical front-end power conversion stage in many high-power industrial systems.
