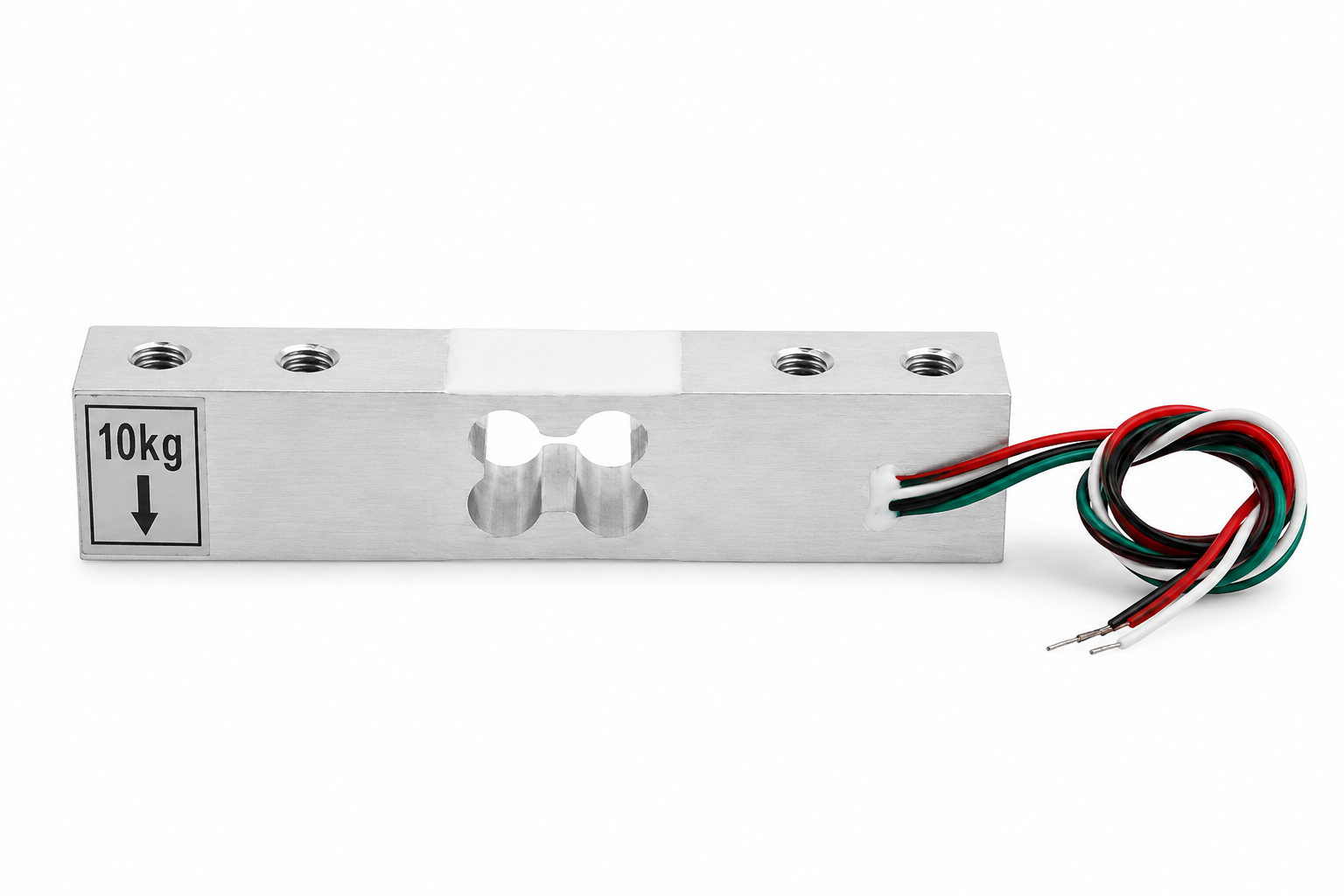

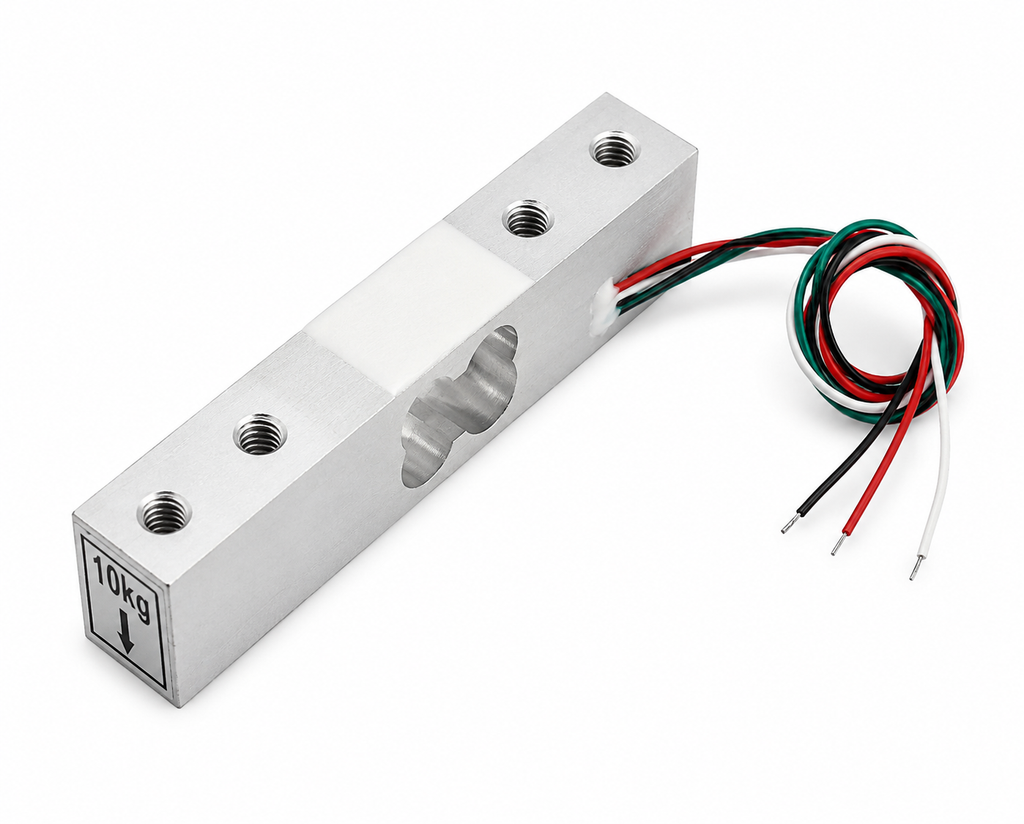

10KG YZC-131 Wide Bar Aluminum Load Cell Sensor
RS.350
Sale price
RS.350
Regular price
RS.
Product Overview
The 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor is a precision strain gauge sensor designed for accurate weight measurement. Its durable aluminum construction and stable performance make it ideal for digital weighing scales, smart vending systems, industrial automation, robotics, and embedded electronics projects.
Description
The 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor is engineered for reliable and accurate force measurement in compact weighing applications. Using precision strain gauge technology, it converts applied force into a proportional electrical signal that can be processed by a compatible load cell amplifier.

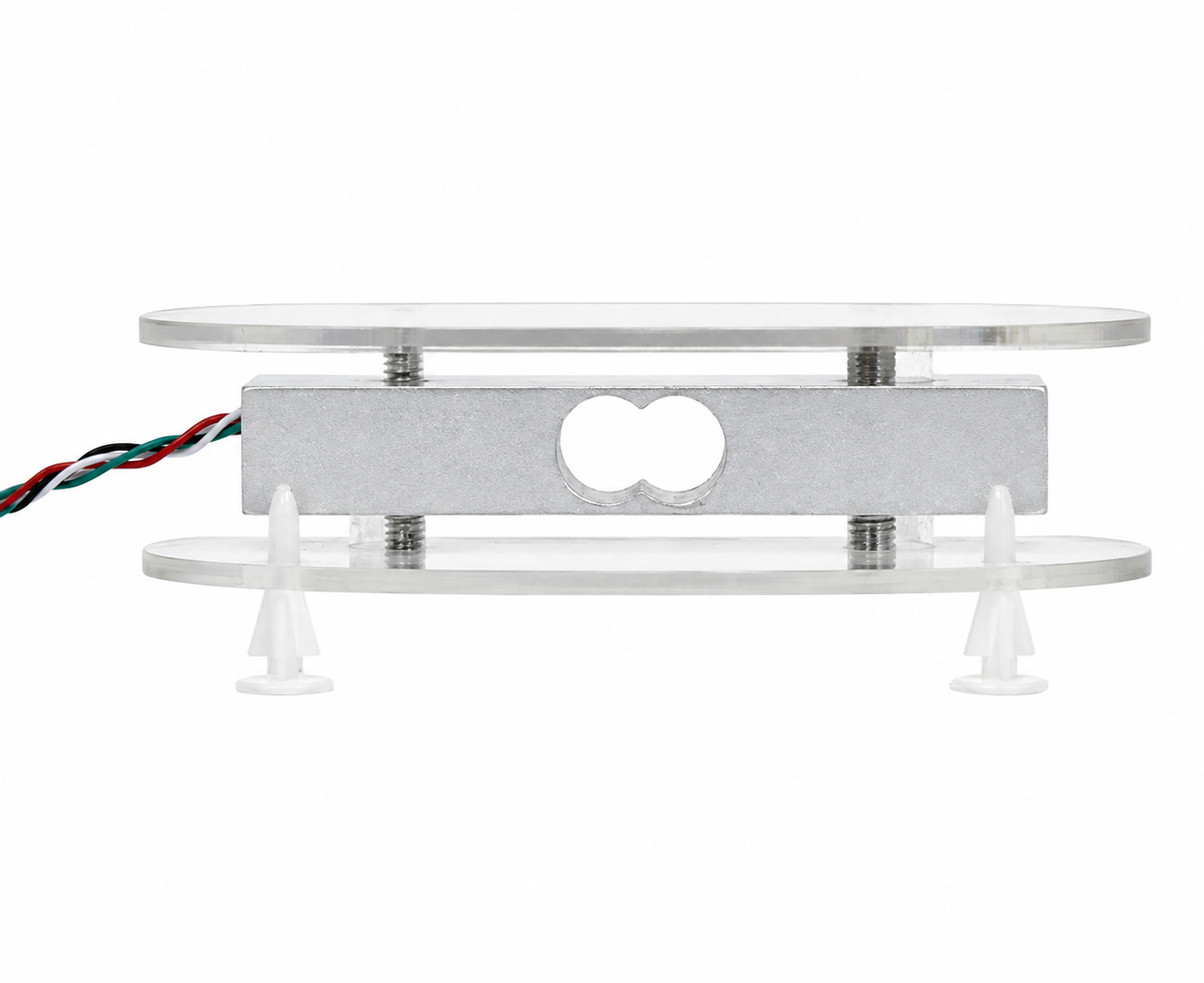

Its aluminum alloy body offers excellent strength while maintaining high sensitivity and repeatable measurement performance. The wide bar design allows easy installation in weighing platforms, making it suitable for electronic balances, kitchen scales, inventory systems, smart vending machines, agricultural equipment, and industrial automation.

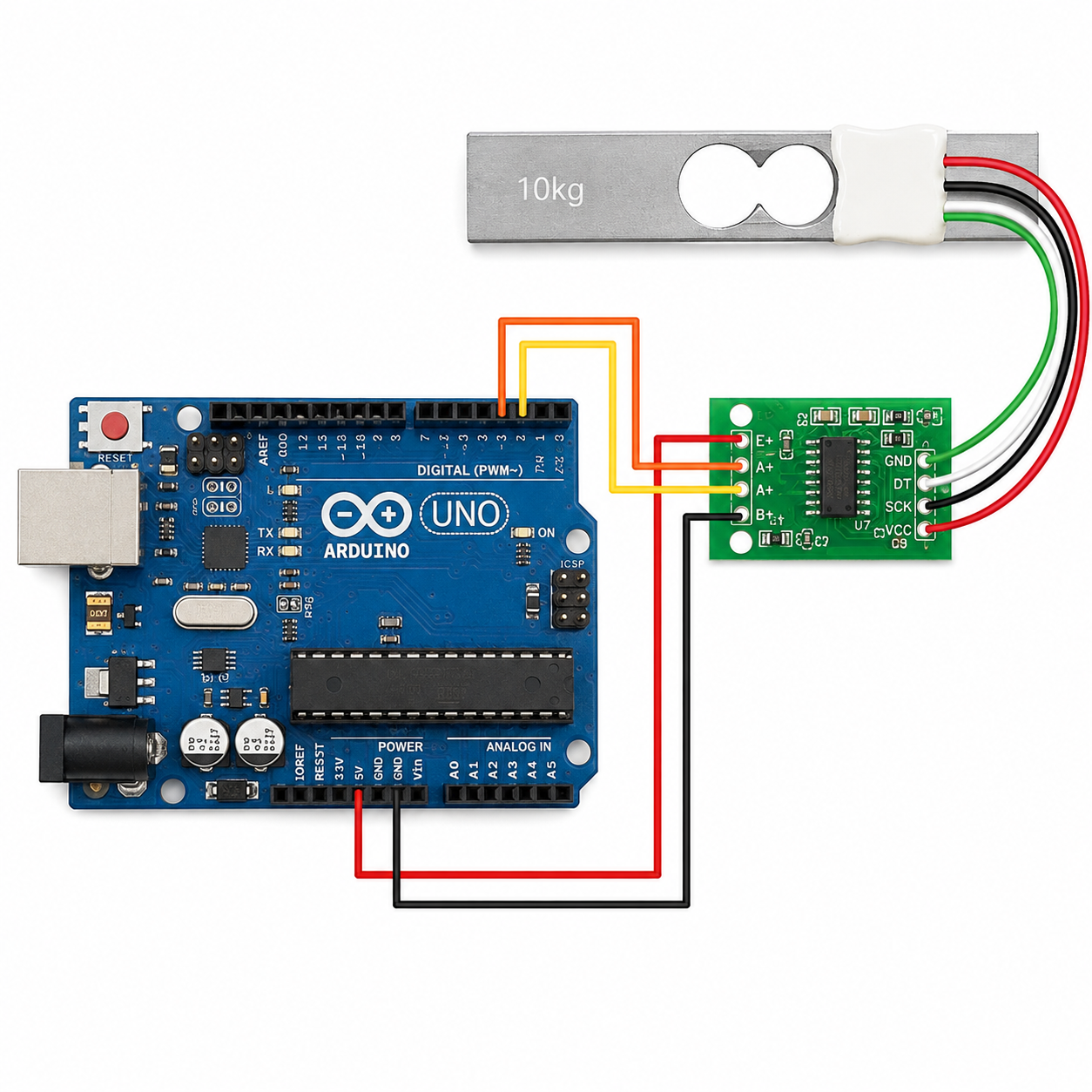

When combined with an HX711 amplifier, this sensor can be integrated with Arduino, ESP32, Raspberry Pi, STM32, and other embedded development platforms for custom digital weighing solutions.
Key Features
- 10KG maximum weighing capacity
- YZC-131 single point load cell
- High-precision strain gauge technology
- Durable aluminum alloy construction
- Wide bar design for stable measurements
- Lightweight and compact
- Excellent repeatability
- Analog millivolt output
- Compatible with HX711 amplifier
- Suitable for embedded weighing systems
- Easy installation
- Long service life
Technical Specifications
| Specification | Details |
|---|---|
| Model | YZC-131 |
| Rated Capacity | 10KG |
| Sensor Type | Strain Gauge Load Cell |
| Load Cell Type | Single Point |
| Material | Aluminum Alloy |
| Output Signal | Analog (mV/V) |
| Excitation Voltage | 5V–12V DC (Typical) |
| Cable Type | 4-Wire |
| Mounting | Screw Mount |
| Accuracy | High Precision |
Note: Cable length, sensitivity, dimensions, and excitation voltage may vary slightly depending on the manufacturer.
Product Attributes
| Attribute | Value |
|---|---|
| Capacity | 10KG |
| Model | YZC-131 |
| Material | Aluminum Alloy |
| Technology | Strain Gauge |
| Output | Analog |
| Wide Bar Design | Yes |
| High Precision | Yes |
| Compact Design | Yes |
| Reusable | Yes |
| Easy Installation | Yes |
Pin Details
Typical 4-wire connection:
| Wire Color | Function |
|---|---|
| Red | Excitation + (E+) |
| Black | Excitation − (E−) |
| Green | Signal + (S+) |
| White | Signal − (S−) |
Note: Wire colors may differ between manufacturers. Always verify the wiring before connecting to an HX711 or another load cell amplifier.
Compatibility
Compatible with:
- HX711 Load Cell Amplifier
- Arduino Boards
- ESP32 Development Boards
- Raspberry Pi
- STM32 Development Boards
- ESP8266 Modules
- PLC Systems (with suitable interface)
- Digital Weighing Indicators
Applications
- Digital Weighing Scales
- Kitchen Scales
- Electronic Balances
- Smart Vending Machines
- Industrial Automation
- Inventory Monitoring
- Agricultural Equipment
- Robotics
- IoT Weight Monitoring
- Educational Projects
Package Includes
- 1 × 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor
Buy in Pakistan
Buy the 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor from Chip.pk for accurate weight and force measurement in digital weighing systems. Its durable aluminum construction, reliable strain gauge technology, and compatibility with HX711 amplifiers make it an excellent choice for automation, embedded systems, robotics, and DIY electronics projects. Chip.pk offers quality electronic components, competitive pricing, secure packaging, and fast nationwide delivery across Pakistan.
Why Choose Chip.pk?
- Genuine quality electronic components
- Quality-tested before dispatch
- Competitive prices
- Fast nationwide delivery across Pakistan
- Secure packaging
- Trusted supplier for sensors and embedded electronics
- Technical support for makers, students, and engineers
- Reliable customer service and after-sales support
FAQs
1. What is the 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor?
The 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor is a precision strain gauge sensor designed to measure force and weight up to 10kg. It is commonly used in electronic weighing scales, automation systems, and embedded weighing projects.
2. How does a load cell sensor work?
The sensor uses strain gauge technology to convert applied force into a small electrical signal. This signal is typically amplified using an HX711 load cell amplifier before being processed by a microcontroller.
3. Can I connect this load cell directly to Arduino or ESP32?
No. The output signal is very small and requires a load cell amplifier, such as the HX711, before connecting it to Arduino, ESP32, Raspberry Pi, STM32, or other development boards.
4. What is the maximum weighing capacity?
The rated capacity of this load cell is 10KG. For the best accuracy and long service life, avoid exceeding the rated load.
5. What applications is this sensor suitable for?
It is suitable for:
- Digital Weighing Scales
- Kitchen Scales
- Electronic Balances
- Smart Vending Machines
- Industrial Automation
- Inventory Monitoring
- Agricultural Equipment
- Robotics
- IoT Weighing Systems
- DIY Electronics Projects
6. What material is the load cell made from?
The sensor is manufactured from aluminum alloy, offering a combination of lightweight construction, durability, and stable measurement performance.
7. What type of output does this sensor provide?
The YZC-131 provides a low-level analog millivolt (mV/V) output that requires signal amplification before it can be read by a microcontroller or weighing indicator.
8. Which development boards are compatible?
When used with an HX711 amplifier, the sensor is compatible with:
- Arduino
- ESP32
- ESP8266
- Raspberry Pi
- STM32
- PIC Microcontrollers
- Other 3.3V and 5V microcontroller platforms
9. Is this load cell suitable for DIY weighing projects?
Yes. Its compact design, stable performance, and easy integration make it an excellent choice for DIY electronic scales, smart weighing systems, and educational projects.
10. Where can I buy the 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor in Pakistan?
You can buy the 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor from Chip.pk with fast nationwide delivery, secure packaging, and reliable customer support.
11. Where can I buy the 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor in Lahore?
Customers in Lahore can order the 10KG YZC-131 Wide Bar Aluminum Load Cell Sensor from Chip.pk for quick local delivery or convenient pickup, subject to availability.
12. Which amplifier module is recommended for this load cell?
The HX711 Load Cell Amplifier Module is the most commonly used amplifier for this sensor. It provides accurate digital readings and simplifies integration with microcontroller-based weighing systems.
