1.3 Inch OLED Display 128x64 I2C SH1106 Module

The 1.3 Inch OLED Display Module features a 128×64 pixel resolution, SH1106 controller and I2C interface. It operates from 3.3V to 5V DC and provides a compact 4-pin connection for Arduino, ESP32, ESP8266, STM32, Raspberry Pi and other compatible development platforms.

Description

The 1.3 Inch OLED Display 128x64 I2C SH1106 Module is a compact graphical display suitable for embedded electronics, IoT devices, robotics and microcontroller projects. Its 128×64 pixel resolution provides a useful display area for text, sensor readings, icons, menus, status information and simple graphics.

The module uses the SH1106 display controller and communicates through an I2C/IIC interface. I2C communication requires only two signal lines, SCL and SDA, helping reduce the number of microcontroller GPIO pins required for the display.

This module operates from 3.3V to 5V DC and uses four connections: GND, VCC, SCL and SDA. It can be integrated with popular development platforms including Arduino, ESP32, ESP8266, STM32 and Raspberry Pi when configured with suitable I2C and SH1106 software support.

Current consumption is approximately 10mA to 30mA, depending on the number of illuminated pixels, displayed content, contrast settings and operating conditions.

Unlike conventional LCD modules that use a separate backlight, OLED pixels are self-emissive. This provides strong contrast and makes the display suitable for compact user interfaces, monitoring systems and portable electronic projects.

Key Features

• 1.3 Inch OLED display
• 128 × 64 pixel resolution
• SH1106 display controller
• I2C / IIC communication interface
• 3.3V to 5V DC operating voltage
• Approx. 10–30mA current consumption
• Compact 4-pin interface
• GND, VCC, SCL and SDA pin configuration
• Self-emissive OLED technology
• No separate backlight required
• Suitable for text, icons, menus and sensor readings
• Compatible with popular microcontroller platforms
• Suitable for embedded, IoT and robotics applications

Technical Specifications

Note: Current consumption may vary depending on the number of illuminated pixels, display content, contrast settings, supply voltage and module revision.

Pin Details

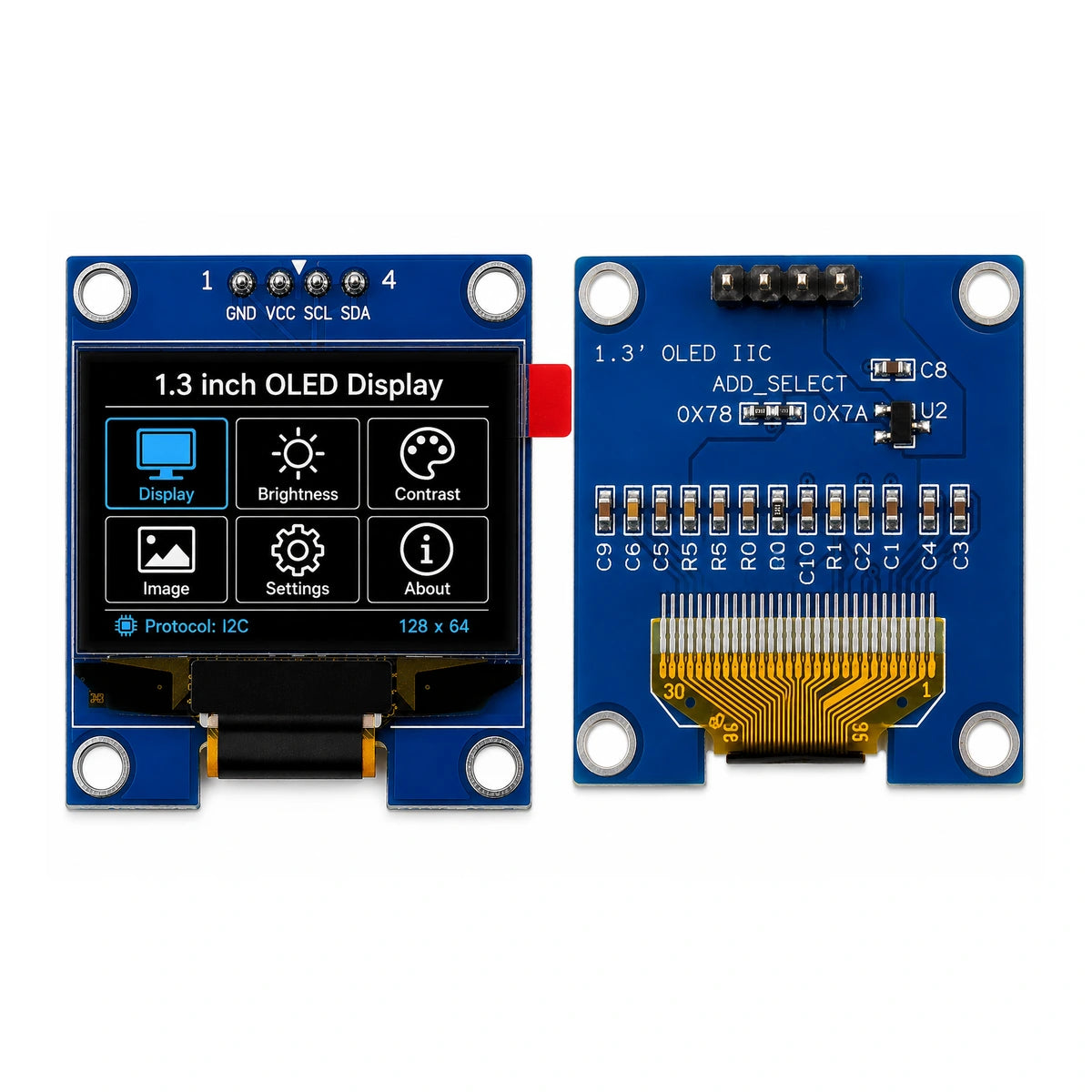

Actual Chip.pk module uses this pin configuration:

Important: Always check the labels printed on the actual module before applying power. Similar OLED modules may use a different VCC/GND pin arrangement.

Compatibility

This SH1106 OLED display can be integrated with compatible I2C-enabled platforms including:

• Arduino UNO
• Arduino Nano
• Arduino Mega
• ESP32
• ESP8266 / NodeMCU
• STM32 development boards
• Raspberry Pi
• Other compatible I2C microcontrollers and development boards

An appropriate SH1106-compatible library, constructor and initialization settings should be selected for the development platform being used.

Applications

• Sensor data displays
• Temperature and humidity monitors
• IoT monitoring devices
• Arduino projects
• ESP32 and ESP8266 projects
• STM32 embedded systems
• Raspberry Pi projects
• Robotics systems
• Battery monitoring systems
• Digital meters and instruments
• Menu and status displays
• Portable electronic devices
• Embedded control systems
• DIY electronics projects
• Educational electronics projects

Package Includes

1 × 1.3 Inch OLED Display 128x64 I2C SH1106 Module

Buy in Pakistan

Buy the 1.3 Inch OLED Display 128x64 I2C SH1106 Module in Pakistan from Chip.pk for Arduino, ESP32, STM32, Raspberry Pi, IoT, robotics, sensor monitoring and embedded electronics projects.

Why Choose Chip.pk

Chip.pk supplies electronics components and development hardware for students, engineers, universities, makers and professional developers in Pakistan. Clear technical specifications, actual product details and compatibility information help customers choose the right components for their electronics projects.

FAQs

1. What is a 1.3 Inch OLED Display Module?
The 1.3 Inch OLED Display is a compact 128×64 pixel graphical display for showing text, icons, menus, sensor readings, status information and simple graphics in embedded electronics projects.

2. Which controller is used in this 1.3 Inch OLED display?
This Chip.pk module uses the SH1106 controller and communicates through an I2C/IIC interface.

3. What is the operating voltage of this SH1106 OLED module?
The module operates from 3.3V to 5V DC, making it suitable for many commonly used microcontroller and development platforms.

4. What is the pin configuration of this 1.3 Inch OLED display?
The actual Chip.pk module has four pins in this order: GND, VCC, SCL and SDA. Always verify the labels printed on the PCB before applying power because similar OLED modules may use different pin arrangements.

5. How much current does the 1.3 Inch OLED display consume?
The module consumes approximately 10mA to 30mA, depending on the number of illuminated pixels, displayed content, contrast settings, supply voltage and operating conditions.

6. Can I use this 1.3 Inch OLED display with Arduino, ESP32 and STM32?
Yes. The display can be used with compatible Arduino, ESP32, ESP8266, STM32, Raspberry Pi and other I2C-enabled development platforms using appropriate SH1106 software support.

7. What can be displayed on this 128x64 OLED screen?
The 128×64 pixel display can show text, numerical readings, icons, menus, status indicators, sensor information and simple graphical elements depending on the software and library used.

8. Does this OLED display require a backlight?
No. OLED pixels are self-emissive, meaning they produce their own light and do not require a separate backlight like a conventional LCD.

9. What is the difference between SH1106, SSD1306 and SH1107 OLED drivers?
OLED modules can use different controller ICs depending on their design. SH1106 is commonly used with 128×64 OLED modules, while SSD1306 is another widely used OLED controller found in various display modules. SH1107 is used in some different display formats and memory arrangements, including certain 64×128 configurations. This Chip.pk 1.3 Inch OLED Display specifically uses the SH1106 controller, so an SH1106-compatible library and correct initialization settings or constructor should be selected.

10. Does the SH1106 OLED require a special library?
The display should be configured using a library that supports the SH1106 controller. Libraries such as U8g2 and other SH1106-compatible display libraries may be used depending on the microcontroller platform and development environment.

11. Where can I buy a 1.3 Inch SH1106 OLED Display in Pakistan?
You can buy the 1.3 Inch OLED Display 128x64 I2C SH1106 Module from Chip.pk for Arduino, IoT, robotics, sensor monitoring and embedded electronics projects in Pakistan.

12. Can I buy this 1.3 Inch OLED Display in Lahore?
Yes. Chip.pk supplies electronics components in Lahore and serves customers across Pakistan.
